Arlington LVU1W Recessed Low-Voltage Mounting Bracket

$ 11.99
Availability: Out Of Stock

SKU: LVU1W
Arlington
 Arlington,Electrical,Hardware
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Arlington's recessed low voltage mounting brackets are great for keeping low voltage connectors recessed and out of the way. This non-metallic, single gang, the white paintable bracket uses mounting wings to attach to walls 1/4" to 1-1/2" thick and can be used for retrofit or new construction. Designed for low voltage class 2 only. It is UL and CSA listed and comes with a recessed bracket, two attachable knockouts, one device plate, one trim plate, and four screws.

This bracket adjusts to fit a 1/4" to 1-1/2" wall thicknesses and the mounting wings hold the bracket securely against the wall when screws are tightened. The recessed bracket includes loops for tie-off; two attachable knockouts; one device plate; one trim plate; and four screws

Features:

  • Trade Size: 1-Gang
  • Type: Recessed Low Voltage Mounting Bracket
  • Single-Gang
  • Quantity: 1
  • Color: White
  • Non-metallic
  • Suitable for old or new work
  • Trim plate is paintable
  • Quick and easy installation and it's recessed so connectors don't extend past the wall surface
  • Adjusts to fit 1/4" to 1-1/2" wall thickness
  • Specially designed wing flips up when the mounting screw is tightened for a secure mount
  • The recessed bracket includes loops for tie-off, 2-attachable knockouts, 1-device plate, 1 trim plate, and 4-screws
  • UL & CSA listed
  • Usage Quick and Easy Installation of Class 2 Low-Voltage Wiring Recessed in the Wall

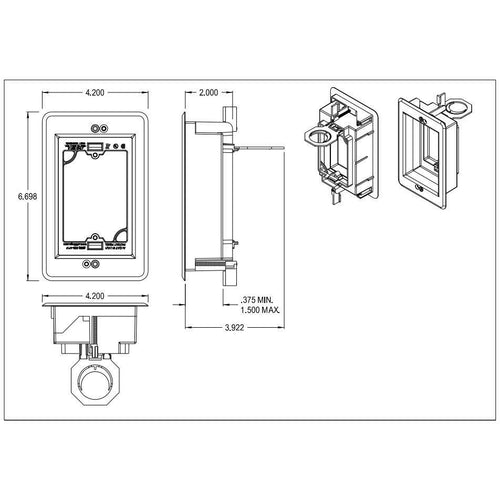

Measurements:

  • Depth: 2.125''
  • Height 6.698"
  • Width 4.200"
  • Depth Front Flange to Trim Plate: 1.375 inch
  • Side Wall Thickness - 0.085 inch
  • Front Flange Thickness - 0.130 inch
  • Panel Cut Out Dimensions -3.25 inch W x 5.9 inch H
  • Overall Dimensions - 4 3/16 inch W x 6 11/16 inch H x 2 3/16 inch D
