Arlington Triangle ceiling fan/fixture mounting box is suitable for new construction and fits cathedral ceilings up to 80-degree. This 8-Inch deep box supports bracket mounting and has a large 8-Inch square mounting surface to handle fans with larger canopies. It has a cubic capacity of 14.5-Cubic-Inch. Box with paintable textured finish measures 8-Inch x 6.364-Inch. It comes with an NM94 cable connector, two ready to tighten installation screws and two parked-in-place fan/fixture bracket installation screws. Ceiling fan/fixture mounting box is UL listed and CSA certified.

Specifications:

Installs quickly and securely
No knockouts
Mounts fans and fixtures on sloped or cathedral ceilings
Tall sides fit cathedral ceilings with angles greater than 80 deg
Large 8 Inch square mounting surface handles New fans with large canopies
Fan/fixture installation screws are parked and ready for easy fan/fixture bracket installation
Self-contained for easy installation and no loose parts to replace
Application: For cathedral ceiling angles greater than 80 supports fans to 70 lb, fixtures up to 200 lb
UL rated for a 70 lb fan and 200 lb fixture
CSA rated for a 50 lb fan/fixture
11 - 26 Inch span
Color: White
Finish: Paintable, Textured
Shape: Round
Mounting Type : Ceiling
Nominal Capacity: 14.5 cu-Inch
Shape: Triangular
Standard/Approvals: CSA Certified, UL Listed

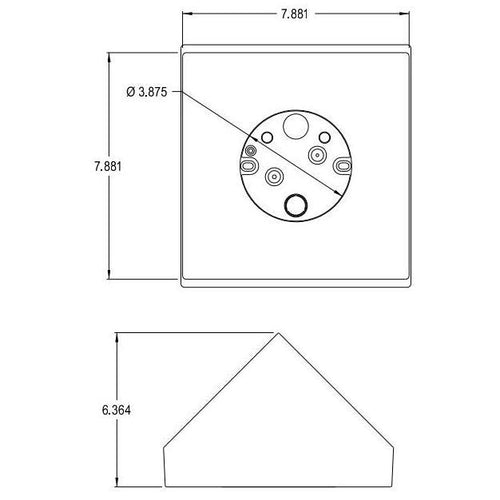

Measurements:

Weight 0.898 lbs
Height 7.881"
Width 7.881"
Depth: 6.364 Inch
Size: 6.364 Inch x 8 Inch

===

In The Box:

Mounting Block With Built-In Electrical Box,
Installed NM94 Cable Connector,
2 x Installation Screws
2 x Parked-In-Place Fan/Fixture Bracket Installation Screws (Ready for Installer)

Brochure

Fan and Fixture Box for Cathedral Ceilings:

Arlington Industries FB900 Fan Mounting box, Cathedral Ceilings 80 Degrees and Up, White
