Arlington's TV Bridge Kit contains all the connections you need to hook up a TV and additional components. The kit includes two recessed power and low voltage boxes and all the connections you need to bridge power from one stud bay to the next. The finished product is a clean and hidden installation, no more messy wires dangling. The best part is there’s no need to run the cable from a panel box or cut holes in your framing members.

Specifications:

Made in the USA
Trade Size: 2-Gang
Non-metallic, paintable trim plate
The recessed bracket sits behind the wall to help you hide wires
Designed for power and low voltage wiring-perfect for LCD, led, plasma TV in black
Wires stay hidden behind the wall, mounting wings hold boxes securely against the wall when screws are tightened
Mounting wings hold boxes securely against the wall as screws are tightened
Paintable trim plate
18.0 cubic inch recessed boxes
Easy Installation in Existing Walls: Just cut two holes in the wall and access power from an existing, nearby source.
All Wires stay hidden behind the wall: No messy wires running down the wall from TV to components.
Plugs stay inside the electrical box: After installation, plugs will not protrude past the wall for a great looking finish.

Installation Steps:

Step 1: Using the box plate as a template, mark location, and cut hole.
Step 2: Attach trim plate to box. Pull wire/cables. Install box assembly in the wall.
Step 3: Tighten mounting wing screws to pull the box securely against the wall.
Step 4: Finish installation

Measurement:

Weight 1.946 lbs
Height 6.942"
Width 6.254"

===

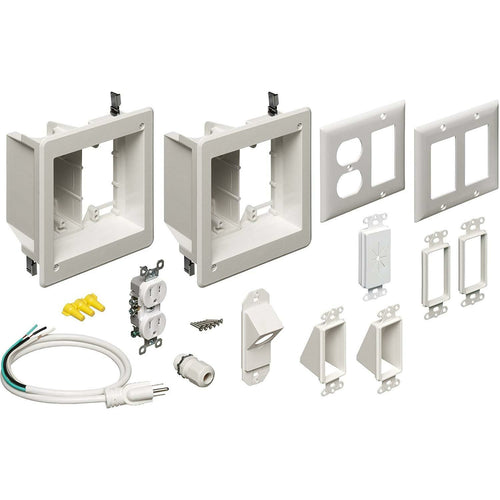

In The Box:

2 x Recessed boxes with trim plates and installed NM cable connectors,
2 x Duplex covers,
3 x Wire nuts,
1 x Tamper-resistant duplex receptacle,
Installation screws,
LPCG50W cord grip,
1 x 4 ft. cord,
KD4550 and The SCOOP
2 x CED1 entrance hoods,
2 x CED13 cable entry devices.

Brochure Spec Sheet

Specification Sheet

TV Bridge Kits Video:
The TVBR2505K includes two recessed power and low-voltage combo boxes and all the connections you need to install a flat-screen TV in an existing wall.

Arlington TVBR2505K TV Cable Organizer 2-Gang Kit W/ Recessed Power Solution
