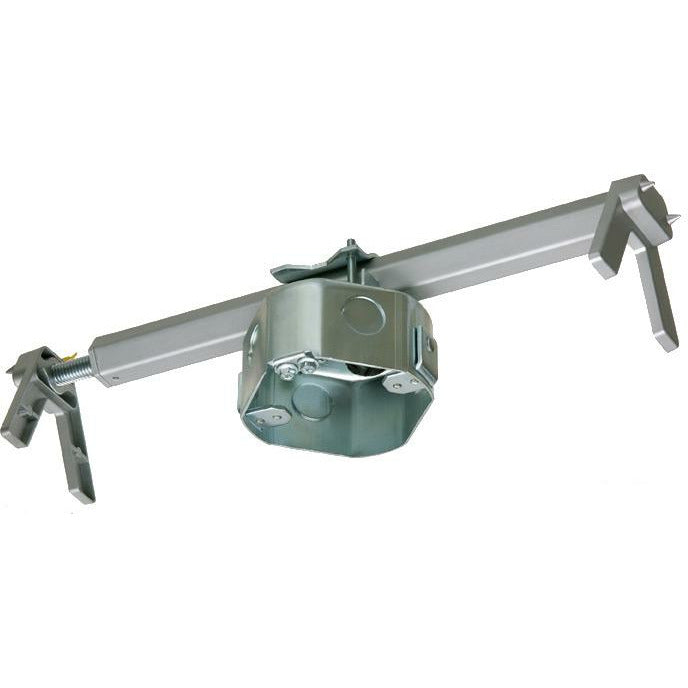

Arlington FBRS4200R-1 Steel Fan and Fixture Mounting Box with Adjustable Bracket, (Retrofit) 16-24-inches

$ 35.99
Availability: Out Of Stock

SKU: FBRS4200R
Fan/Fixture Box
Arlington
 Arlington,Electrical,Fans,Hardware,Lighting
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Arlington's FBRS4200R is a steel fan and fixture box with an adjustable mounting bracket for existing construction. For installations between joists or rafters spaced from 16" to 24" on center. Bracket ends bite into the wood rafter or joist, holding the fan or fixture securely in place. Adjusts from 16" to 24" on center spacing. 2" deep box. 20.0 cu.


Features:

  • PLATED STEEL CONTRACTION -Fast, easy installation in old work/retrofit projects
  • LOAD RATING - UL Rated: 70 lb fan/ 90 lb fixture at 24" o.c. and 70 lb fan/150 lb fixture at 16" o.c. CSA Rated: 50 lb fan/ fixture
  • SPECIFICATIONS - Weight: 3.184 lbs/each - Height: 3.563" - Width: 13.979" - Style: 2" Box Depth
  • UL/CSA Listed



Info and Guides
