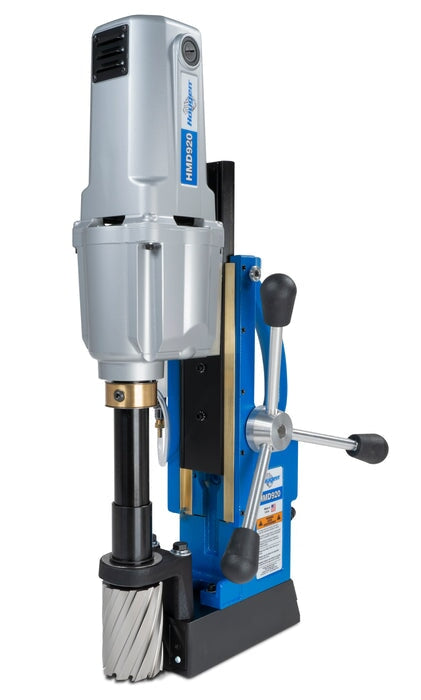

Hougen HMD920 Fab Kit Magnetic Drill with Swivel Base - 115V, 3" Depth

$ 2,551.00
Availability: In Stock

Drilling Capacity 7/16" to 2-3/8" (12mm - 60mm)
Depth of Cut 3" (76mm)
Number of Speeds 3
Electrical System 115V, 50/60 Hz, 13.5A, 1553W
Part Number 0920109

Add to wishlist
Add to compare
SKU: HG-0920109
Magnetic Drill
Hougen
 all,Hougen
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

HMD920 3-Speed Mag Drill Fab Kit - Fractional with Swivel Base, 3" Depth

The Hougen HMD920 Fab Kit Fractional with Swivel Base is the most powerful 3-speed magnetic drill in the Hougen lineup, built for heavy-duty fabrication. The 3-speed gearbox (250/450/700 RPM) maximizes torque, cutter life and productivity across the full 7/16" to 2-3/8" diameter range, with depth of cut up to 3". The Swivel Base option provides 1-1/8" W x 1-3/8" L of swivel area for precise hole positioning without repositioning the magnet. The complete Fab Kit includes the HMD920, a 2" depth "12,000-Series" cutter kit (12002), 1/2" drill chuck and adapter for using twist drills, a pint of coolant and accessories. The HMD920 features a powerful industrial-strength motor for all-day drilling, two-stage magnet, gravity-fed coolant bottle, reversible feed handles and lift detector safety system. Made in USA.

Top Features

  • Swivel Base for Precise Hole Positioning: 1-1/8" W x 1-3/8" L swivel area.
  • 3-Speed Gearbox: 250 / 450 / 700 RPM maximizes torque, cutter life and productivity.
  • Large 2-3/8" x 3" Capacity: Most powerful 3-speed Hougen mag drill.
  • Complete Fab Kit Included: 12,000-Series cutter kit + 1/2" drill chuck + coolant + accessories.
  • Industrial-Strength Motor: Built for all-day, every-day heavy-duty drilling.
Category Specification
Performance and Use
Electrical System 115V, 50/60 Hz, 13.5A, 1553W
Motor 12.5 A (115V)
Number of Speeds 3
Spindle Speeds 250 / 450 / 700 RPM
Drilling Capacity 7/16" to 2-3/8" (12mm - 60mm)
Depth of Cut 3" (76mm)
Cutter Type Hougen 12,000-Series and Copperhead Carbide, 3/4" shank
Swivel Area 1-1/8" W x 1-3/8" L
Dead Lift (1" plate) 2,480 lb (1,125 kg)
Dead Lift (3/8" plate) 1,782 lb (808 kg)
Dimensions and Specifications
Dimensions 25-15/16" H x 8-3/16" W x 12-13/16" L
Compliance and Warranty
Part Number 0920109
Country of Origin USA (Michigan)
Warranty 2-Year Manufacturer's Warranty



Hougen Manufacturing has been the world leader in portable magnetic drills and annular cutters for over 60 years. All Hougen magnetic drills and Rotabroach Cutters are proudly manufactured in Michigan, USA. This product is backed by Hougen's 2-Year Manufacturer's Warranty. With proper use, care, and maintenance, this model will provide years of effective hole drilling performance. Please register your unit at Hougen.com to ensure warranty coverage and service support.
