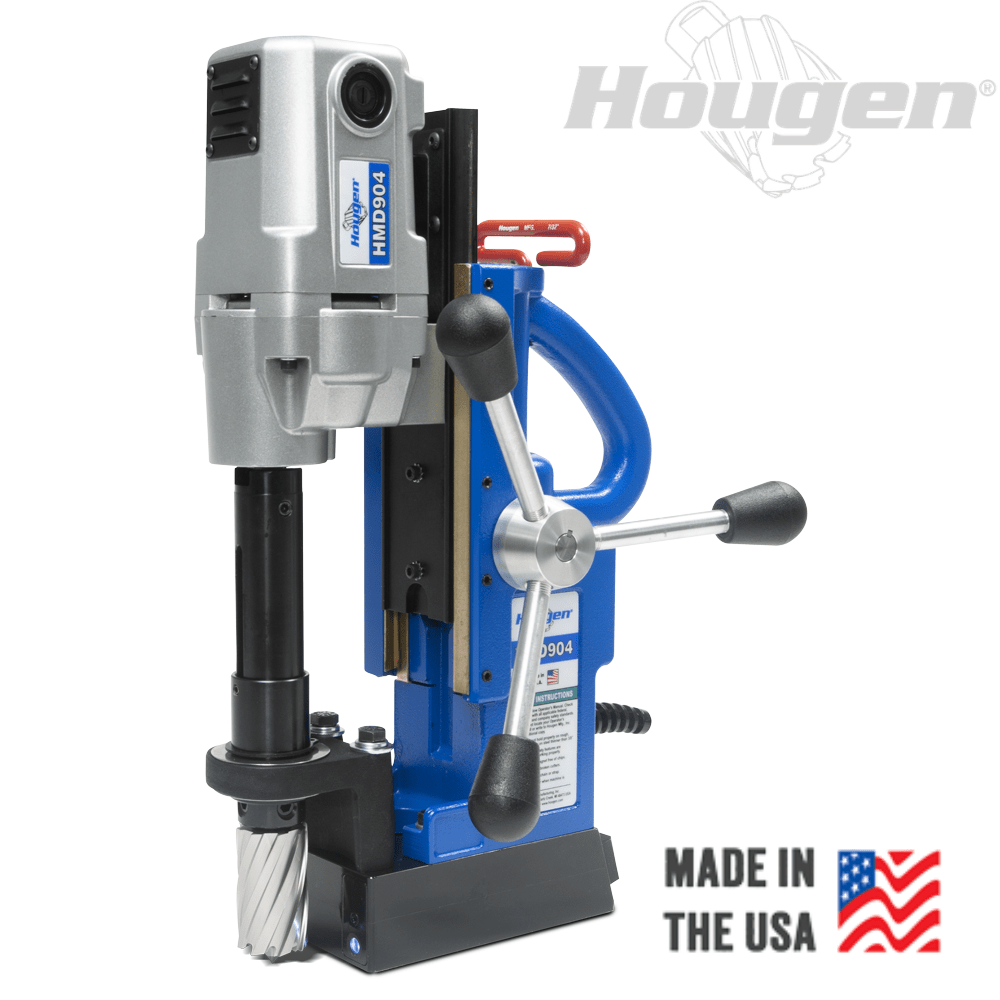

Hougen HMD904 Magnetic Drill
Availability:
In Stock
| MPN | 0904105 |
| Motor Power | 1035W |
|
Max Cutting Capacity
|
2" |
| Magnetic Holding Force | 1750 lbs |
Description
Product Description

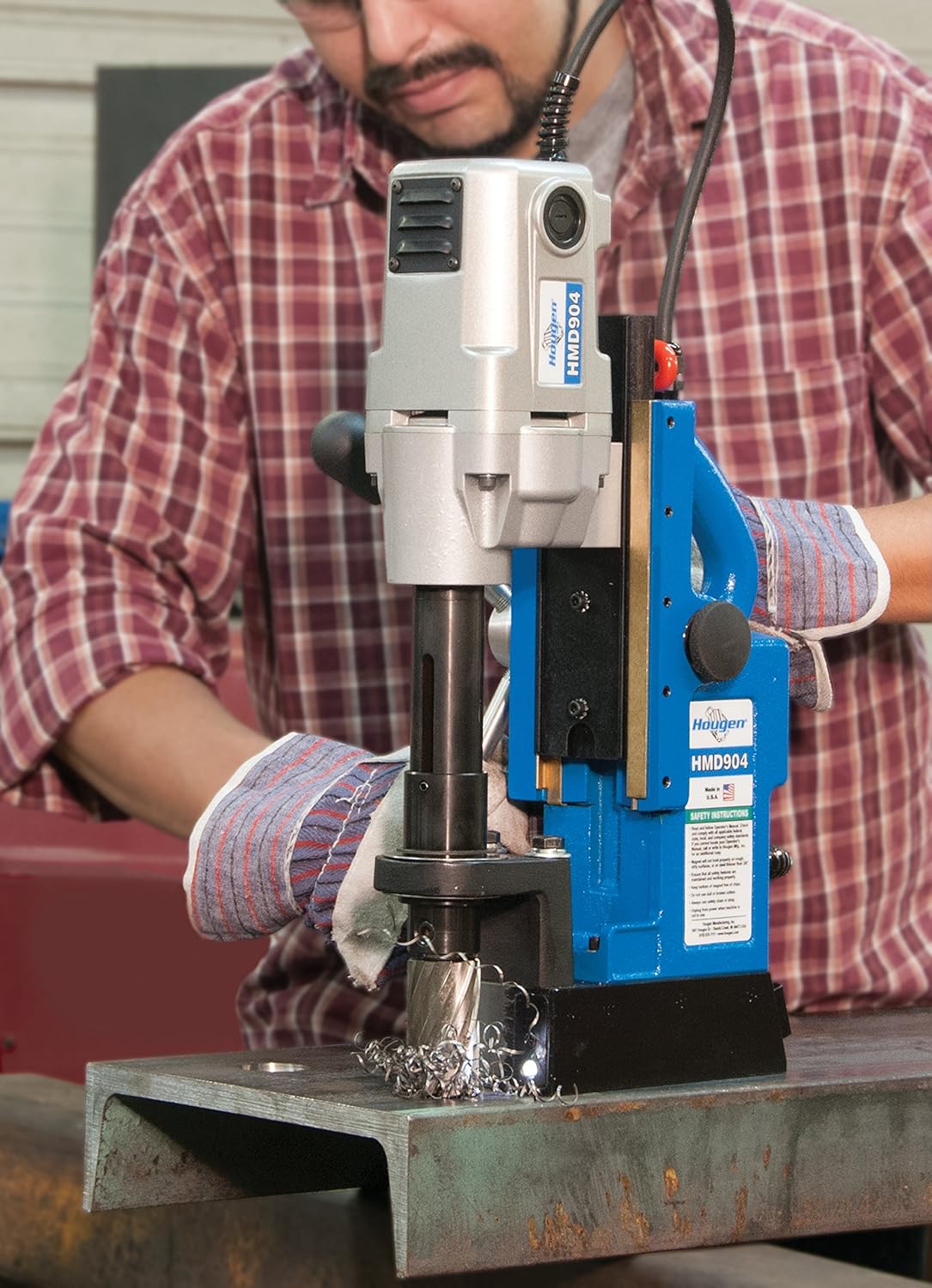

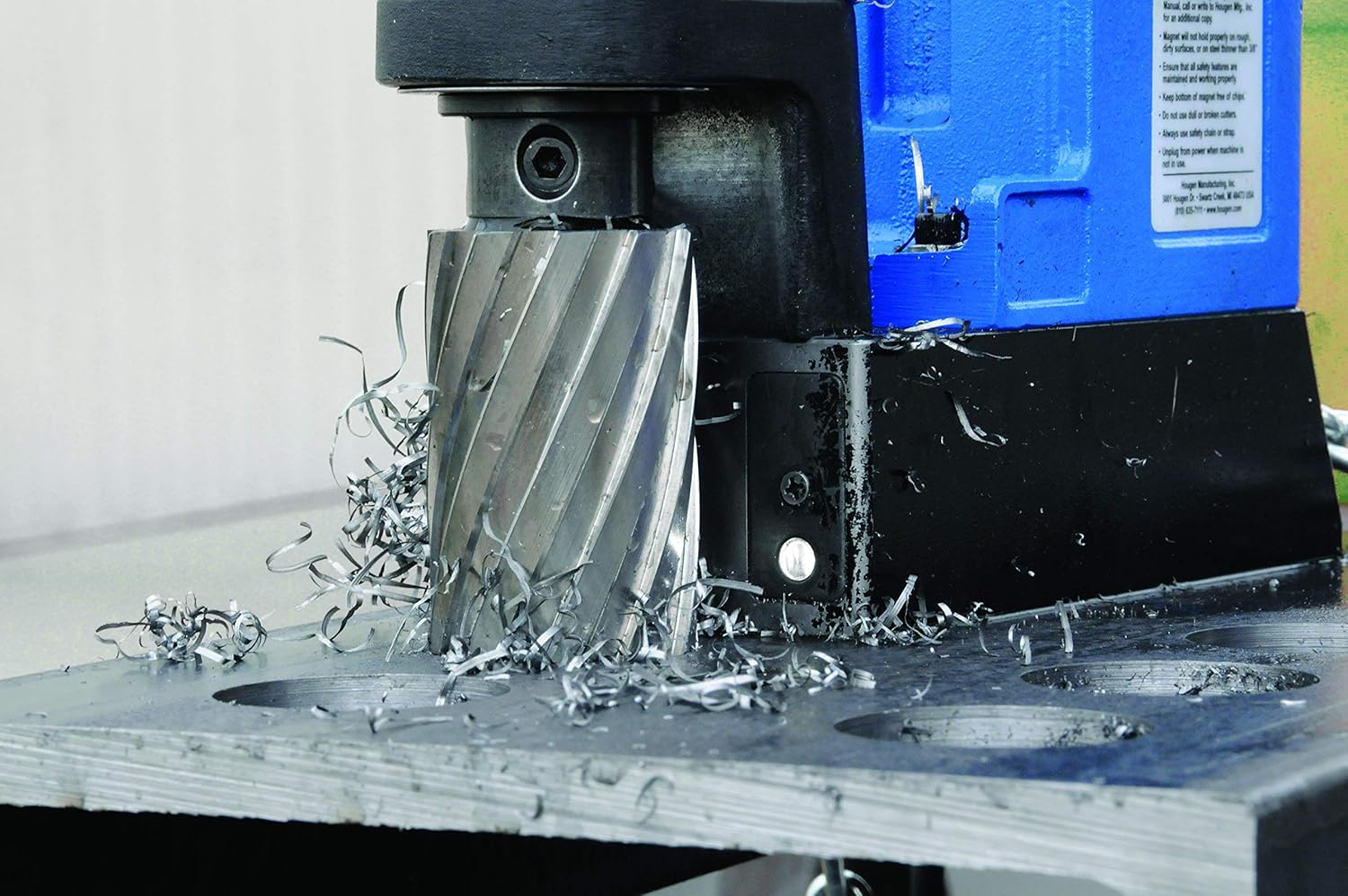

The HMD904 Magnetic Drill is a compact, high-performance drilling solution designed for precision holemaking in steel and other metals. Ideal for fabrication shops, construction crews, and industrial maintenance, it delivers powerful, accurate cuts with excellent portability. Its strong magnetic base ensures stability on vertical or overhead surfaces, while compatibility with premium Hougen cutters enhances efficiency and tool life.
Top Features
- Powerful 1035W motor for consistent, high-torque performance

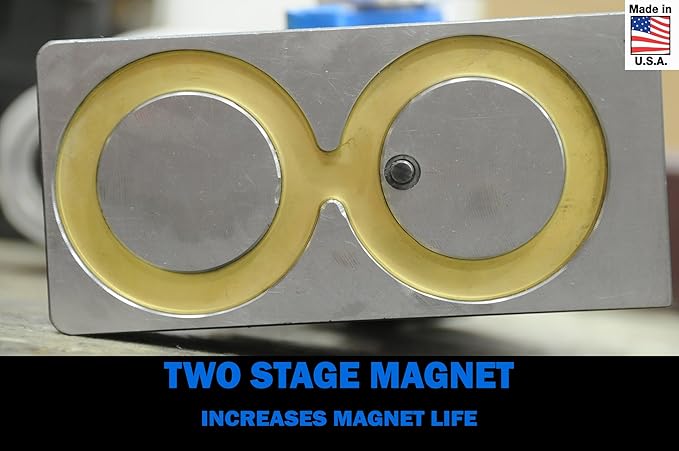

- Strong magnetic base with up to 1750 lb holding force for secure operation
- Compact, lightweight design for easy transport and tight workspace access
- Compatible with Hougen “12,000-Series” & Copperhead™ carbide cutters
- Smooth 450 RPM operation for clean, precise hole cutting
Specifications Chart
| Specification | Details |
|---|---|
| Electrical System | 115V, 50/60 Hz - 9A, 1035W |
| Motor | 8A (115V), 450 RPM |
| Hole Diameter Capacity | 7/16" – 1-1/2" |
| Max Depth of Cut | 2" |
| Cutter Compatibility | Hougen 12,000-Series & Copperhead™ Carbide, 3/4" shank |
| Magnet Base Size | 3-1/8" W x 6-9/16" L |
| Magnetic Holding Force | Up to 1750 lb on 1" plate |
| Breakaway Force | Up to 995 lb on 1" plate |

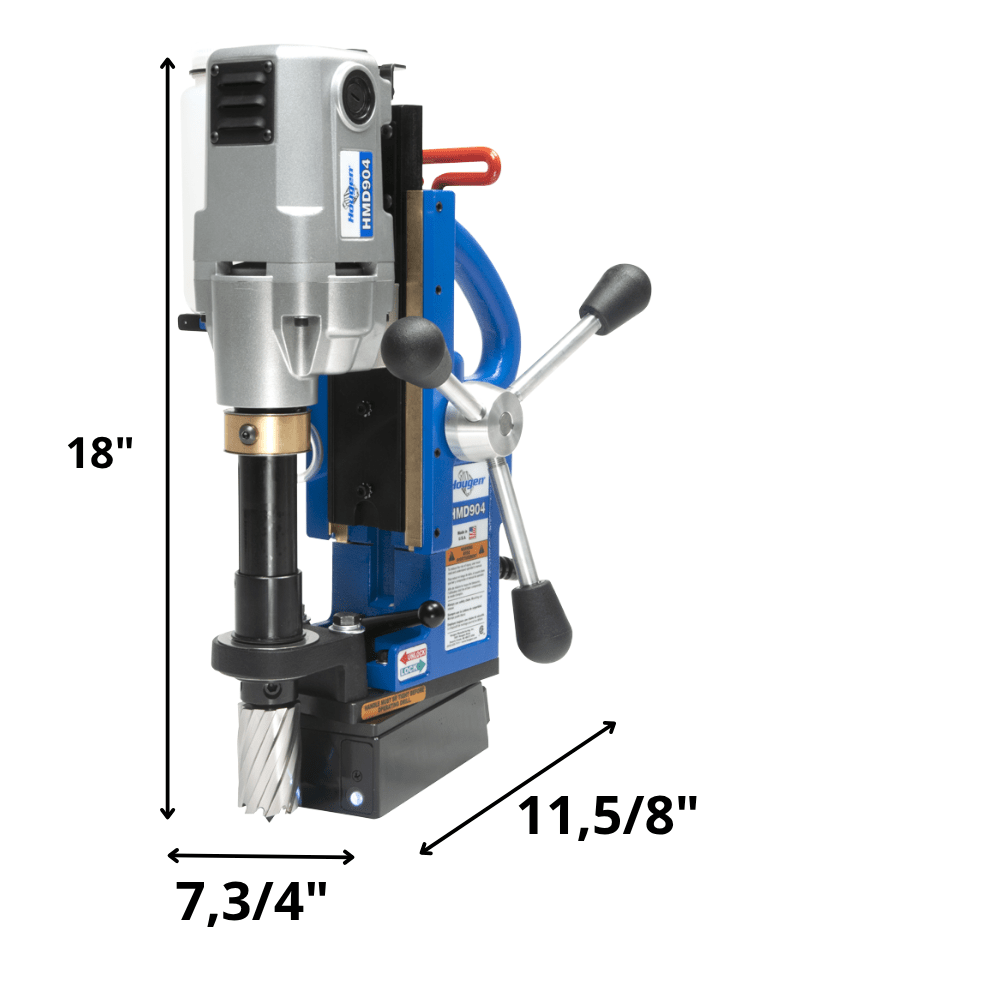

| Dimensions | 18" H x 7-3/4" W x 11-5/8" L |
| Weight | 30 lb |
| Shipping Weight | 44.1 lb |
| Shipping Dimensions | 18 x 20 x 9" |
