Hougen HMD905 Fabricator's Kit Magnetic Drill - 2-Speed, Fractional, 115V

$ 2,118.00
Availability: Out Of Stock

Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Spindle Speed 250 / 450 RPM
Included Cutter Kit 12,000-Series 2" Depth Fractional Kit (Part No. 12002)
Warranty 2-Year Manufacturer's Warranty

Add to wishlist
Add to compare
SKU: HG-0905105
Magnetic Drill
Hougen
 all,Hougen
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

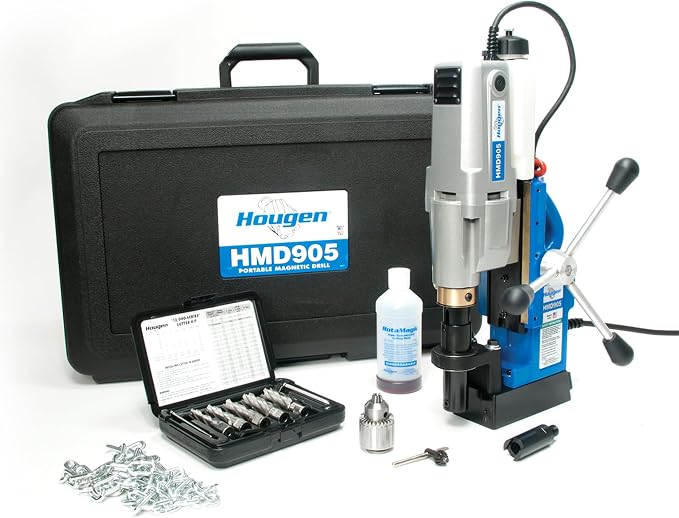

HMD905 Fabricator's Kit Fractional - 2-Speed Magnetic Drill with Coolant, 12,000-Series Cutter Kit and 1/2" Drill Chuck

The Hougen HMD905 Fabricator's Kit Fractional (Part No. 0905105) delivers everything you need for a portable metal-fabrication machine shop in a single package. Built around the powerful Hougen HMD905 2-speed magnetic drill (250 / 450 RPM), this Fab Kit adds the popular "12,000-Series" annular cutter kit (12002, 2" depth, fractional sizes), a 1/2" drill chuck with adapter for twist drills, a pint of Hougen coolant and a rugged carrying case. With a great power-to-weight ratio, the HMD905 packs a 115V high-torque motor delivering 2" x 2" hole-making capacity, a two-stage magnet that increases power by 30% when the motor engages, an integrated coolant bottle, positive slug ejection and rear-mounted controls. Ideal for steel fabrication, building and construction, bridge rebuilding, mining, ship building, welding shops, power utilities, railroads and mobile repair. Backed by Hougen's 2-Year Manufacturer's Warranty and proudly manufactured in Michigan, USA.

Top Features

  • Complete Fabricator's Kit: HMD905 + 12,000-Series 2" Cutter Kit (12002) + 1/2" Drill Chuck + Adapter + Pint of Coolant + Carrying Case.
  • Large 2" x 2" Capacity: Drill holes up to 2" diameter and 2" deep with the 2-speed gearbox (250 / 450 RPM).
  • Two-Stage Magnet: Power increases 30% when the motor turns on, maximizing hold force while extending magnet life.
  • Integrated Coolant Bottle + Positive Slug Ejection: Gravity-fed lubrication for cleaner cuts and automatic chip clearance.
  • Made in USA + 2-Year Warranty: Manufactured in Michigan with reversible feed handles, pilot light, lift detector safety and rear-mounted controls.
Category Specification
Performance and Use
Voltage 115V
Motor Amperage 10 A
Number of Speeds 2
Spindle Speed 250 / 450 RPM
Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Cutter Type Hougen 12,000-Series and Copperhead Carbide, 3/4" shank
Included Cutter Kit 12,000-Series 2" Depth Fractional Kit (Part No. 12002)
Magnet Two-stage (30% power boost on motor activation)
Coolant System Integrated gravity-fed bottle
Pilot Light Yes
Slug Ejection Positive automatic
Feed Handles Reversible (change side to side)
Controls Location Rear mounted
Safety System Lift detector (auto-shutoff)
Materials and Construction
Version Fabricator's Kit Fractional
Included Drill Chuck 1/2" with adapter for twist drills
Case Carrying case included
Compliance and Warranty
Part Number 0905105
Country of Origin USA (Michigan)
Warranty 2-Year Manufacturer's Warranty



Hougen Manufacturing has been the world leader in portable magnetic drills and annular cutters for over 60 years. All Hougen magnetic drills and Rotabroach Cutters are proudly manufactured in Michigan, USA. This product is backed by Hougen's 2-Year Manufacturer's Warranty. With proper use, care, and maintenance, this model will provide years of effective hole drilling performance. Please register your unit at Hougen.com to ensure warranty coverage and service support.
