Hougen HMD905 Swivel Base Fabricator's Kit Magnetic Drill - 2-Speed, Fractional, 115V

$ 2,311.00
Availability: Out Of Stock

Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Spindle Speed 250 / 450 RPM
Included Cutter Kit 12,000-Series 2" Depth Fractional Kit (Part No. 12002)
Warranty 2-Year Manufacturer's Warranty

Add to wishlist
Add to compare
SKU: HG-0905109
Magnetic Drill
Hougen
 all,Hougen
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

HMD905 Swivel Base Fab Kit Fractional - 2-Speed Magnetic Drill with Patented Swivel Base, Cutter Kit and 1/2" Drill Chuck

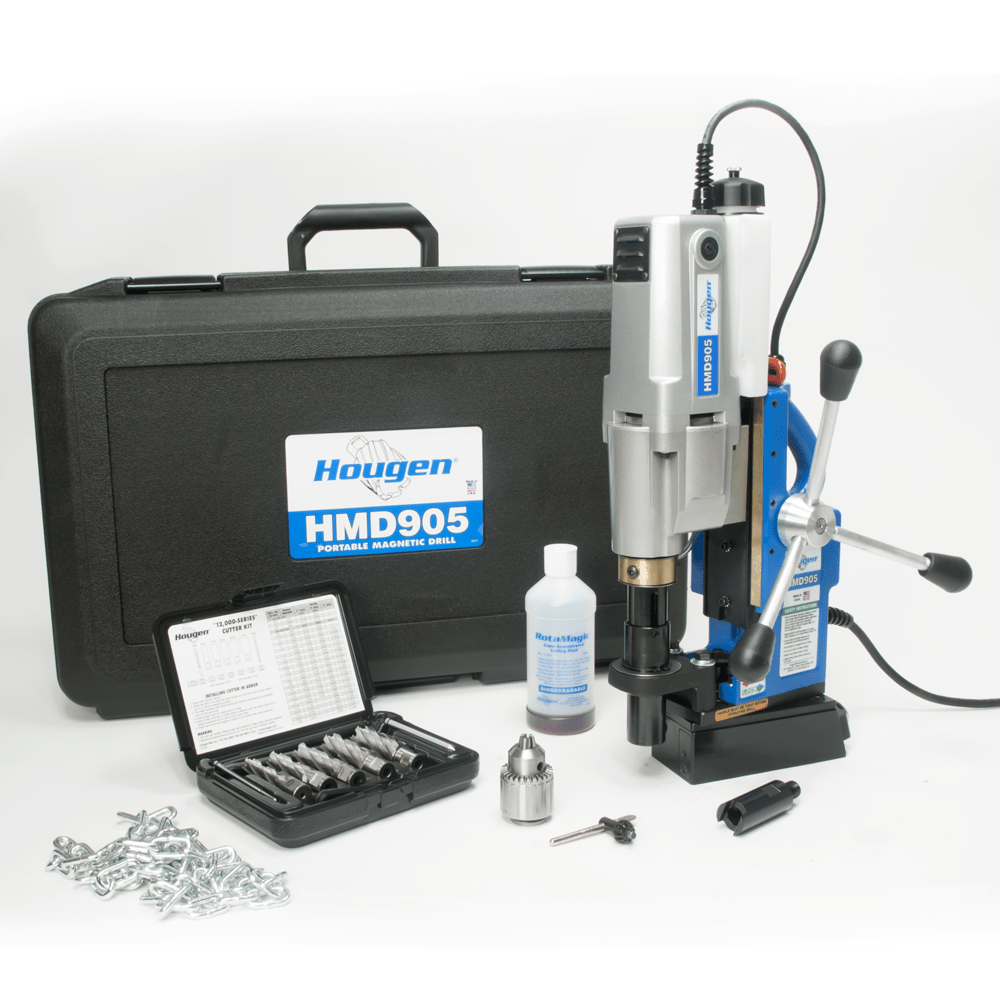

The Hougen HMD905 Swivel Base Fabricator's Kit Fractional (Part No. 0905109) combines everything from the standard HMD905 Fab Kit with the patented Hougen Swivel Base for maximum precision and versatility. The patented swivel base allows the operator to precisely line up the pilot with the hole's center location using a one-stroke lock and unlock handle — ideal for horizontal drilling, overhead work, tight areas and getting out over another piece of steel. This complete Fab Kit ships with the powerful HMD905 2-speed magnetic drill (250 / 450 RPM), the popular "12,000-Series" annular cutter kit (12002, 2" depth, fractional sizes), a 1/2" drill chuck with adapter for twist drills, a pint of Hougen coolant and a rugged carrying case. Features include a 115V high-torque motor, 2" x 2" hole-making capacity, two-stage magnet (30% power boost when motor engages), integrated coolant bottle, positive slug ejection and rear-mounted controls. Backed by Hougen's 2-Year Manufacturer's Warranty and proudly manufactured in Michigan, USA.

Top Features

  • Patented Swivel Base: One-stroke lock/unlock handle for precise pilot alignment; ideal for horizontal, overhead and tight-area drilling.
  • Complete Fabricator's Kit: HMD905 + Swivel Base + 12,000-Series 2" Cutter Kit (12002) + 1/2" Drill Chuck + Adapter + Pint of Coolant + Carrying Case.
  • Large 2" x 2" Capacity: 2-speed gearbox (250 / 450 RPM) optimizes torque across the full cutter range.
  • Two-Stage Magnet with 30% Power Boost: Full magnetic hold engages only when the motor runs, extending magnet life.
  • Made in USA + 2-Year Warranty: Manufactured in Michigan with pilot light, lift detector safety and reversible feed handles.
Category Specification
Performance and Use
Voltage 115V
Motor Amperage 10 A
Number of Speeds 2
Spindle Speed 250 / 450 RPM
Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Base Type Patented Swivel Base (one-stroke lock/unlock)
Cutter Type Hougen 12,000-Series and Copperhead Carbide, 3/4" shank
Included Cutter Kit 12,000-Series 2" Depth Fractional Kit (Part No. 12002)
Magnet Two-stage (30% power boost on motor activation)
Coolant System Integrated gravity-fed bottle
Pilot Light Yes
Slug Ejection Positive automatic
Feed Handles Reversible (change side to side)
Controls Location Rear mounted
Safety System Lift detector (auto-shutoff)
Materials and Construction
Version Swivel Base Fabricator's Kit Fractional
Included Drill Chuck 1/2" with adapter for twist drills
Case Carrying case included
Dimensions and Specifications
Weight 38 lbs (17.2 kg)
Compliance and Warranty
Part Number 0905109
Country of Origin USA (Michigan)
Warranty 2-Year Manufacturer's Warranty



Hougen Manufacturing has been the world leader in portable magnetic drills and annular cutters for over 60 years. All Hougen magnetic drills and Rotabroach Cutters are proudly manufactured in Michigan, USA. This product is backed by Hougen's 2-Year Manufacturer's Warranty. With proper use, care, and maintenance, this model will provide years of effective hole drilling performance. Please register your unit at Hougen.com to ensure warranty coverage and service support.
