Hougen HMD905 2-Speed Magnetic Drill with Coolant - 115V

$ 1,757.00
Availability: In Stock

Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Number of Speeds 2
Voltage 115V
Part Number 0905102

Add to wishlist
Add to compare
SKU: HG-0905102
Magnetic Drill
Hougen
 all,Hougen
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

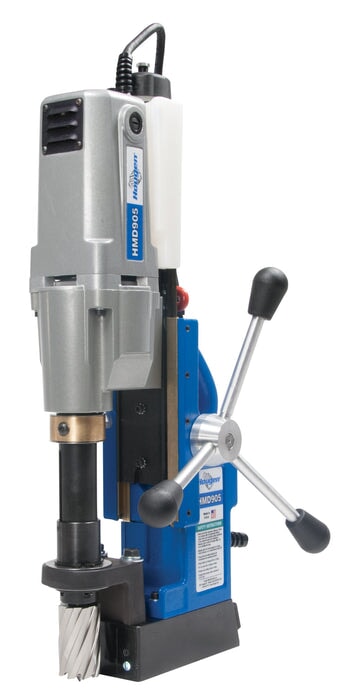

HMD905 Magnetic Drill - 2-Speed with 2" x 2" Capacity and Coolant

The Hougen HMD905 is a powerful 2-speed magnetic drill for metal fabricators who need more power. With a great power-to-weight ratio, this lightweight magnetic drill packs a 115V high-torque motor delivering 2" x 2" hole-making capacity. The 2-speed gearbox (250/450 RPM) allows speed optimization for different cutter diameters. A two-stage magnet engages full power only when the motor is turned on, extending magnet life. The integrated coolant bottle supplies lubrication during cuts, the pilot light improves accuracy in low-light conditions, and positive slug ejection clears chips automatically. Many accessories are available to expand the HMD905 into a portable machine shop, including drill chucks, countersinks and more. Made in USA.

Top Features

  • Large 2" x 2" Capacity: Drill holes up to 2" diameter and 2" deep.

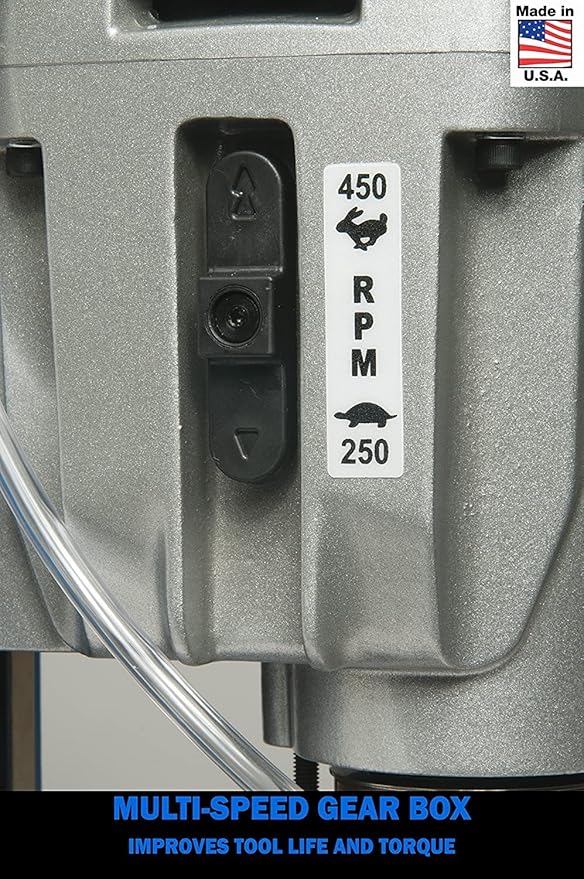

  • 2-Speed Gearbox: 250 / 450 RPM for optimal speed by cutter diameter.

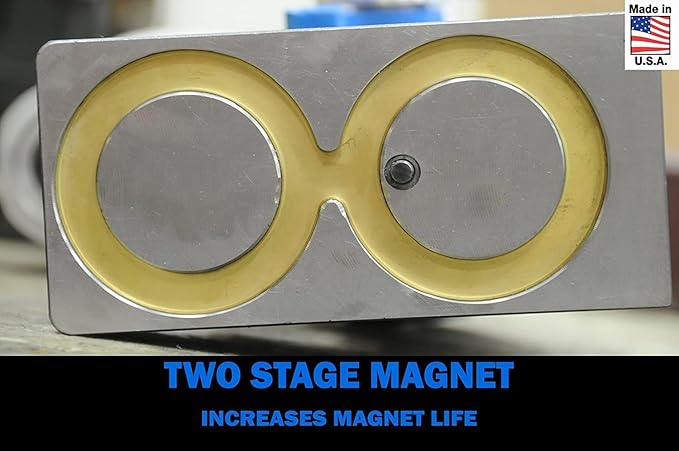

  • Two-Stage Magnet: 30% power increase when motor activates, extends magnet life.
  • Integrated Coolant Bottle: Built-in lubrication system for cleaner cuts.

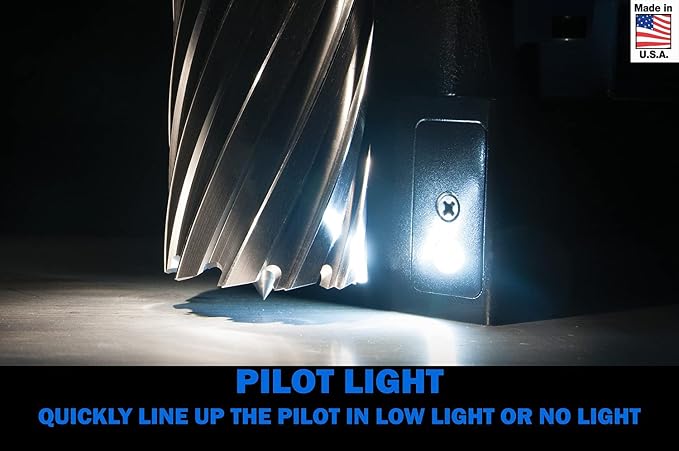

  • Pilot Light + Positive Slug Ejection: Improved accuracy and automatic chip clearance.
Category Specification
Performance and Use
Voltage 115V
Number of Speeds 2
Spindle Speed 250 / 450 RPM
Drilling Capacity Up to 2" (50mm) diameter
Depth of Cut 2" (50mm)
Cutter Type Hougen 12,000-Series and Copperhead Carbide
Magnet Two-stage with 30% power boost on motor activation
Coolant System Integrated bottle (gravity fed)
Compliance and Warranty
Part Number 0905102
Country of Origin USA (Michigan)
Warranty 2-Year Manufacturer's Warranty



Hougen Manufacturing has been the world leader in portable magnetic drills and annular cutters for over 60 years. All Hougen magnetic drills and Rotabroach Cutters are proudly manufactured in Michigan, USA. This product is backed by Hougen's 2-Year Manufacturer's Warranty. With proper use, care, and maintenance, this model will provide years of effective hole drilling performance. Please register your unit at Hougen.com to ensure warranty coverage and service support.
