Hougen HMD2X2-2 Low Profile 2-Speed Magnetic Drill - 115V

$ 2,359.00
Availability: In Stock

Drilling Capacity 7/16" to 2"
Depth of Cut 2"
Number of Speeds 2
Voltage 115V
Weight 29.2 lbs

Add to wishlist
Add to compare
SKU: HG-0202101
Magnetic Drill
Hougen
 all,Hougen
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

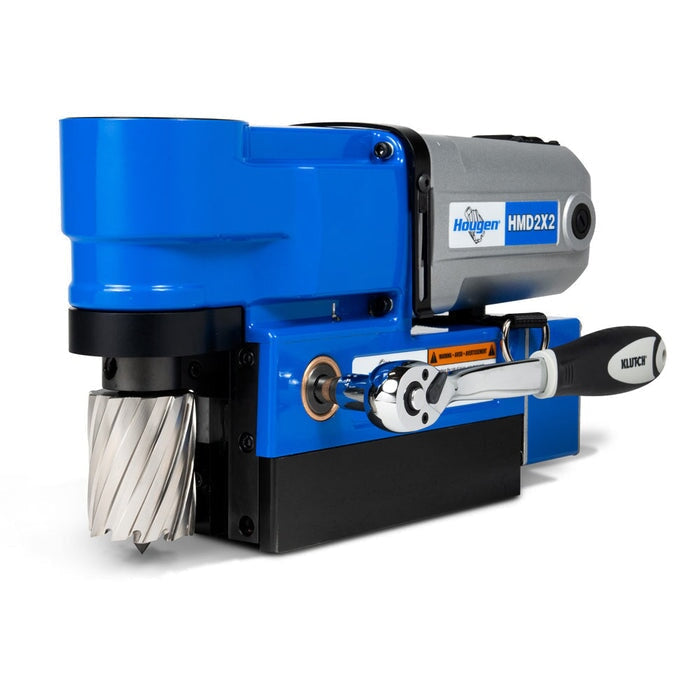

HMD2X2-2 Low Profile Magnetic Drill - 2-Speed with 2" x 2" Capacity

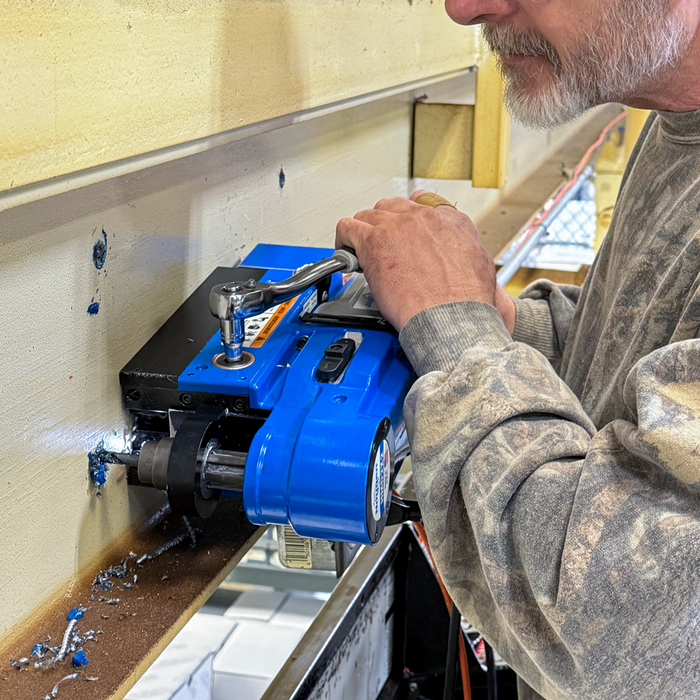

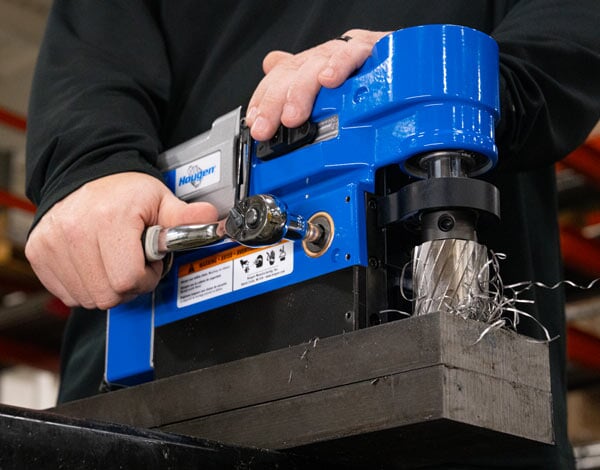

Small enough to drill in places where even handheld electric drills can't go, the Hougen HMD2X2-2 has the power to cut holes up to 2" diameter through materials up to 2" thick. This low profile two-speed magnetic drill is purpose-built for fabricators, maintenance and field service. Powered by a 115V/9A motor with high-torque gearing, the HMD2X2-2 handles truck frame modification, plant maintenance, on-site assembly and installation projects. Hougen safety features include a no-adjustment safety switch with LED indicator that shuts down the motor if the magnetic base is lifted, and a two-stage power-on switch that prevents drill rotation unless the magnet has first been engaged. Compact, portable and powerful. Made in the USA.

Top Features

  • Low Profile Compact Design: Drills in confined spaces other tools can't reach.
  • 2-Speed Gearbox: 300 / 450 RPM for optimal speed selection by cutter diameter.
  • Large 2" x 2" Capacity: Drill holes up to 2" diameter and 2" deep.
  • Lift Detector Safety System: Auto-shutoff with LED indicator if magnet lifts.
  • Two-Stage Power-On Switch: Prevents drill rotation before magnet engagement.
Category Specification
Performance and Use
Voltage 115V
Motor Amperage 9 A
Number of Speeds 2
Spindle Speed 300 / 450 RPM
Drilling Capacity 7/16" to 2"
Depth of Cut 2"
Spindle Travel 2"
Materials and Construction
Base Dimensions 9" x 3.5"
Dimensions and Specifications
Weight 29.2 lbs
Compliance and Warranty
Part Number 0202101
Country of Origin USA (Michigan)
Warranty 2-Year Manufacturer's Warranty



Hougen Manufacturing has been the world leader in portable magnetic drills and annular cutters for over 60 years. All Hougen magnetic drills and Rotabroach Cutters are proudly manufactured in Michigan, USA. This product is backed by Hougen's 2-Year Manufacturer's Warranty. With proper use, care, and maintenance, this model will provide years of effective hole drilling performance. Please register your unit at Hougen.com to ensure warranty coverage and service support.
