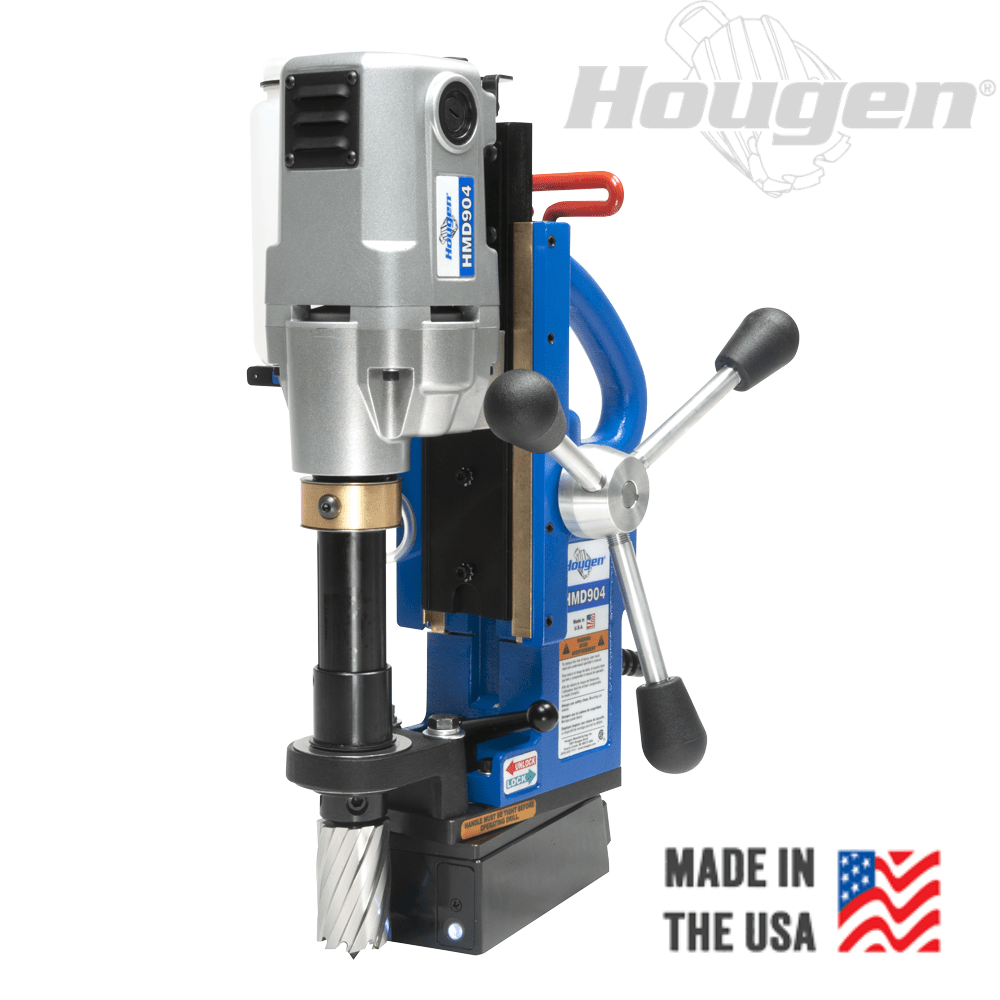

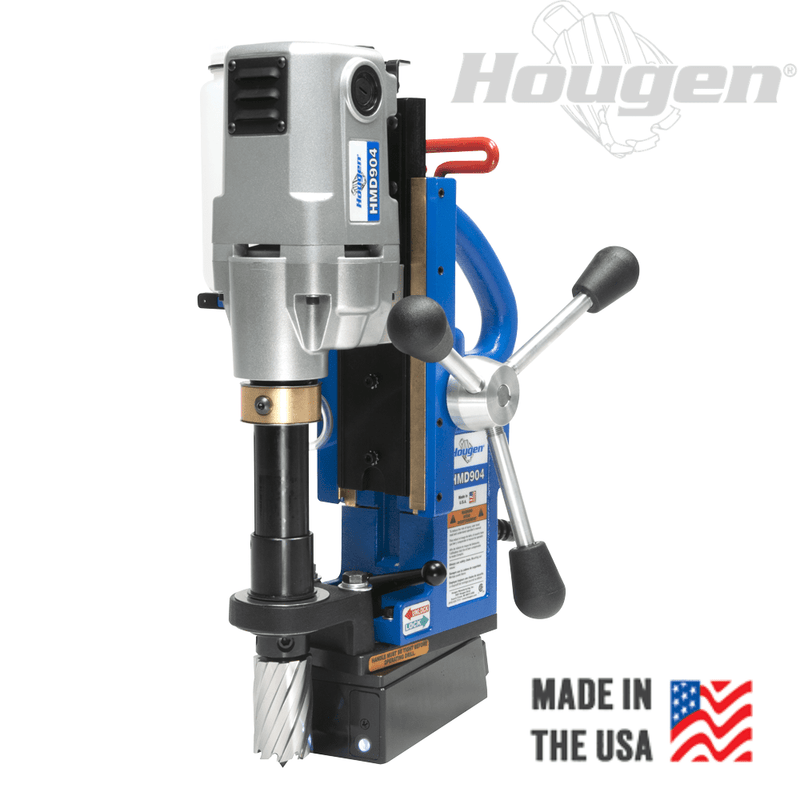

Hougen HMD904 Magnetic Drill Swivel Base - 115V

$ 1,300.00
Availability: In Stock

MPN 0904103
Motor Power 1035W
Max Cutting Capacity
 2"
Magnetic Holding Force 1750 lbs

Add to wishlist
Add to compare
SKU: HG-0904103
Drill Kit
Hougen
 all,Hougen,Tools
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

  • The Hougen HMD904 Magnetic Drill with Swivel Base is a powerful and versatile solution designed for fabrication and industrial drilling. Its compact, lightweight build allows for easy handling while delivering reliable performance in demanding environments.

    Featuring a precision swivel base, the HMD904 enables accurate hole alignment without repositioning the entire machine—ideal for tight spaces, overhead, and horizontal applications. The two-stage magnet enhances safety and holding strength while extending magnet life.

    With a durable housing, pilot light for low visibility, and integrated coolant system, this drill ensures consistent results, improved accuracy, and long-term durability on the jobsite.

    Top Features

    • Swivel Base: Precise hole alignment without repositioning
    • Two-Stage Magnet: Increased safety and longer magnet life
    • Compact Design: Ideal for tight, overhead, and horizontal work
    • Pilot Light: Improved accuracy in low-light conditions
    • Slot Drive Arbor: Secure cutter engagement and efficient slug ejection

Specifications Chart

Category Details
Model HMD904 (0904103)
Annular Cutter Capacity 7/16" – 1-1/2"
Depth of Cut 2"
Twist Drill Capacity 1/2"
Tapping Capacity 1/2"
Motor Speed 450 RPM
Voltage 115V
Amperage 9A
Power 1035W
Frequency 50/60 Hz
Magnet Dead Lift (1" Plate) 1340 lb
Magnet Breakaway (1" Plate) Forward 695 lb / Reverse 835 lb
Magnet Dead Lift (3/8" Plate) 1015 lb
Magnet Breakaway (3/8" Plate) Forward 503 lb / Reverse 605 lb
Overall Dimensions 18" H x 7-3/4" W x 11-5/8" L
Base Dimensions 3-1/8" W x 6-9/16" L
Swivel Area 1-1/8" W x 1-3/8" L
Weight 33 lb
Shipping Weight 44.1 lb
