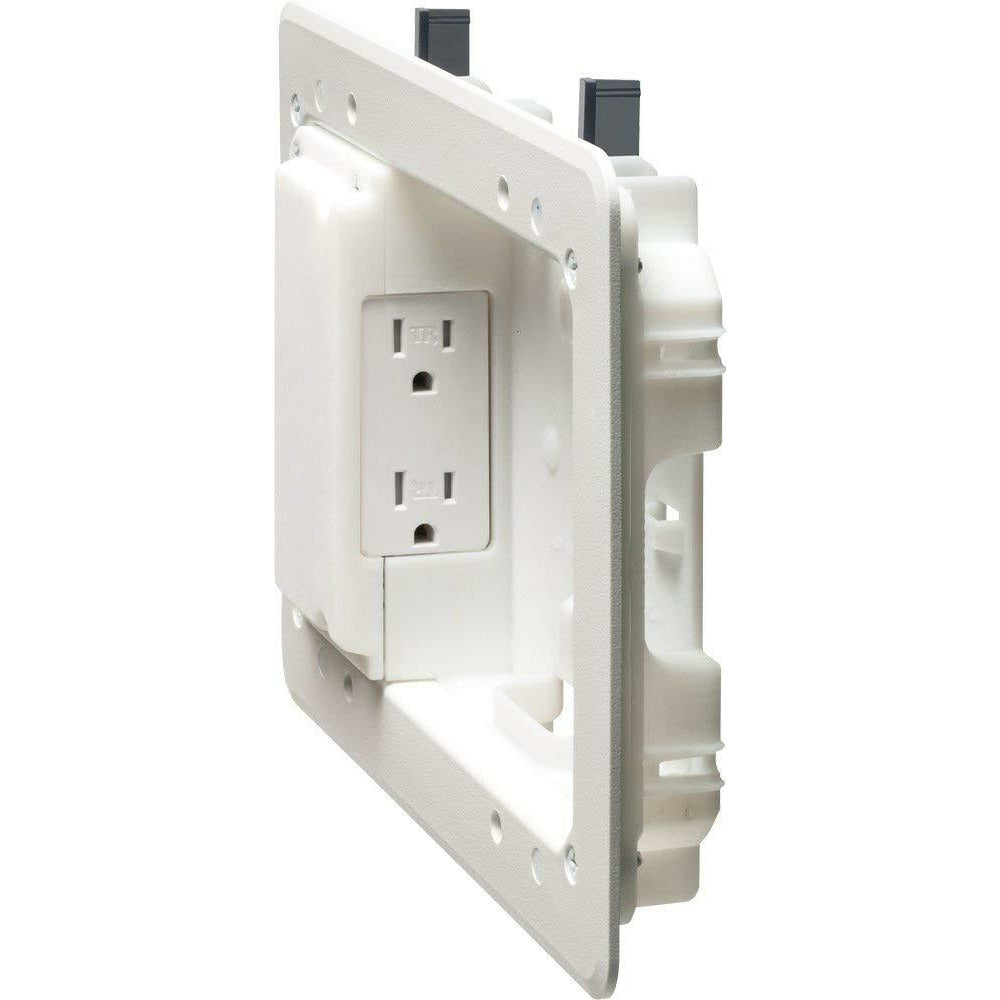

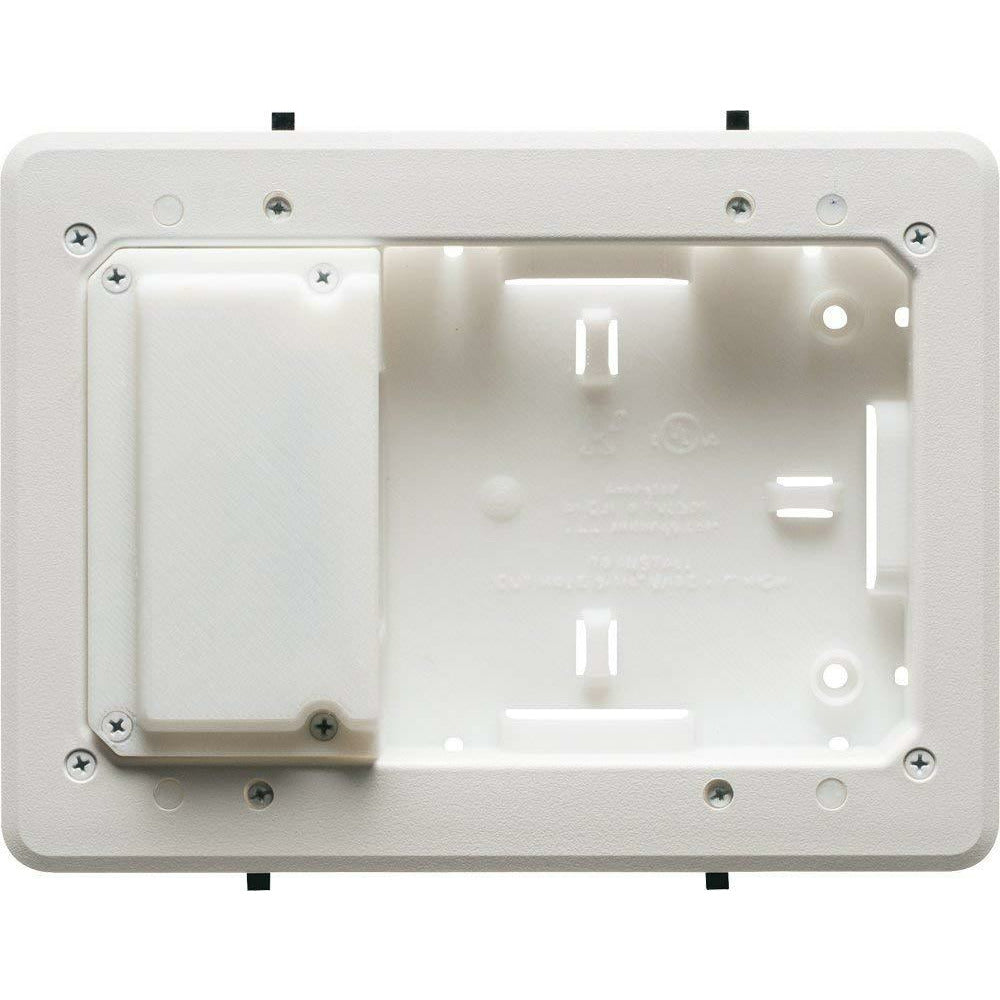

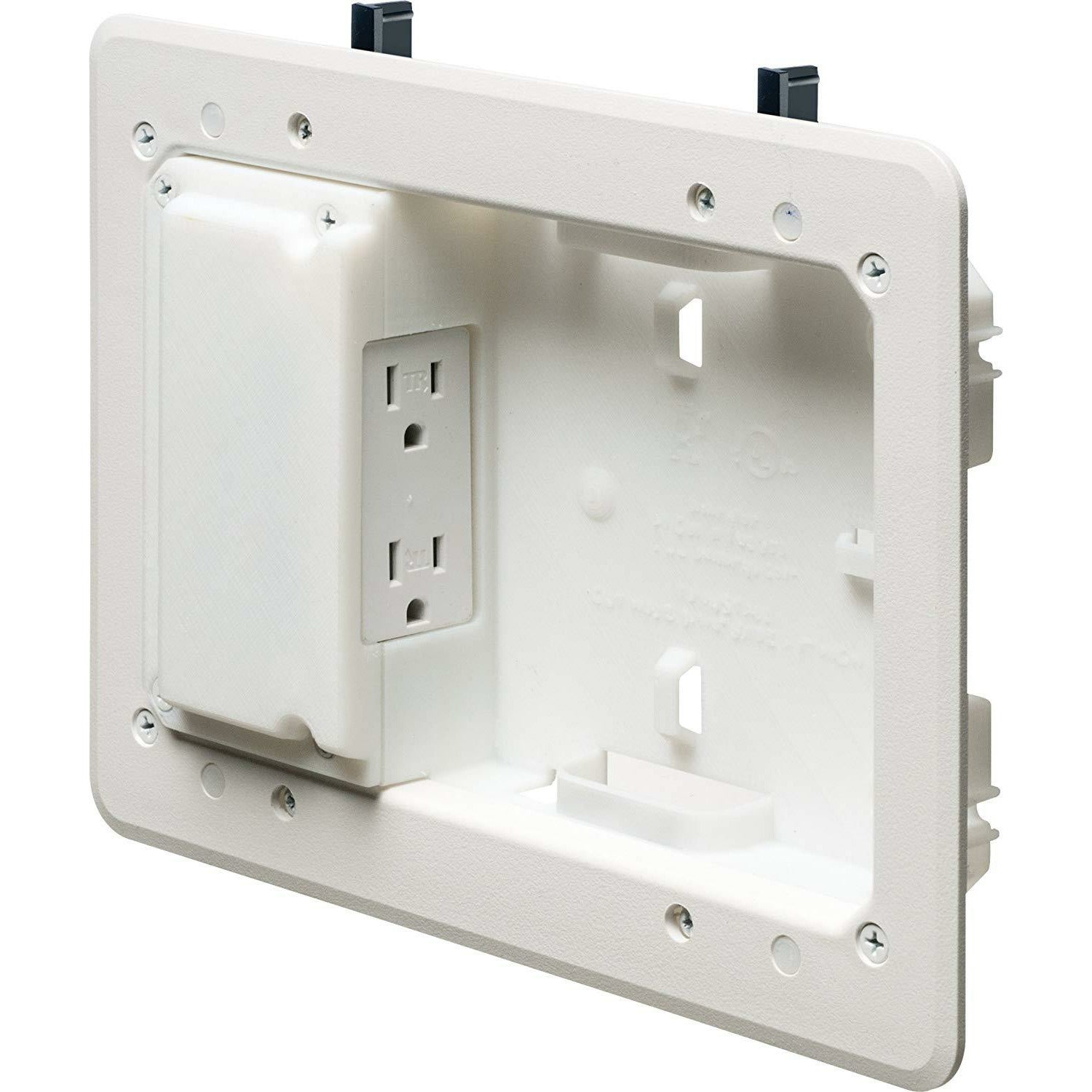

Arlington Low Profile TV BOX kit for a flush to the wall installation as shallow as 3/4". Used for installation of flat-screen TVs (LCD, LED, Plasma). Suitable for shallow drywall depths of 1/2-Inch or 5/8-Inch, box depth is 1.25-Inch. For new or old construction. The non-metallic box also fits on 2x2, 2x3 and 2x4 studs.
Save time with retrofit or new construction with convenient low-profile recessed 8" x 5" TV bridge kit. White trim is paintable, allowing for a complete finish. ETL Listed. cUL Listed, industry standards for safety and quality. Made In USA.
In the event any of our products are found to be defective, Arlington will replace them with a new product free of charge. The time limit for this warranty is one year following the date of sale or one year after the date of installation, whichever is the earlier date. This warranty does not apply when the product is used for any purpose other than the intended use as described in the Arlington literature. This warranty does not apply when the product is used for any installation which would violate the national electrical code or any code which takes precedence in a particular jurisdiction.
- Application: Installation of Flat Panel TV on 1/2" or 5/8" Drywall with Shallow Wall Depths.
- Impact-resistant plastic results in less breakage on Jobsite
- Removable front flange.
- Used for installation of Flat Screen TVs (LCD, LED, Plasma).
- Total power outlets:2
- The non-metallic box also fits on 2x2, 2x3 and 2x4 studs.
- Low Profile TV BOX kit for a flush to the wall installation as shallow as 3/4".

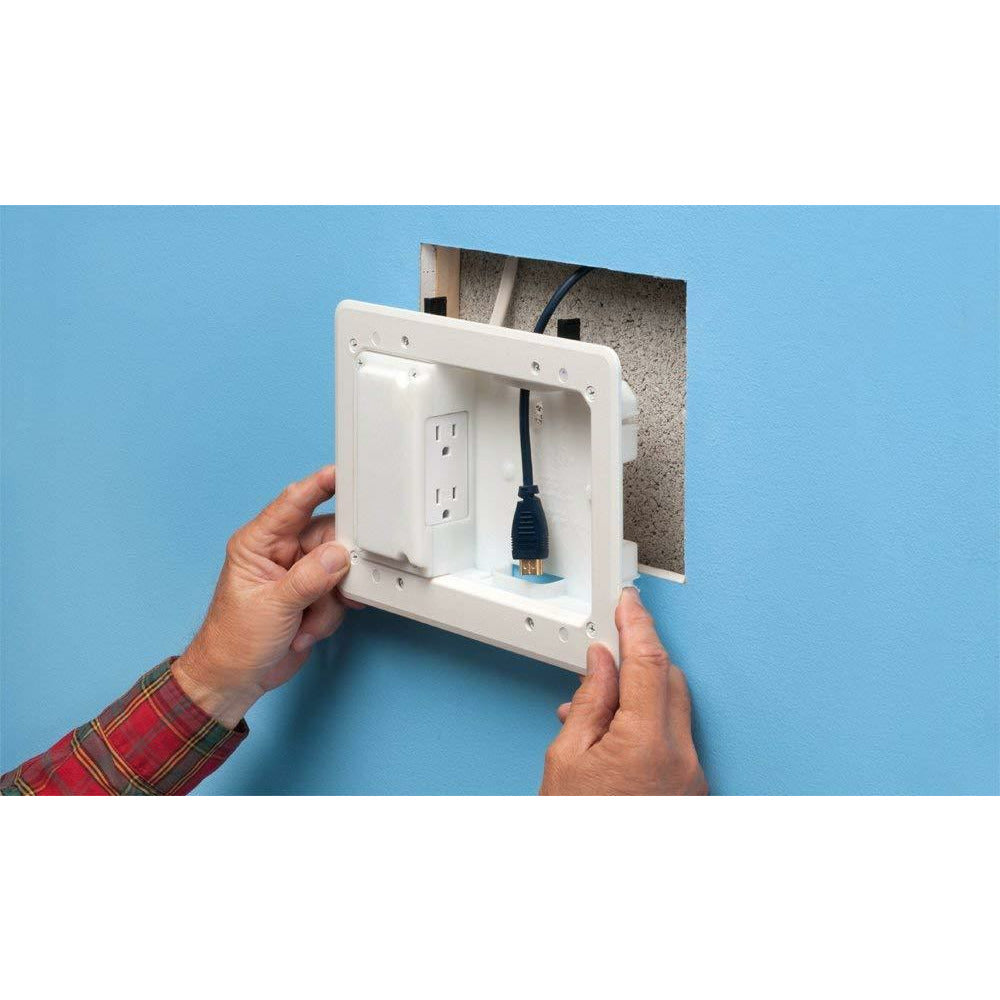

- For new or old construction.

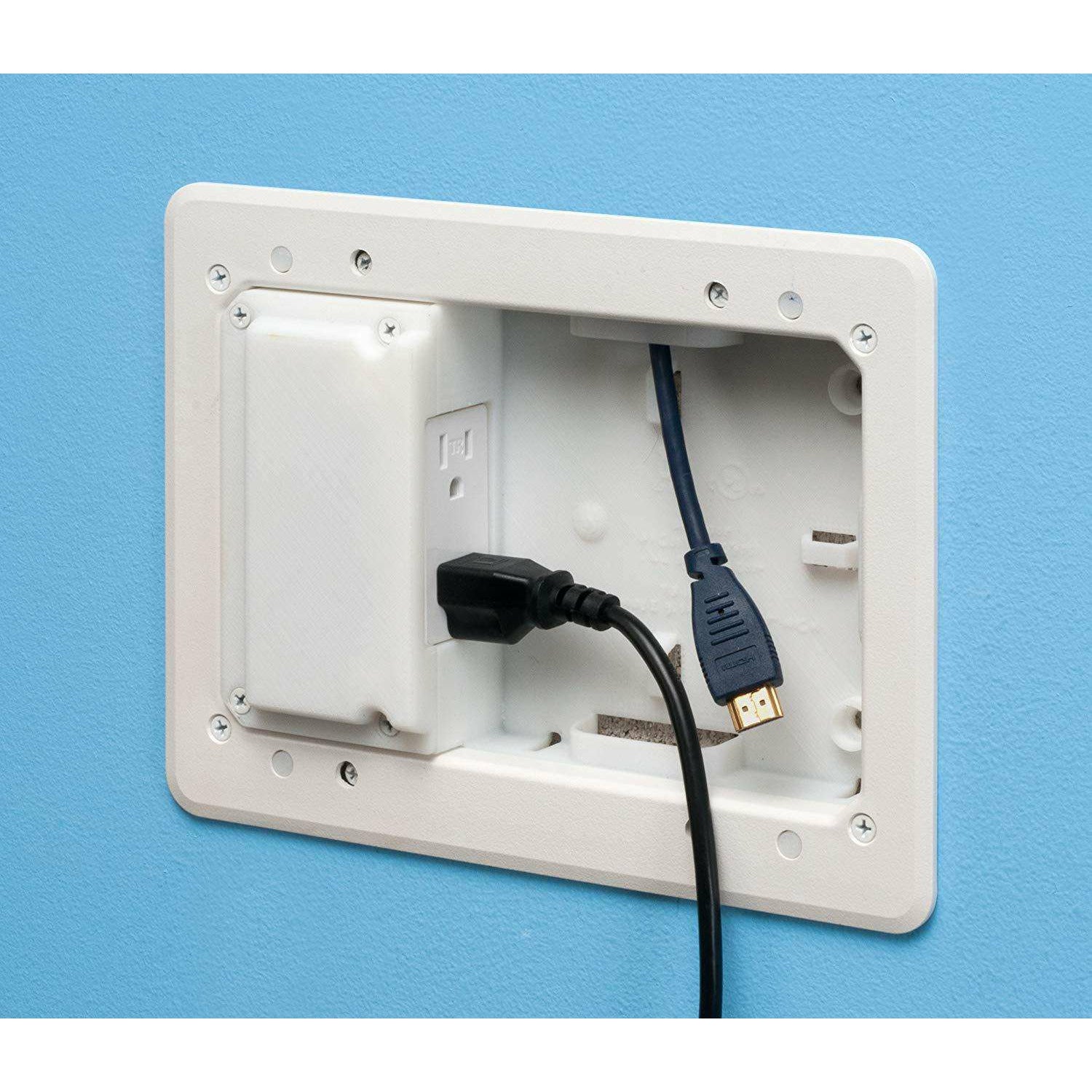

- Plugs stay inside box so TV mounts closer to the wall
- Mounting wing screws hold box securely in the wall
- Decorator-style receptacle.

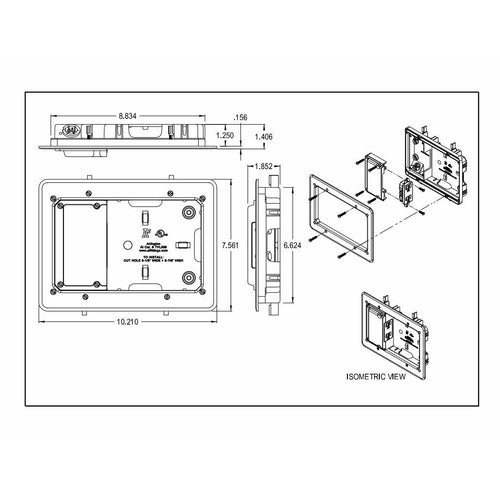

- Weight: 1.092 lbs/each
- Height: 7.561"
- Width: 10.210"
- Stud Size: 2 x 2, 2 x 3, 2 x 4, or Larger
- Trade Size: 5" x 8" Box
- Box Depth: 1-1/4"
