Arlington DVFR2W-1 Wall Plate, 2-Gang, White

$ 18.75
Availability: In Stock

SKU: DVFR2W-1
Arlington
 Arlington
Description

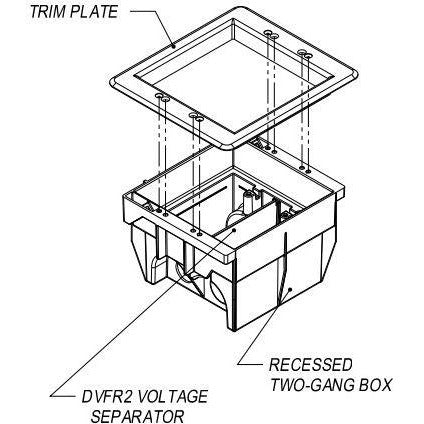

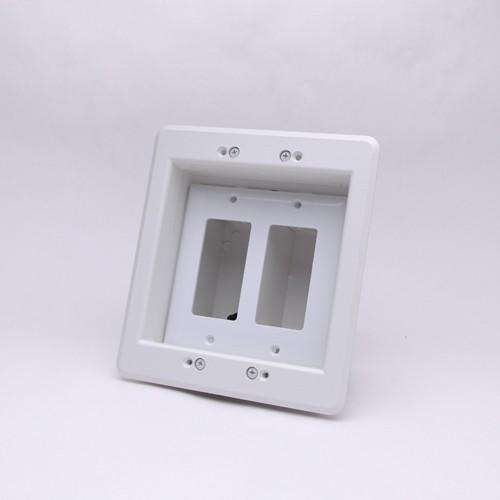

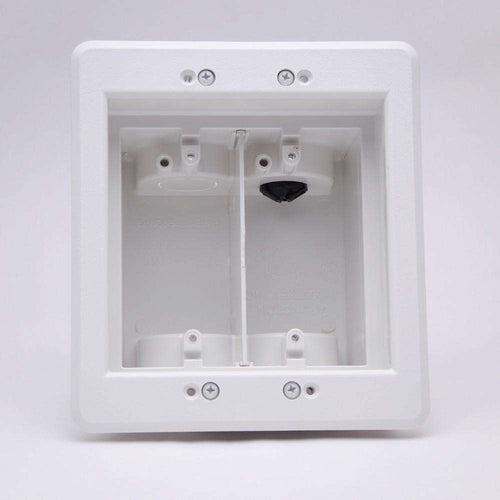

Arlington's non-metallic recessed indoor InBox allows items such as furniture or televisions to be placed closer to the wall. Works well for new or old work allows LCD and plasma TV's to be placed flush against the wall. For power or low voltage, indoor IN BOX mounts securely to the stud (new construction) or drywall (old work). It's a recessed box so plugs don't extend past the wall like they do in a regular box. Use these to mount TV's flush or push furniture closer to the wall. The Arlington InBox uses mounting wings to attach to the wall, so it is ideal for new or retrofit construction. This double gang 21.0 cubic inch InBox comes in white, is cULus listed, and has a two-hour fire rating. It comes with the recessed box, NM94 cable connector, trim plate, standard duplex faceplate, standard GFCI faceplate, and mounting/installation screws.

Specifications:

  • New or retrofit use
  • Impact-resistant plastic results in less breakage on Jobsite
  • Removable front flange
  • Holes NM cable holder & 1/2" knockout
  • Panel Cut-out Dimensions 5.1" W x 5.9" H
  • Overall dimensions: 6.0" W x 6.625" H x 4.0" D
  • Works with 2x4 studs and 1/2" or 5/8" drywall or thicker sheetrock
  • Positioning tabs for 1/2" wall thickness assure accurate placement on stud
  • Comes in single or dual gang sizes for your convenience

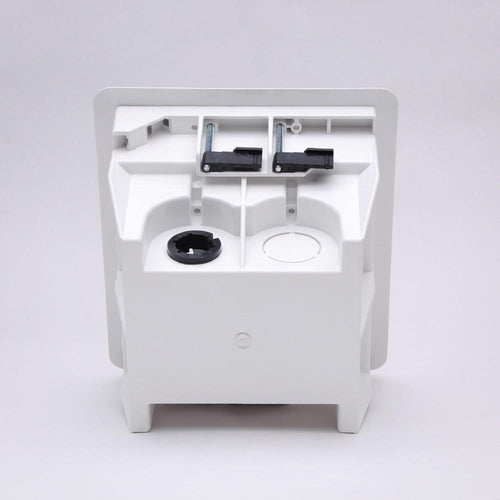

  • Mounting wings hold box securely against the wall when screws are tightened
  • Textured, paintable trim plate covers edges of cut drywall
  • Horizontal or vertical mounting
  • Uses standard indoor wall plates or a GFCI cover plate
  • Your electrical plugs won't extend past the wall as they do with your standard outlets
  • Can be used with power or low voltage applications
  • Made in the U.S.A.
  • Allows you to place furniture, armoires and anything else closer to the wall so there is no unsightly gap
  • Match any décor in your home with the paintable and textured trim plate
  • Excellent for use on countertops where space is limited, your microwave,
  • coffee maker and toaster will be flush against the wall, not in the middle of your workspace
  • The box is UL listed and CSA certified.
  • UL Rated E170558 Non-metallic Electrical Boxes
  • UL and CSA when grounding lug only.

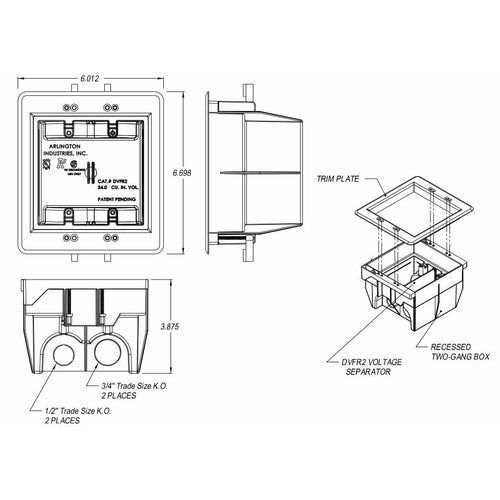

Measurements:

  • Overall Width 6.0"
  • Overall Height 6.625"
  • Overall Depth 4.0"
  • Total Internal Depth 3.75"
  • Internal Depth to Plate 1.25"
  • Side Wall Thickness 0.105"
  • Front Flange Thickness 0.127"
