Televes 144286 Dinova BOSS Mix Antenna

$ 129.99
Availability: In Stock

Location: Indoor, Outdoor, Attic
Connector type: F-connector
Range
 Up to 50 Miles
MPN 144286

Add to wishlist
Add to compare
SKU: TELEVES-144286
External Antenna
Televes
 all,Televes
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

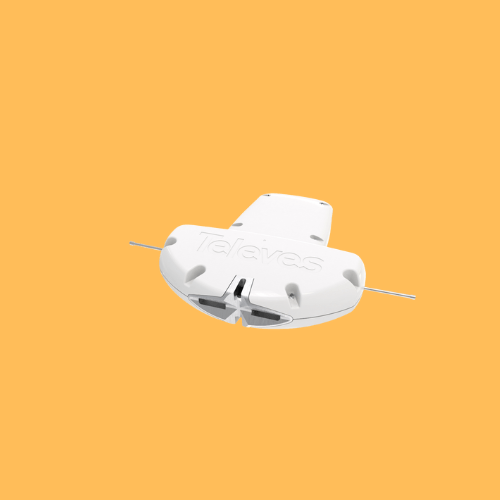

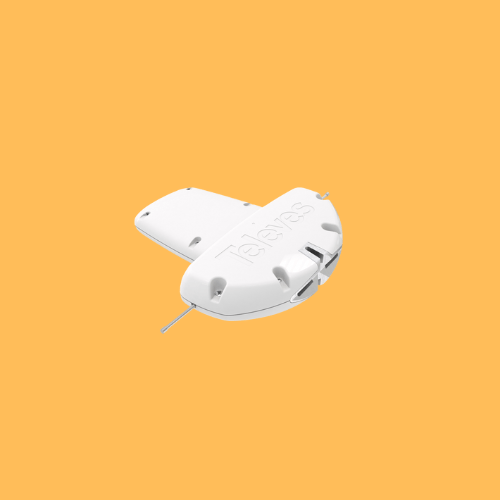

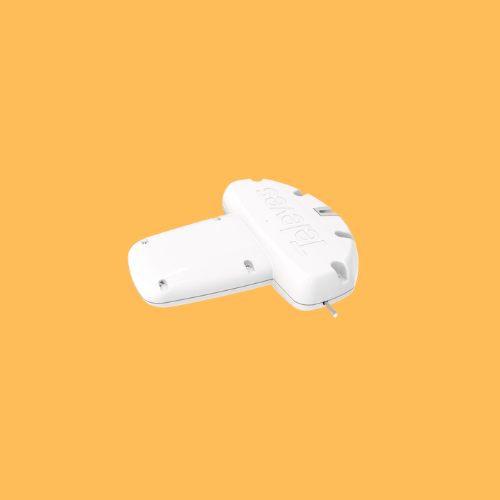

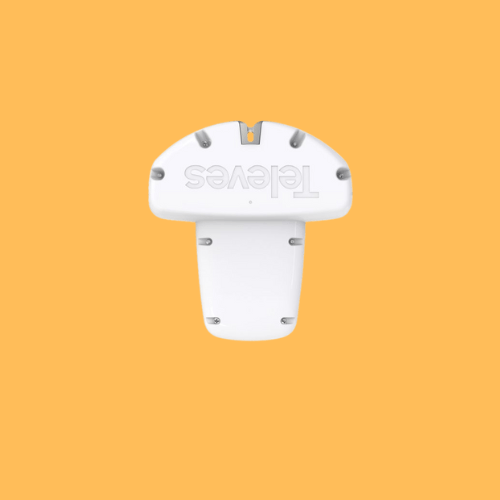

Televes 144286: Advanced Smart Antenna for Multi-Band Operation

The Televes 144286 antenna is a cutting-edge solution for receiving low VHF, high VHF, and UHF signals. Equipped with BOSS (Balanced Output Signal System) technology, it dynamically adjusts gain to ensure signal quality, even under challenging conditions. With a robust design that withstands intense wind loads and an IP53-rated enclosure, it is ideal for outdoor installations. Compatible with mast diameters ranging from 0.787 to 1.969 inches, the 144286 delivers high performance for every television need.

Top Features

  • Three Frequency Bands: Supports low VHF (54-88 MHz), high VHF (174-216 MHz), and UHF (470-608 MHz) frequency ranges.
  • Dynamic Gain Adjustment: BOSS technology optimizes signal quality by managing gain levels automatically.
  • Weatherproof Construction: IP53-rated enclosure provides dependable operation in harsh outdoor environments.
  • Wind Resistance: Resilient to strong winds, withstanding 70N at 80 mph and 96N at 93 mph.
  • Wide Mast Compatibility: Fits mast diameters from 0.787 to 1.969 inches for enhanced installation flexibility.
Category Details
Product Name Televes 144286
Frequency Ranges
  • Low VHF: 54-88 MHz (Channels 2-6)
  • High VHF: 174-216 MHz (Channels 7-13)
  • UHF: 470-608 MHz (Channels 14-36)
Gain
  • Low VHF: 16 dB (BOSS ON), -10 dB (BOSS OFF)
  • High VHF: 29 dB (BOSS ON), 2 dB (BOSS OFF)
  • UHF: 34 dB (BOSS ON), -- dB (BOSS OFF)
Power Requirements
  • Voltage: Powered at 12V DC
  • Maximum Current: 70 mA
Weather Resistance IP53 Protection Rating
Wind Load
  • 70N at 80 mph
  • 96N at 93 mph

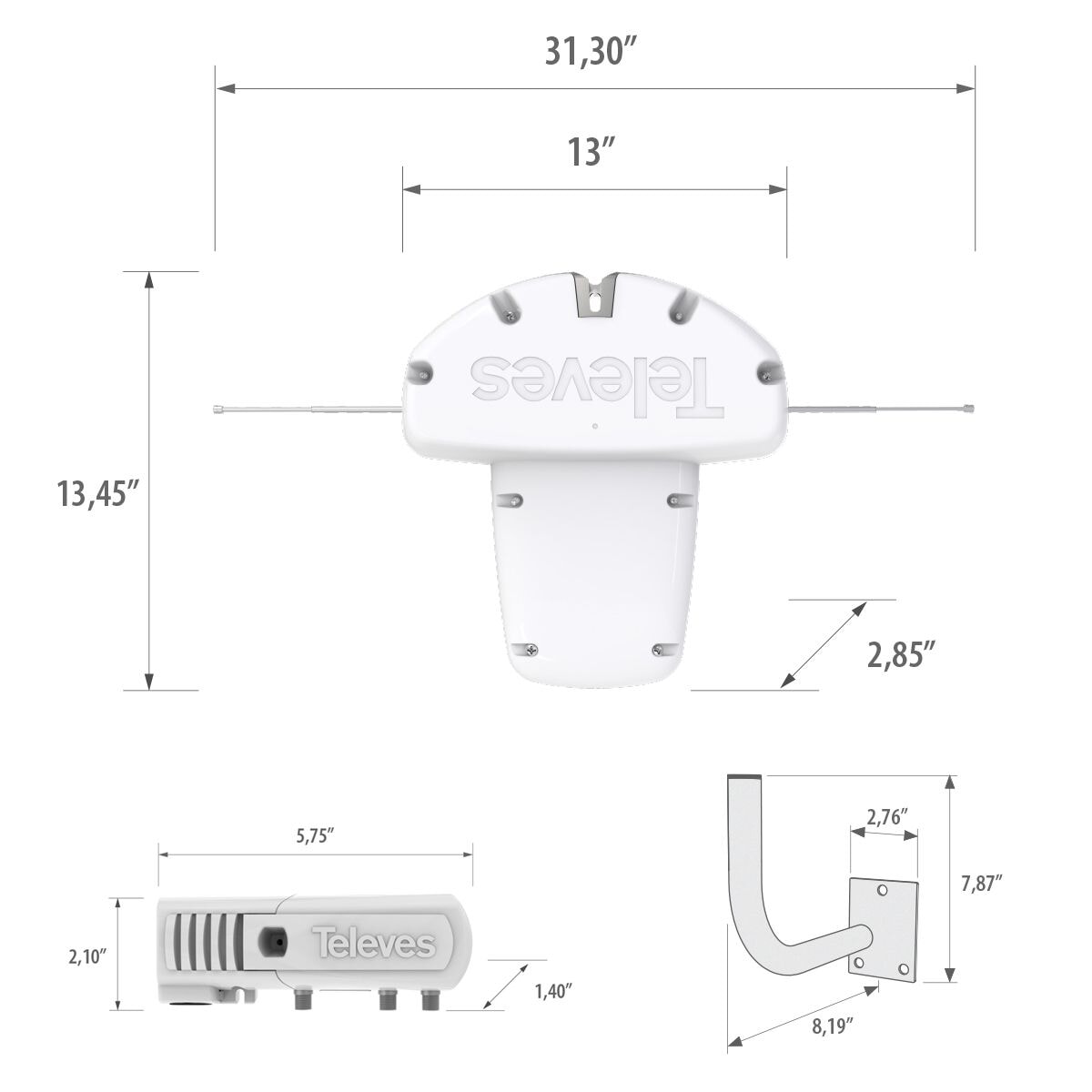

Mast Diameter Compatibility 0.787 to 1.969 inches



Designed to tackle multi-band signal challenges, the Televes 144286 delivers efficient operation with its smart gain control and durable weather-resistant build, making it an ideal solution for advanced TV reception in various environments.
