[shortdesc]

Location:	Outdoor, Attic
Connector type:	F-connector
Range:	Up to 100 miles
MPN:	149884

[/shortdesc]

Product Description

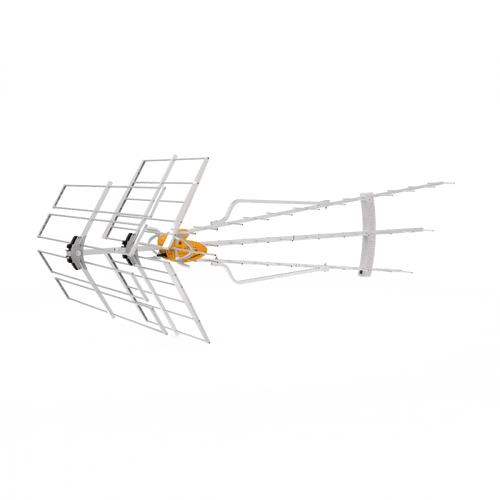

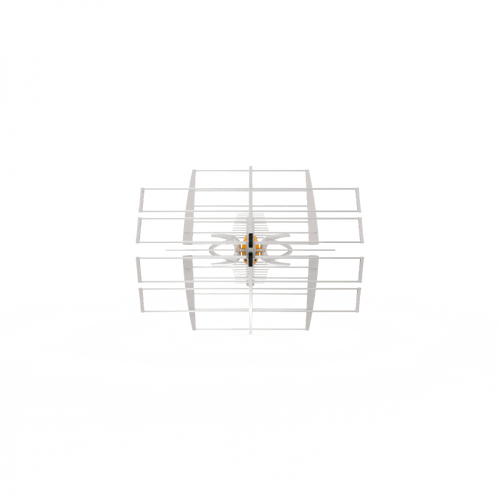

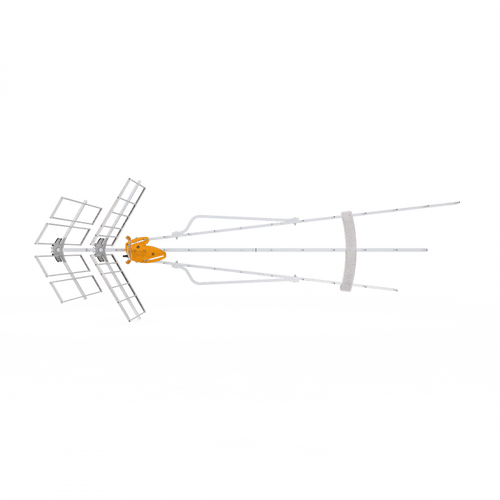

Televes 149884: High-Gain Antenna with Smart Signal Control

The Televes 149884 is a high-performance antenna designed for excellent signal reception across high VHF (174–216 MHz) and UHF (470–608 MHz) bands. Featuring BOSS (Balanced Output Signal System) technology, it provides dynamic gain adjustment to ensure stable performance in varying signal environments. With exceptional wind resistance, a wide beamwidth, and durable outdoor construction, this antenna is optimized for reliable performance even in harsh conditions.

Top Features

Multi-Band Reception: Covers high VHF (Channels 7–13) and UHF (Channels 14–36) for versatile TV compatibility.
BOSS Technology: Automatically adjusts gain, ensuring optimal reception whether BOSS mode is ON or OFF.
High Gain Performance: Achieves up to 38 dBi (High VHF) and 46 dBi (UHF) with BOSS mode enabled.
Exceptional Durability: Withstands high wind loads of 182.4N at 80 mph and 250.8N at 93 mph.
Flexible Mounting: Compatible with mast diameters ranging from 0.787 to 1.969 inches.

Category	Details
Product Name	Televes 149884
Bands	High VHF and UHF
Frequency Range	High VHF: 174–216 MHz UHF: 470–608 MHz
Gain (BOSS ON)	High VHF: 38 dBi UHF: 46 dBi
Gain (BOSS OFF)	High VHF: 8.5 dBi UHF: 15 dBi
Beamwidth	High VHF: 58° UHF: 35°
Front-to-Back Ratio	High VHF: >12 dB UHF: >25 dB
Power Requirements	12V DC (70 mA)
Wind Load	@80 mph: 182.4N @93 mph: 250.8N
Mast Diameter Compatibility	0.787 – 1.969 inches

Engineered for durability and performance, the Televes 149884 excels in delivering high-quality reception across multiple bands, making it ideal for a wide range of outdoor installations. Its flexibility and weather-resistant design ensure long-term reliability.

===

In The Box

DAT BOSS Antenna

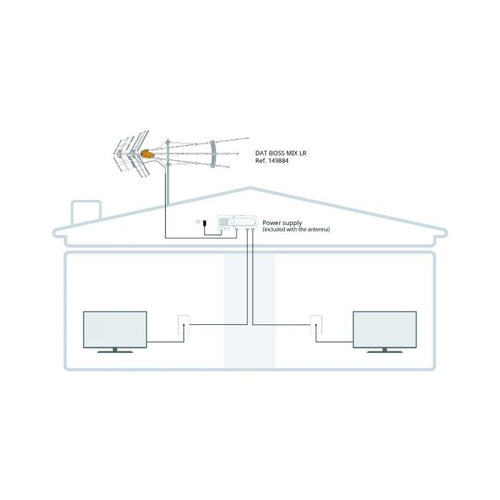

Power supply unit (2 outputs, F connectors. Indoor installation)
Mast clamp (mast not included)
Screw on F connector and weather boot cover
Fastening hardware and accessories: Bolts, Phillips head screws, nuts, plastic locks, plastic spacers
Wrench
Mount data sheet

Info & Guides

User Manual	Download
Data Sheet	Download
Specification Sheet	Download

Televes 149884 Ellipse Mix Amplified HDTV Antenna
