Southwire 12-2 CU UF-B With Ground

$ 179.99
Availability: In Stock

Category UF/B
AWG 12/2
Wet Location Use Dry, Wet
MPN

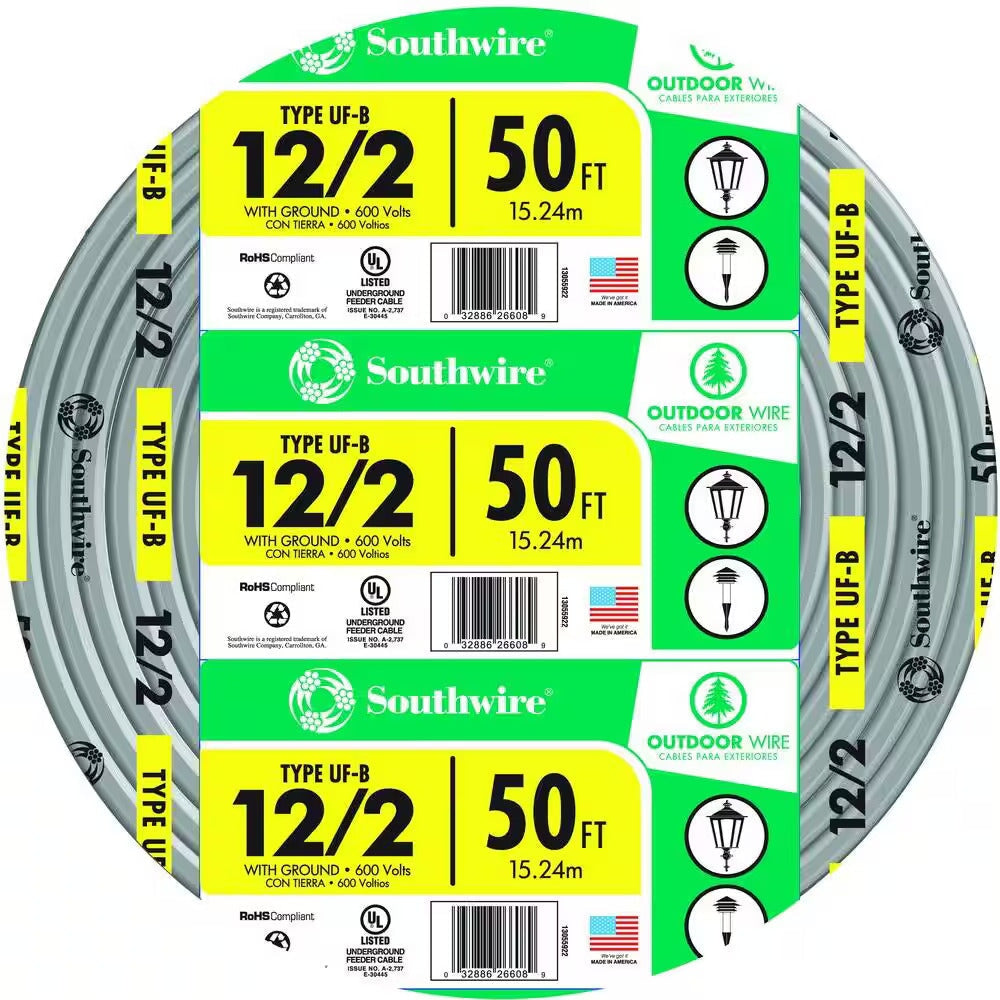

50' - 13055922

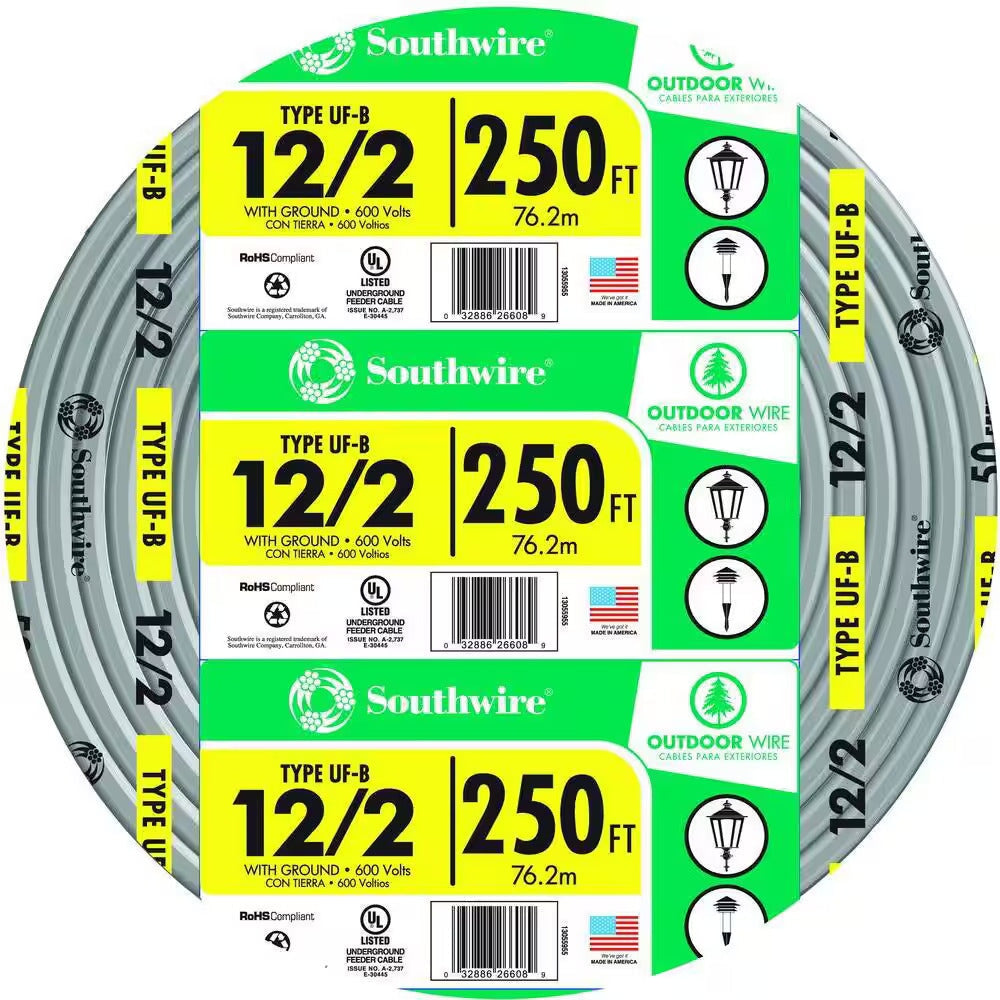

250' - 13049255

Add to wishlist
Add to compare
SKU: SW-12/2-UF/B-WG-250
Southwire
 all
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Prodcut Description

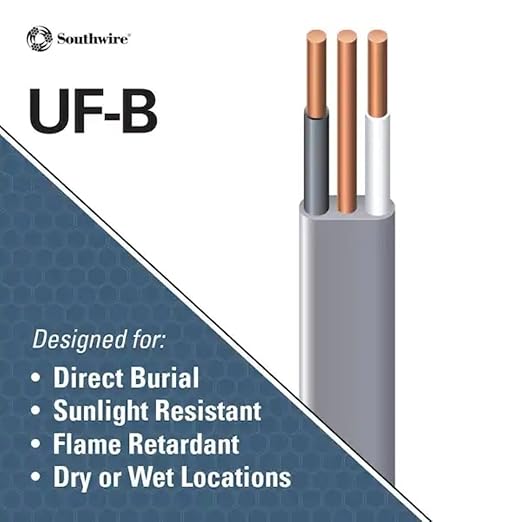

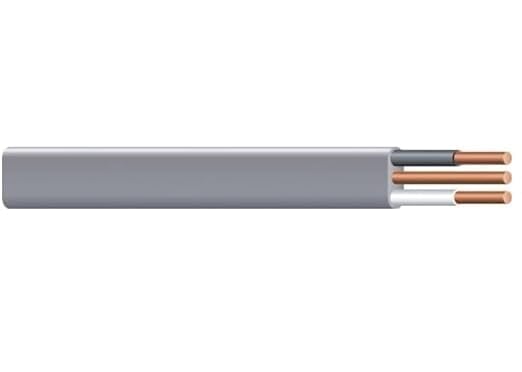

Southwire 12/2 CU UF-B with Ground Cable

The Southwire 12/2 CU UF-B With Ground Cable is built for durability and reliability in outdoor and underground direct-burial applications. Featuring two solid copper conductors and a bare copper ground, this cable is insulated and jacketed with sunlight-resistant PVC for long-lasting performance. Designed for various residential and agricultural projects, the robust construction ensures compliance with NEC standards and provides excellent resistance to moisture and other environmental factors. Available in 50 ft and 250 ft lengths.

Top Features

  • Direct Burial Use: Ideal for underground installations such as feeding lighting, pumps, and outbuildings.
  • Weather and Sunlight Resistant: PVC insulation and jacket withstand outdoor environments.
  • Trusted Performance: Solid copper conductors ensure reliable energy transfer.
  • Temperature Rated: Approved for up to 60°C (wet) and 90°C (dry) conditions.
  • NEC-Compliant: Certified for residential and agricultural applications.

Construction

Construction Specifications

  1. Conductor: Made of either solid soft-drawn bare copper (as per ASTM B3) or class B compressed stranded soft-drawn bare copper (as per ASTM B8)
  2. Insulation: Polyvinyl Chloride (PVC) with a Nylon sheath insulation is used for all phases and the neutral conductor
  3. Grounding: Utilizes solid soft-drawn bare copper
  4. Jacket: Features a gray Polyvinyl Chloride (PVC) outer jacket that is resistant to sunlight, moisture, and fungus.

Specifications

Attribute Details
Cond. Size 12 AWG
Conductor Number 2
Cond. Strands Solid
Diameter Over Conductor 0.080 inch
Insulation Thickness 20 mils
Jacket Thickness 30 mils
Approx. OD 0.183 x 0.386 inch
Copper Weight 39 lbs/1000'
Approx. Weight 71 lbs/1000'
