ROLAIR JC20 Air Compressor

$ 460.00
Availability: In Stock

Horse Power 2
RPM
1700
CFM Delivred
4.5 CFM @ 90 PSI
MPN
 JC20

Add to wishlist
Add to compare
SKU: RL-JC20
Air Compressor
Rolair
 all,Rolair
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

The ROLAIR® JC20 takes oil-free air compressor technology to new heights with its quiet, powerful, and compact design. Equipped with a 2 HP motor and dual-cylinder pump, it delivers 4.5 CFM @ 90 PSI with peak performance up to 150 PSI. The sturdy roll-cage design and upward-facing gauges enhance durability and usability, while an automatic thermal protection system ensures safety. Quiet at just 70 dBA and highly portable, it's a top choice for professionals requiring performance and reliability.

Top Features

  • Quiet Efficiency: Operates at only 70 dBA, ideal for noise-sensitive environments.
  • Robust Design: Heavy-duty roll-cage protects the motor and pump from damage.
  • Efficient Performance: Delivers 4.5 CFM @ 90 PSI with a high-pressure setting of 150 PSI.
  • User-Friendly: Equipped with upward-facing gauges and easy-to-use controls.
  • Additional Features: Dual intake filters, cord wrap, and quarter-turn drain valve.
Category Details
Horsepower 2 HP
Motor RPM 1700
CFM Delivered @ 40 PSI 5.5 CFM
CFM Delivered @ 90 PSI 4.5 CFM
CFM Displaced 8.7 CFM
Tank Capacity 3 gallons (11 liters)
Factory Settings 120-150 PSI
Pump-Up Time :60 seconds
Recovery Time :16 seconds
Noise Level 70 dBA
Weight 75 lbs (34 kg)

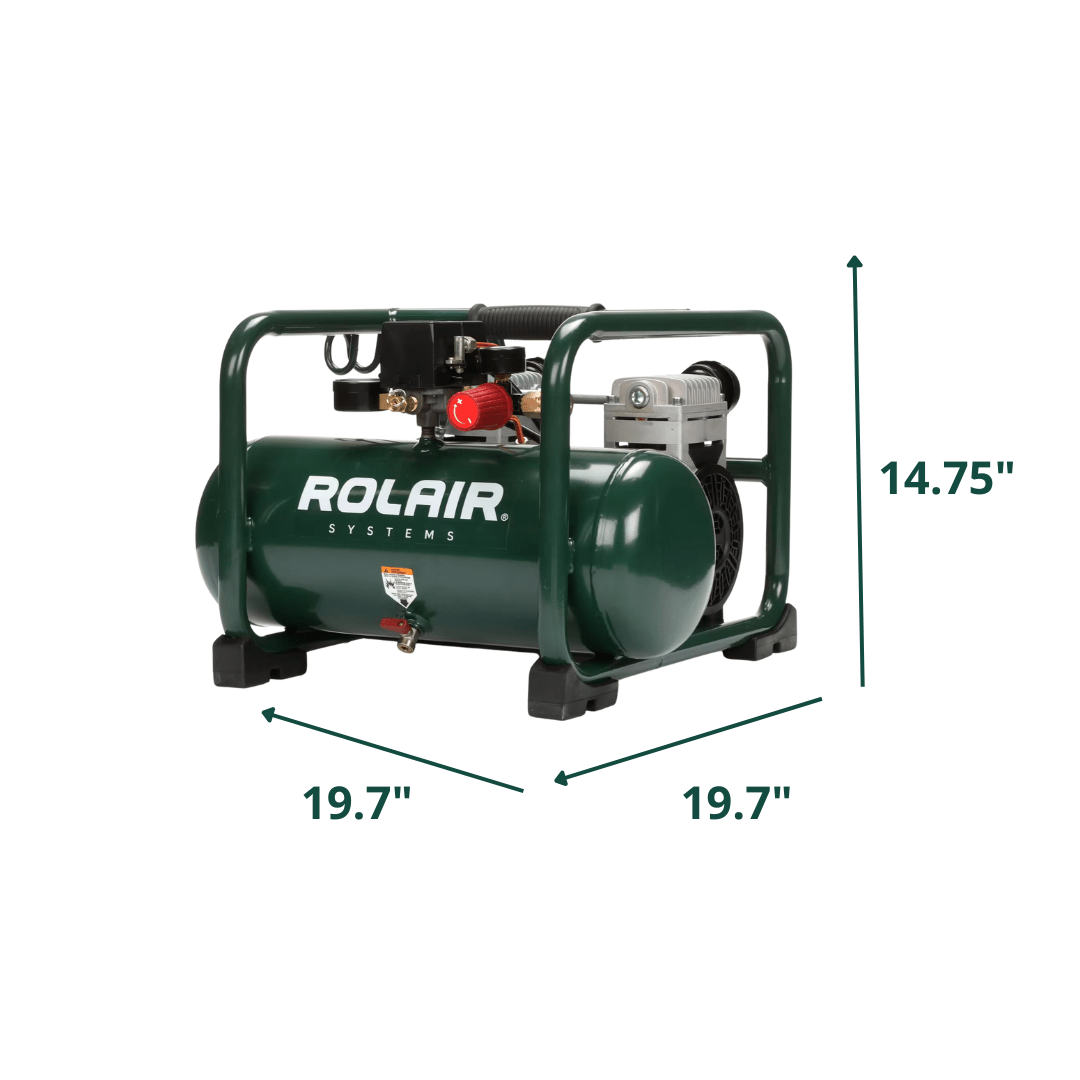

Dimensions (L x W x H) 19.7” x 19.7” x 14.75” (50 cm x 50 cm x 38 cm)
Amp Draw (Running) 12 Amps
Thermal Protection Automatic
Key Features
  • Start/Stop Pressure Switch
  • Roll-Cage Design for Motor/Pump Protection
  • Quarter-Turn Drain Valve
  • Dual Intake Filters
  • Heavy-Duty Cord Wrap
