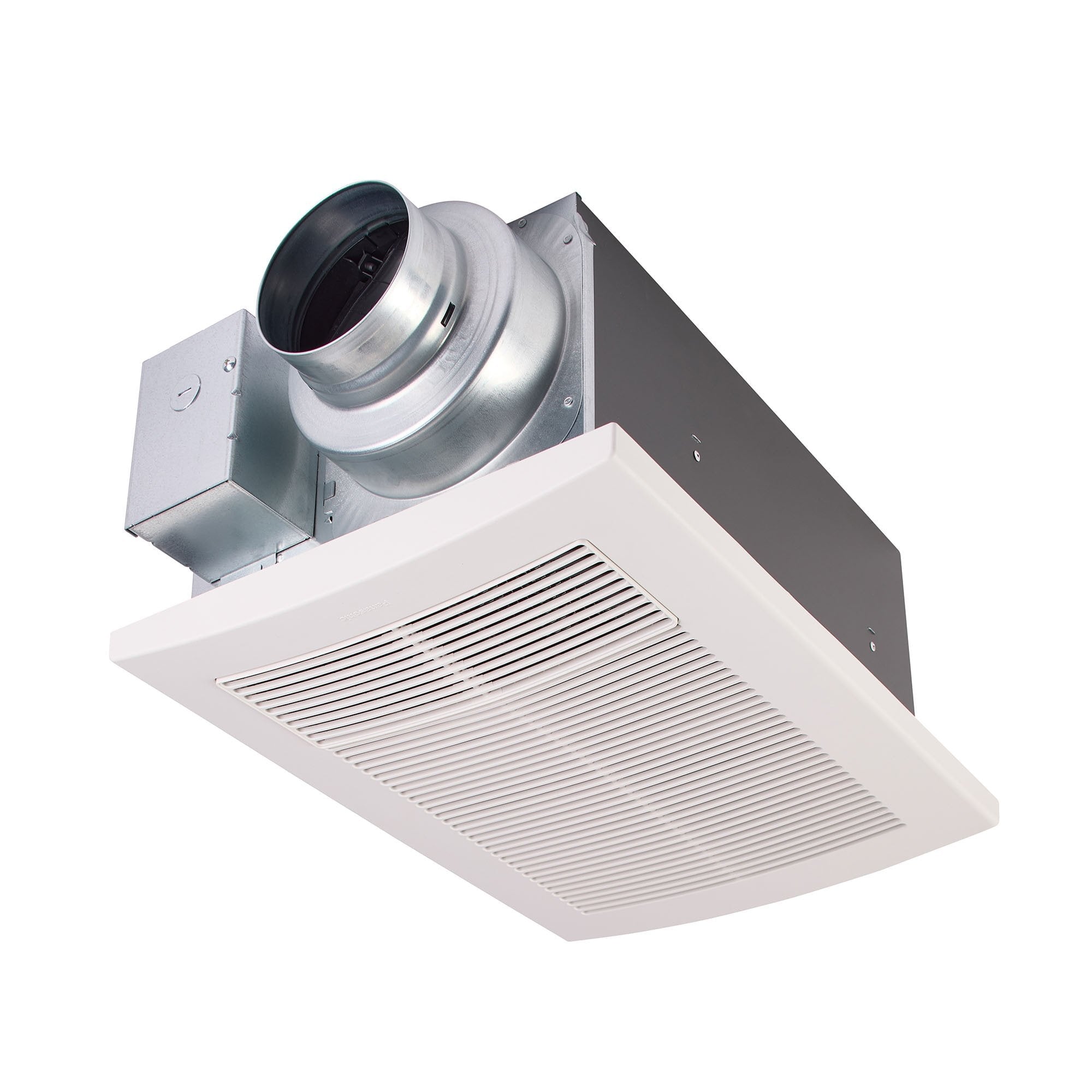

Panasonic FV-0511VH1 WhisperWarm DC Ceiling Bathroom Ventilation Fan with 1600W Heater, 50-80-110 CFM

$ 524.66 $ 314.99
Availability: Out Of Stock

Series Panasonic WhisperWarm DC
Airflow (CFM) 50-80-110 CFM
Noise Level <0.3 sones
Heater 1600W PTC
Duct Size 4" or 6"

Add to wishlist
Add to compare
SKU: FV-0511VH1
Ventilation Fan
Panasonic
 all,Fans,HVAC,HVAC & Ventilation,HVAC Parts,Panasonic
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

Whisper-quiet DC ventilation with an instant 1600W bathroom heater

The Panasonic FV-0511VH1 WhisperWarm DC combines whisper-quiet exhaust ventilation with a built-in 1600W PTC heater to warm chilly bathrooms fast. The self-limiting PTC element ramps down as it nears operating temperature for safe, reliable heat, while a circulation grille with diffuser throws warmth evenly across the room. The premium DC/ECM motor with SmartFlow holds the airflow you select across 50-80-110 CFM, giving builders easy, code-compliant installs and occupants healthy air plus instant comfort - ideal for homes with little bathroom heat or assisted-living residences.

Top Features

  • Built-in 1600W PTC Heater: Positive Temperature Coefficient heater delivers instant, self-limiting warmth for safe, reliable bathroom heating.
  • SmartFlow DC/ECM Motor: Same premium motor as the WhisperGreen line; holds the rated CFM even on complicated duct runs.
  • Pick-A-Flow Selector: Choose 50-80-110 CFM on one unit with the flip of a switch.
  • Circulation Grille with Diffuser: Directs higher-velocity, even heat throw across the room for advanced heating performance.

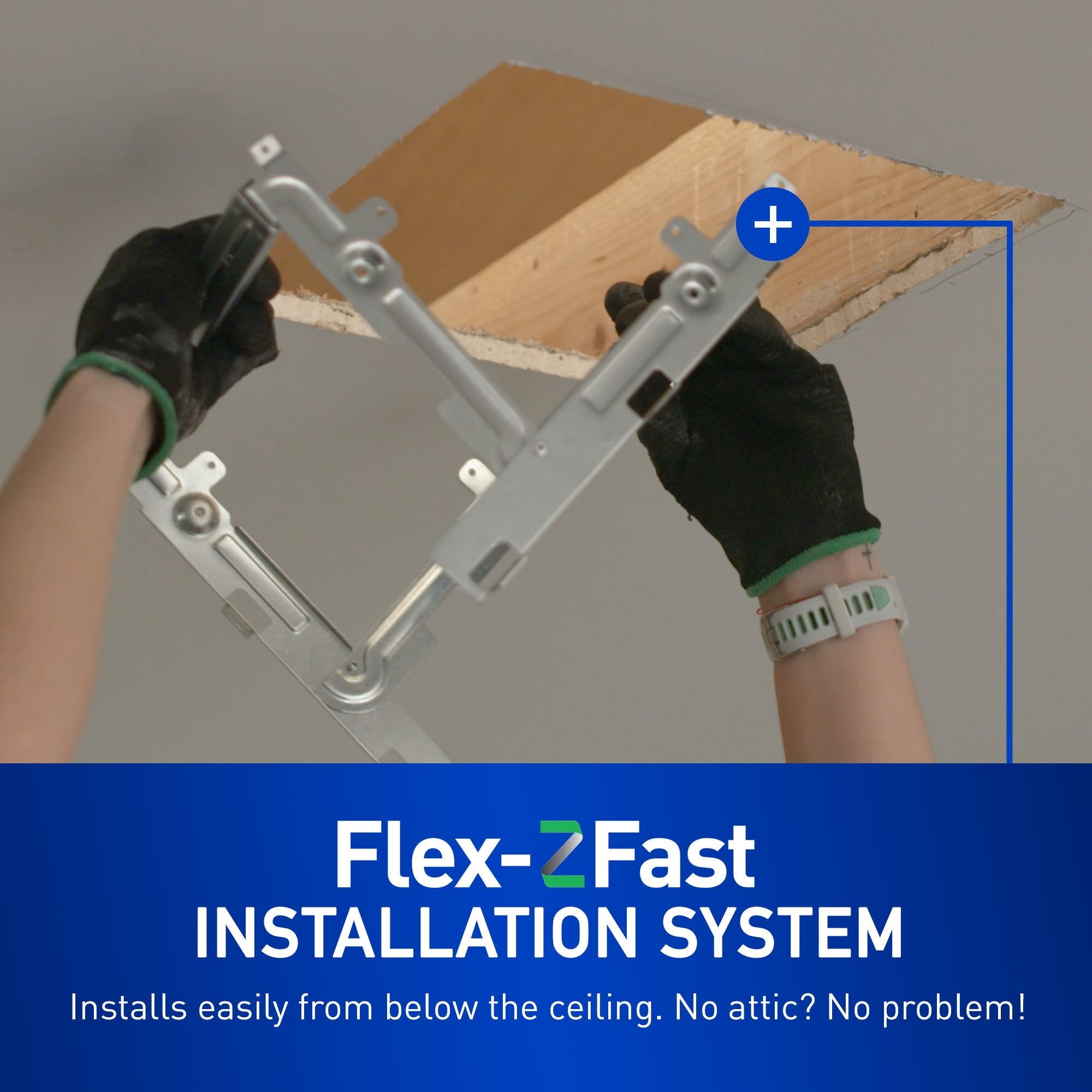

  • Dual 4" or 6" Duct Adapter: Integrated adapter and articulating bracket suit ceilings insulated up to R60.
Specification Value
Model FV-0511VH1
Series WhisperWarm DC
Type Ceiling-mount bathroom ventilation fan with heater
Airflow (Pick-A-Flow) 50-80-110 CFM
Sound Level <0.3 / <0.3 / 0.7 sones
Heater 1600W PTC (Positive Temperature Coefficient), self-limiting
Motor DC / ECM with SmartFlow technology
Duct Size 4" or 6" (integrated dual duct adapter)
Electrical 120V / 60Hz, 0.50A (fan); minimum 20A dedicated circuit required
Mounting Ceiling
Housing 26-gauge ZAM steel; housing 16" L x 10-1/4" W x 4-1/2" H
Listings UL listed for tub/shower enclosure when GFCI protected
ENERGY STAR Not applicable (no ENERGY STAR category exists for fan/heaters)
Country of Origin Mexico
UPC 885170374171
Warranty 6-Year ECM motor / 3-Year parts limited warranty


WhisperWarm DC requires a minimum 20A dedicated circuit; for best performance install the heater no more than 8 ft from floor to ceiling. Note that ENERGY STAR does not certify fan/heaters, so this model carries no ENERGY STAR rating. It is UL listed for tub/shower enclosures on a GFCI-protected circuit and suitable for ceilings insulated up to R60. Backed by a 6-Year ECM motor / 3-Year parts limited warranty. Heater wiring must follow local electrical code; use a licensed electrician.
