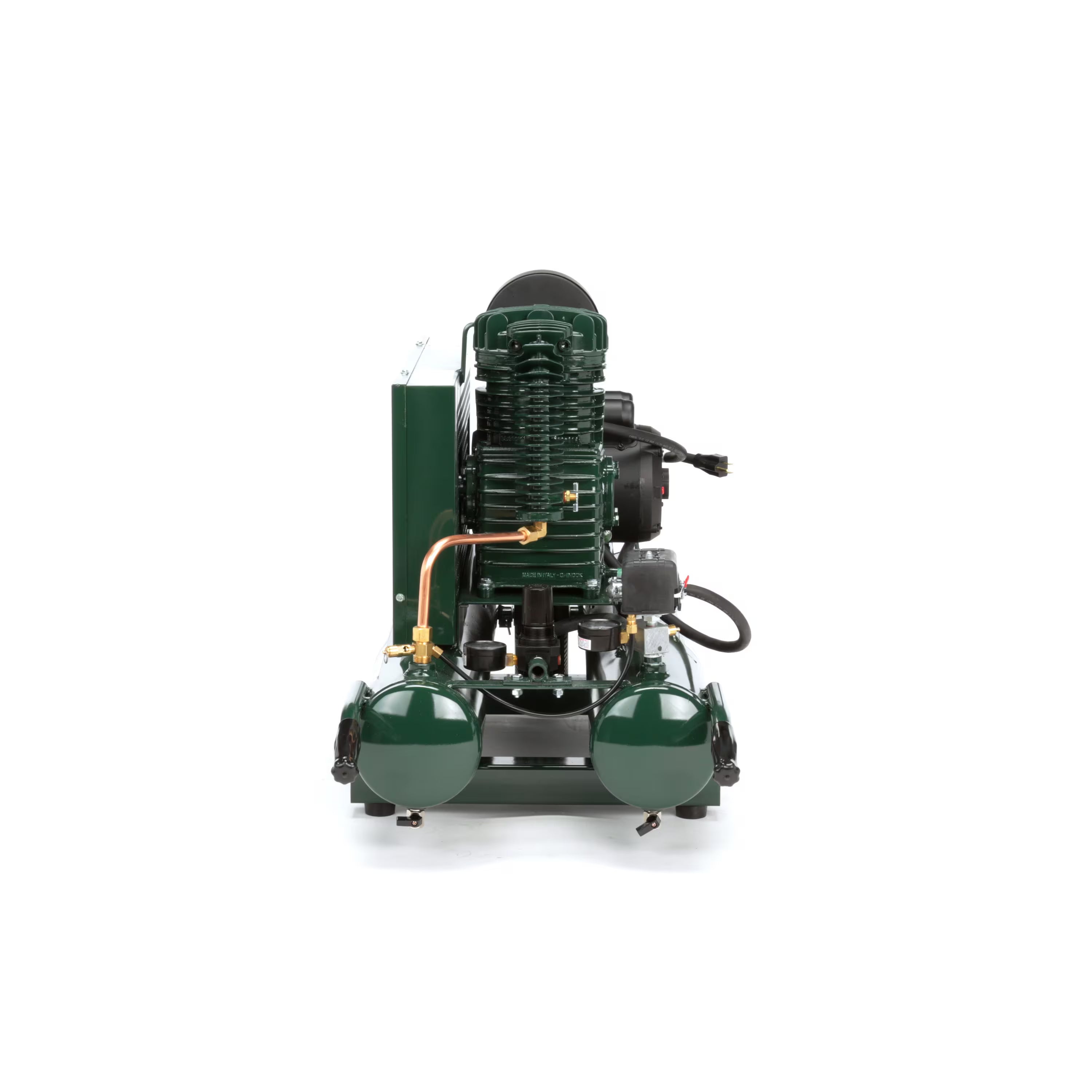

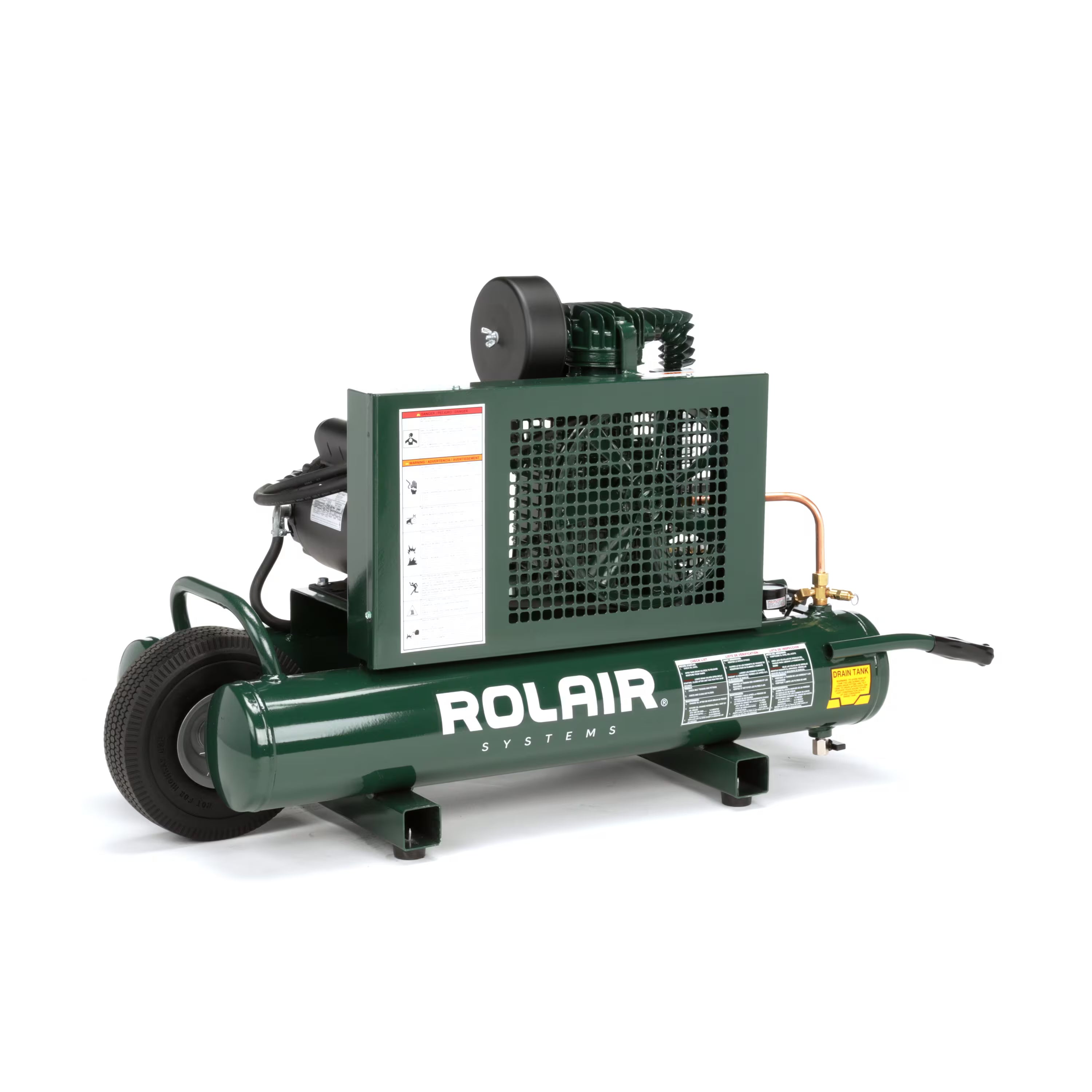

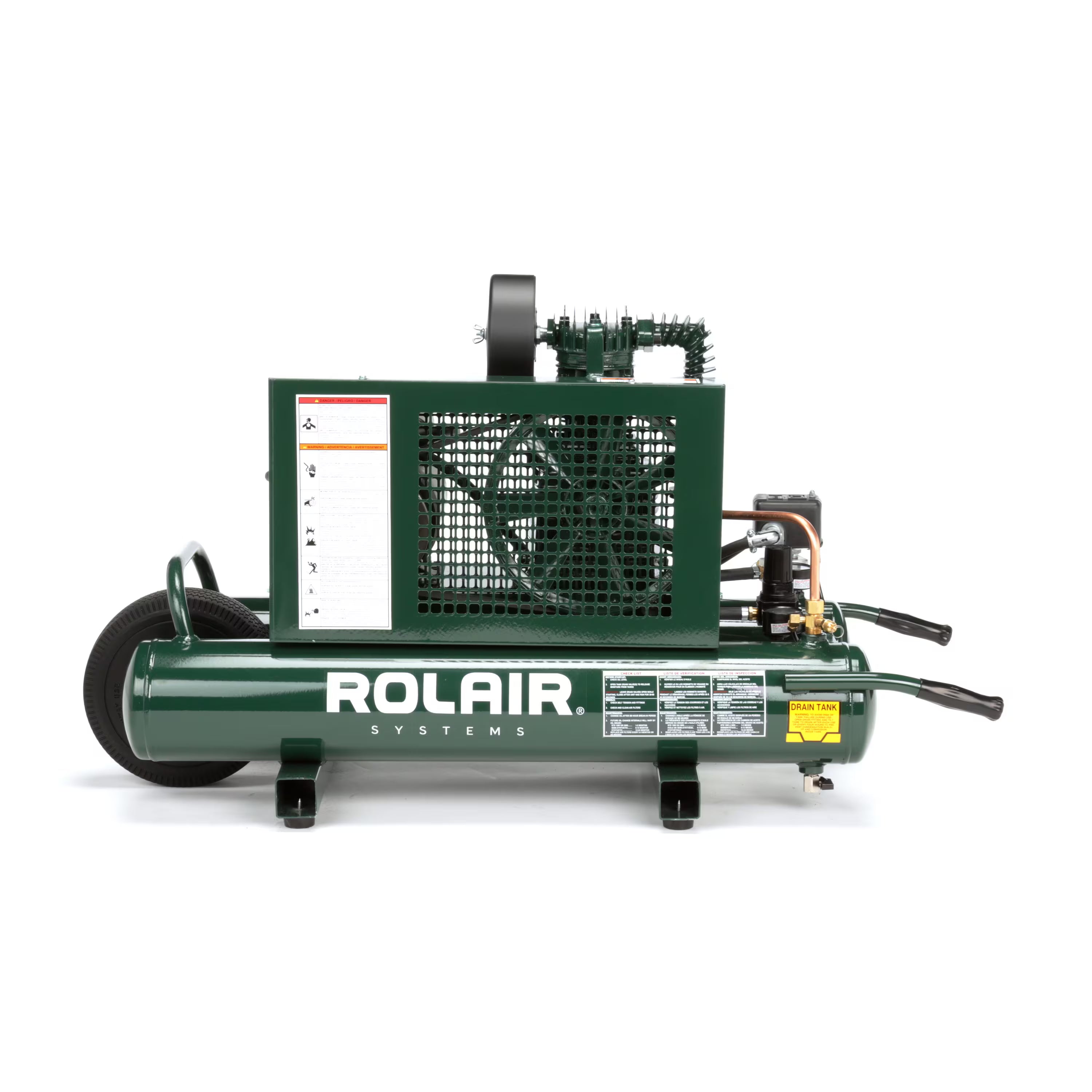

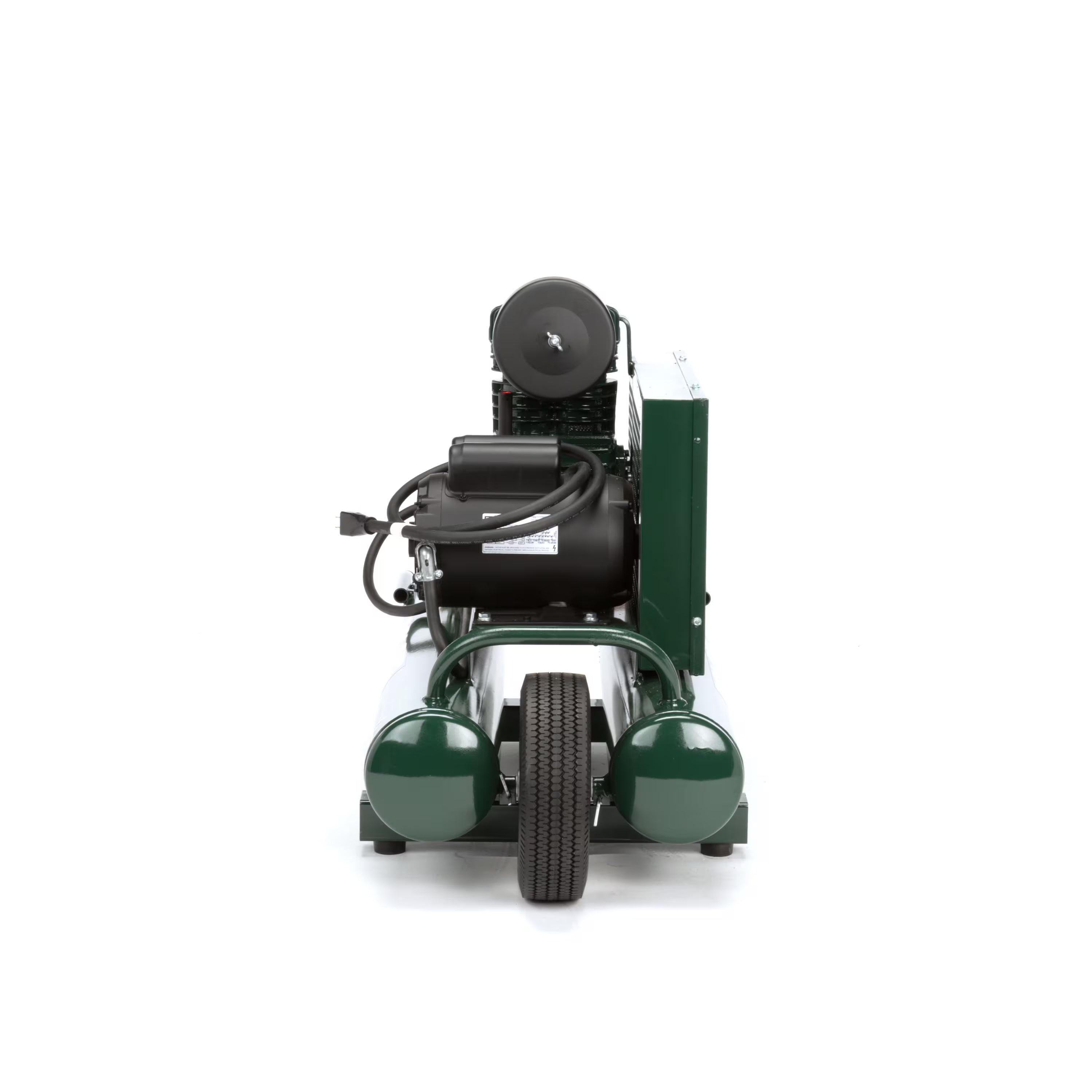

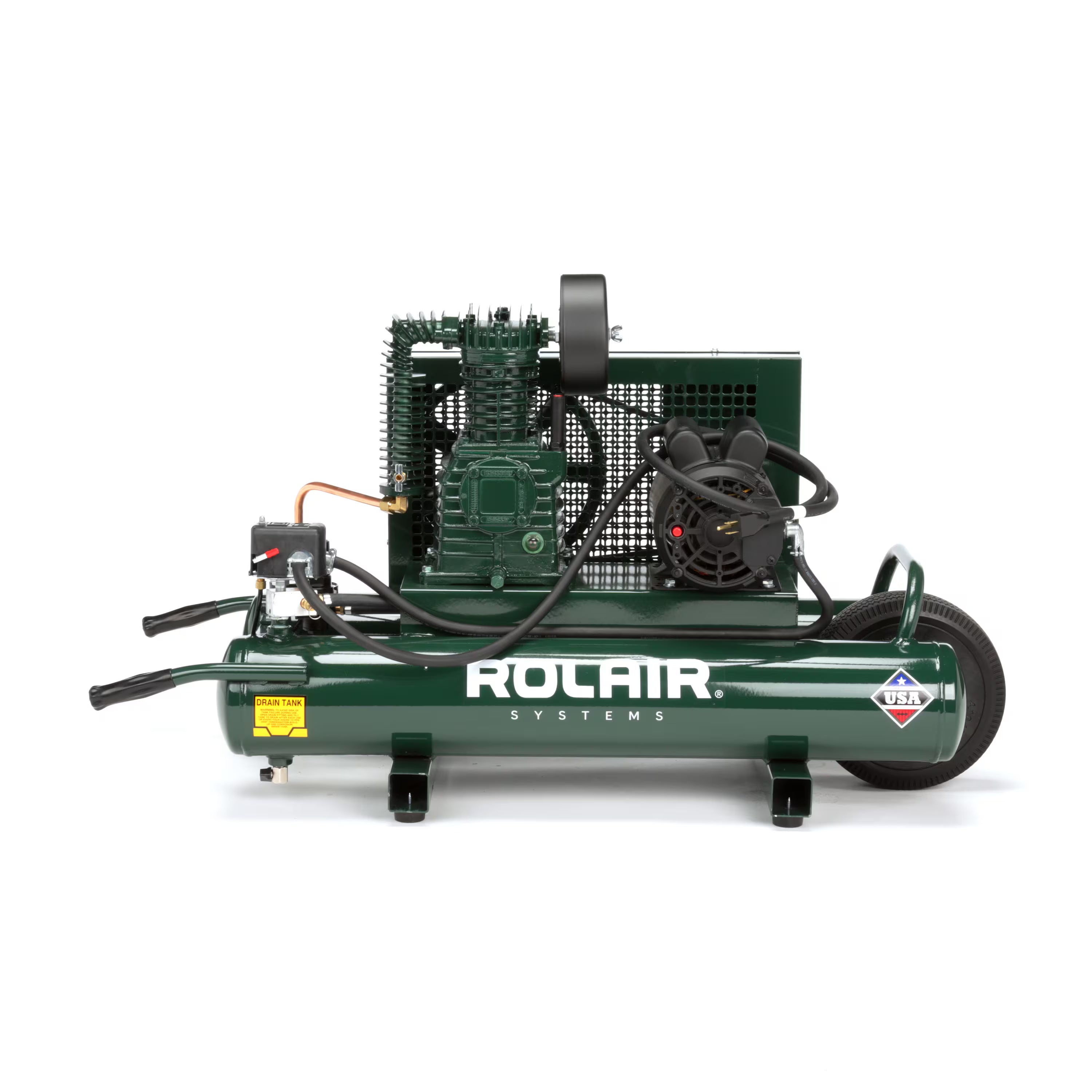

ROLAIR 5715K17 Air Compressor

$ 1,300.00
Availability: In Stock

Power Source     Corded Electric
Horse Power
1.5
RPM
1725
MPN
 5715K17-0003

Add to wishlist
Add to compare
SKU: RL-5715K17-0003
Air Compressor
Rolair
 all,Rolair
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

The ROLAIR® 5715K17-0003 is a portable, professional-grade 1.5 HP electric air compressor built to deliver outstanding performance. Designed to run on a 20 Amp circuit, it provides 7.3 CFM @ 90 PSI, nearly double the output of most direct-drive units. A low-RPM motor and pump ensure quieter operation, while features like the cold start valve, foam-filled flat-free tires, and an enclosed steel belt guard enhance durability. Ideal for contractors and professionals, this model easily tackles demanding pneumatic tasks with precision.

Top Features

  • High Air Output: Produces 7.3 CFM @ 90 PSI and 10.1 CFM displacement.
  • Low-RPM Design: Quiet operation with a motor running at 1725 RPM.
  • Durable Construction: Includes an enclosed steel belt guard and deep-finned aftercooler.
  • Portable Design: Equipped with foam-filled flat-free tires for easy transport.
  • Convenient Features: Includes manual thermal protection, cold start valve, and accessory support bracket.
Category Details
Horsepower 1.5 HP
Motor RPM 1725
CFM Delivered @ 90 PSI 7.3 CFM
CFM Displaced 10.1 CFM
Tank Capacity 9 gallons / 34 liters
Factory Pressure Settings 105-135 PSI
Pump-Up Time 1:25
Recovery Time :18
Voltage 110
Amp Draw (Running) 17.1 Amps
Thermal Protection Manual
Phase Single
Shipping Weight 180 lbs (82 kg)
Product Dimensions (L x W x H) 46” x 19” x 28” (117 cm x 48 cm x 71 cm)
Shipping Dimensions (L x W x H) 47” x 22” x 36” (119.4 cm x 56 cm x 91.5 cm)
Additional Features
  • Foam-Filled Flat-Free Tires
  • Totally Enclosed Steel Belt Guard
  • Deep-Finned Aftercooler for Efficiency
  • Accessory Support Bracket
  • Cold Start Valve
Optional Extras
  • In-Line Filter
  • Regulator
  • Lubricator
  • Dual Control Operation
  • Dual-Voltage Switch
