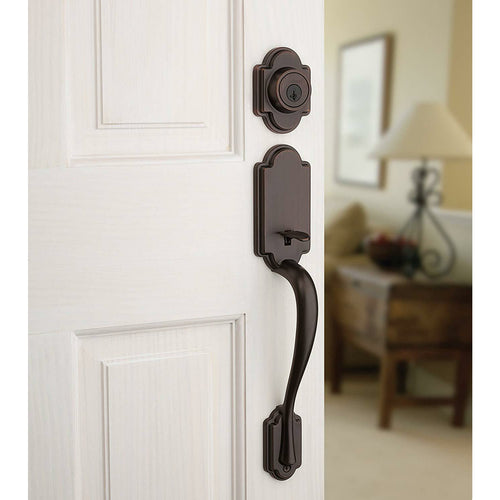

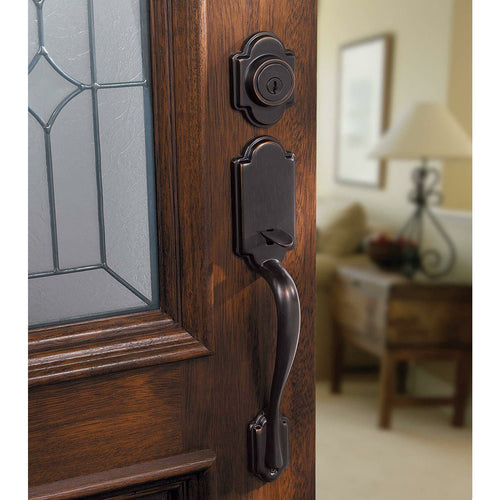

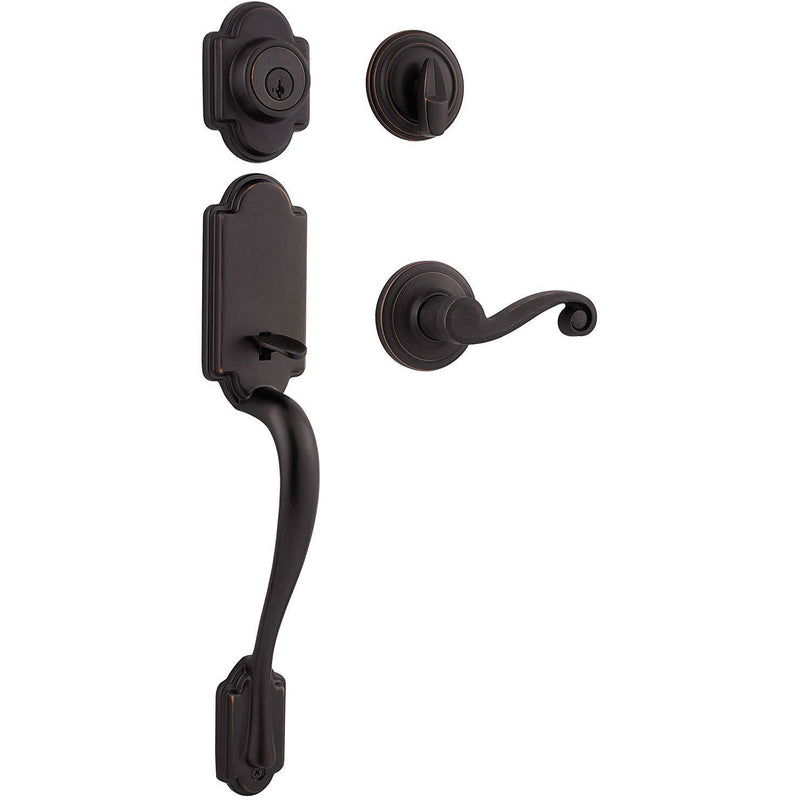

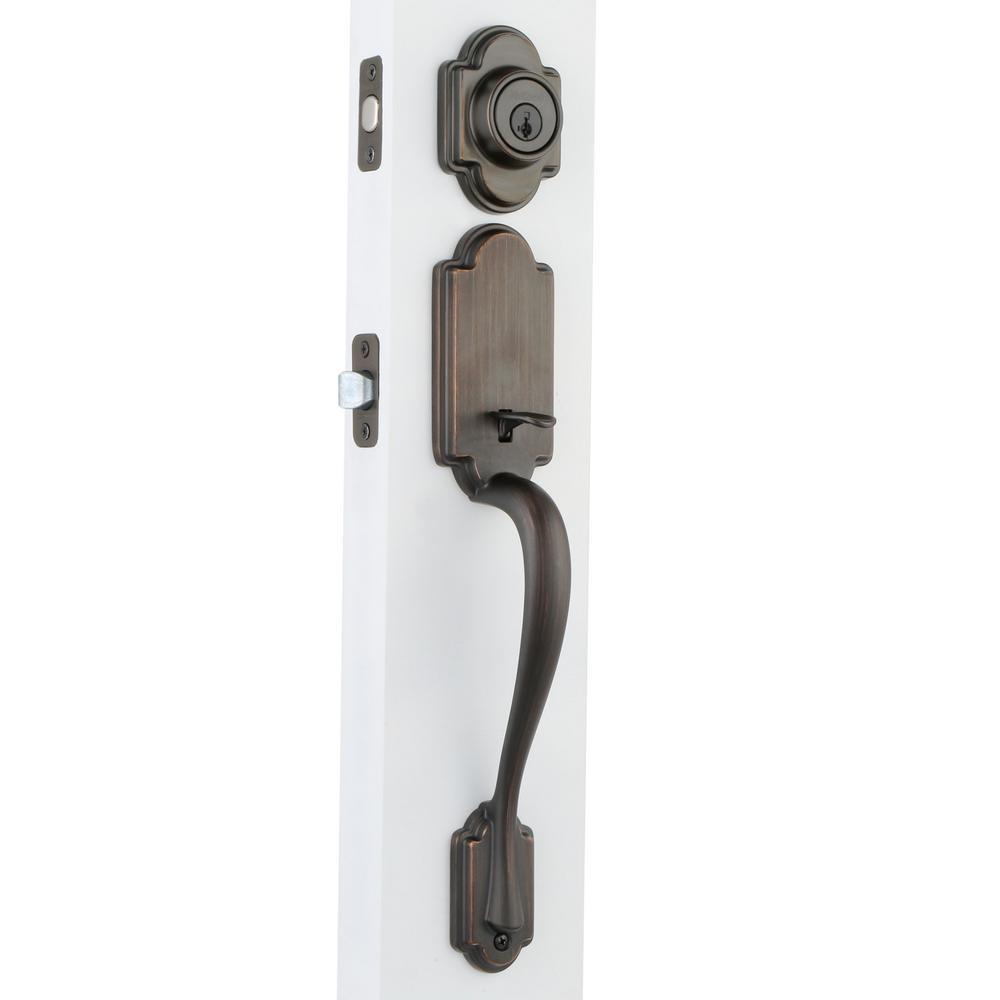

The Kwikset Arlintog Single Cylinder Handle set is step up to designer styles and superior security with Kwikset signature series products. The detailed styling of the Arlington is a welcome enhancement to your entry doors. Tustin's fashionable wave silhouette design is the perfect complement to homes with inspired style. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style. The single-cylinder handle set can be locked or unlocked by a key on the outside, or the turn button on the inside. SmartKey Security Re-key Technology allows you to control who has access to your home. Re-key the lock yourself in seconds in 3 easy steps. Have you recently moved or had a child lose a key. It's time to re-key. SmartKey Security provides the highest level of residential security and features BumpGuard to protect against lock bumping.
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Kwikset signature series product
- Fits door thickness of 1-3/4 in.
- For use on exterior doors where keyed entry and security is needed
- Fully reversible lever; fits both right-handed and left-handed doors
- Venetian bronze finish
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks

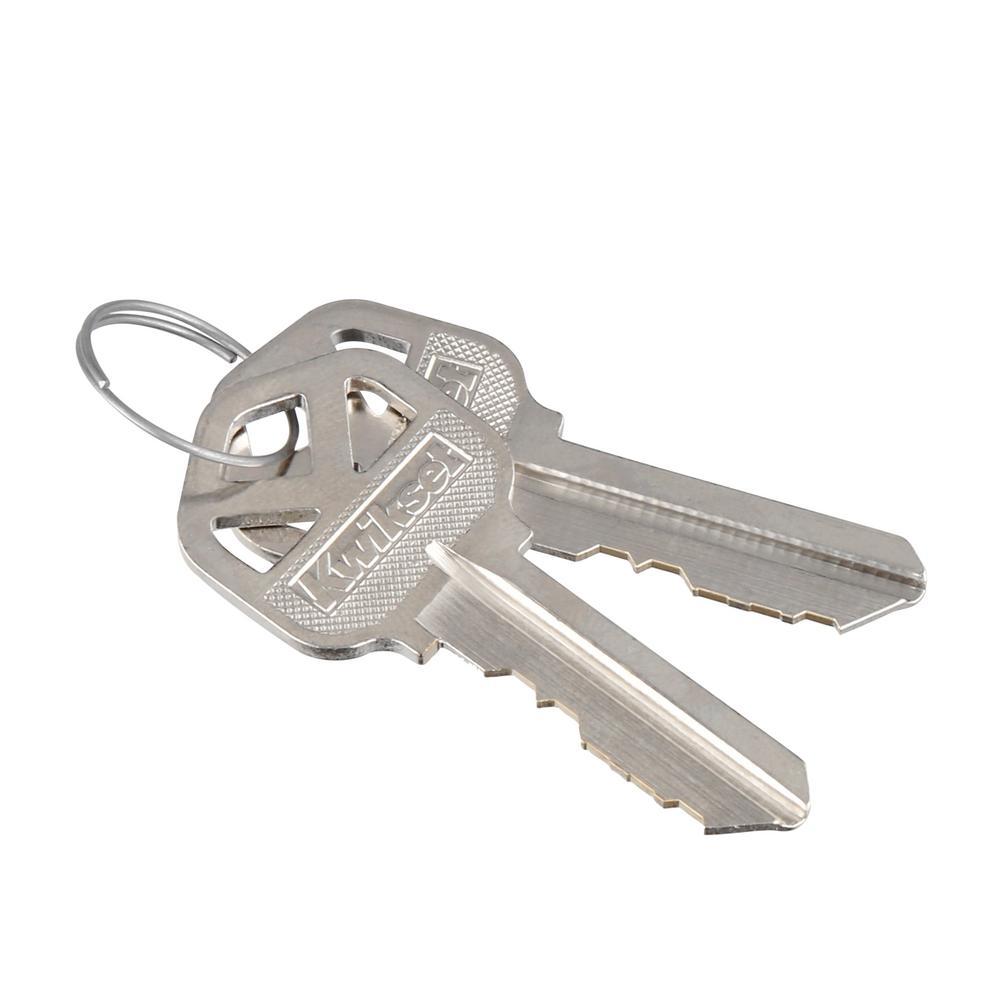

- 2-keys included
- Easy installation - installs in minutes with just a screwdriver
- ANSI/BHMA Grade 2 deadbolt

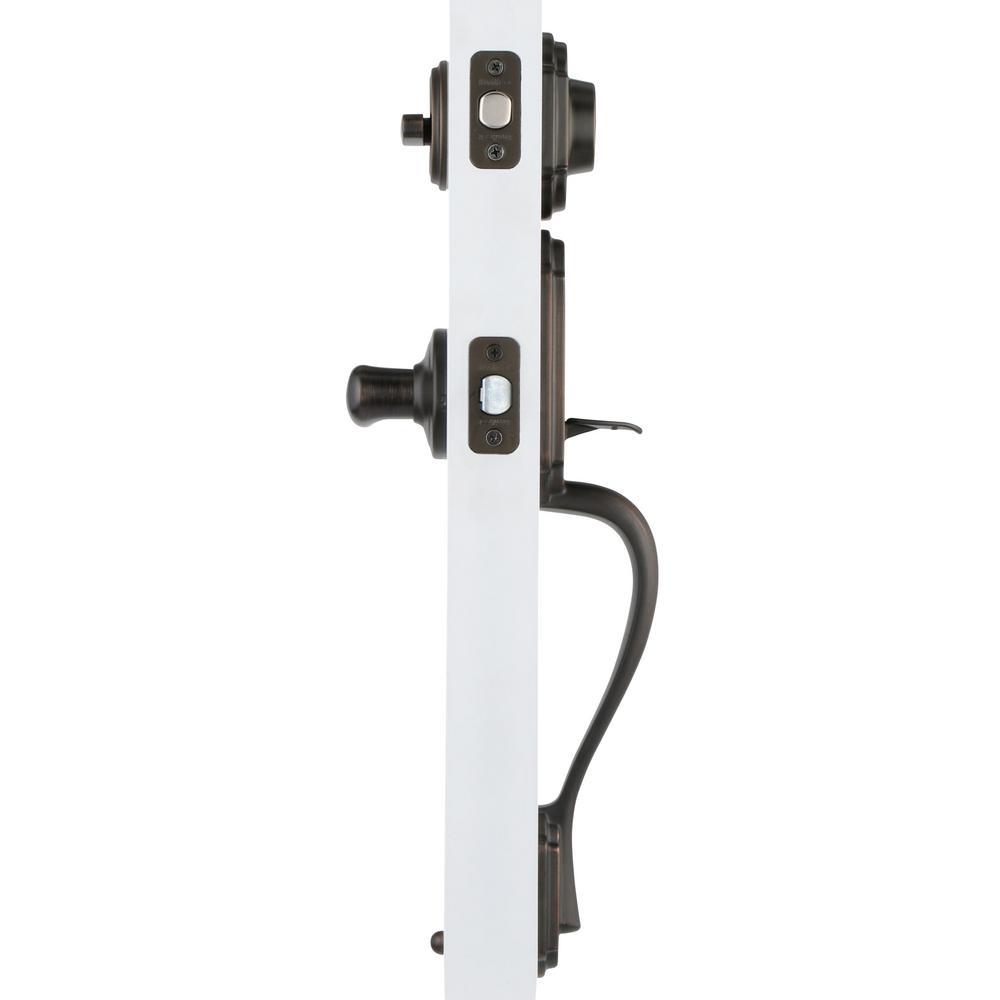

- Features a fully adjustable latch to fit all standard door preparations
|Before you start re-keying, you must have your functioning key, your new key, and the SmartKey Learn tool.||Insert the key that currently operates your lock, and rotates it 90 degrees clockwise.||A) Insert the SmartKey tool fully and firmly into the SmartKey hole.
B) Remove the SmartKey tool and the current key.
|A) Fully insert your new key into the lock and rotate it 180 degrees.
B) Rotate the new key 90 degrees back to the starting position, and remove it. Your lock is now re-keyed to your new key, and your old key will no longer operate the lock.
Re-key your locks yourself so all your doors and padlocks share one key.
Reasons to Re-Key
Your child has lost their key, again.
Reasons to Re-Key
You have loaned or unreturned keys.
Reasons to Re-Key
You have recently moved or had tenant turnover.
|Assembled Depth (in.)||3 in||Knob/lever housing width (in.)||12.625|
|Assembled Height (in.)||19.06 in||
Knob/lever strike height (in.)
|Assembled Width (in.)||2.75 in||Knob/lever strike width (in.)
|Deadbolt strike height (in.)||2.25||Knob/lever throw length (in.)||0.5|
|Deadbolt strike width (in.)||1.0||Lever grip length (in.)||3.75|
|Deadbolt throw length (in.)||1.0||Maximum door thickness (in.)||1.75|
|Deadbolt trim ring diameter (in.)||3.0||Outside bottom handle plate length (in.)||4.0|
|Handle grip length (in.)||4.21875||Outside bottom handle plate width (in.)||2.25|
|Inside top plate length (in.)||2.5625||Outside key plate length (in.)||1.0|
|Inside top plate width (in.)||2.5625||Outside key plate width (in.)||1.0|
|Knob/lever borehole diameter (in.)||2.125||Outside top handle plate length (in.)||1.0|
|Knob/lever cross bore diameter (in.)||1.0||Outside top handle plate width (in.)||1.0|
|Knob/lever housing height (in.)||2.625||Projection (in.)||2.09375|
|Application Type||Entry||Included||Hardware, Installation Instructions|
|Backset size (in.)||Adjustable||Interior/Exterior||Interior/Exterior|
|Commercial/Residential||Residential||Knob/lever strike||Round corner|
|Deadbolt Type||Single Cylinder Deadbolt||Lever style||Wave|
|Deadbolt strike||Round corner||Lock Type||Keyed Entry|
|Door Lock Style||Classic||Minimum door thickness (in.)||1.75|
|Door Locks & Knobs Product Type||Keyed Handlesets||Security/ANSI Grade||ANSI Grade 1 (Best)|
|Features||Easy Installation, Smart Key||Handleset Product Type||2 Piece Front & Back|
|Finish||Venetian Bronze||Total Number of Keys Included||2|
