AC Infinity Cloudplate T1-N,Quiet rack cooling fan system 1U, Intake

PRODUCT DESCRIPTION

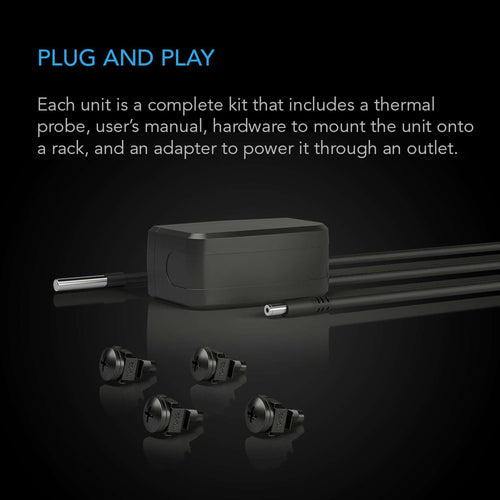

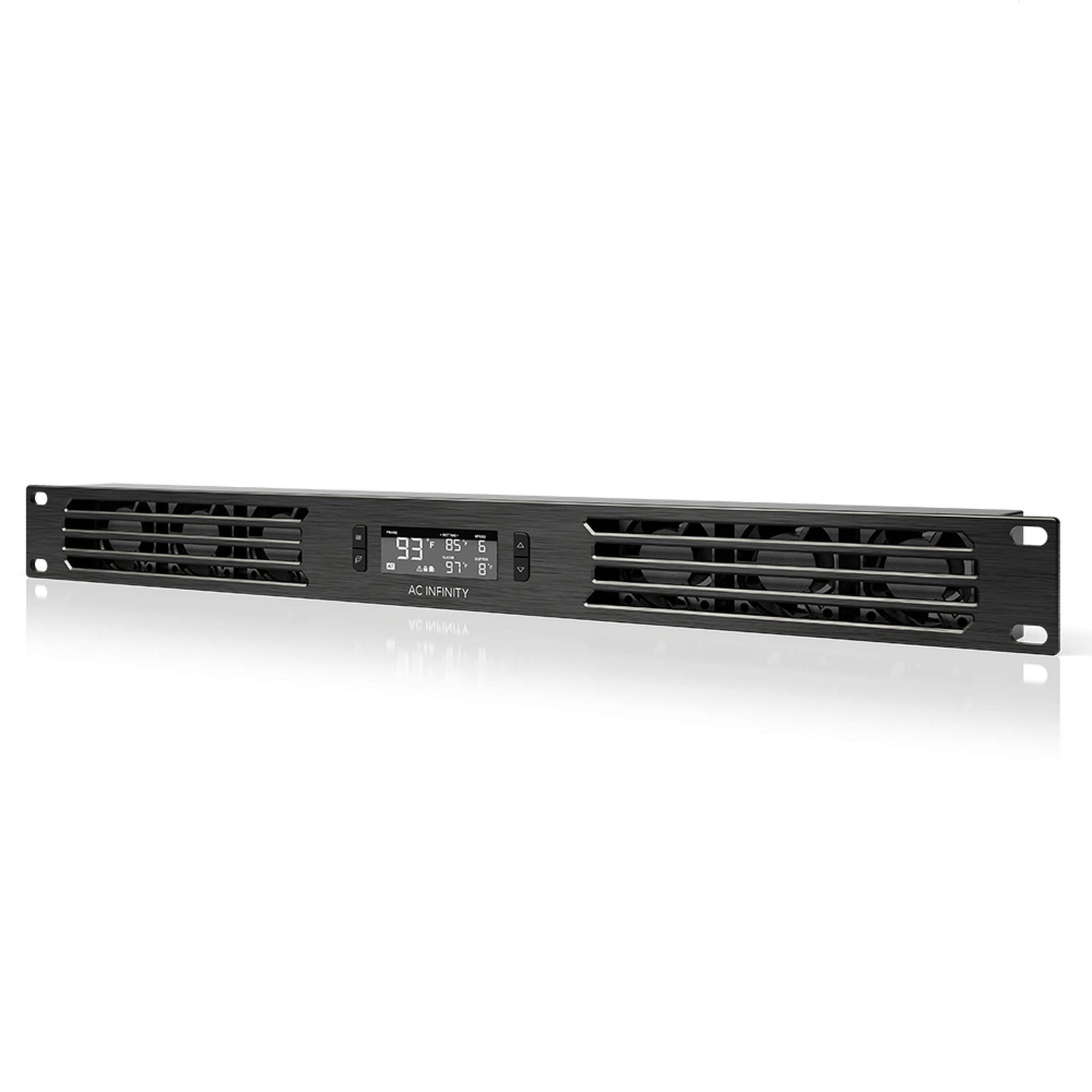

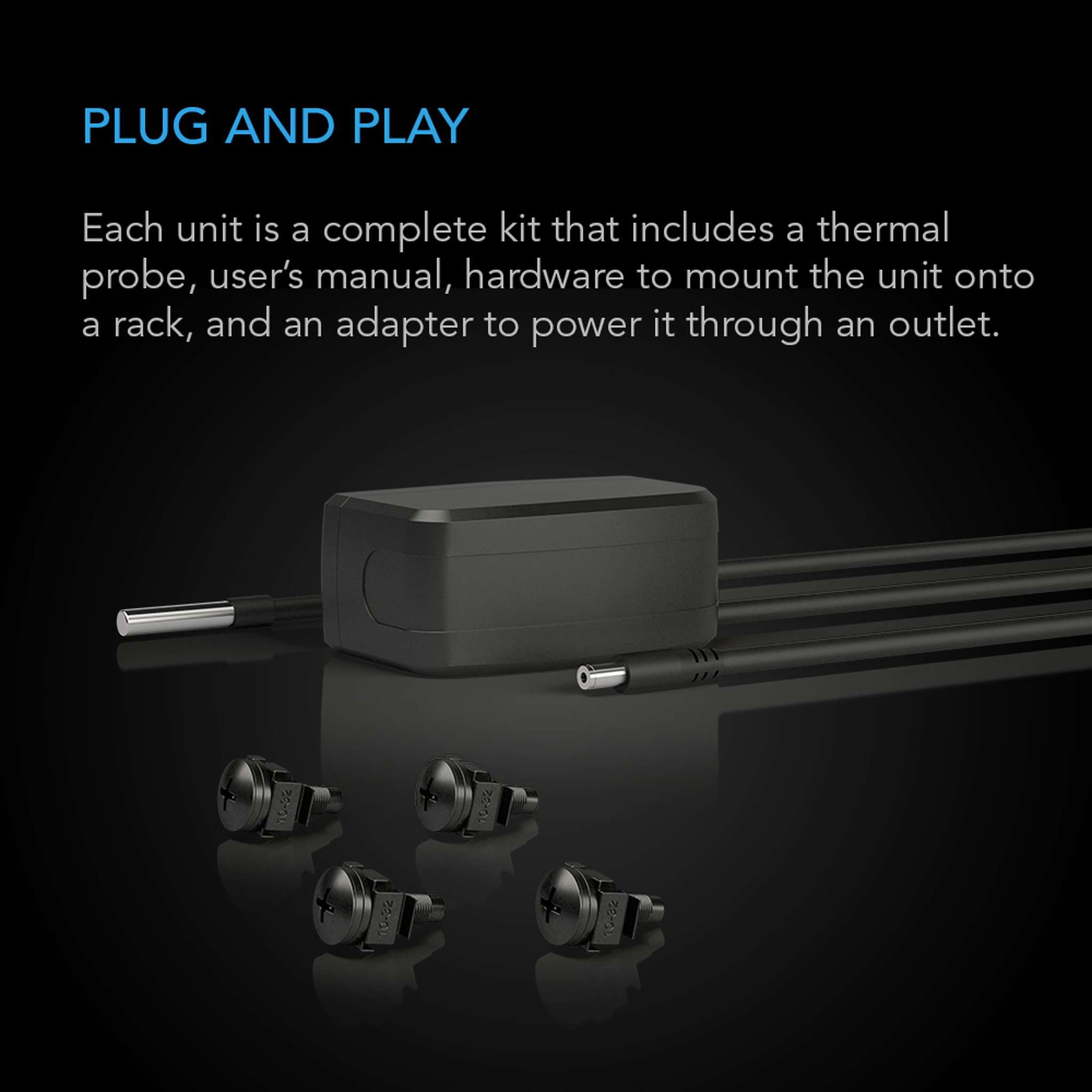

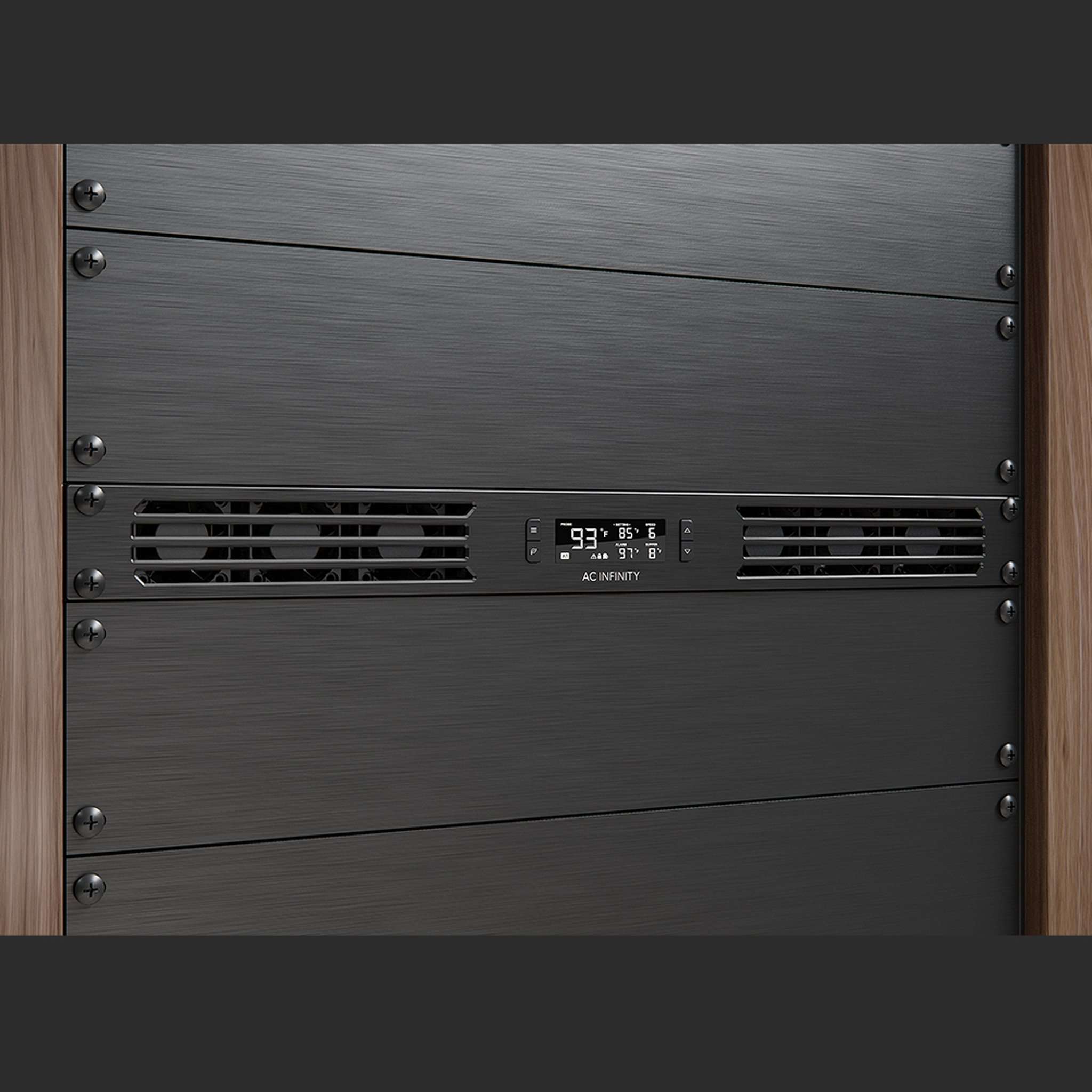

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up one rack unit of space (1U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edge chamfered for a high-end professional appearance. This model holds six custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS. The fans are set to exhaust out heated air and should be positioned near the top of the rack; an intake version of this model is available, sold separately. This complete kit includes the 1U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.

INTELLIGENT COOLING

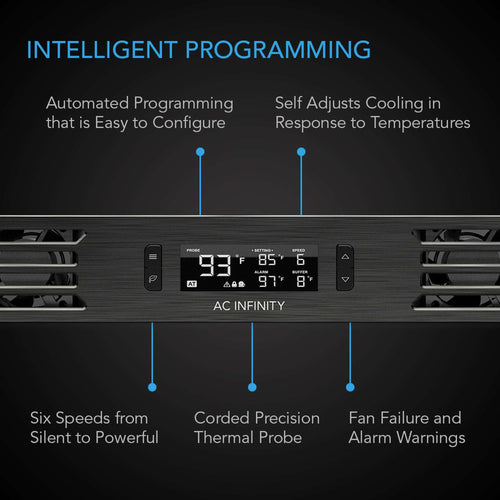

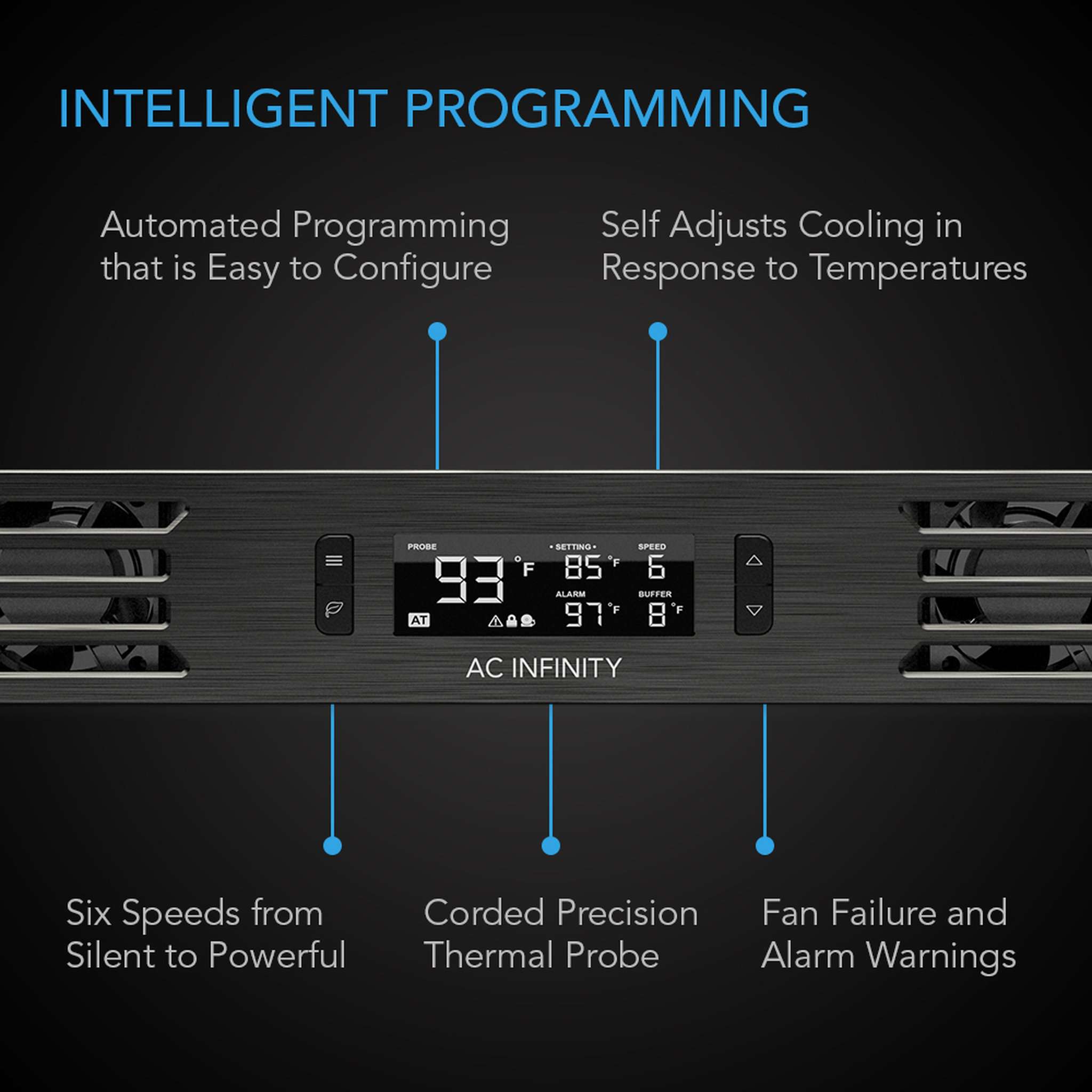

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings settings, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.

PERFORMANCE AND APPLICATIONS

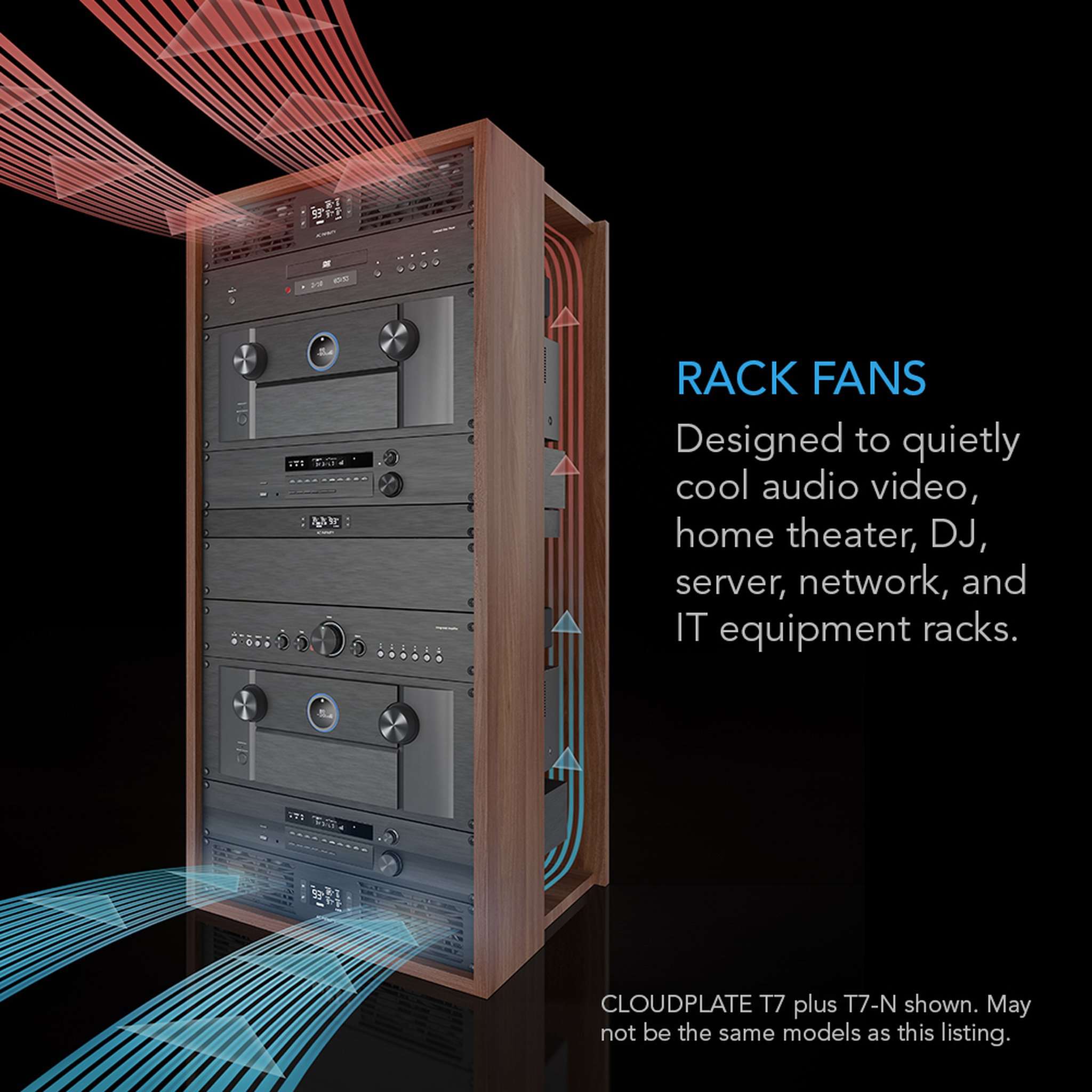

This 1U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 8 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 60 CFM will provide sufficient cooling to serverss, networks, IT, and equipment racks requiring high airflow. This fan system contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.

DESIGN AND CONSTRUCTION

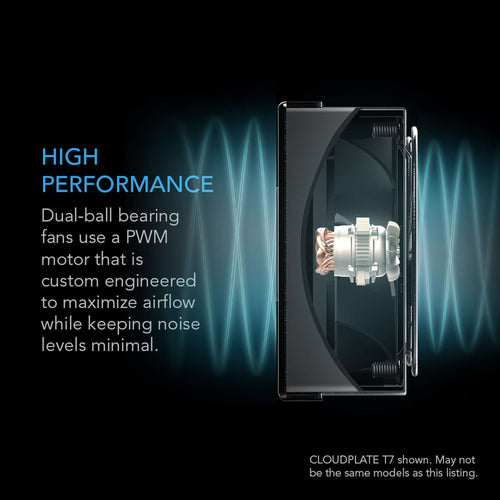

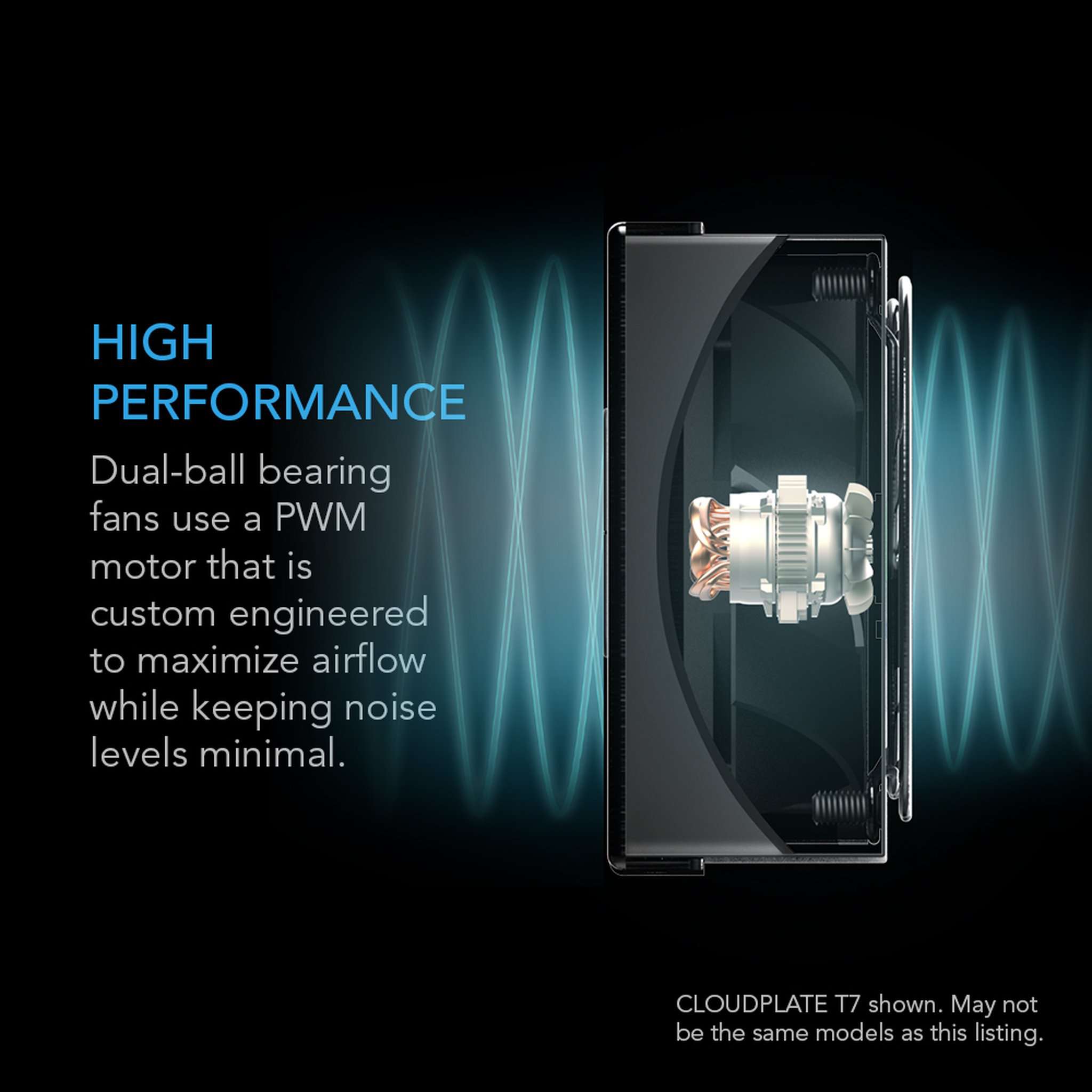

Each system features dual-ball bearing blowers rated at 67,000 hours and is certified by CE and RoHS. Blowers contain a PWM-controlled motor used to minimize noise during speed variations and are suspended in mid-air with silicone mounts to absorb vibrations. A low-profile design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 10 pounds to be stacked on top.

Features:

• An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
• Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
• Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
• Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
• Size: 1U Rack Space | Design: Intake | Airflow: 20 to 60 CFM | Noise: 8 to 28 dBA | Bearings: Dual Ball
