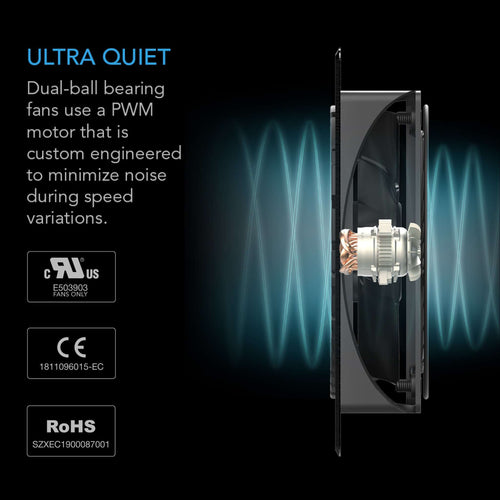

The ultra-quiet dual-fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. This kit includes two single fan units, one exhaust, and one intake. plus a thermal controller. Each fan uses a custom motor engineered to minimize noise during speed variations and is certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screwdriver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

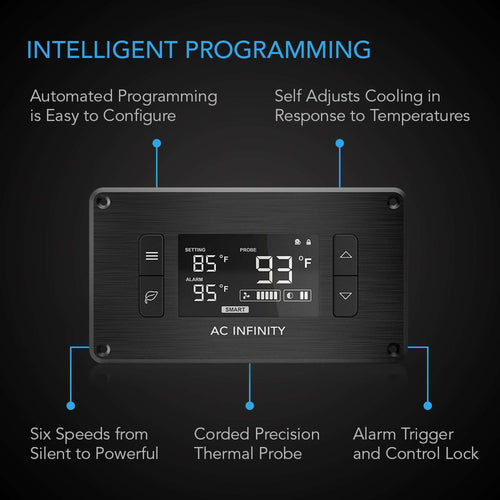

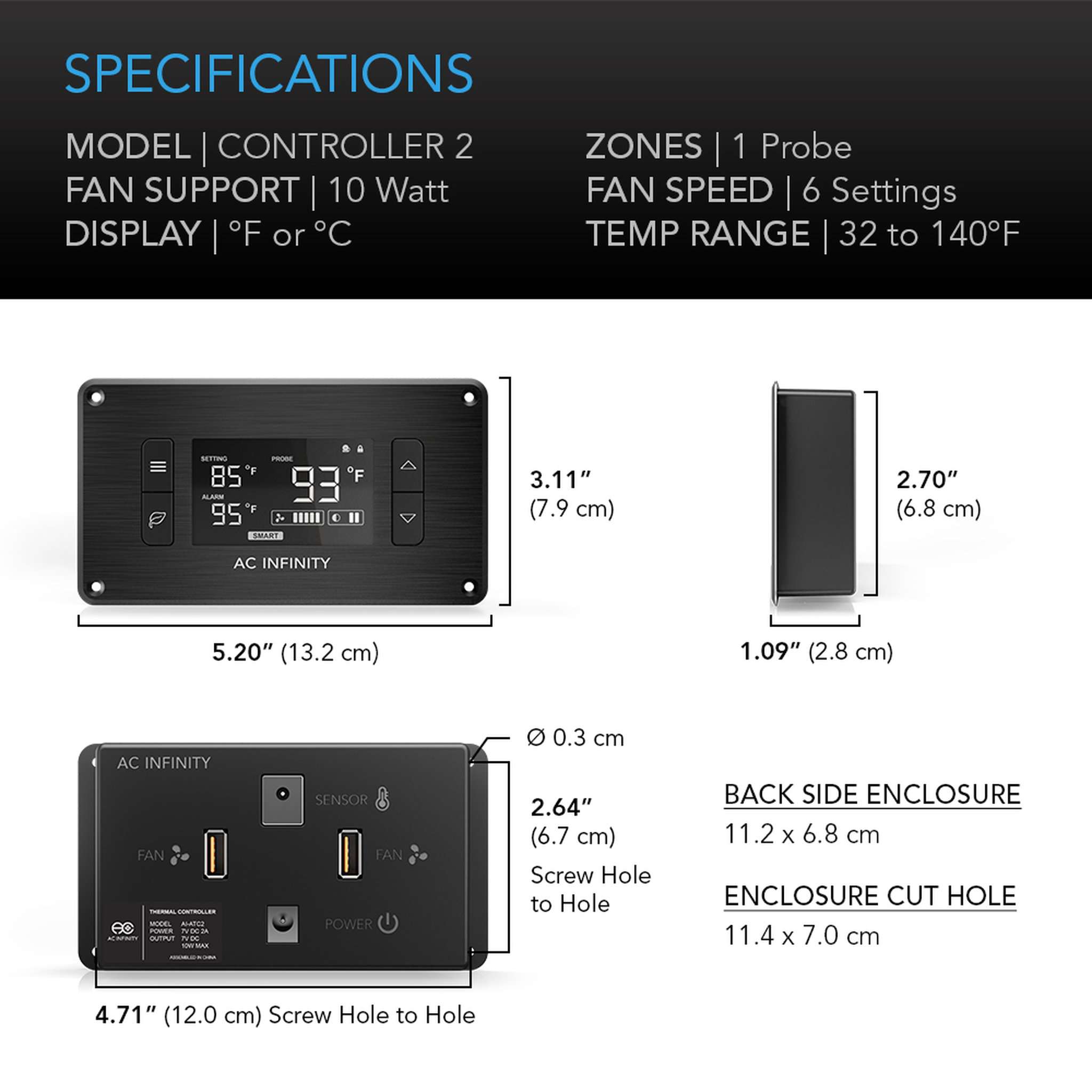

The controller features an onboard processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features include an alarm system, a display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory. Features a detachable 6-foot precision thermal probe that is water-resistant.
CONNECTING ADDITIONAL UNITS

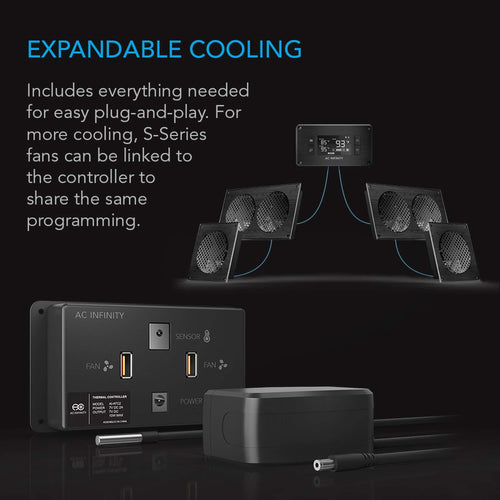

For cabinets that require more airflow, additional AIRPLATE S series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

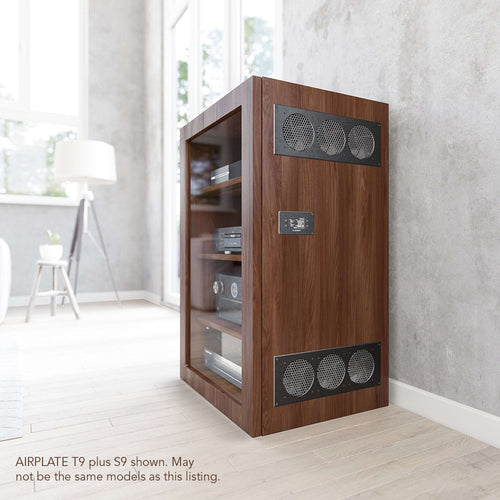

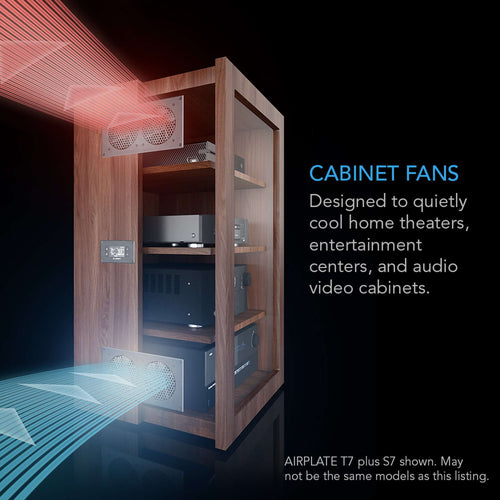

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.
- An ultra-quiet UL-certified fan system designed for cooling cabinets that require minimal noise.
- Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
- Contains a CNC machined aluminum frame with a modern brushed black finish.
- Powered by a wall outlet or USB port, included Turbo Adapter increases performance by 25%.

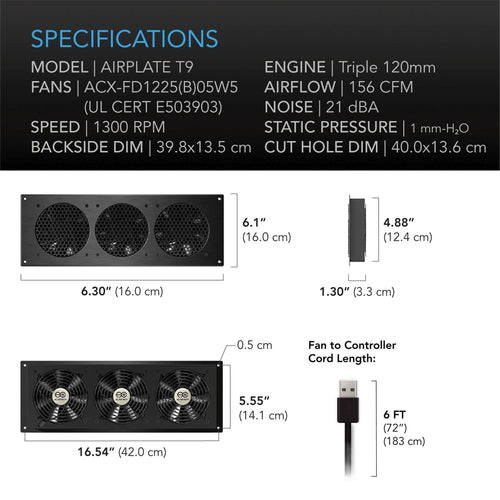

- Dimensions: 17.5 x 6.1 x 1.3 in | Airflow: 156 CFM | Noise: 21 dBA | Bearings: Dual Ball
