[shortdesc]

Fan Size	11.7 x 6.1 x 1.3 in
Total Airflow	104 CFM
Total Noise	19 dBA

[/shortdesc]

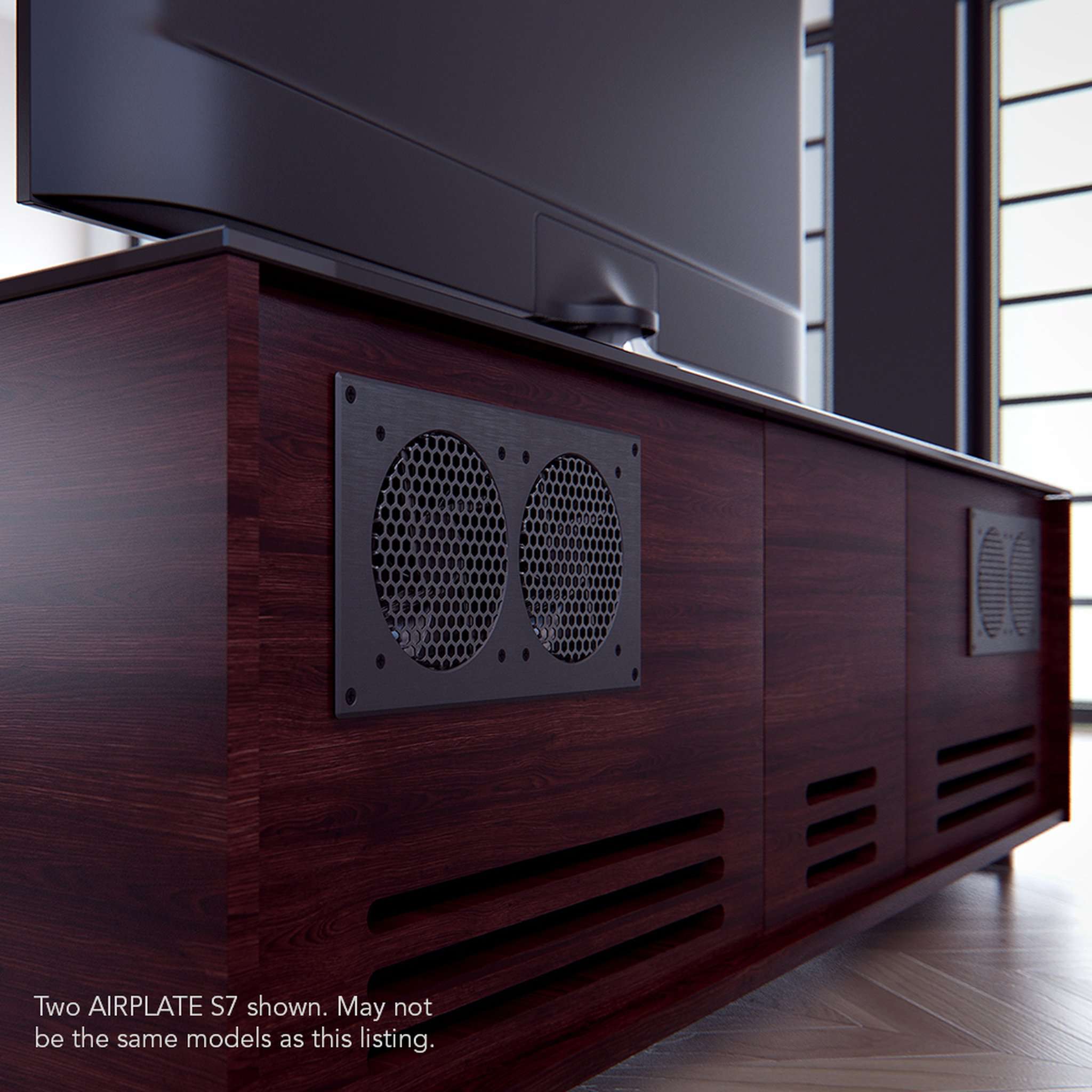

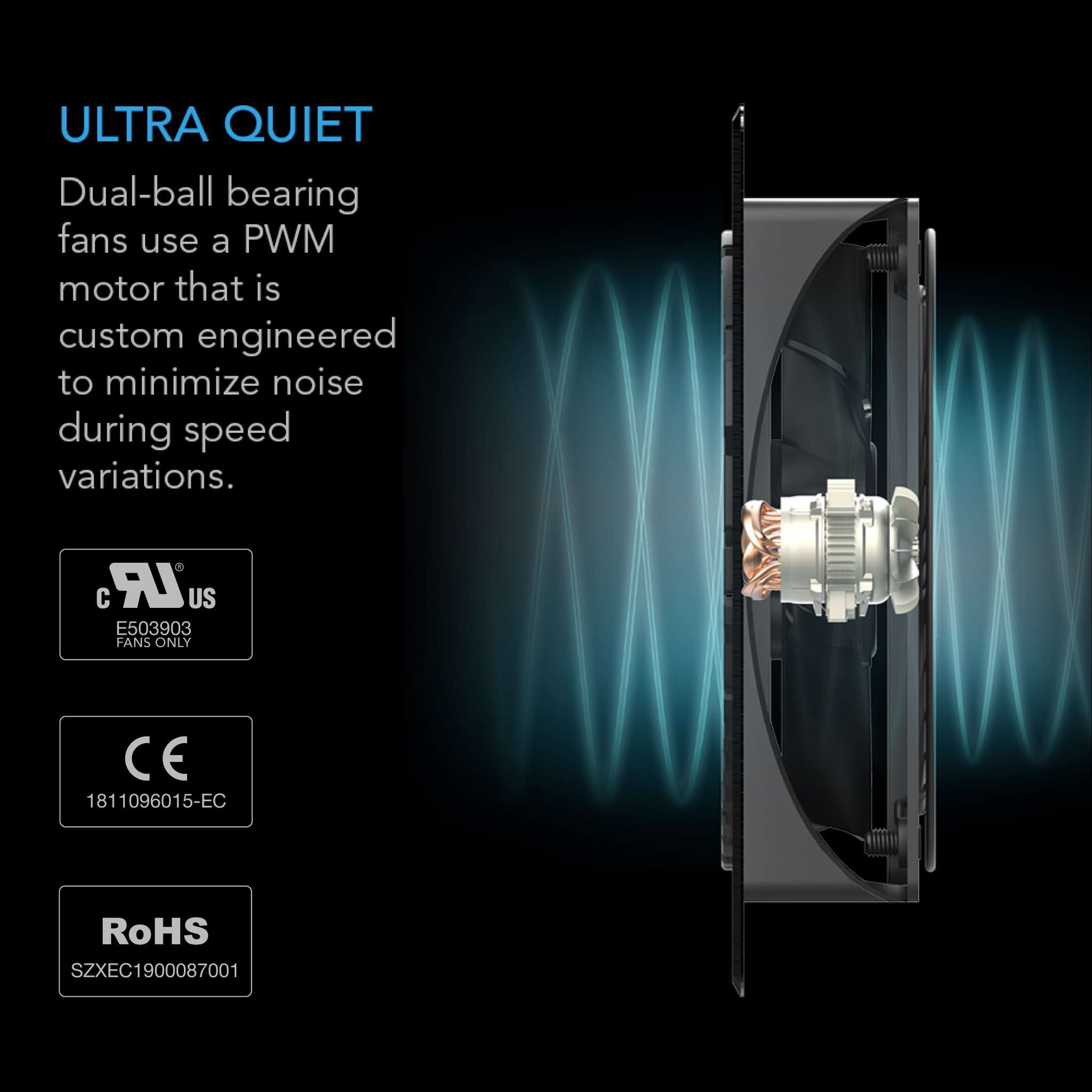

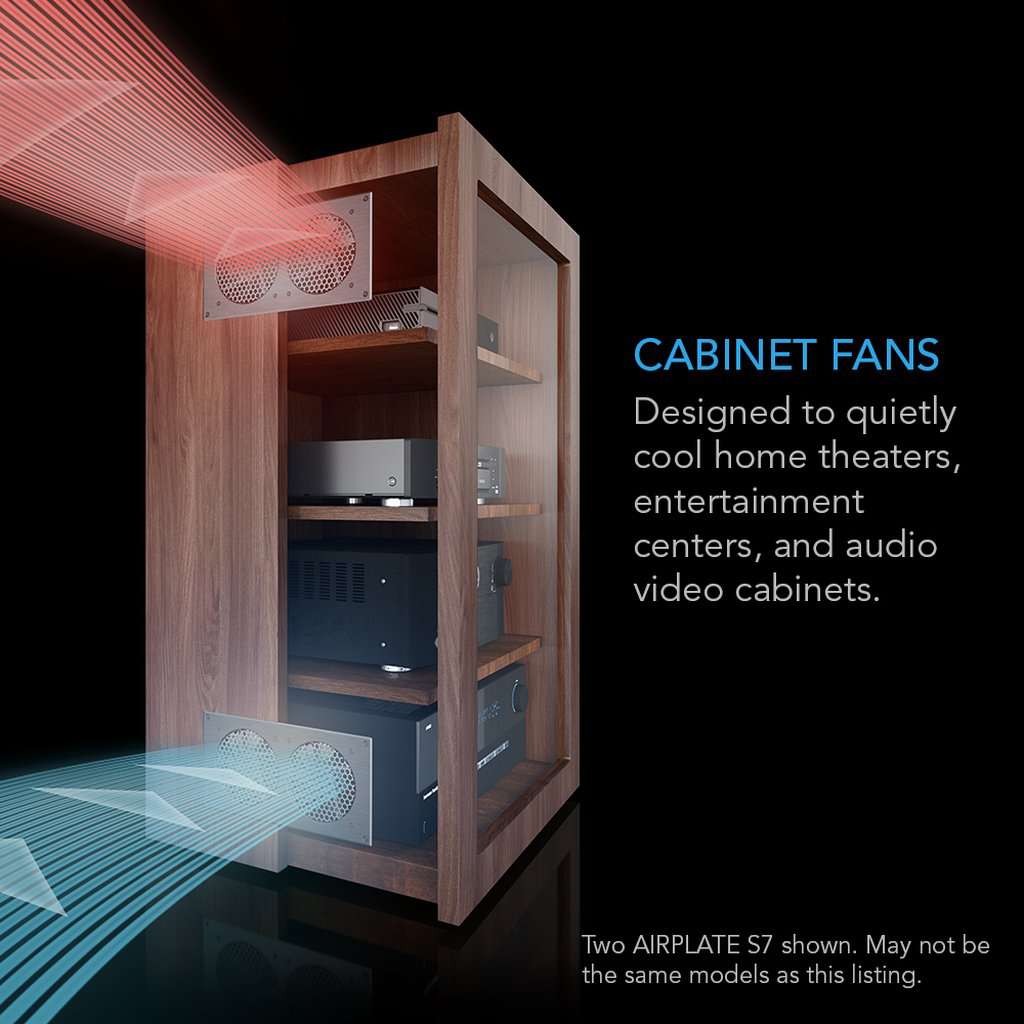

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller and 6-foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screwdriver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a USB port or standard wall outlet.

Features:

An ultra-quiet UL-certified fan system designed for cooling cabinets that require minimal noise.

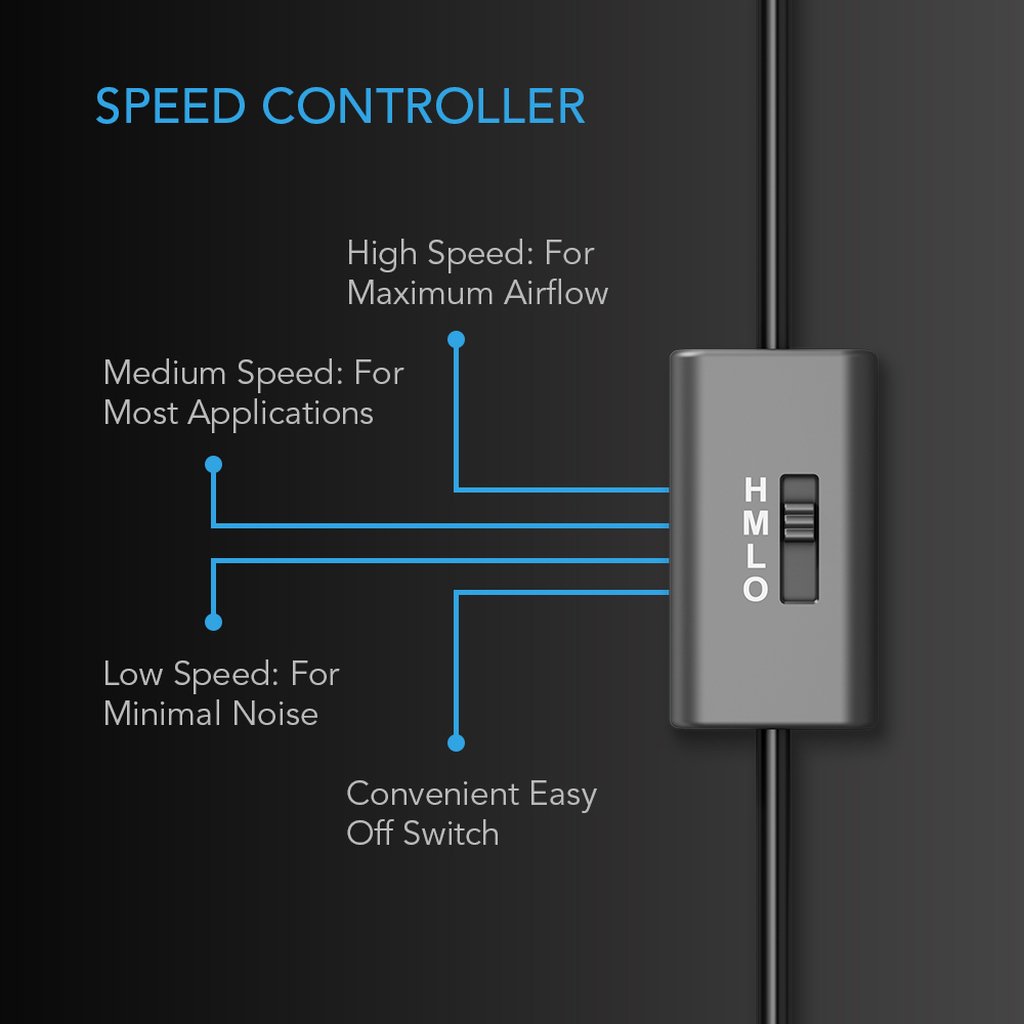

Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.

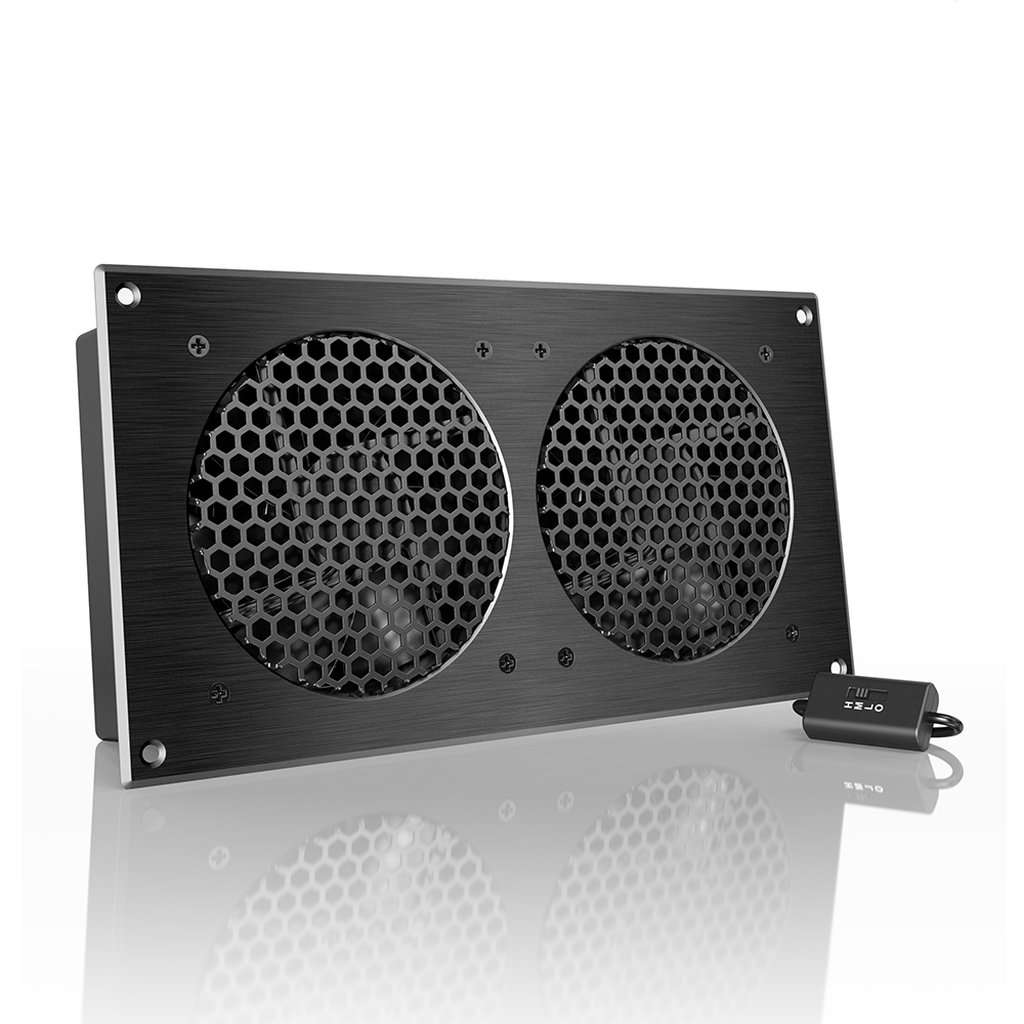

Contains a CNC machined aluminum frame with a modern brushed black finish.

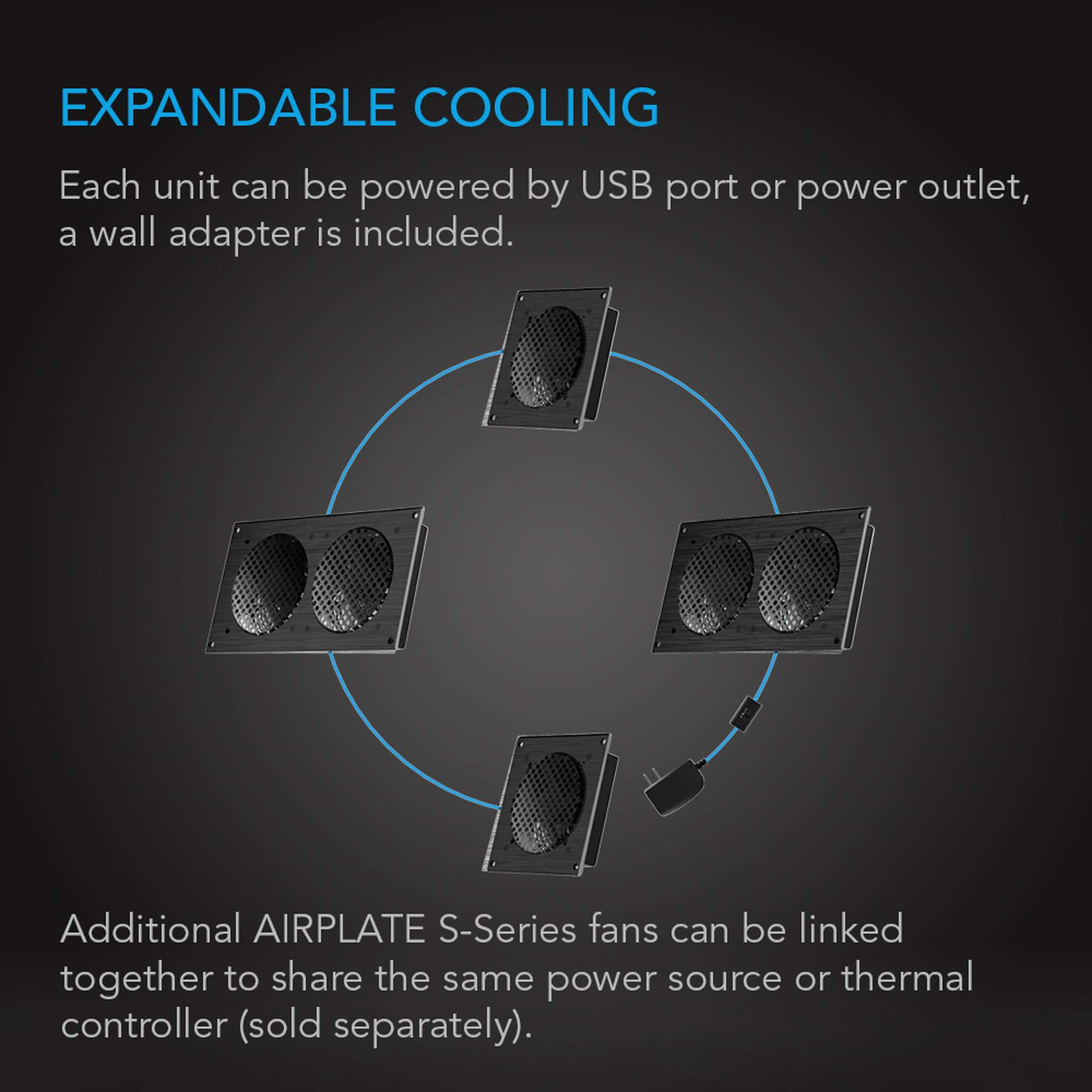

Powered by a wall outlet or USB port, included Turbo Adapter increases performance by 25%.
Dimensions: 11.7 x 6.1 x 1.3 in | Airflow: 104 CFM | Noise: 19 dBA | Bearings: Dual Ball

===

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRPLATE S7
Product Model	AI-CFD120BA
UPC Code	854759004068

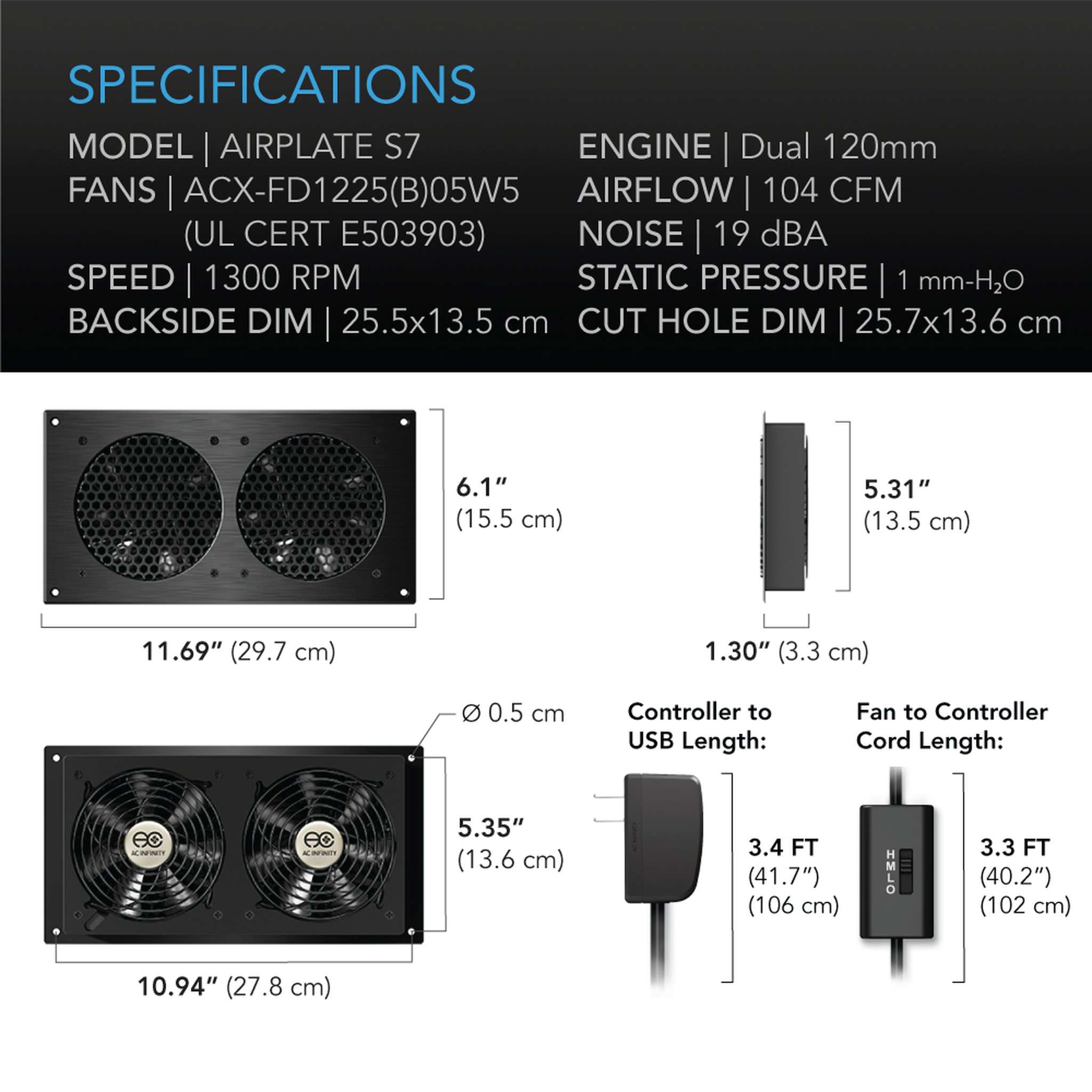

Product and Mounting Dimensions - Fan Unit
Total Dimensions	11.7 x 6.1 x 1.3 in. (29.7 x 15.5 x 3.3 cm)
Backside Enclosure Dimensions	10.04 x 5.31 in. (25.5 x 13.5 cm)
Required Mounting Hole	10.12 x 5.35 in. (25.7 x 13.6 cm)
Hole to Hole Distance	10.94 x 5.35 in. (27.8 x 13.6 cm)
Screw Hole Size	Ø 0.197 in. (Ø 0.5 cm)
Cord Length	72 in. (6 feet)
Mounting Template	PDF
Product Performance and Technical Specs
Total Airflow	104 CFM
Total Noise	19 dBA
Static Pressure	1 mm-H2O
Operating Voltage	3 to 7V DC
Power	2.9 W
Current	0.58 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	UL, CE, RoHS
UL Certification (Fans Only)	PDF
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manuals
Fan Unit Manual	PDF

AC Infinity AIRPLATE S7 Cabinet Quiet Cooling Fan System - 12 Inch
