Rev-A-Shelf 5PD-36CRN / 36 in Chrome Pull Down Shelf

$ 609.99
Availability: Out Of Stock
Available 03/15/2022 - Call for preorder
Wall Cabinet Organizers
 Home Organization,Kitchen,Rev-A-Shelf
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat

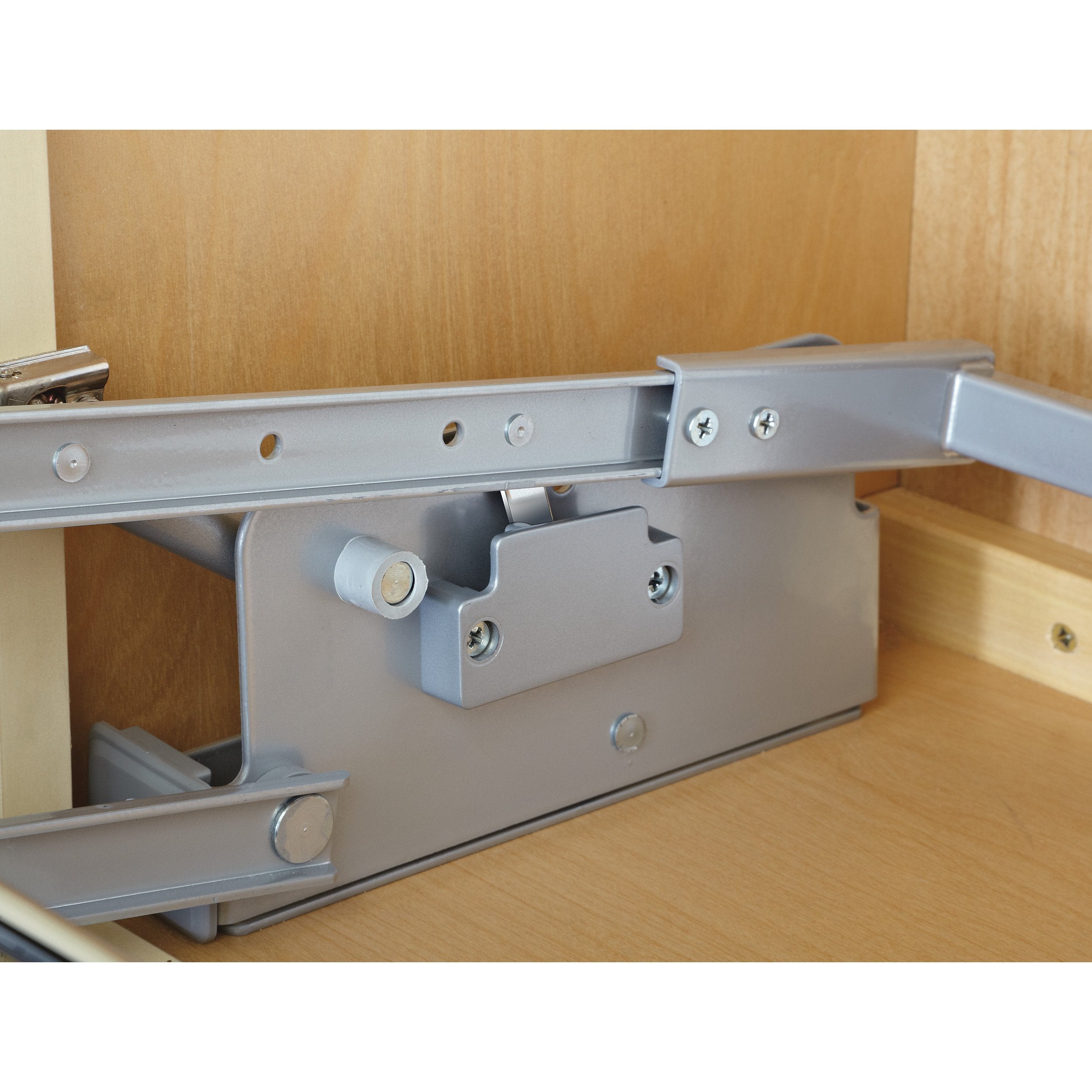

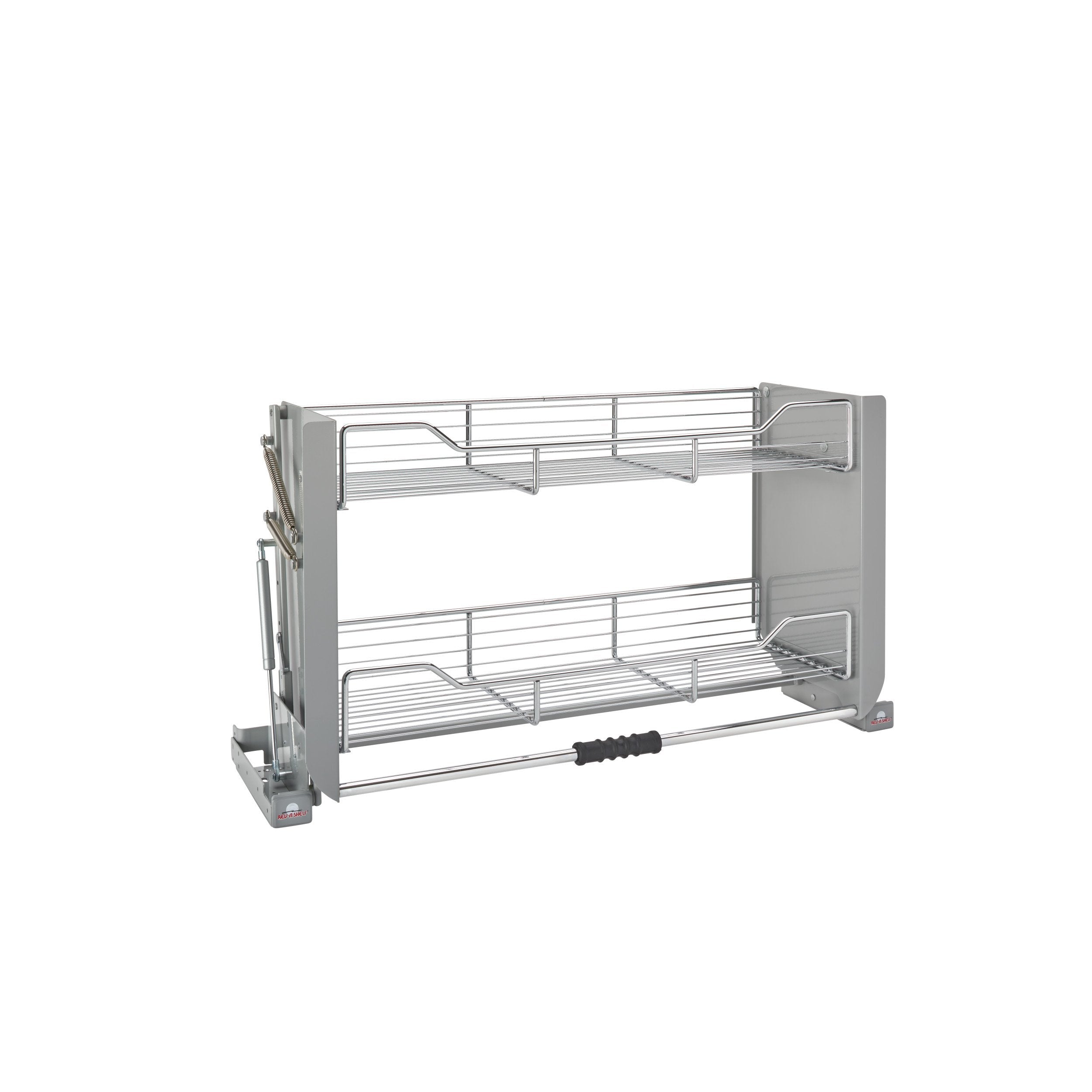

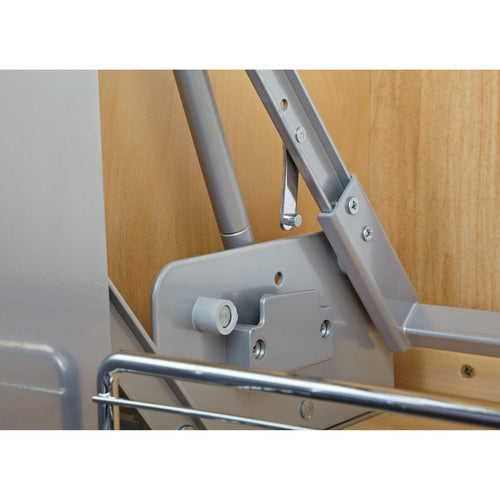

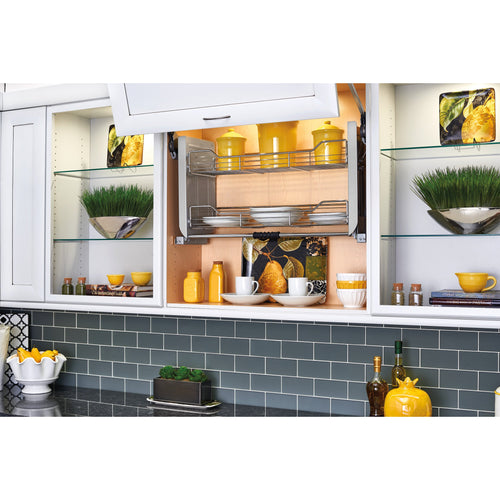

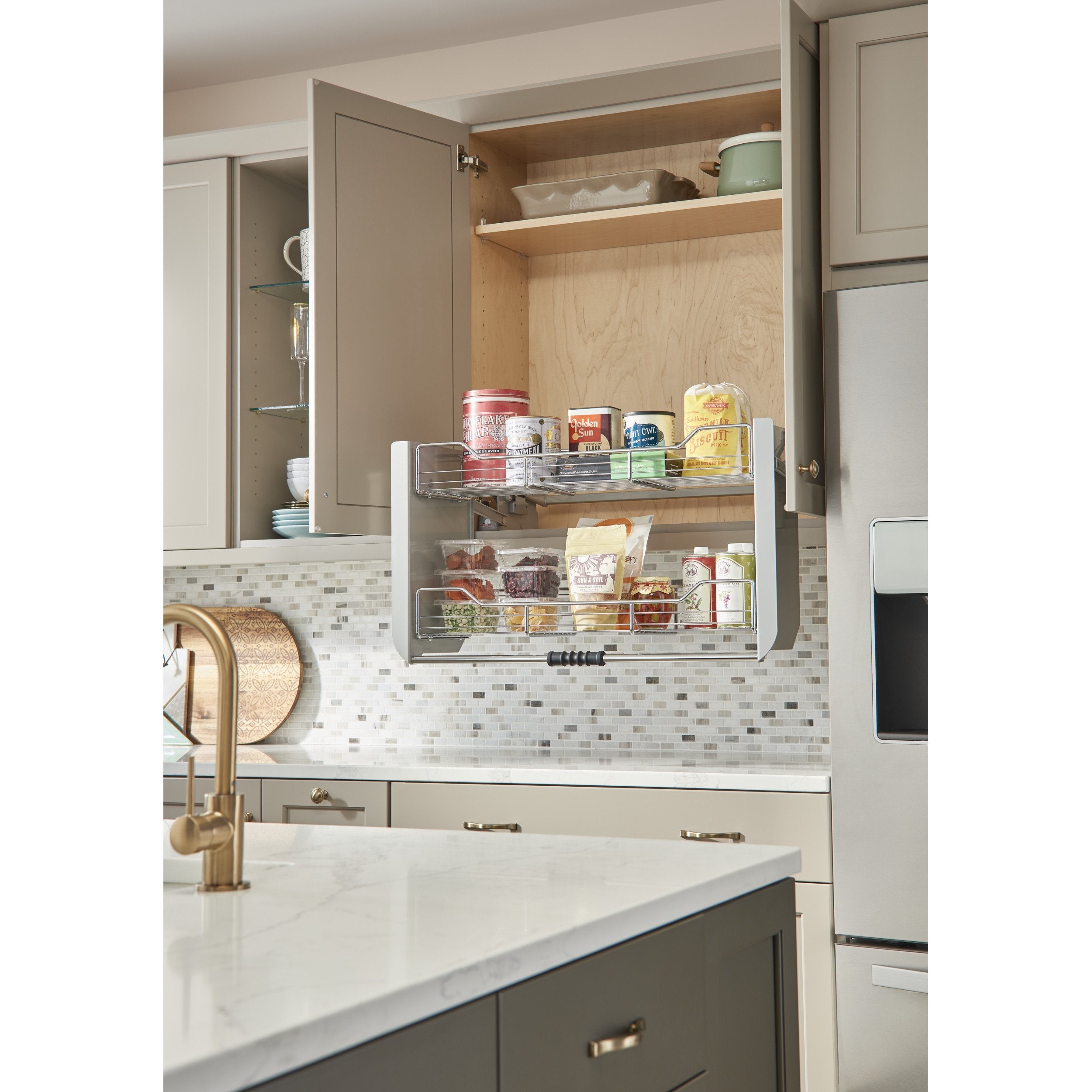

Tired of dragging the dining room chair into the kitchen to reach everything in your wall cabinet? Introducing Rev-A-Shelf's magnificent Pull-Down Shelving System. The 5PD Series is a chrome-plated two-tier pull-down shelf that brings hard-to-reach items down 10" while pulling out 14-3/4" from the cabinet. This functional pullout features a unique gas assisted lifting/lowering mechanism that provides unparalleled stability through the entire range of motion. The Pull-Down Shelving System includes both side and bottom mount brackets and is available for Wall 24" and 36" cabinets.


  • Gas assisted lifting/lowering mechanism
  • Holds up to 26lbs
  • Mount to the floor or side of a wall cabinet

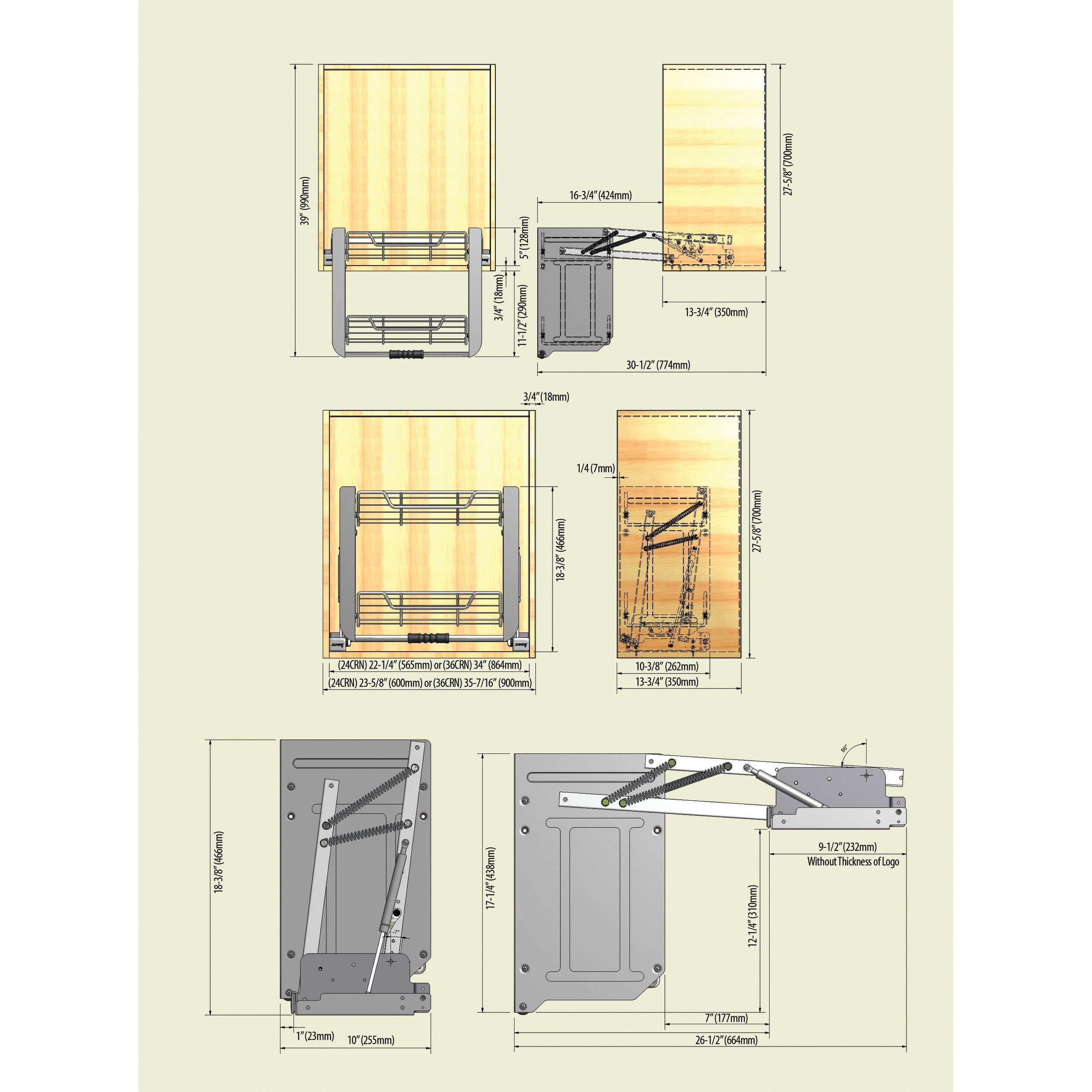

  • Product Width (in) 34.25
  • Product Depth (in) 10.5
  • Product Height (in) 18.38

Full Product Dimensions (in)

  • 34.25"W x 10.5"D x 18.38"H
  • Product Weight (lbs) 24.05
  • Minimum Cabinet Faceframe Opening (in) 33
  • Minimum Cabinet Frameless Opening (in) 34.4
  • Product Width (mm) 869.95
  • Product Depth (mm) 266.7
  • Product Height (mm) 466.852
  • Full Product Dimensions (mm) 869.95 mm W x 266.7 mm D x 466.852 mm H
  • Product Weight (kg) 10.8225
  • Minimum Cabinet Faceframe Opening (mm) 838.2
  • Minimum Cabinet Frameless Opening (mm) 873.76
