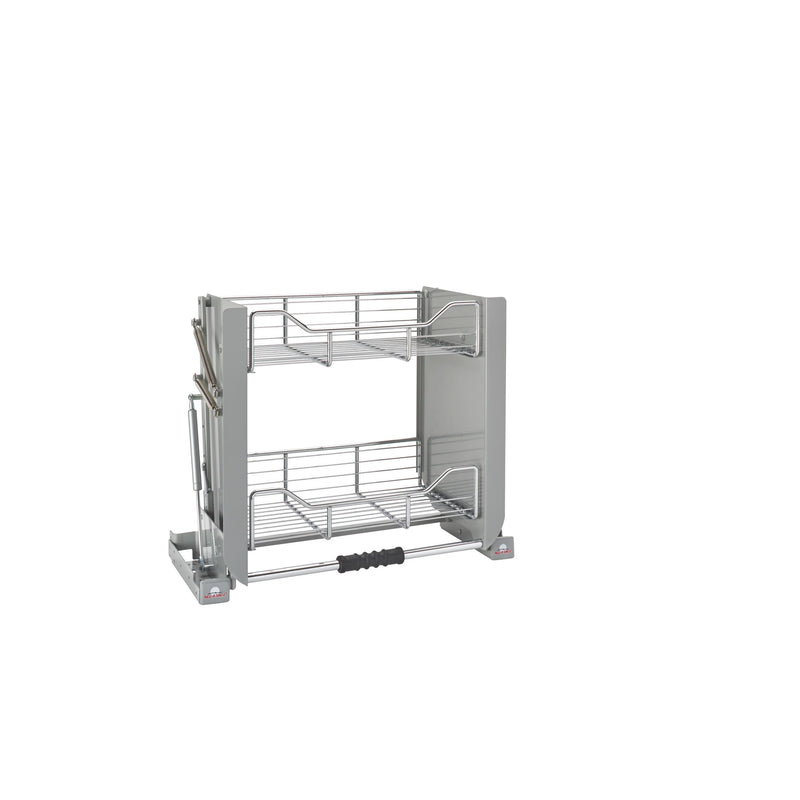

Rev-A-Shelf 5PD-24CRN / 24 in Chrome Pull Down Shelf

$ 569.99
Availability: Out Of Stock
Available 05/19/2022 - Call for preorder
Wall Cabinet Organizers
 Home Organization,Kitchen,Rev-A-Shelf
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat

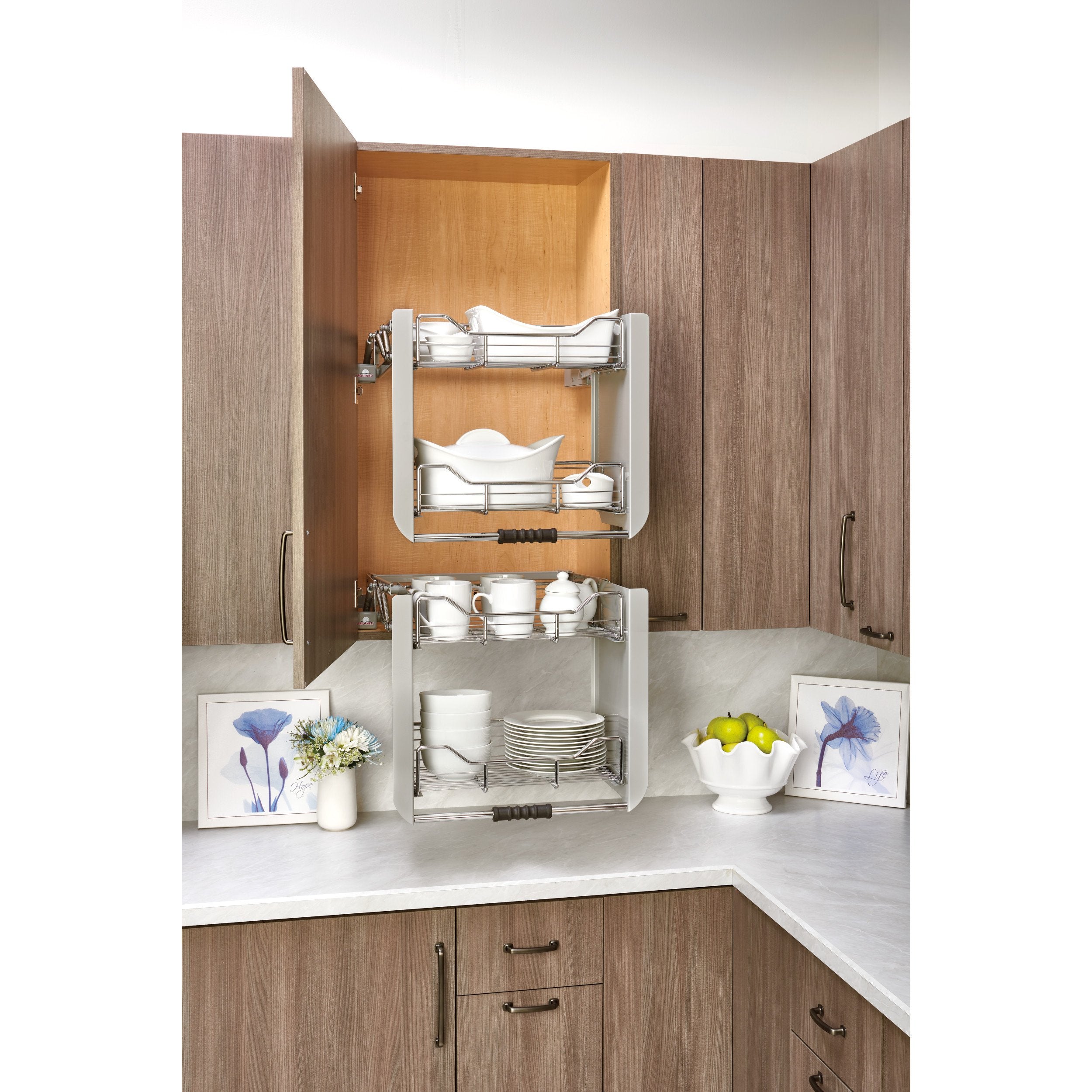

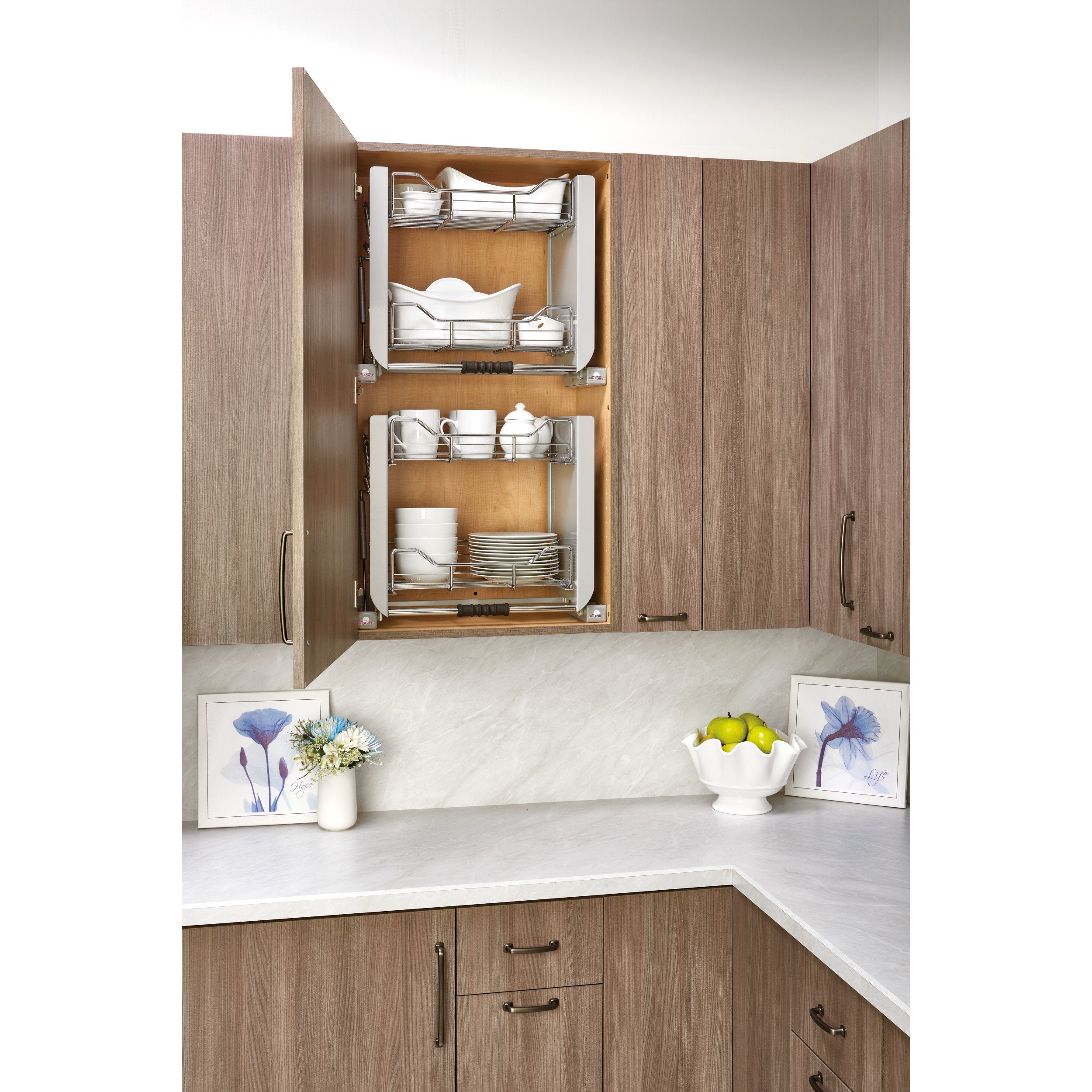

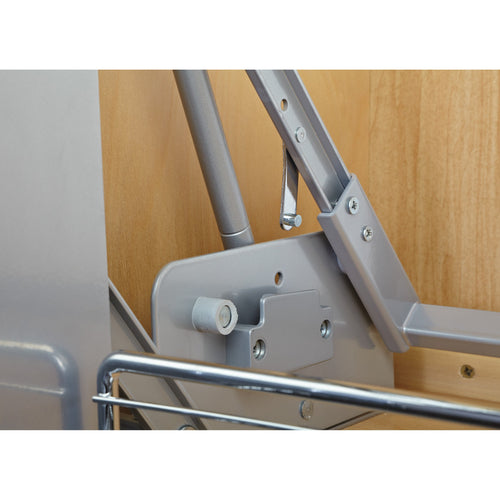

Tired of dragging the dining room chair into the kitchen to reach everything in your wall cabinet? Introducing Rev-A-Shelf’'s magnificent Pull-Down Shelving System. The 5PD Series is a chrome-plated two-tier pull-down shelf that brings hard-to-reach items down 11-1/2" while pulling out 16-3/4" from the cabinet. This functional pullout features a unique gas assisted lifting/lowering mechanism that provides unparalleled stability through the entire range of motion. The Pull-Down Shelving System includes both side and bottom mount brackets and is available for Wall 24" and 36" cabinets.

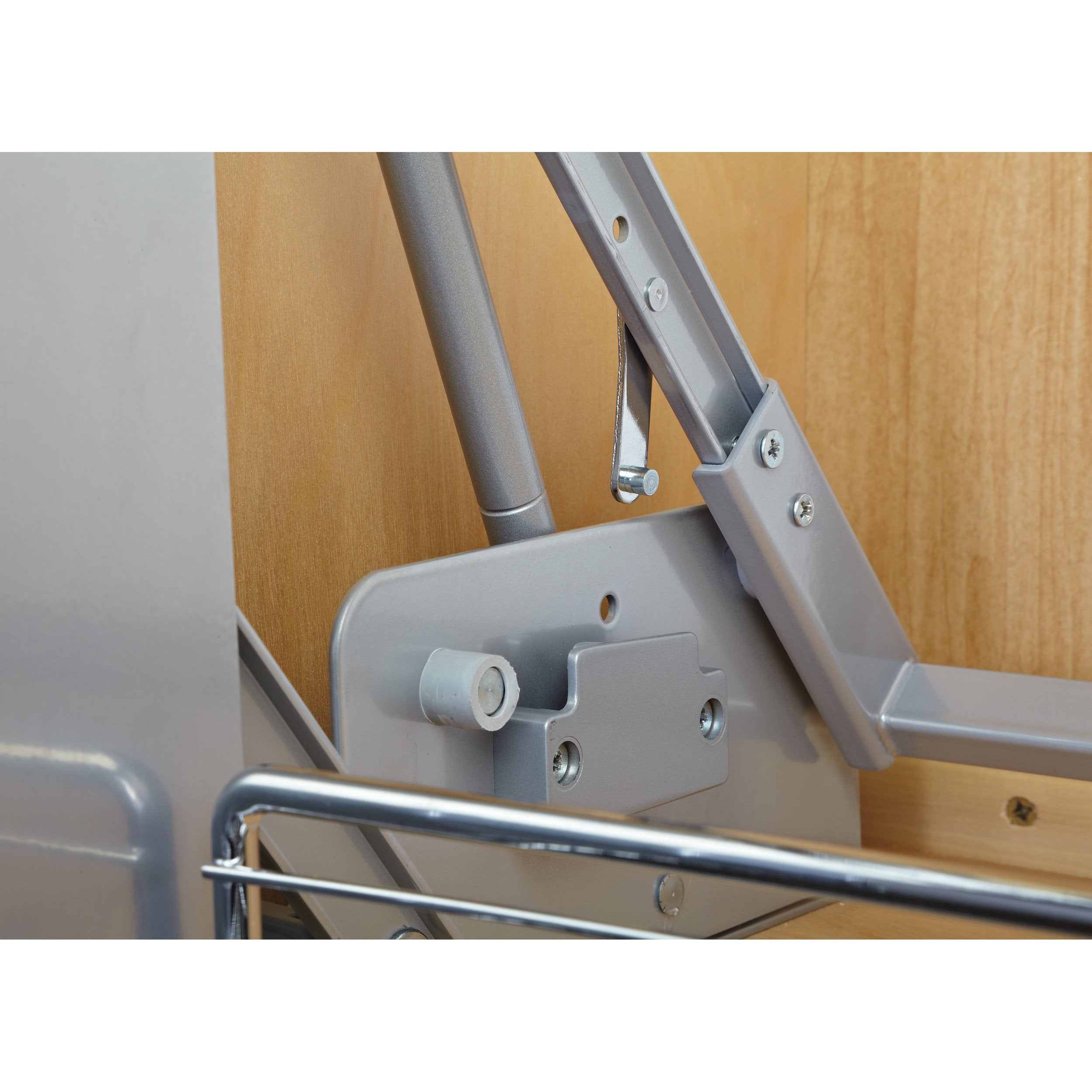

  • Gas assisted lifting/lowering mechanism
  • Holds up to 17lbs

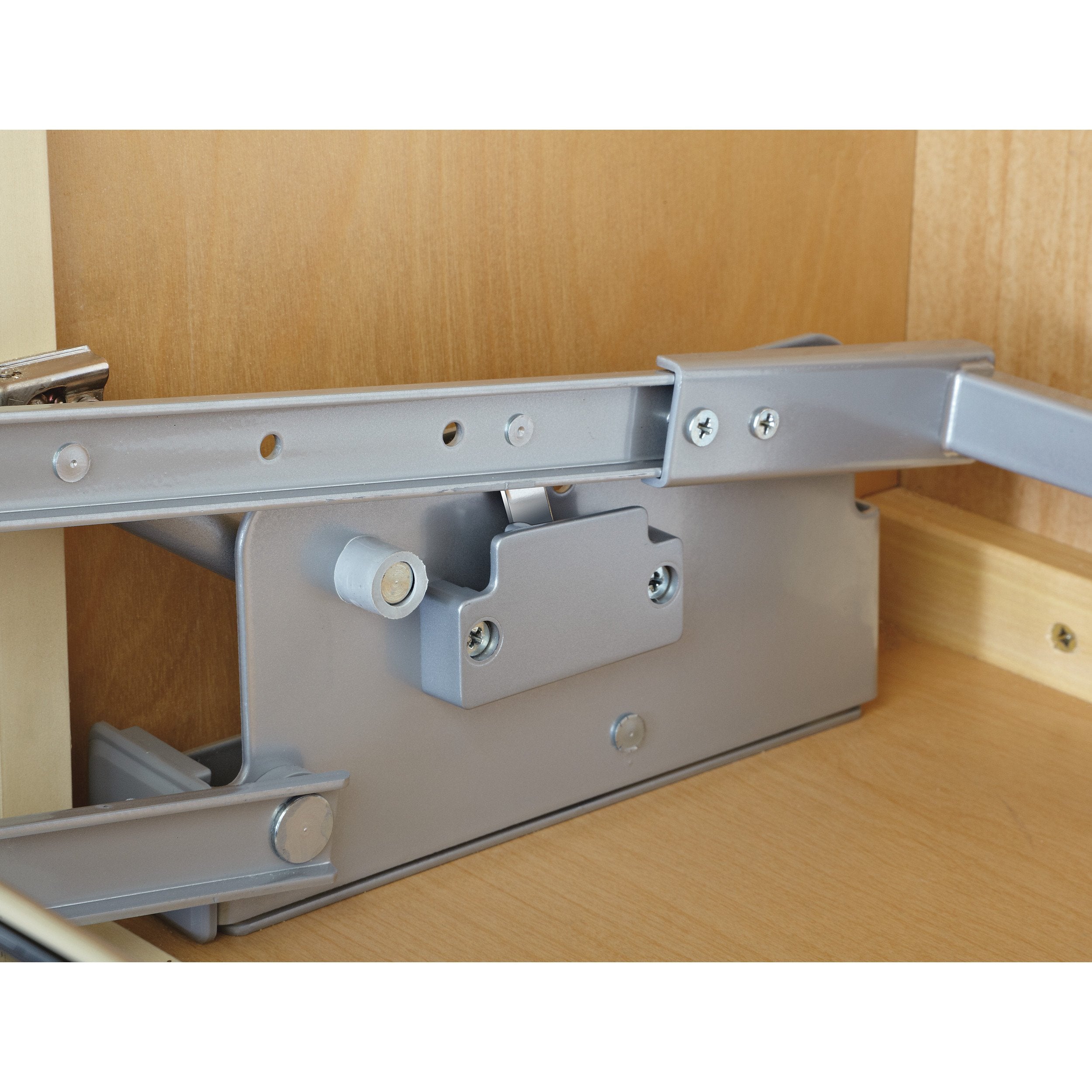

  • Mount to the floor or side of a wall cabinet

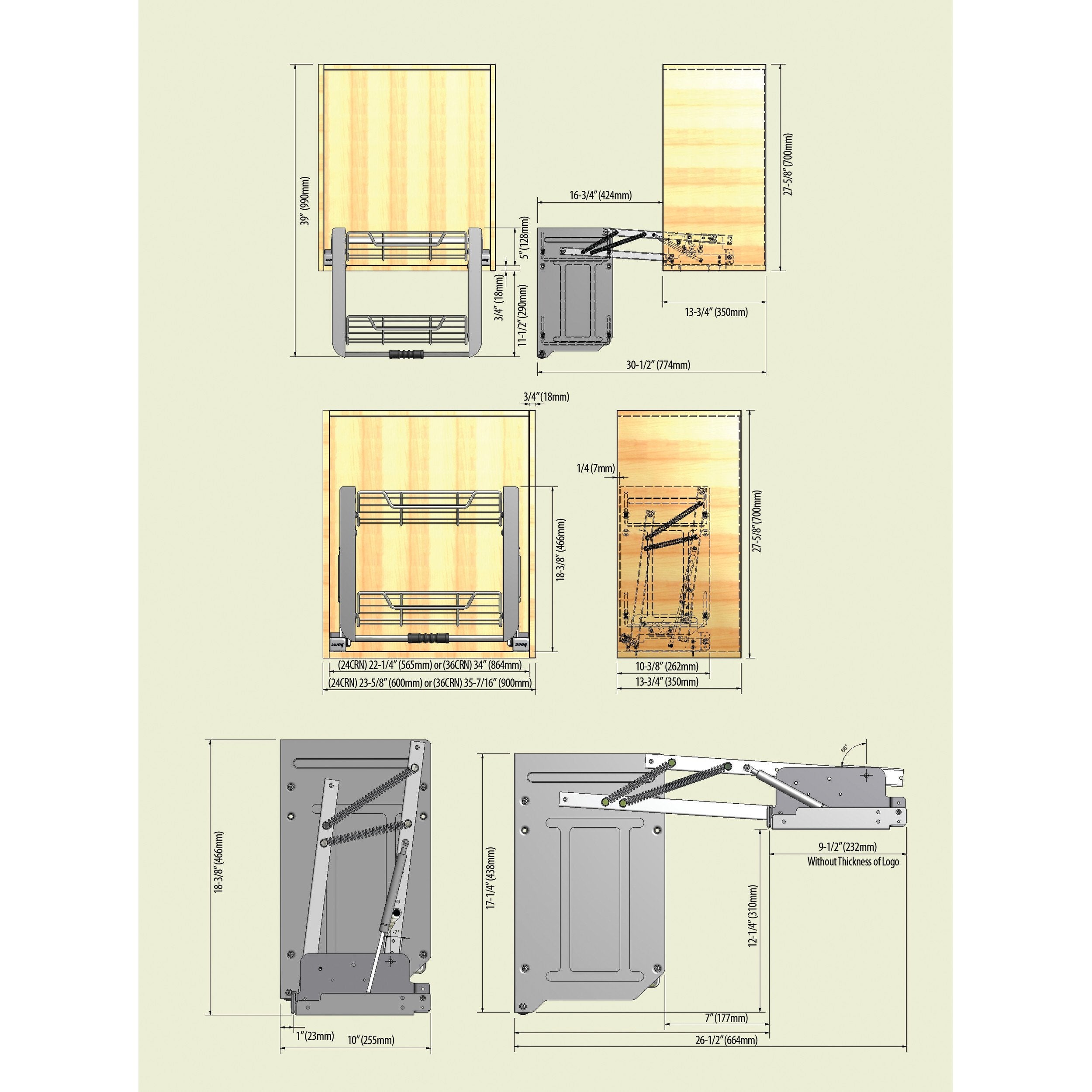

  • Product Width (in) 22.25
  • Product Depth (in) 10.5
  • Product Height (in) 18.38

Full Product Dimensions (in)

  • 22.25"W x 10.5"D x 18.38"H
  • Product Weight (lbs) 20.45
  • Minimum Cabinet Faceframe Opening (in) 21
  • Minimum Cabinet Frameless Opening (in) 22.4
  • Product Width (mm) 565.15
  • Product Depth (mm) 266.7
  • Product Height (mm) 466.852
  • Full Product Dimensions (mm) 565.15 mm W x 266.7 mm D x 466.852 mm H
  • Product Weight (kg) 9.2025
  • Minimum Cabinet Faceframe Opening (mm) 533.4
  • Minimum Cabinet Frameless Opening (mm) 568.96
