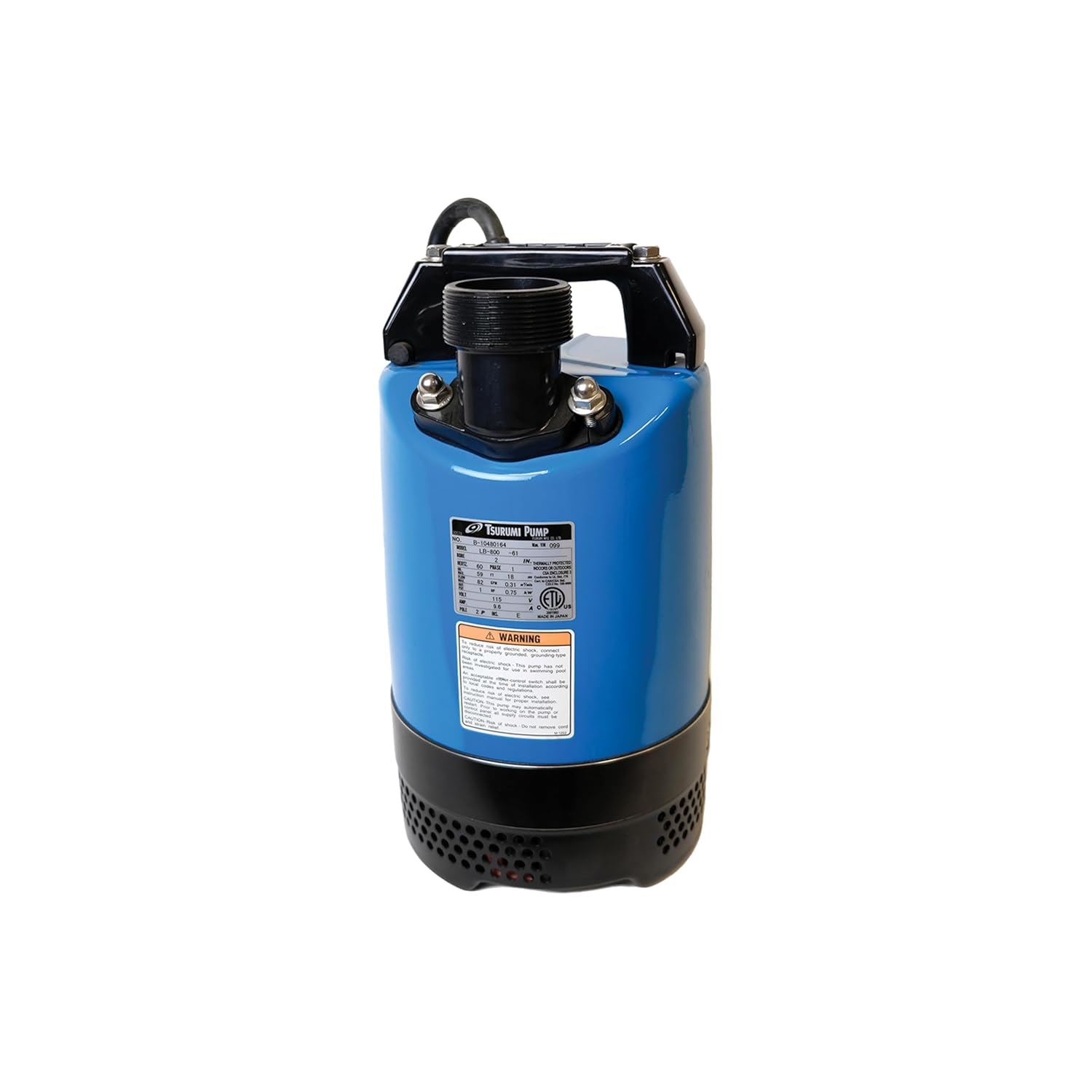

TSURUMI LB-800 Manual Submersible Dewatering Pump
Availability:
In Stock
| Operation Mode | Manual |
| Voltage |
115V
|
| Horse Power |
1 HP
|
|
MPN
|
LB-800 |
Description
Product Description
The TSURUMI LB-800 is a highly efficient semi-vortex submersible dewatering pump, ideal for handling tough wastewater and challenging applications. Its robust 1 HP motor with a semi-vortex urethane rubber impeller maximizes performance while minimizing wear. Equipped with dual mechanical seals, thermal overload protection, and a compact design, the LB-800 ensures reliable operation across residential, commercial, and industrial environments. With premium construction materials, it delivers long-term durability for demanding drainage, sediment removal, and fluid transfer needs.

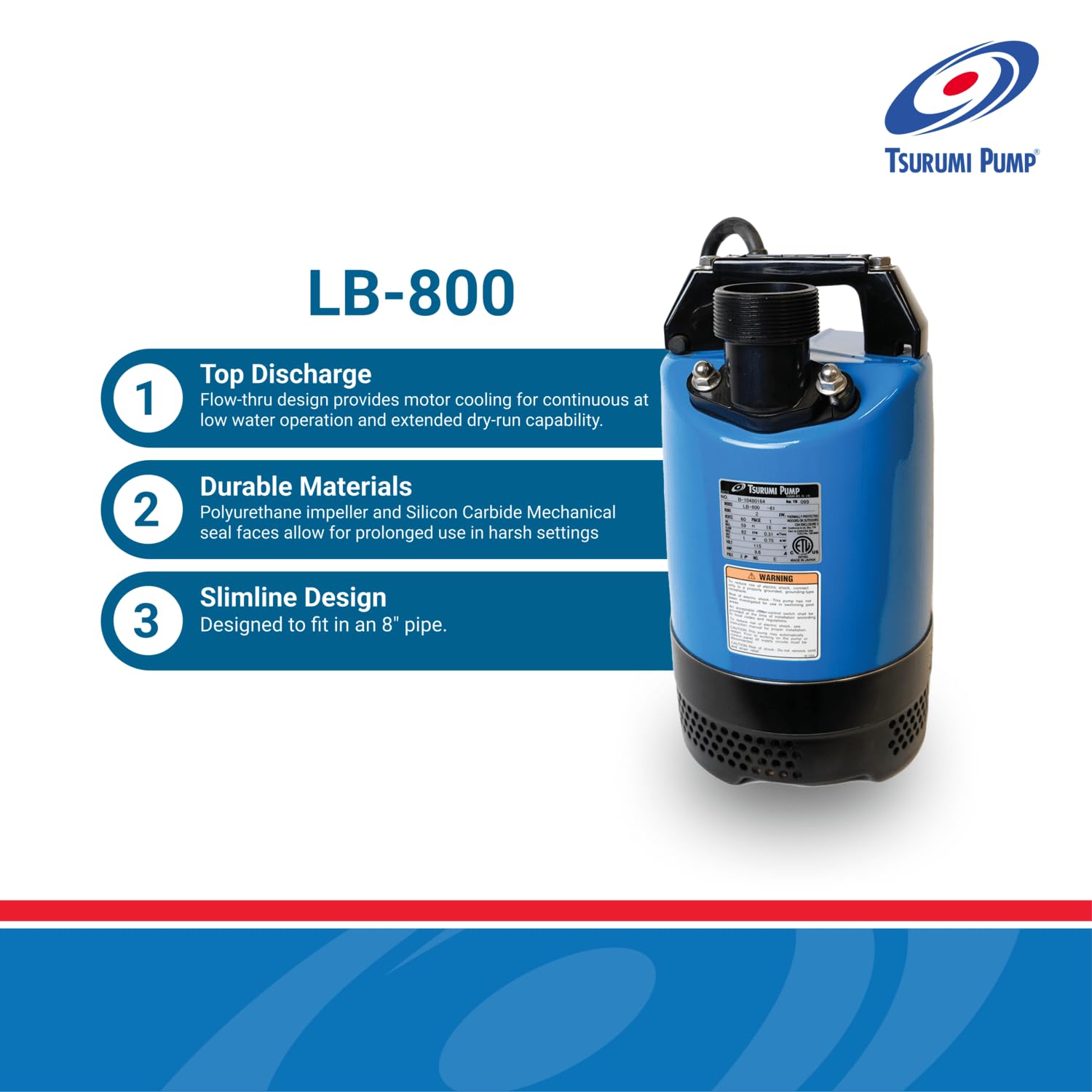

Top Features
- Semi-Vortex Impeller: Urethane rubber impeller handles solids up to 0.236” (6 mm).
- Thermal Protection: Prevents motor failure due to overloading or run-dry situations.
- Durable Construction: Stainless steel shaft and aluminum alloy motor housing ensure strength.
- Compact Design: Slim build fits into spaces as small as 8” pipes.
- Reliable Sealing: Dual mechanical seals with silicon carbide faces enhance durability.
| Category | Details |
|---|---|
| Model | TSURUMI LB-800 |
| Type | Semi-Vortex Dewatering Pump |
| Horsepower | 1 HP (0.75 kW) |

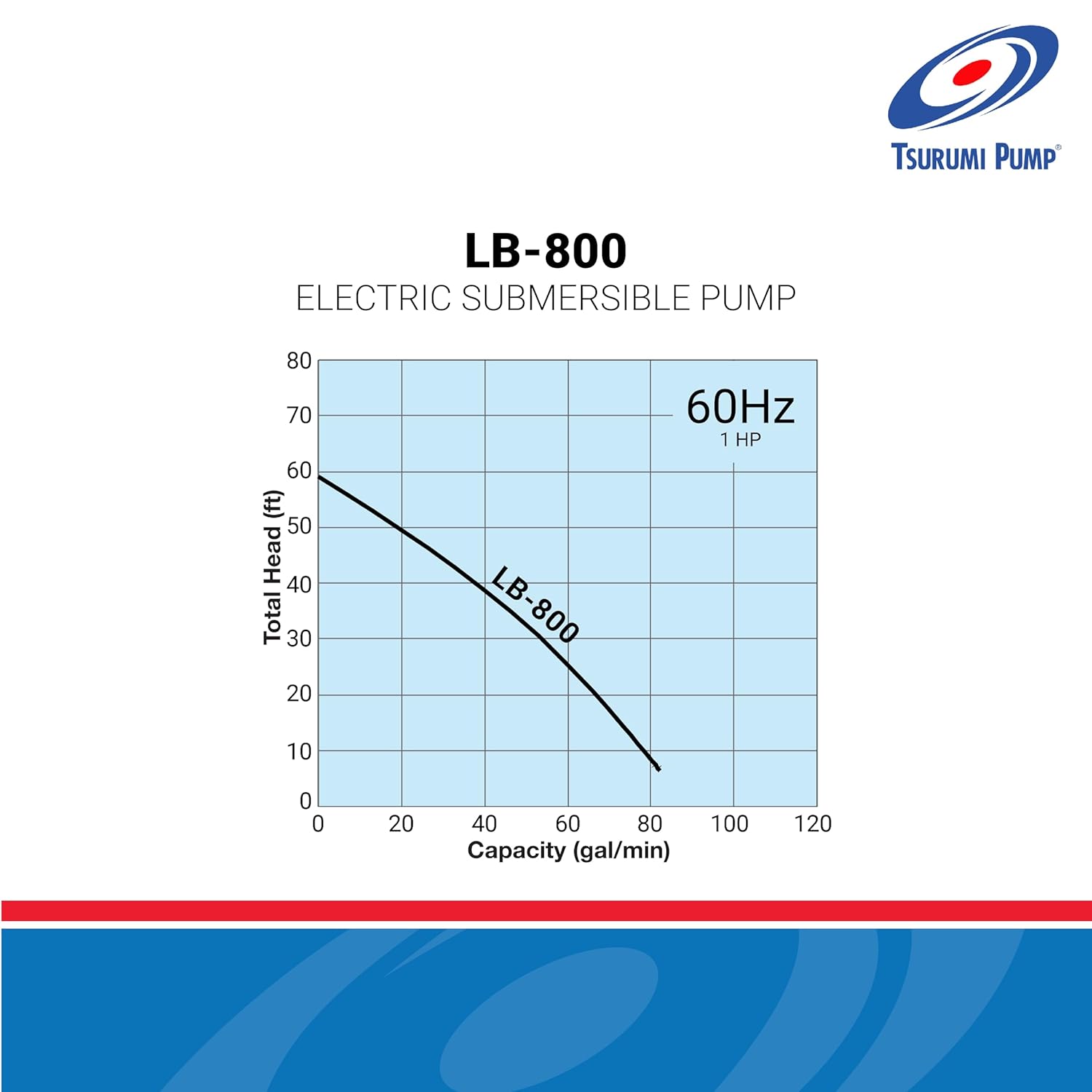

| Capacity | 15.9 - 111 GPM (0.06 - 0.42 m³/min) |
| Total Head | 13.1 - 68.9 ft (4.0 - 18.9 m) |
| Solids Size | Up to 0.236" (6 mm) |
| Pump Casing | Butadiene Rubber, Natural Rubber |
| Impeller | Urethane Rubber |
| Shaft | 403 Stainless Steel |
| Motor Frame | Aluminum Alloy |
| Voltage | 115V / 230V, Single Phase |
| Motor Type | Air-Filled, 3600 RPM |
| Insulation Class | Class E, B |
| Thermal Protection | Built-in |
| Discharge Size | 2” NPT |
| Dimensions (L x W x H) | 13.44” x 7.13” x 12.87” (341 mm x 181 mm x 327 mm) |
| Weight | 29 lbs (13.1 kg) |
| Power Cable | 32’ - 50’ (10 - 15 m) |
| Operation Mode | Manual or Automatic (LB-800A) |
| Optional Accessories |
|
