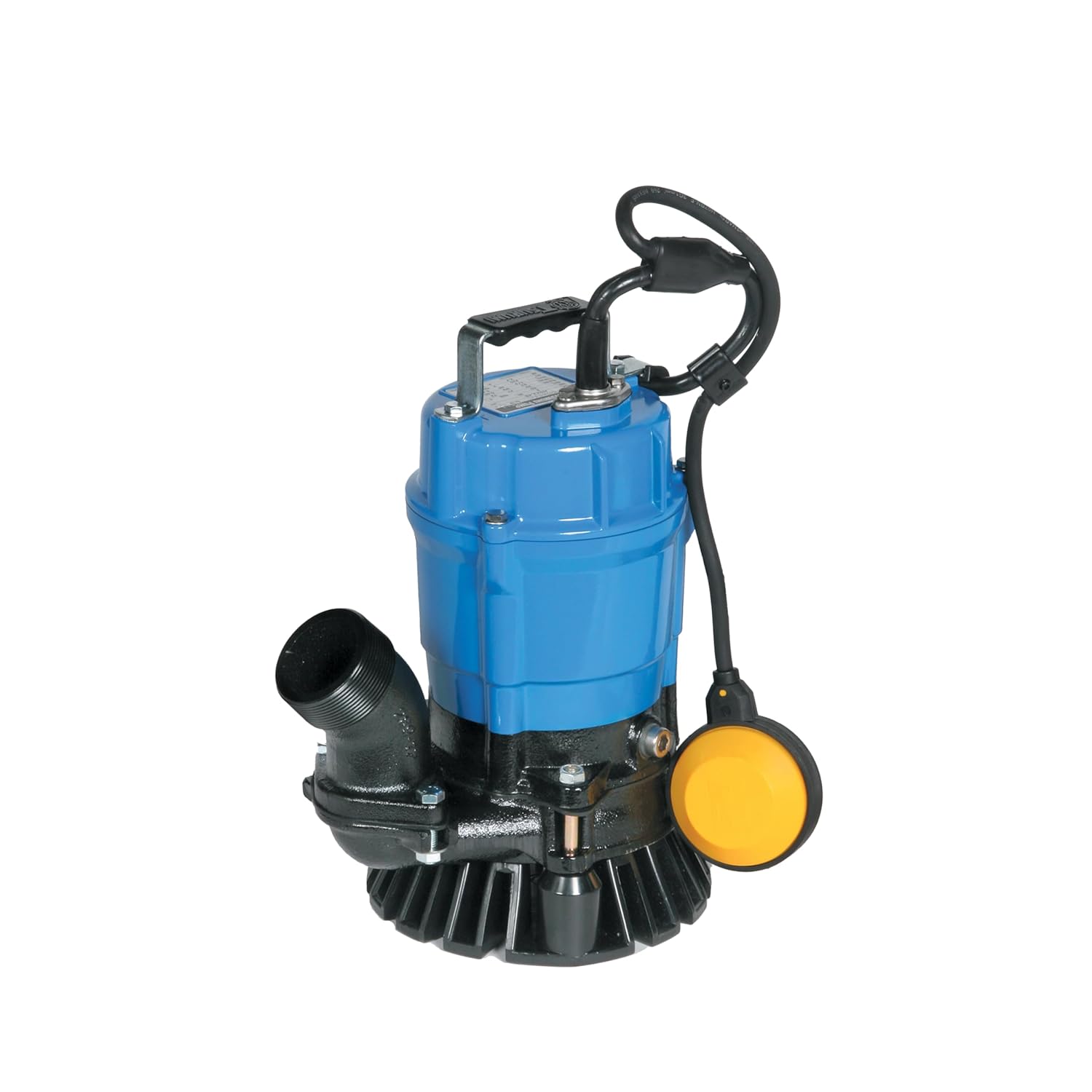

TSURUMI HSZ2.4S Automatic Submersible Trash Pump

$ 500.00 $ 426.00
Availability: In Stock

Operation Mode   Automatic - Float
Voltage
115V
Horse Power
1/2 HP
MPN
 HSZ2.4S

Add to wishlist
Add to compare
SKU: TS-HSZ2.4S
pumps
TSURUMI PUMPS
 all,TSURUMI
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

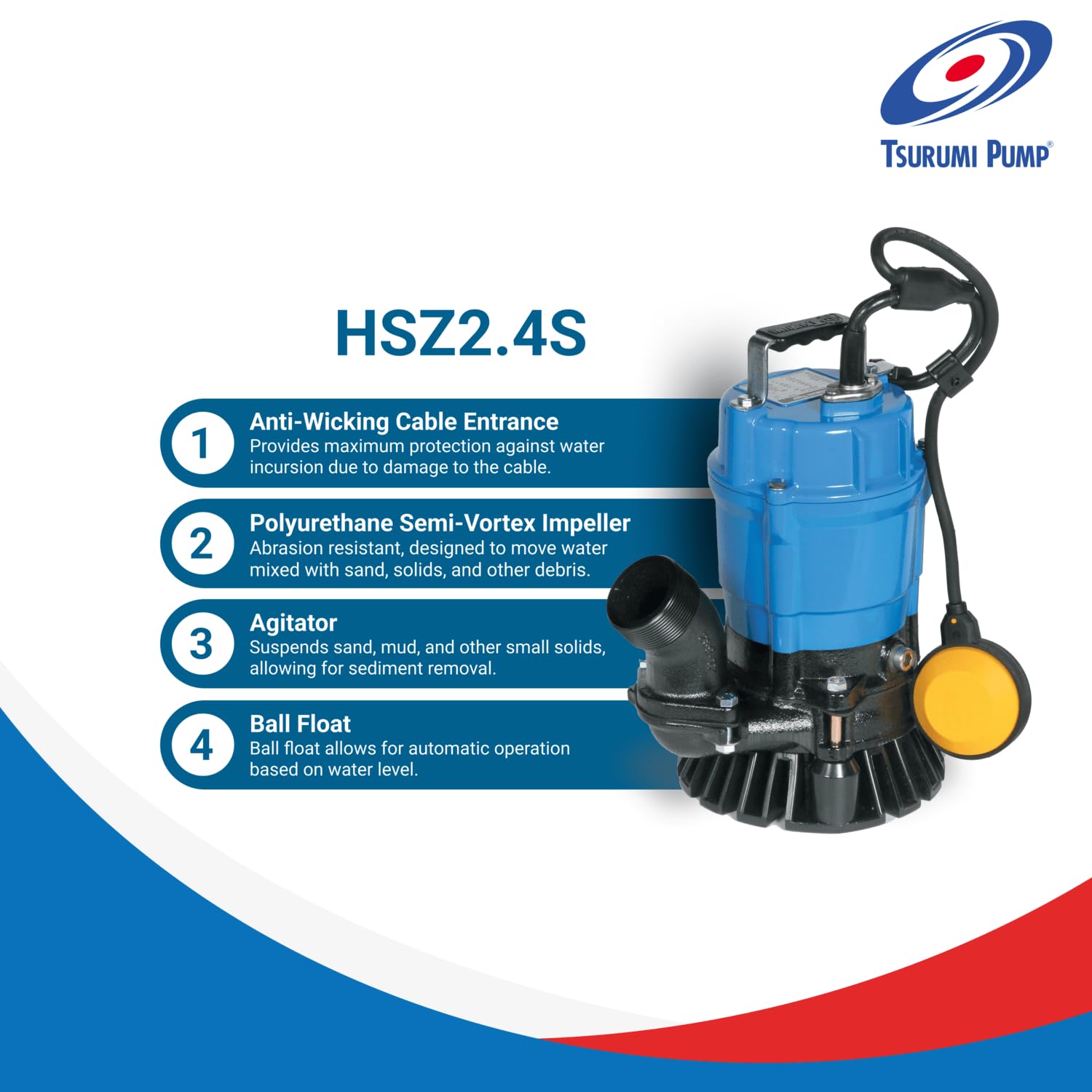

The TSURUMI HSZ2.4S is a high-performance submersible pump designed for automatic operation in wastewater, effluent, and site drainage applications. It features a semi-vortex urethane rubber impeller with an integrated agitator, allowing for effective pumping of sand, debris, and stringy materials. The combination of a built-in float switch, durable materials, and thermal overload protection ensures consistent, reliable performance in residential, commercial, and industrial environments. Its compact and portable design makes it easy to install and operate in tight spaces.

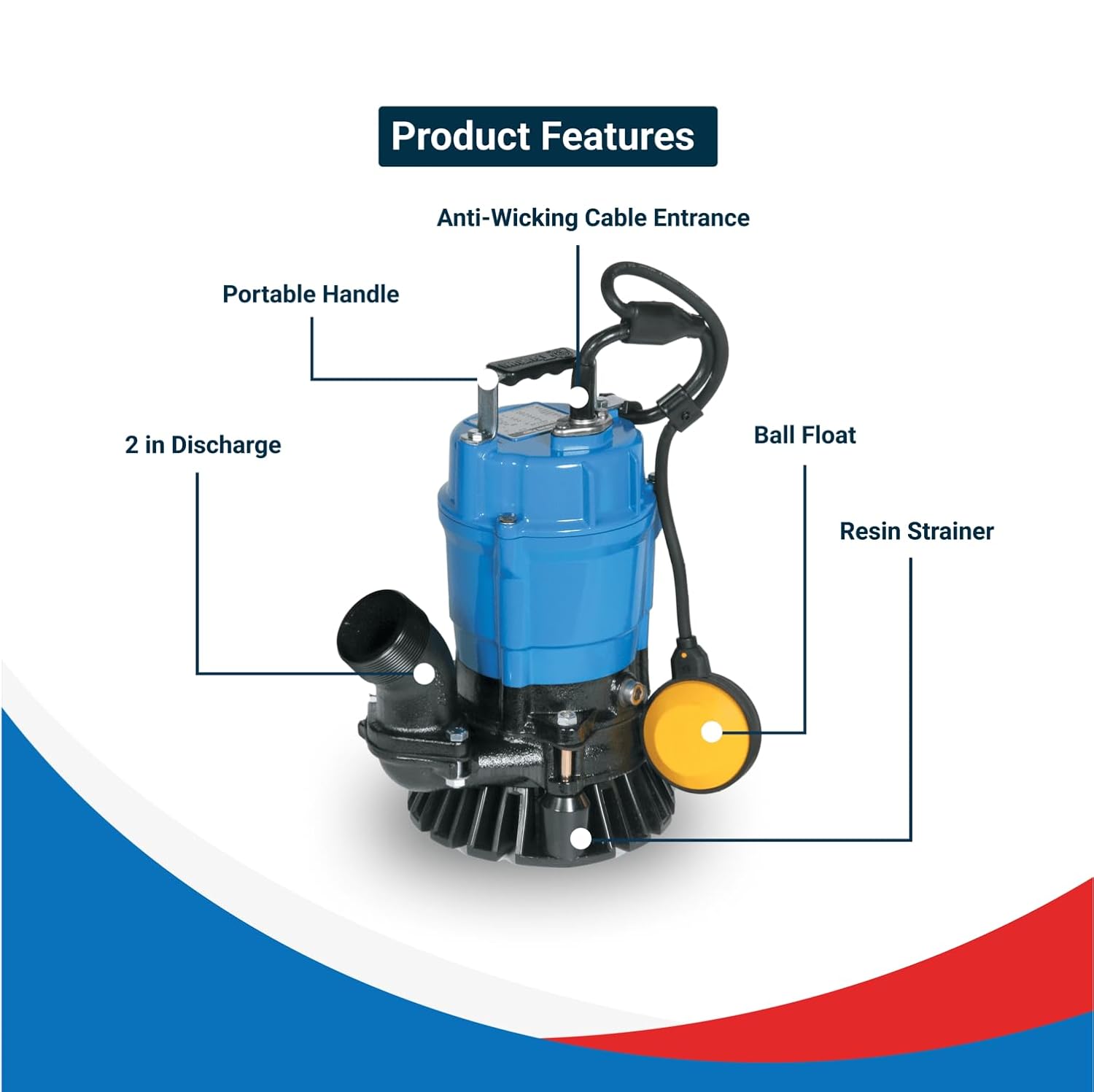

Top Features

  • Automatic Float Switch: Enables hands-free operation, turning the pump on/off based on water levels.
  • Durable Semi-Vortex Design: Urethane rubber impeller with agitator efficiently handles solids up to 0.276 inches (7 mm).
  • Thermal Protection: Built-in thermal overload protection prevents motor damage during dry runs or overloading.
  • High-Quality Build: Cast iron casing and stainless-steel fasteners for corrosion resistance and longevity.
  • Compact & Lightweight Design: Portable, space-saving design with a top-discharge layout for confined areas.
Category Details
Model HSZ2.4S
Type Semi-Vortex Submersible Pump with Agitator

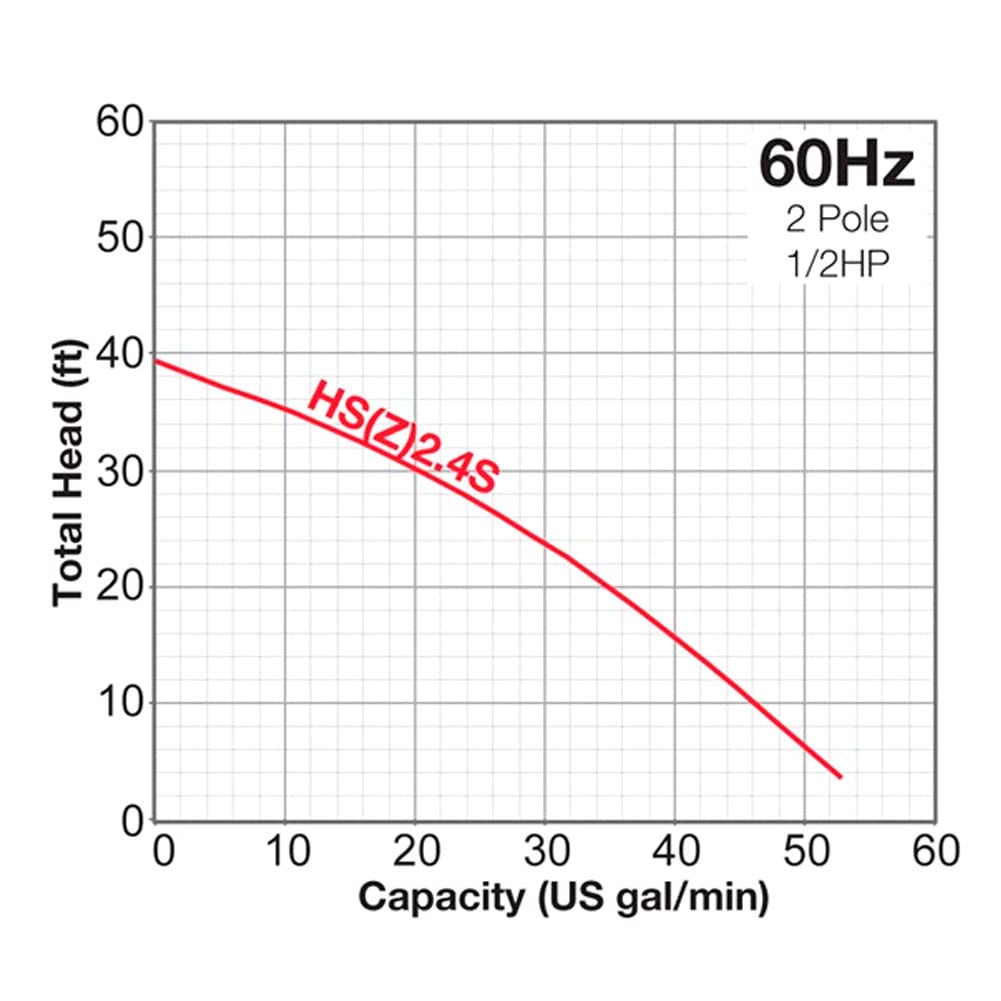

Capacity 13.2 ~ 61.0 GPM (0.05 ~ 0.23 m³/min)
Total Head 13.1 ~ 62.0 ft (4.0 ~ 18.9 m)
Horsepower 1/2 HP (0.40 kW)
Max Water Temperature 104°F (40°C)
Solids Handling 0.276” (7 mm)
Motor Type Air-Filled, 3600 RPM
Voltage 115/230V, Single Phase
Insulation Class Class E
Thermal Protection Built-in
Casing Material Cast Iron
Impeller Material Urethane Rubber
Shaft Material 403 Stainless Steel
Seal Material Silicon Carbide Mechanical Seals
Discharge Size 2” NPT (50 mm)
Weight 25 lbs (11.3 kg)
Dimensions (L x W x H) 12 15/16” x 8 1/8” x 10 1/16” (328 x 207 x 255 mm)
Cable Length 20' - 32' (6.2 - 10 m)
Operational Mode Automatic with Float Switch
Optional Accessories
  • Extended Power Cable
