MikroTik hAP ax² – WiFi 6 Dual-Band Home Router with PoE
$ 130.00
Back to products Back to products
Next product
MikroTik CCR2004-16G-2S+ – Cloud Core Router 16x GbE + 2x SFP+ $ 465.00

MikroTik CCR2004-1G-12S+2XS – 12x SFP+ + 2x 25G SFP28 Router

$ 595.00
Availability: In Stock

CPU AL32400 (Annapurna Labs Alpine v2)
RAM 4 GB DDR4 ECC
Gigabit Ethernet Ports 1
SFP+ Ports 12 x 10G
Operating System RouterOS v7, Level 6

Add to wishlist
Add to compare
SKU: MT-CCR2004-1G-12S+2XS
Cloud Core Router
MikroTik
 all,Mikrotik
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

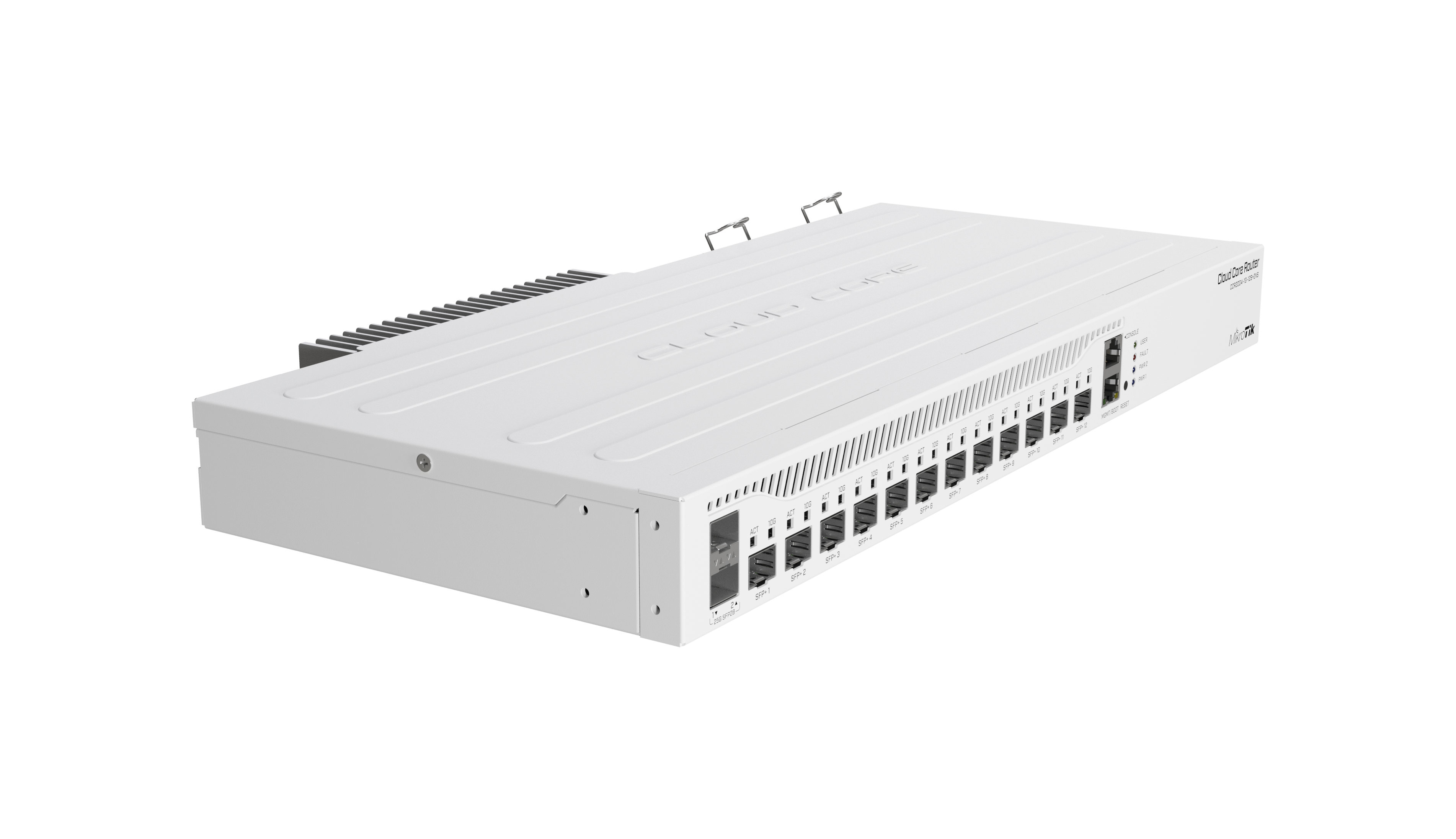

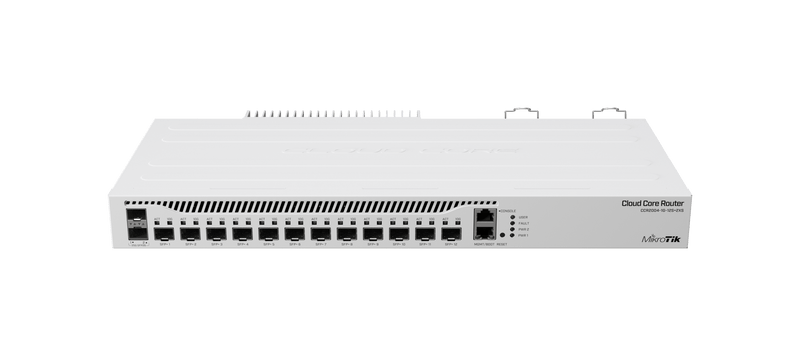

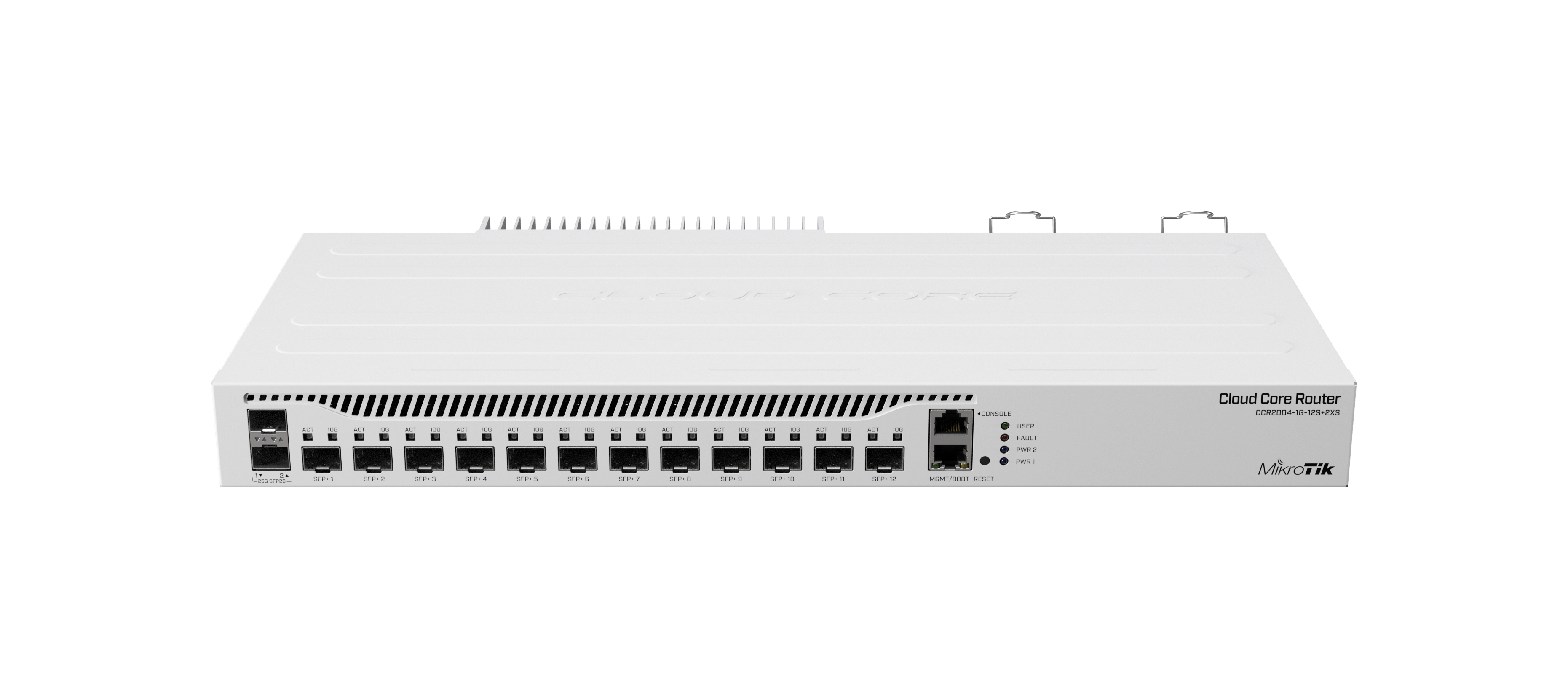

CCR2004-1G-12S+2XS – Connectivity Router with 12x 10G SFP+ and 2x 25G SFP28

The MikroTik CCR2004-1G-12S+2XS is The Connectivity Router — your best companion for SFP, SFP+ and SFP28 management. It combines 1, 10 and 25 Gbps ports in a single 1U device for any tricky setup. With 12x 10G SFP+ ports and 2x 25G SFP28 ports, plus a Gigabit Ethernet port, it delivers the most powerful single-core performance in any MikroTik router so far — up to 3.4 Gbps in a single tunnel and exceptional BGP feed processing. Performance is on par with the renowned CCR1009/CCR1016. Dual redundant power supplies and 4 GB of ECC RAM round out this professional-grade router.

Top Features

  • 12x 10G SFP+ + 2x 25G SFP28 Ports: Best-in-class fiber connectivity density.
  • Most Powerful Single-Core Performance: Up to 3.4 Gbps in a single tunnel.
  • Excellent BGP Feed Processing: Match for CCR1009 / CCR1016 routers.
  • Dual Redundant Power Supplies: Zero downtime even in PSU failure scenarios.
  • 4 GB ECC RAM (RouterOS v7): Error-correcting memory for ISP reliability.
Category Specification
Processing and Performance
Product Code CCR2004-1G-12S+2XS
CPU AL32400 (Annapurna Labs Alpine v2)
CPU Cores / Frequency 4 cores at 1.7 GHz
RAM 4 GB DDR4 ECC
Storage 128 MB NAND
Operating System RouterOS v7, Level 6
Ports and Connectivity
Gigabit Ethernet Ports 1
SFP+ Ports 12 x 10G
SFP28 Ports 2 x 25G
Serial Port RJ45
Powering and Dimensions
Dimensions 443 x 224 x 44 mm (1U rack)
Cooling Active (2 fans)

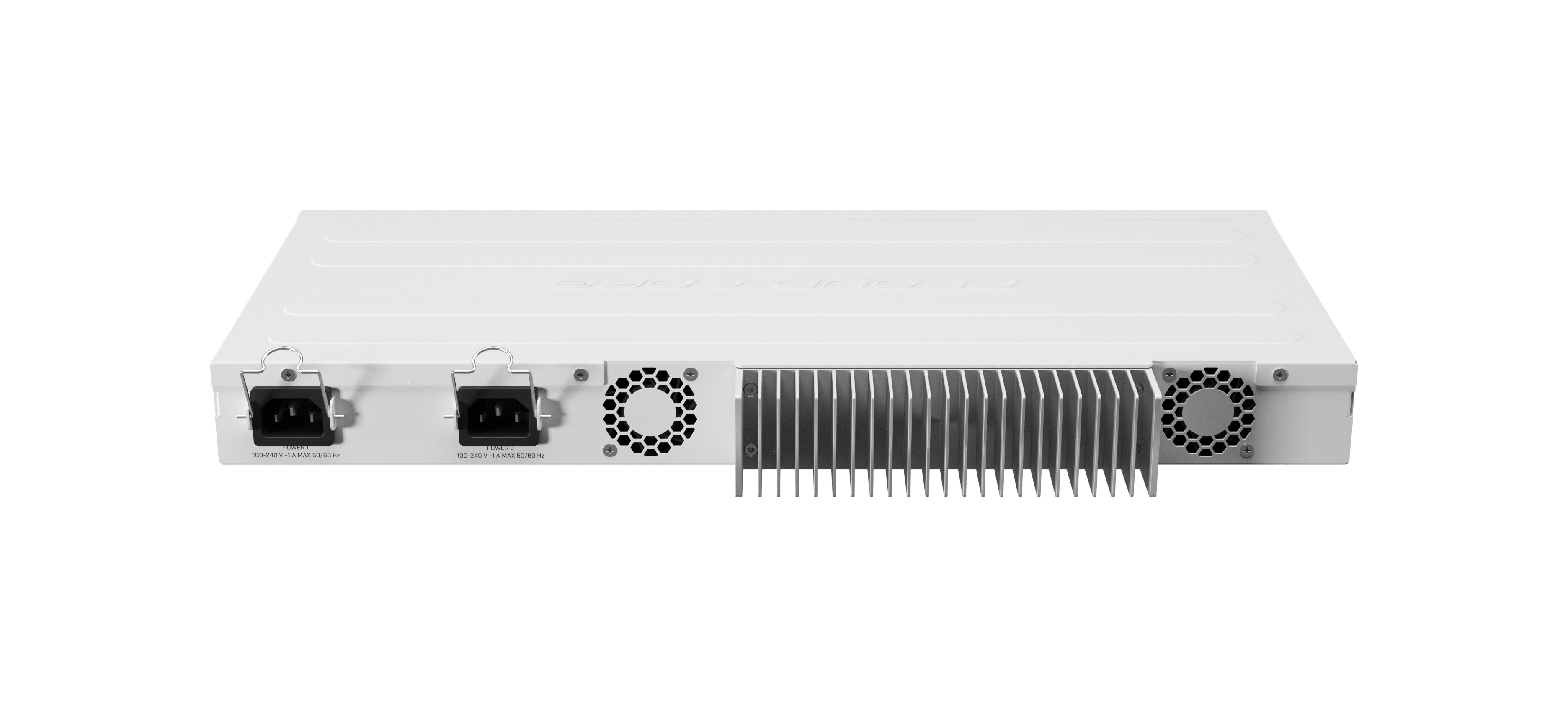

AC Input Dual redundant 100-240 V
Tested Temperature -20°C to 60°C



Backed by MikroTik's commitment to quality, this device ships with RouterOS pre-installed and licensed. Free software updates are included for the life of the product or a minimum of 5 years from date of purchase. The device is fully compliant with applicable safety certifications. Refer to the official MikroTik documentation for warranty terms and configuration guidance.
