MikroTik CCR2004-16G-2S+ – Cloud Core Router 16x GbE + 2x SFP+

$ 465.00
Availability: In Stock

CPU AL32400 (Annapurna Labs Alpine v2)
RAM 4 GB DDR4
Gigabit Ethernet Ports 16
SFP+ Ports 2 x 10G
Operating System RouterOS v7, Level 6

Add to wishlist
Add to compare
SKU: MT-CCR2004-16G-2S+
Cloud Core Router
MikroTik
 all,Mikrotik
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

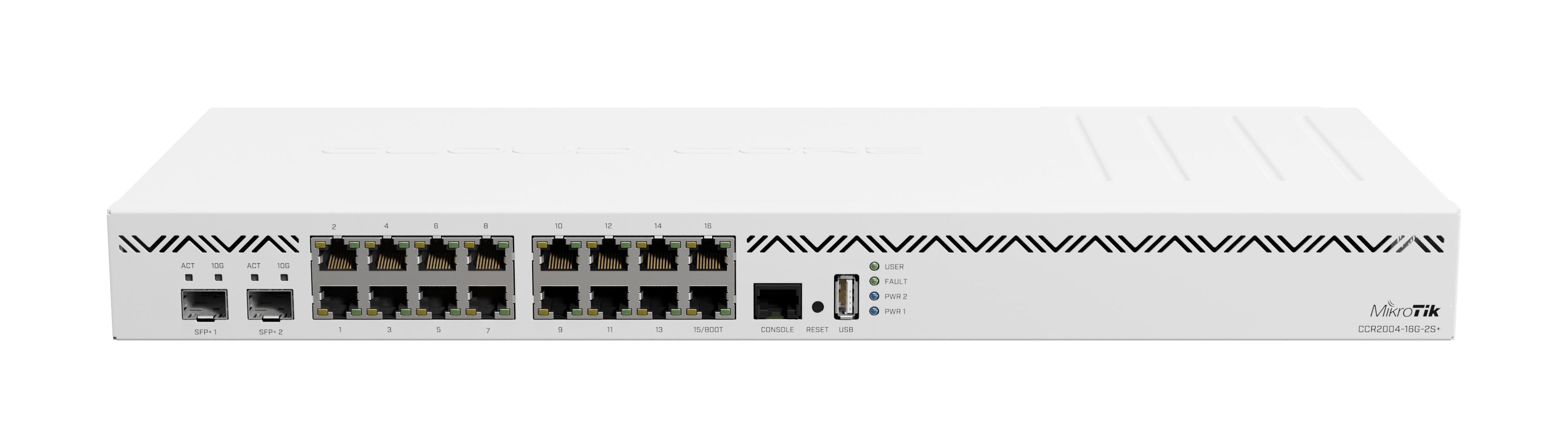

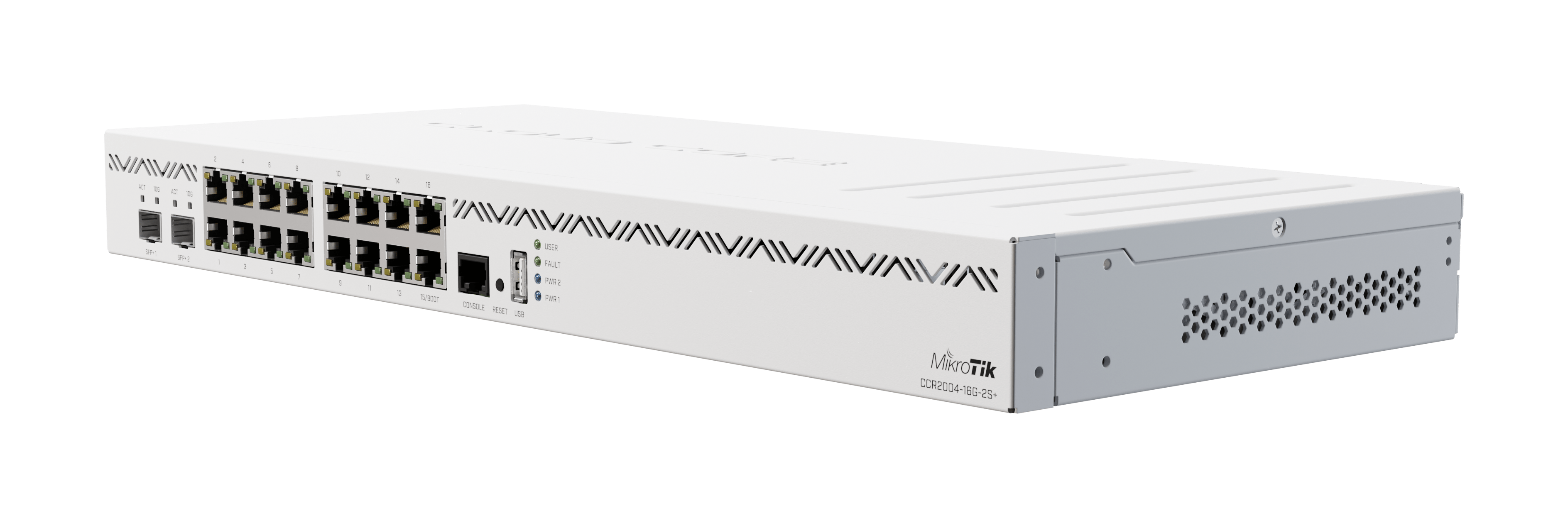

CCR2004-16G-2S+ – 1U Rackmount Cloud Core Router with Active Cooling

The MikroTik CCR2004-16G-2S+ is a powerful and affordable Cloud Core Router that crushes all previous CCR models in single-core performance. Featuring the Amazon Annapurna Labs Alpine v2 AL32400 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1.7 GHz, this router delivers the best single-core performance per watt and best overall performance per watt among all CCR devices. Comes in a classic white 1U rackmount case with built-in dual redundant power supplies and active cooling.

Top Features

  • Best-in-CCR Single-Core Performance: AL32400 4-core CPU at 1.7 GHz.
  • 18 Wired Ports: 16x Gigabit Ethernet + 2x 10G SFP+ + RJ-45 console + USB.

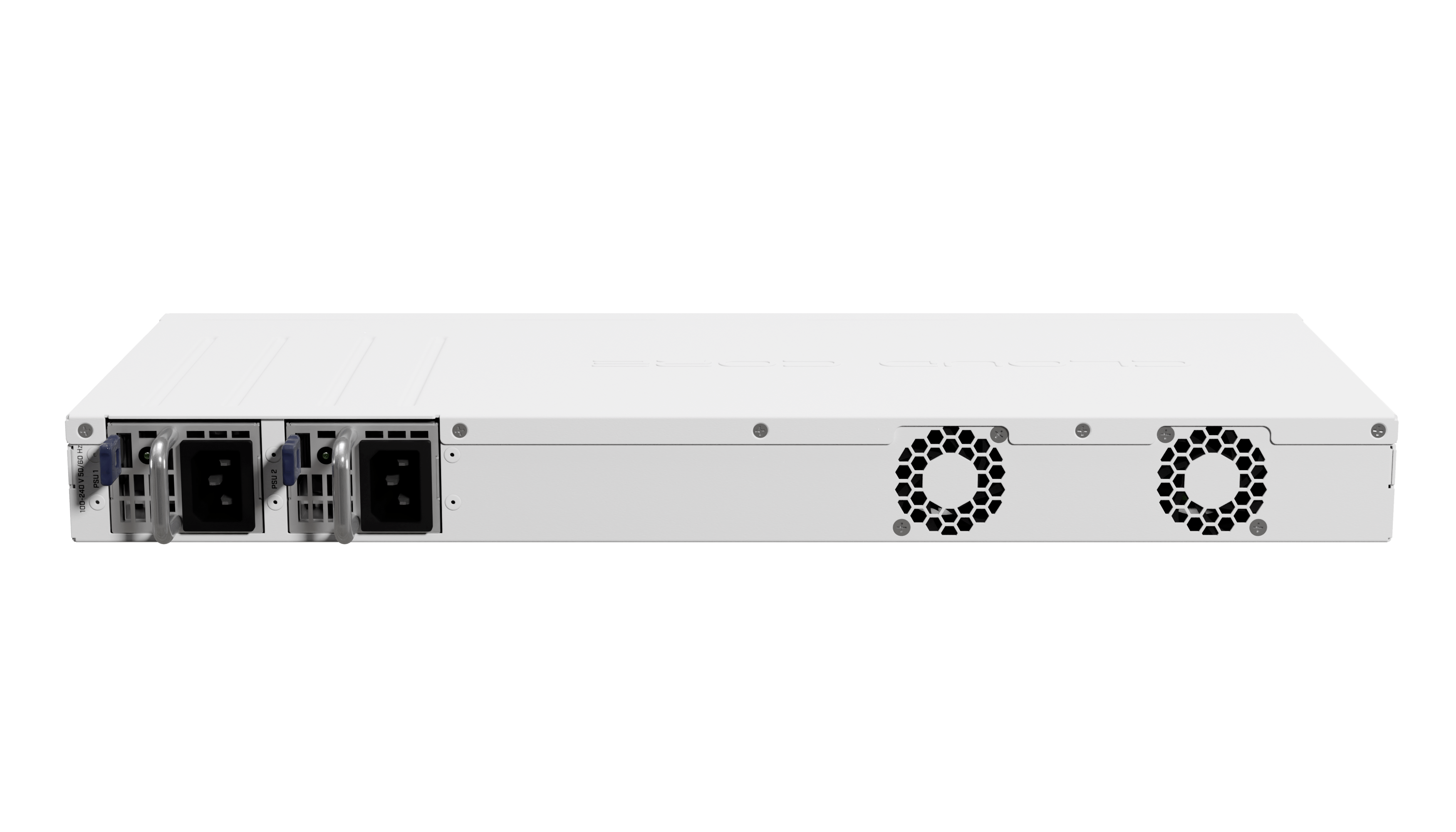

  • Dual Redundant Power Supplies: Carrier-grade reliability built-in.
  • Active Cooling (2 Fans): Sustained performance under heavy load.
  • RouterOS v7 Level 6: Pre-installed with free lifetime updates.
Category Specification
Processing and Performance
Product Code CCR2004-16G-2S+
CPU AL32400 (Annapurna Labs Alpine v2)
CPU Cores / Frequency 4 cores at 1.7 GHz
Switch Chip Marvell 88E6191X, 88E619X
RAM 4 GB DDR4
Storage 128 MB NAND
Operating System RouterOS v7, Level 6
Ports and Connectivity
Gigabit Ethernet Ports 16
SFP+ Ports 2 x 10G
USB Ports 1
Serial Console RJ45
Powering and Dimensions
Dimensions 443 x 210 x 44 mm (1U rack)
Cooling Active (2 fans)
AC Input 2 x 100-240 V (dual redundant)
Max Power Consumption 48 W



Backed by MikroTik's commitment to quality, this device ships with RouterOS pre-installed and licensed. Free software updates are included for the life of the product or a minimum of 5 years from date of purchase. The device is fully compliant with applicable safety certifications. Refer to the official MikroTik documentation for warranty terms and configuration guidance.
