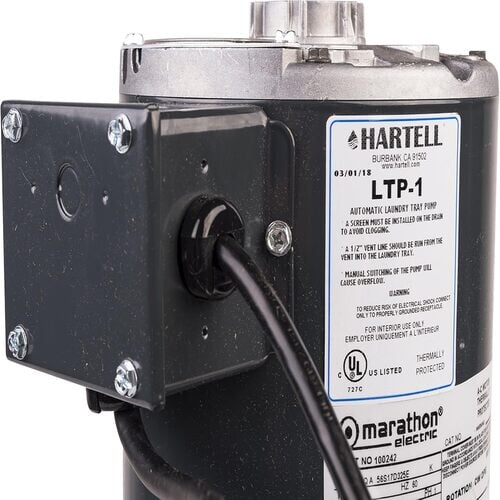

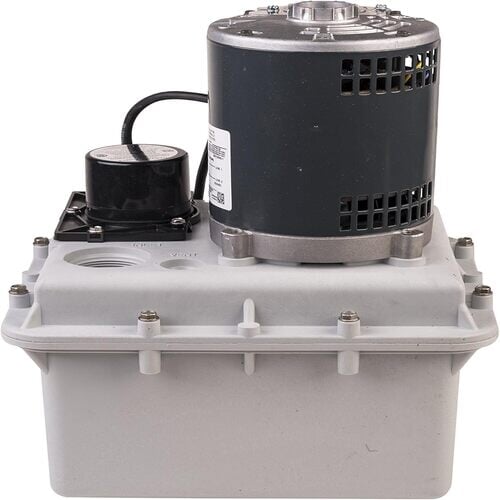

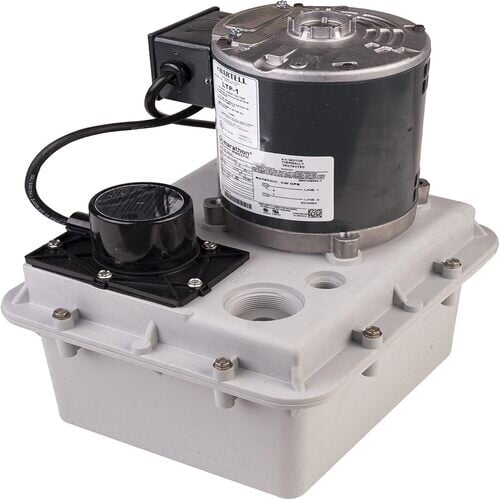

Hartell LTP Wastewater Drain Pump
Availability:
In Stock
| MPN | LTP-1 (801284) |
| Motor Power | 1/4 HP |
|
Voltage
|
115V, 5A, 60 Hz |
| Warranty | Limited 1-Year |
Description
Product Description
The Hartell LTP is a medium-capacity wastewater pump designed for laundry trays, wet bars, and other below-drain applications. Built with a structural foam polypropylene reservoir, it delivers durability and resistance to corrosion while handling demanding residential use. Its compact, unitized design fits neatly under utility sinks and inside standard cabinets, making installation quick and space-efficient.
Engineered for reliable automatic operation, the LTP features a sealed switch assembly and suds-proof reservoir to ensure consistent performance in laundry environments. With no need for a main stack vent connection, it simplifies installation while maintaining dependable drainage.
Top Features
- Durable Reservoir: Structural foam polypropylene construction
- Suds-Proof Design: Ideal for laundry and detergent-heavy use
- Compact Installation: Fits under sinks and in 24” cabinets
- Automatic Operation: Sealed switch assembly for reliability
- Easy Setup: No main stack vent required
Specifications Chart
| Category | Details |
|---|---|
| Model | LTP-1 (801284) |
| Type | Laundry Tray / Wastewater Pump |
| Horsepower | 1/4 HP |
| Max Lift | 12 ft (3.66 m) |
| Voltage | 115V, 5A, 60 Hz |

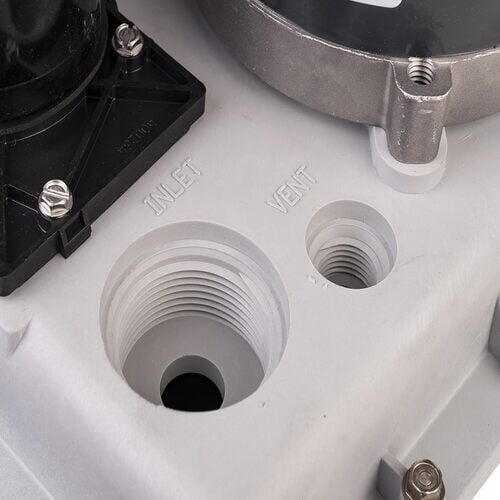

| Inlet | 1-1/2" NPT Female |

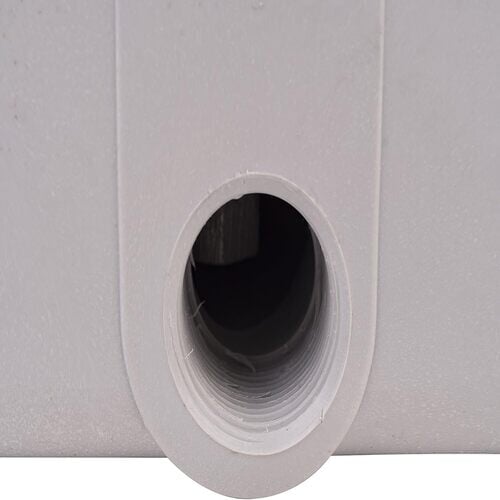

| Discharge | 1" NPT Female |
| Vent | 1/2" NPT Female |
| Reservoir Material | Structural foam polypropylene |
| Max Temperature | 130°F (54°C) |
| Length | 17" |
| Width | 12" |
| Height | 10" |
| Weight | 24 lbs (10.89 kg) |
| Warranty | 1-Year Limited |
