MikroTik RB4011iGS+RM – 10x GbE Router + SFP+ Quad-Core
$ 219.00
Back to products Back to products
Next product
MikroTik CRS310-8G+2S+IN – 8x 2.5G + 2x 10G SFP+ Switch $ 219.00

MikroTik RB5009UPr+S+IN – PoE Router 8x GbE + 2.5G + 10G SFP+

$ 299.00
Availability: In Stock

CPU 88F7040 (Marvell Armada ARMv8)
RAM 1 GB DDR4
Gigabit Ethernet Ports 7
SFP+ Ports 1 x 10G
Operating System RouterOS v7, Level 5

Add to wishlist
Add to compare
SKU: MT-RB5009UPr+S+IN
PoE Router
MikroTik
 all,Mikrotik
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat
Description

Product Description

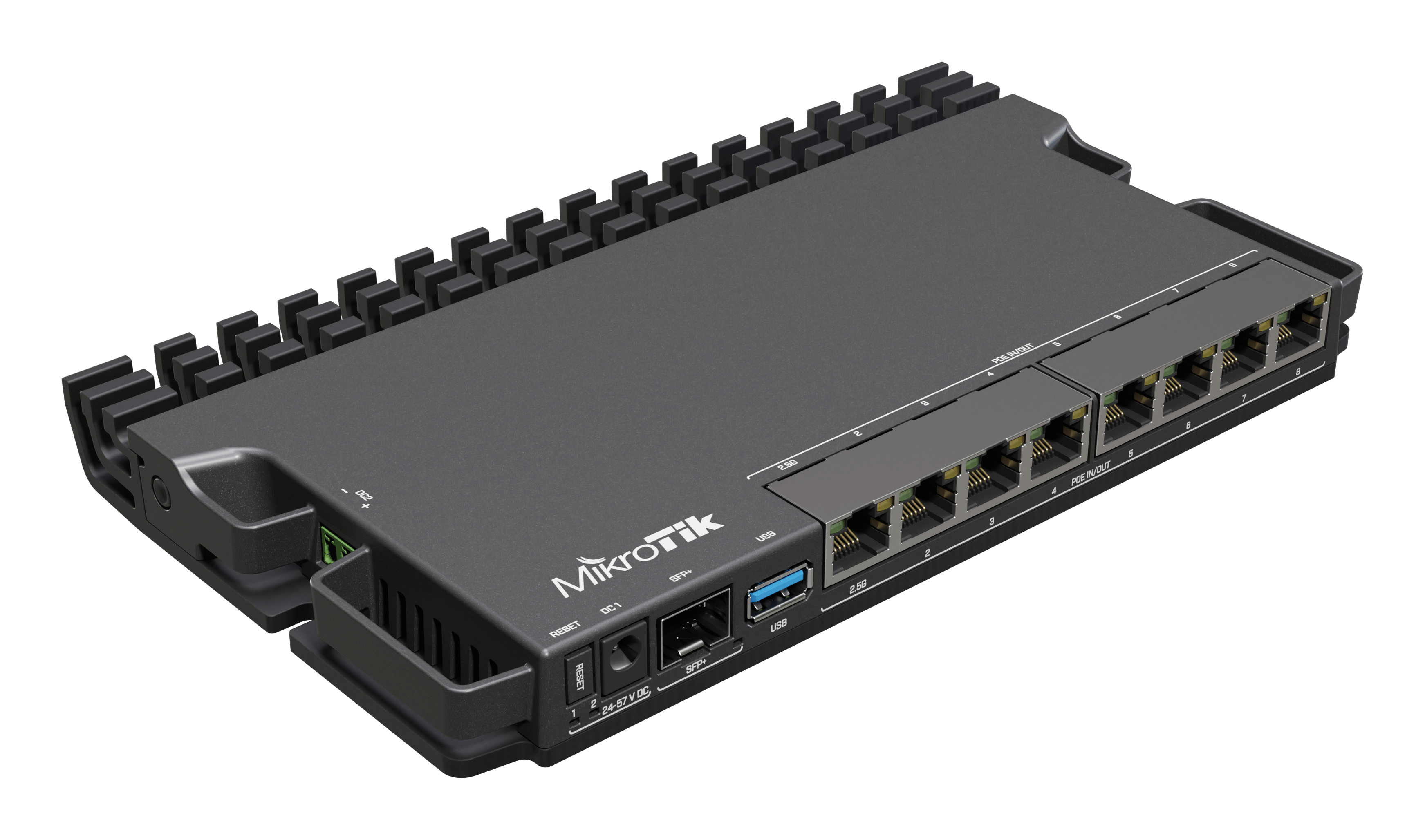

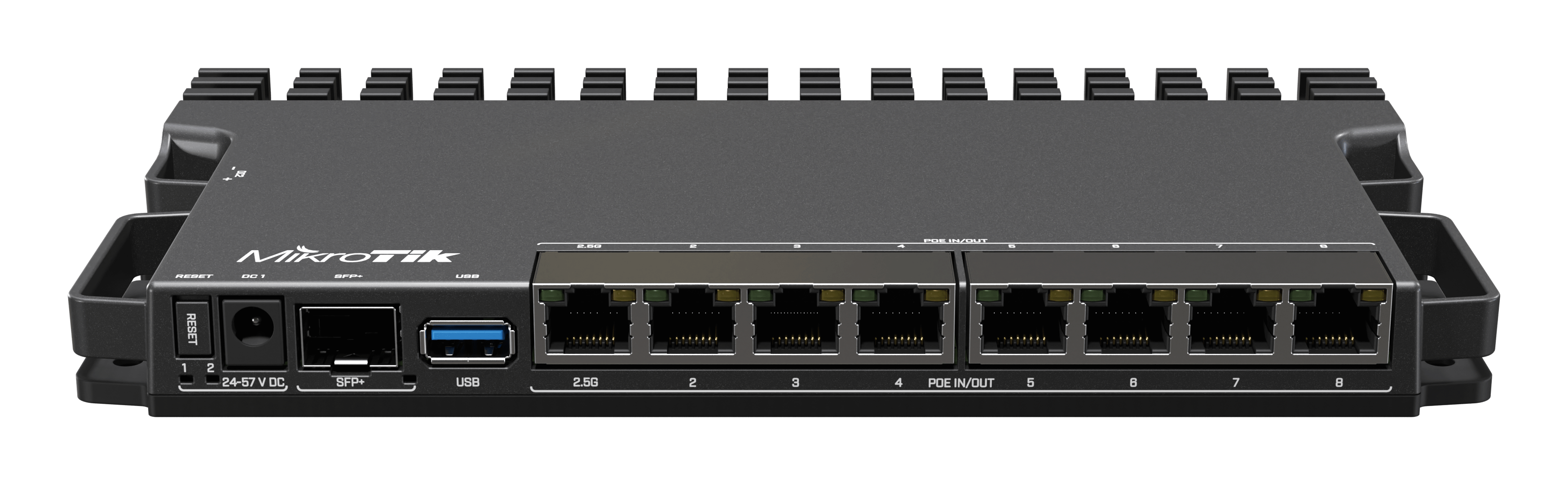

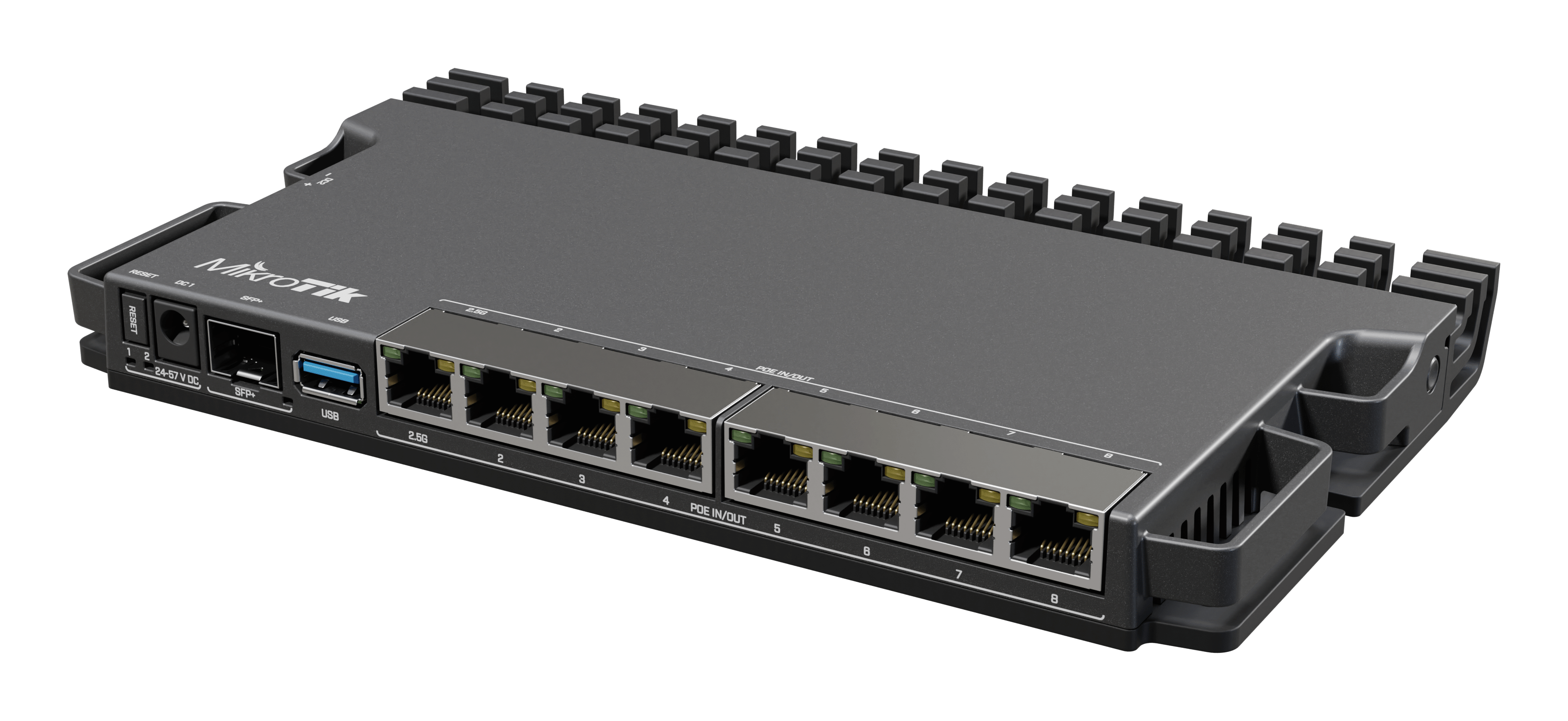

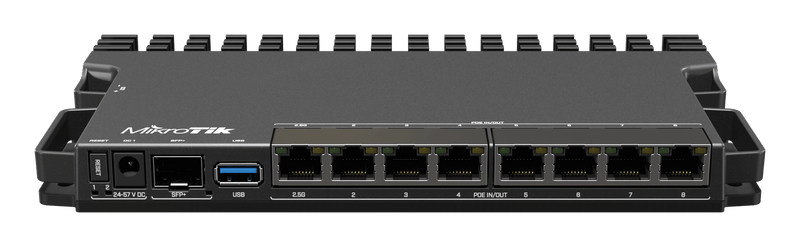

RB5009UPr+S+IN – Heavy-Duty PoE-In/Out Router with 2.5G & 10G SFP+

The MikroTik RB5009UPr+S+IN is the heavy-duty PoE version of the popular RB5009 series, designed for small and medium ISPs, homelabs and PoE-powered installations. It features 7x Gigabit Ethernet ports + 1x 2.5 Gigabit Ethernet port + 1x 10 Gigabit SFP+ cage. All eight Ethernet ports support both PoE-in and PoE-out, giving you 10 separate ways to power and be powered. Each PoE-out port can supply up to 25 W (130 W total). Powered by a Marvell Armada quad-core ARMv8 CPU at 1.4 GHz with 1 GB DDR4 RAM and 1 GB NAND storage, this router delivers premium performance in a compact metal enclosure that fits four in a single 1U rack space.

Top Features

  • PoE-in & PoE-out on All 8 Ports: 25W per port, 130W total budget.
  • 10 Powering Options: DC jack, 2-pin terminal, plus PoE-in on all ports.
  • Quad-Core ARMv8 CPU at 1.4 GHz: Premium routing and VPN performance.
  • 2.5G Ethernet + 10G SFP+ Cage: Future-proof multi-gig connectivity.
  • Compact 4-in-1U Enclosure: Mount four routers in a single 1U rack space.

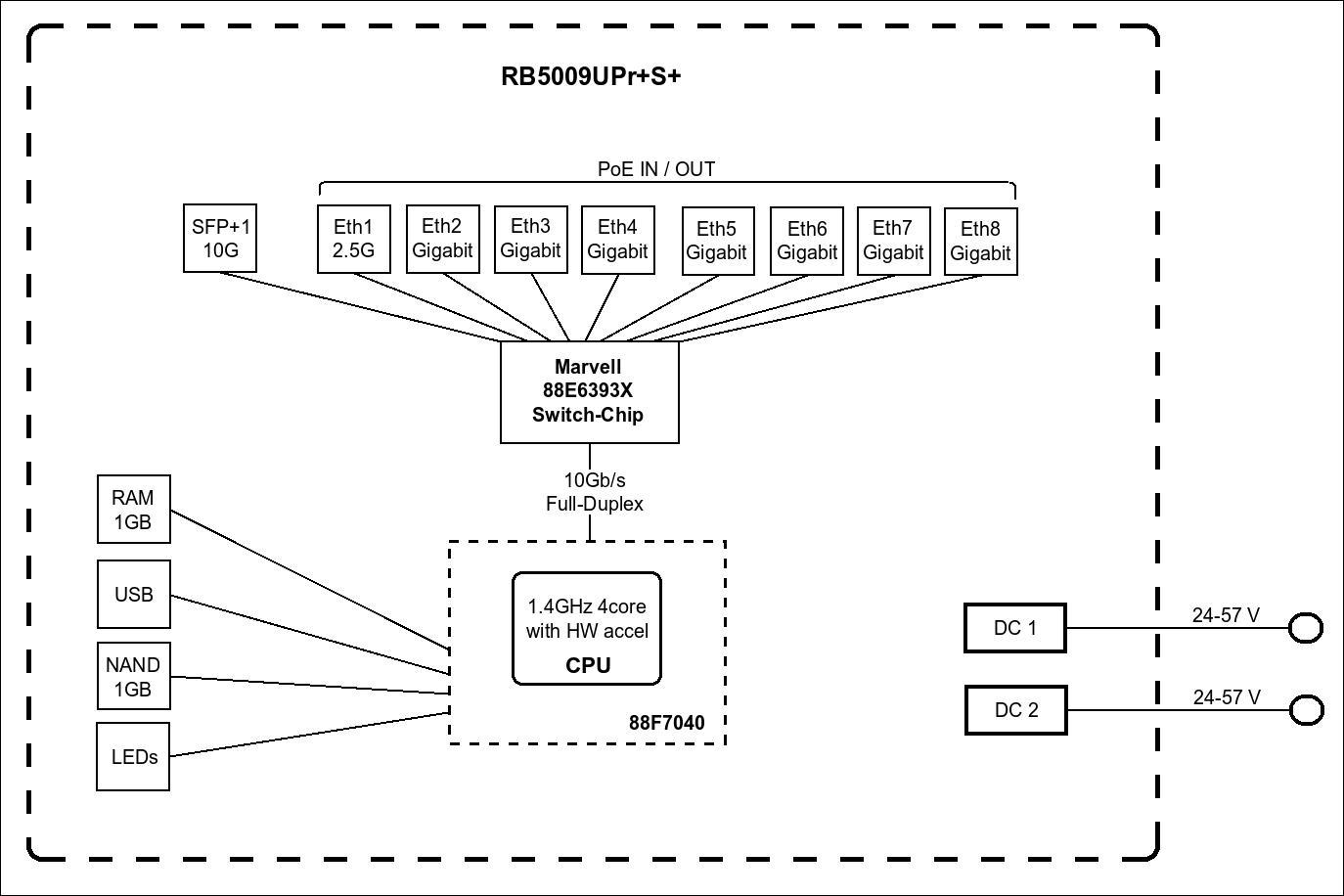

Category Specification
Processing and Performance
Product Code RB5009UPr+S+IN
CPU 88F7040 (Marvell Armada ARMv8)
CPU Cores / Frequency 4 cores, 350-1400 MHz (auto)
Switch Chip Marvell 88E6393
RAM 1 GB DDR4
Storage 1 GB NAND
Operating System RouterOS v7, Level 5
IPsec Acceleration Yes (Hardware)
Ports and Connectivity
Gigabit Ethernet Ports 7
2.5 Gigabit Ethernet Ports 1
SFP+ Ports 1 x 10G
USB Ports 1
PoE In / Out All 8 Ethernet ports (24-57 V)
PoE-Out Per Port Up to 25 W (130 W total)
Powering and Dimensions
Max Power Consumption 36 W (no PoE load)



Backed by MikroTik's commitment to quality, this device ships with RouterOS pre-installed and licensed. Free software updates are included for the life of the product or a minimum of 5 years from date of purchase. The device is fully compliant with applicable safety certifications. Refer to the official MikroTik documentation for warranty terms and configuration guidance.
