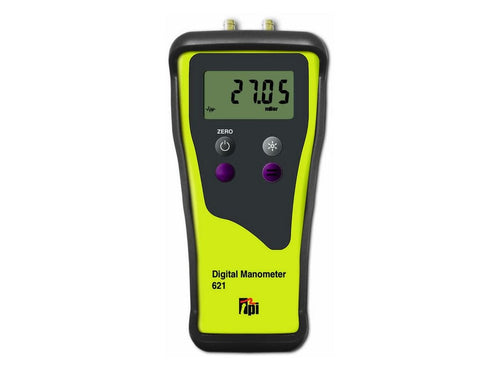

The TPI 621 Digital Differential Manometer can be used to accurately service and commission appliances. Suitable for adjusting appliance regulators, setting delivery pressures, leakage “shut-in” tests, regulator adjustments for pressure and lock-up tests, test pressure switch operation on a 2-stage gas appliance in both positive and negative pressures.

Dual Differential Input Manometer with ±120 inH2O range and 0.001 in H2O resolution. Seven units of pressure: inH2O, mbar, KPa, PSI, mmH2O, mmHg, inHg, Auto power off, Backlight display, Zero function, Trim mode to stabilize readings.

Features

Dual input with ±120" H2O range
0.001" H2O maximum resolution
Seven units of measure (mbar, kPa, PSI, mmHg, inHg, mmH2O, inH2O)
Display 5 digit with backlight
Smooth Stabilizes display when measuring fluctuating pressures
Auto Off: Conserve battery power

Specifications

Input Type	Dual Differential (1/4" Barbed)
Functions	One Touch Zero, Backlight , Smoothing
Battery Type	9 Volt Alkaline
Battery life	80 Hours
Auto Power Off	40 Minutes

===

TPI-621 Manual

TPI 621 Dual Differential Input Manometer
