[shortdesc]

Fits Register Sizes	4 x 10 in.
Total Airflow	120 CFM
Noise	18 dBA

[/shortdesc]

A quiet fan system designed to be mounted onto wall or floor registers to boost airflow. By increasing warm and cool air coming from weak registers, you can increase room comfort and reduce energy costs. Features a LCD display with smart thermostat control and customizable fan speeds. The mounting frame is constructed of anodized aluminum with CNC-machined detailing, painted matte-white for a professional appearance. Features PWM-controlled stator blade fans that are designed for high static pressure applications such as ducting. Includes hardware and power supply needed to secure the unit onto an existing register opening and power it through an outlet.

The controller on each unit features active thermal monitoring that can trigger fans to run for both cooling and heating temperatures you have set, as well as automatically adjust fan speeds to respond to varying temperatures. The controller can also be set to run continuously at speeds manually. Features temperature display, easy power on-off, and backup memory.

The system utilizes high-performance DC-motors that are controlled using PWM (Pulse Width Modulation). This technology enables the dual 92mm fans to be able to run smoothly at extremely low RPM speeds without generating motor or electromagnetic noises. In addition, the fans feature a stator-blade design with a high static pressure rating, specialized for delivering airflow even in applications where air movement is being restricted such as through ductwork. The motor houses dual ball bearings that are rated at 67,000 hours and allow the fan system to be mounted horizontally or vertically, which are certified by CE and RoHS.

Features:

A quiet fan system designed for improving wall and floor register airflow from HVAC systems.
Programmable LCD controller with heating and cooling thermostat, and automated fan speeds.
Premium aluminum frame with CNC-machined detailing, painted with a matte-white or bronze finish.
Features stator-blade fans which can deliver strong airflow from high static-pressure ductwork.
Fits ONLY 4 x 10 in. Registers | Airflow: 120 CFM | Noise: 18 Dba | Includes Wall Adapter

===

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	AIRTAP T4
Product Model	White: AC-RBF4-W \| Bronze: AC-RBF4-B
Product and Mounting Dimensions - Fan Unit
Total Dimensions	11.54 x 5.51 x 1.96 in. (29.3 x 14.0 x 5.0 cm)
Backside Enclosure Dimensions	9.72 x 3.93 in. (24.7 x 10.0 cm)
Hole to Hole Distance	10.55 (26.8 cm)
Screw Hole Size	Ø 0.197 in (Ø 0.4 cm)
Cord Length	144 in. (12 feet)
Product Performance and Technical Specs
Fits Register Sizes	4 x 10 in.
Design	White or Bronze
Total Airflow	120 CFM
Total Noise	18 dBA
Static Pressure	6.5 mm-H2O
Operating Voltage	12V DC
Power	6 W
Current	0.4 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
UL Certification (Fans Only)	PDF
CE Certification (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
Product Manuals
Fan Unit Manual	PDF
Programming Guide	Setup Instructions

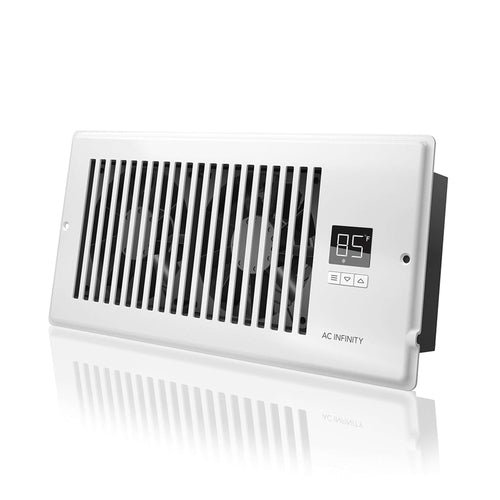

AC Infinity - AIRTAP T4 4x10" Register Fan with LCD Thermal Control
