The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience. Before this ball mount, gauging your trailer’s tongue weight was a hassle. You had to rely on inefficient bathroom scales, make a trip to the weigh station, or purchase a separate tongue weight scale. But with the Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Simply hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount. The weight of your trailer will push down on the hitch ball, which in turn pushes down on an internal hydraulic piston that sits on a bed of oil. When the piston drops into the oil, the pressure reading is sent out to the scale.
This 6 Inch drop hitch is a dream come true, allowing you to tow trailers of different heights with the same vehicle. The drop hitch adjusts in 1" increments so you get the perfect fit every time. All Weigh Safe ball mounts come standard with a high strength Dual Pin Lock that secures your trailer to your drawbar. All our locks come standard with a custom fitted dust cover to increase longevity. Fits 2.5” Receivers - F-250/350+, Chevy 2500/3500+, Ram 2500/3500+, etc.
Made of 18 lbs. of solid Aircraft Grade Billet Aluminum & Stainless steel this hitch is as tough as they come, with a towing capacity (GTW) of 18,500 lbs. on the 2 5/16" ball, 8,000 LBS on the 2" ball, and 2,200 lbs. max tongue weight. This premium ball mount was designed with everyday use in mind. This ball mount will not only provide you with Towing Peace of Mind, but the strength to get any job done with our Industry Leading Towing Capacity
Have peace of mind knowing you can switch from a 2" ball to 2-5/16" balls in seconds. Both balls are made from High-Strength Stainless Steel which gives them industry-leading strength and corrosion resistance. These balls will not rust. Our Stainless Steel Locking Hitch Pin (WS05) is included and is keyed the same as the Dual Pin Lock in order to maximize your ease and convenience when switching trailers or vehicles.
Weigh Safe Set includes:
- Keyed Alike Dual Pin Adjustor Lock
- Stainless Steel Receiver Pin Lock
- Stainless Steel Anti-Theft Coupler Lock & PadLock
- 6 Inch Drop Drawbar which functions both in the drop and rise position
- Slider with built-in Tongue Weight Gauge (Lifetime Gauge Warranty
- 2-5/16" stainless steel tow ball (18,500 lbs. GTW)
- 2" (8,000 lbs. GTW) stainless steel tow ball
- Ball retaining pin
- Dust lock cover
- 1 year limited ball mount warranty
The WS8-2.5-SET is designed for 2.5" receiver size. 2.5" X 2.5" receivers are used on heavy-duty trucks sometimes knowns as Class V hitches. 2.5" receivers can be found on 3/4 ton pickups like the F-250/350+, and on heavy pickups as the Chevy 2500/3500+, Ram 2500/3500+, etc.
- Tongue weight scale built into the ball mount platform helps you balance your trailer
- Promotes safe towing – lets you know if your load needs to be adjusted before you tow
- Simple operation – automatically provides a measurement every time you couple your trailer
- Efficient and hassle-free – eliminates the need for separate or commercial scales
- 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
- Highly Rated Gross Trailer Rating for Class V (5) Hitches
- Solid block construction provides greater strength than hollow steel competitors while also maintaining a lightweight
- Rustproof for a clean finish that stands the test of time

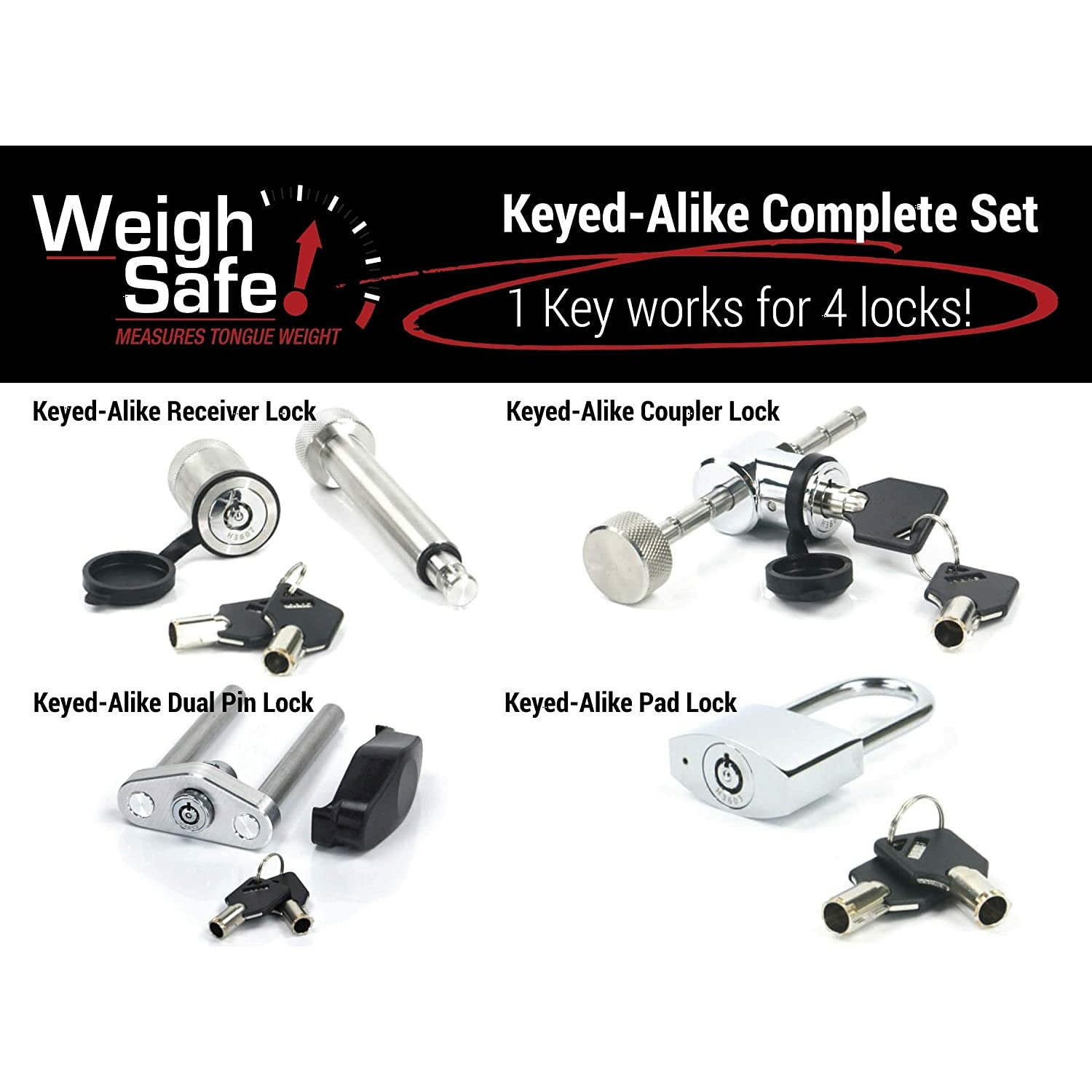

- Includes 4 piece keyed alike master lock set.
