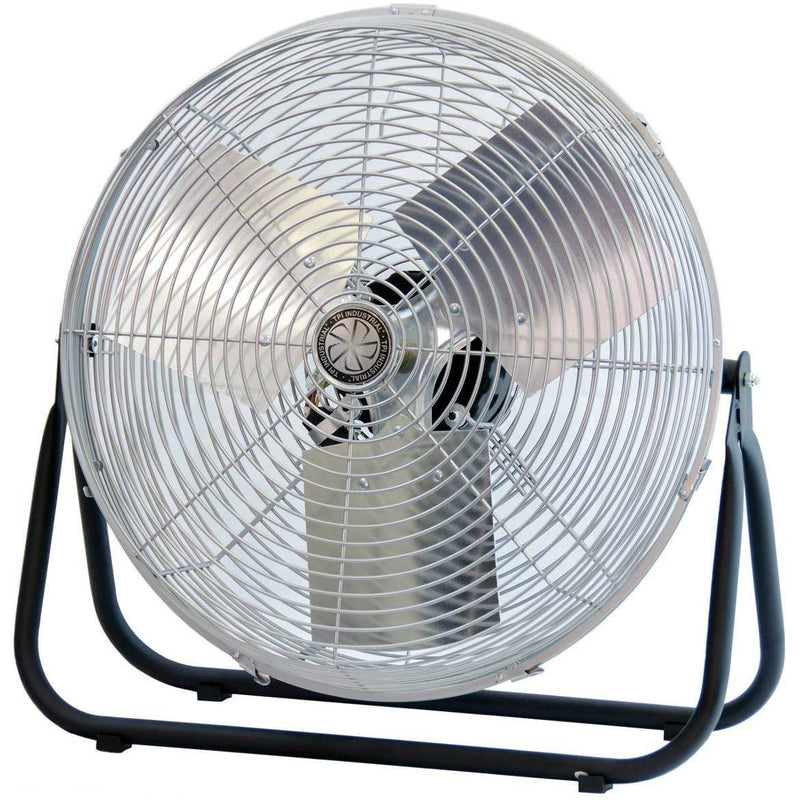

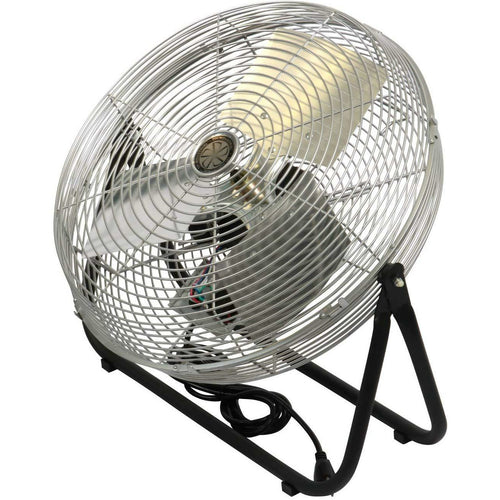

TPI Corporation F18TE Industrial Workstation Floor Fan, Single Phase, 18" Diameter, 120 Volt

$ 112.99
Availability: In Stock

SKU: F-18-TE
Commercial Fan
TPI Corporation
 Fans,HVAC,TPI Corporation
Description

TPI Corporation F18-TE 3-Speed Industrial Workstation Floor Fan, Single Phase, 1/8 HP, 1800/1660, 1500/1550, 1300/1370 CFM, 1.5 AMPS, 18 in. Diameter, 120 Volts F18-TE workstation fan has a double yoke floor mount and is suitable for providing floor-level air circulation.

The blade assembly, consisting of a steel hub and spider, holds the fan head’s three aluminum paddles, which are enclosed by powder-coated front and rear steel wire guards for strength and resistance to corrosion the fan has a rotary switch, a double yoke floor mount and can be positioned horizontally or vertically for precise direction of airflow.

Features:

  • Rotary switch
  • Head tilts 360°
  • Fan Type: Floor
  • Powder-coated steel guards and blade guards
  • SJT type 3 conductor, 10 ft. long cord
  • Steel hub/spider aluminum paddle blades
Specifications:
  • Motor 3-speed, 1.5 amp, 120 volts, single-phase, 1/8 horsepower, permanently lubricated, totally closed sleeve bearing motor
  • Switch type Rotary switch
  • Cord 10-foot SJT type three-conductor cord
  • Blades Aluminum (3)
  • Blade guards Powder-coated steel wire
  • Cubic feet per minute (CFM) 4600 / 4200 / 3200
  • Weight 20 lbs.
  • Dimensions: 20.5 x 20.5 x 10.5 inches (H x W x D)
