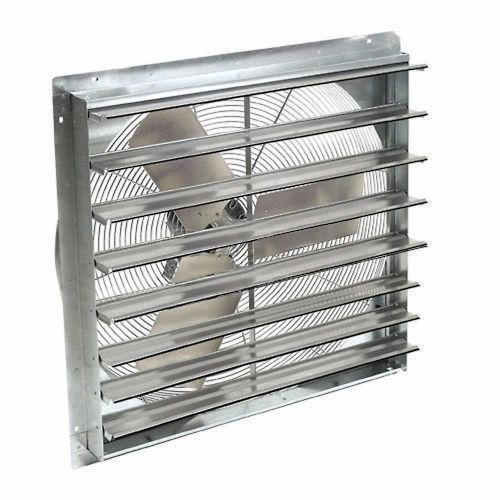

This TPI Corporation CE 14-DS single phase 14-inch diameter direct drive exhaust fan has a built-in shutter mechanism and is suitable for ventilating a building to the outside. The blade assembly (consisting of a steel hub and spider) holds the fan head’s three aluminum paddles, which are enclosed by front steel spiral wire guards for strength.

The built-in shutter mechanism allows the fan to be installed without external framing, and the self-closing shutters protect the fan from rain and snow when not in operation. The permanent split capacitor (PSC) motor provides both starting torque and the ability to run at variable speeds. The motor of the TPI direct drive exhaust fan is totally enclosed, making it suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of dust or other airborne debris.

CE 14-DS single phase direct drive exhaust fan has a built-in shutter mechanism and is suitable for ventilating a building to the outside.

The blade assembly (consisting of a steel hub and spider) holds the fan head’s three aluminum paddles, which are enclosed by front steel spiral wire guards for strength.

The built-in shutter mechanism allows the fan to be installed without external framing, and the self-closing shutters protect the fan from rain and snow when not in operation.

Specifications:

Motor 3-speed, 2 amp, 120 volts,
Single-phase,
1/8 horsepower,
Permanently lubricated,
Pull chain switch
Blades: Aluminum (3)
Blade guards: Steel spiral wire
Cord: No cord, junction box provided for direct wiring
Eliminates the need for external framing and shutter
Totally closed ball bearing motor with permanent split capacitor
Switch type Pull chain
Cord No cord, junction box provided for direct wiring
Blades Aluminum (3)
Blade guards Steel spiral wire
Cubic feet per minute (CFM) 1520 / 1400 / 1250
Weight 17 lbs.
Dimensions 17.125 x 17.125 x 13.305 inches (H x W x D)*
Shutter mounted 3-speed exhaust fan for use in exterior ventilation
Self-closing shutters protect the fan from rain when not in operation
Junction box included for direct wiring to a wall switch

Industrial fans are used in workplace environments to exhaust fumes or direct airflow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes.

They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of airflow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.

*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

===

What's In The Box:

1 x 2-speed motor
1 x Pull chain
1 x Junction box for direct wiring
1 x Blade set
1 x Fan guard
1 x Shutter housing.

Spec Sheet / Product Manual:

Instructions:

TPI Commercial Direct Drive Exhaust Fan, Shutter Mounted, Single Phase, 14" Diameter, 120 Volt CE14-DS
