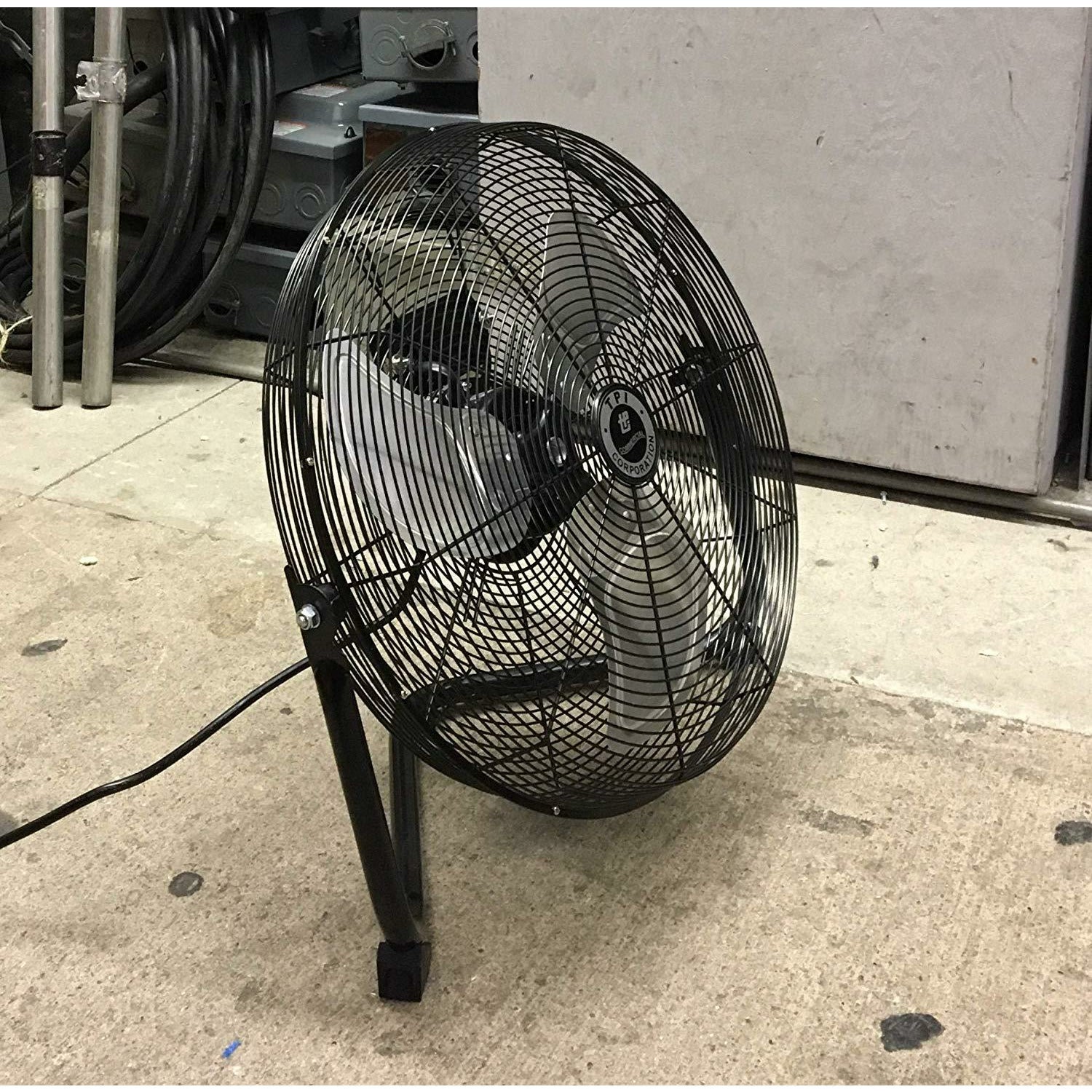

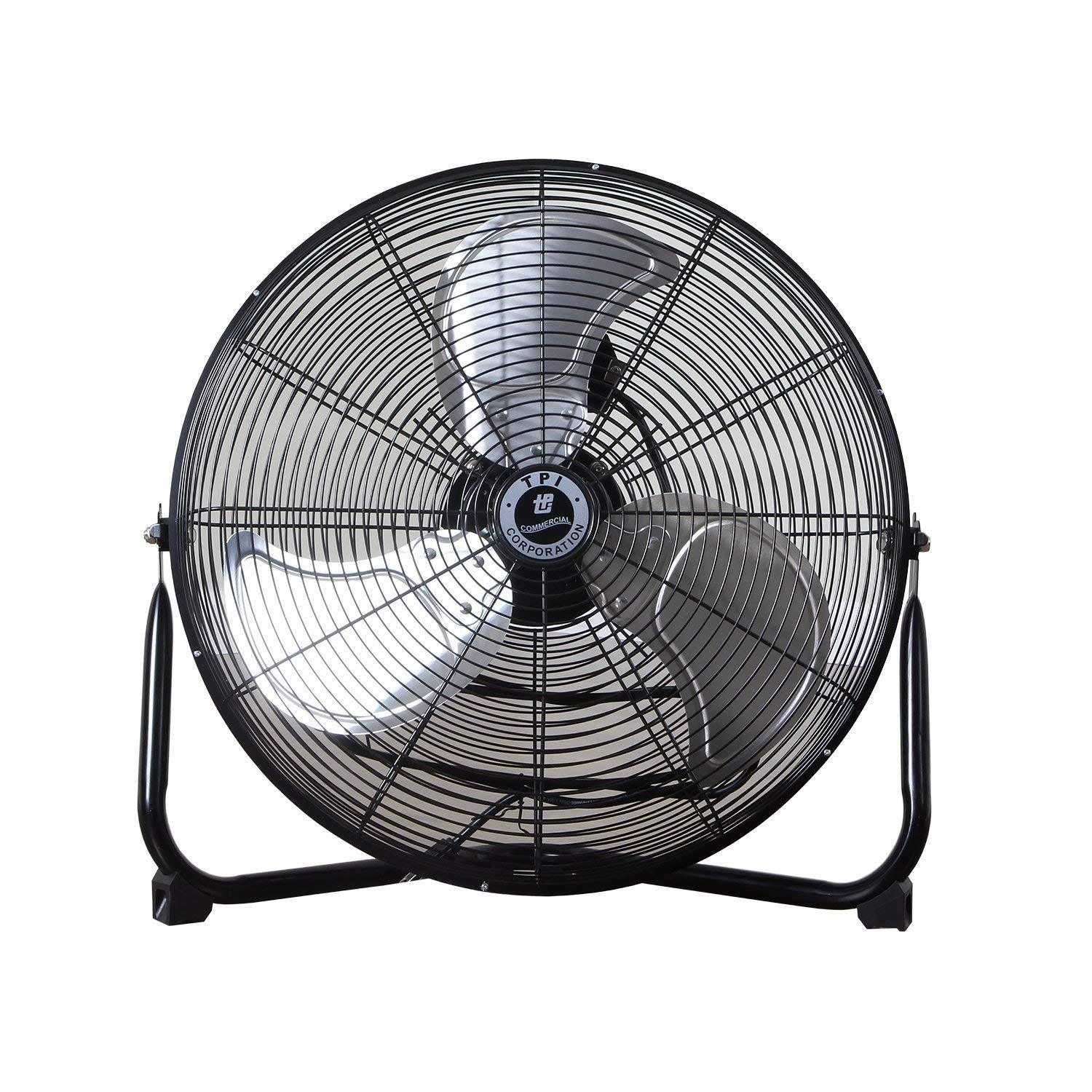

This TPI Corporation CF 18 single phase 18-inch diameter workstation fan has a three-point floor mount and is suitable for providing floor-level air circulation. The blade assembly, consisting of a steel hub and spider, holds the fan head’s three aluminum paddles, which are enclosed by powder-coated front and rear steel wire guards for strength and resistance to corrosion. The fan has a rotary switch and can be positioned horizontally or vertically for precise direction of airflow. The motor of the TPI workstation fan is open ventilated, making it suitable for use in clean, dry commercial applications.

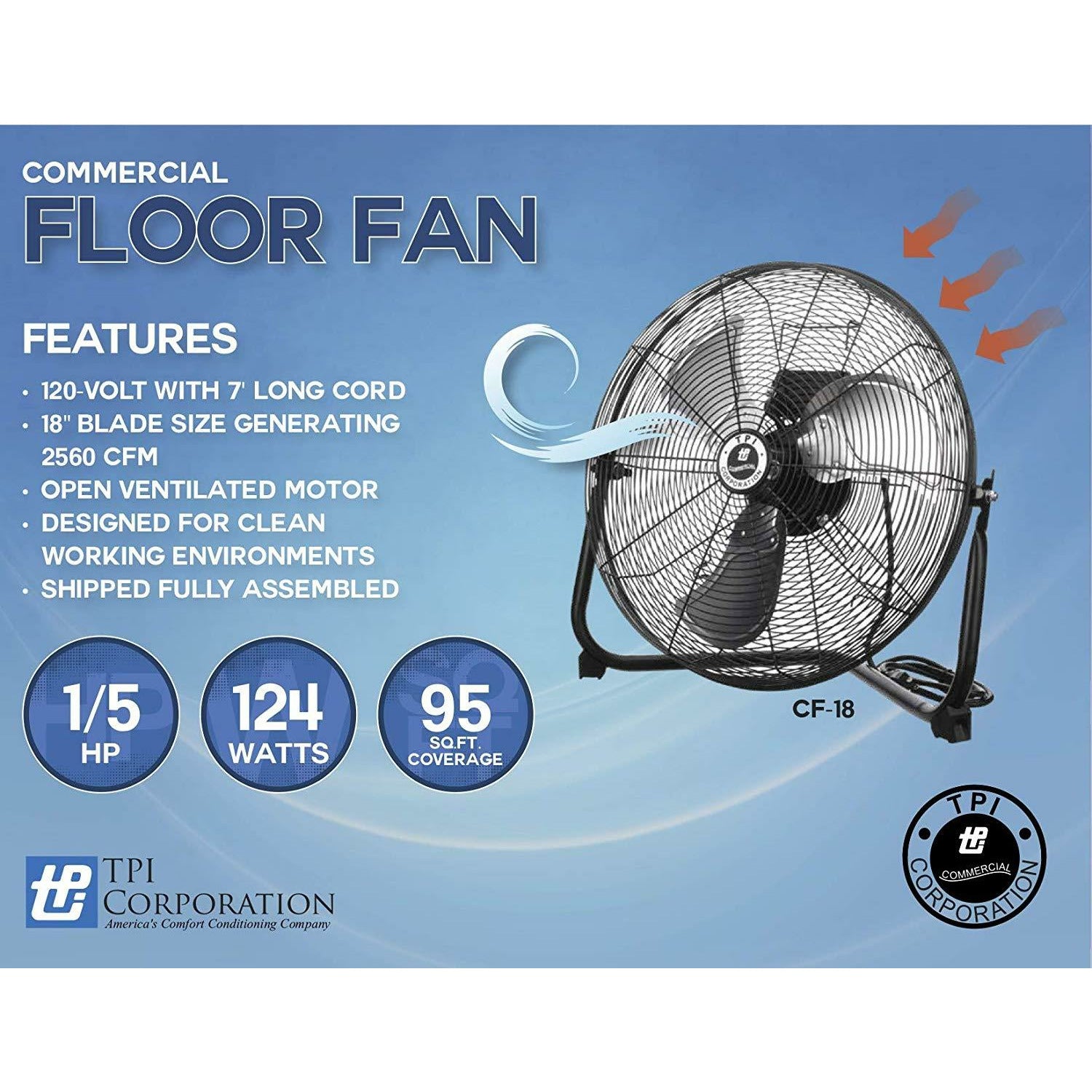

Specifications:
- Motor 3-speed, 1.4 amp, 120 volts, single-phase, 1/5 horsepower, permanently lubricated, open ventilated sleeve bearing motor
- Switch type Rotary switch
- Cord 7-foot SJT type three-conductor cord
- Blades Aluminum (3)
- Blade guards Powder-coated steel wire
- Cubic feet per minute (CFM) 3150 / 2700 / 2550
- Air Delivery (CFM) 1,600
- Speed (RPM) 1,000
- 3-Speed
- 120V
- 1-Phase
- Open ventilated
- Permanently lubricated
- Sleeve bearing
- Meets OSHA standards
- Weight 16 lbs.
Industrial fans are used in workplace environments to exhaust fumes or direct airflow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes.
They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of airflow.
Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.
