Product Description

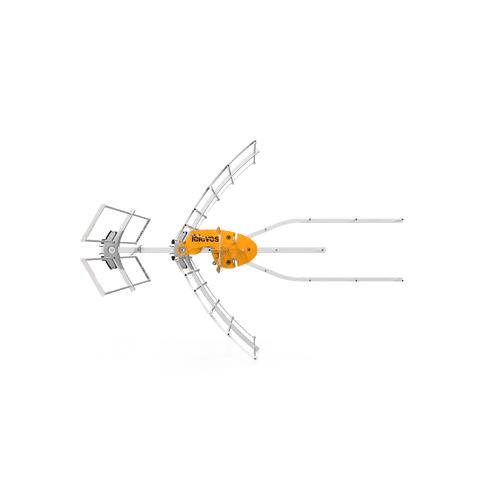

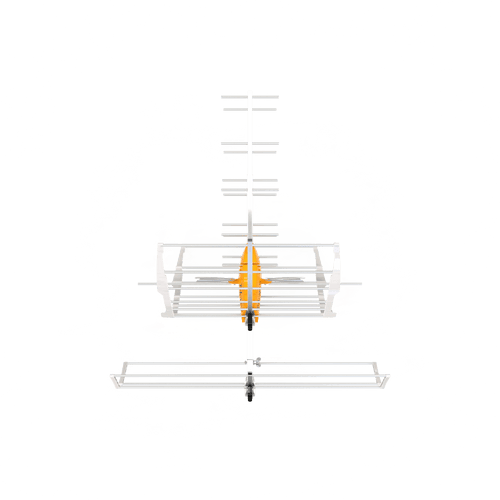

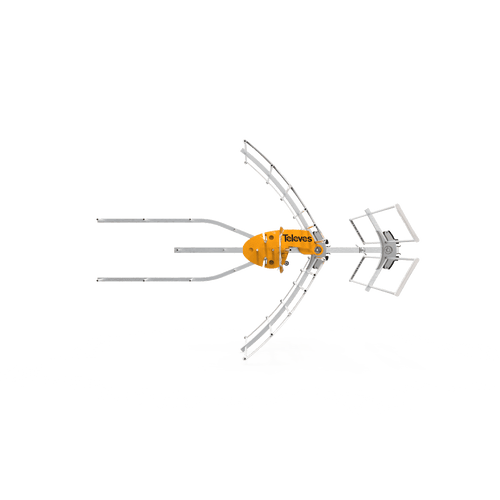

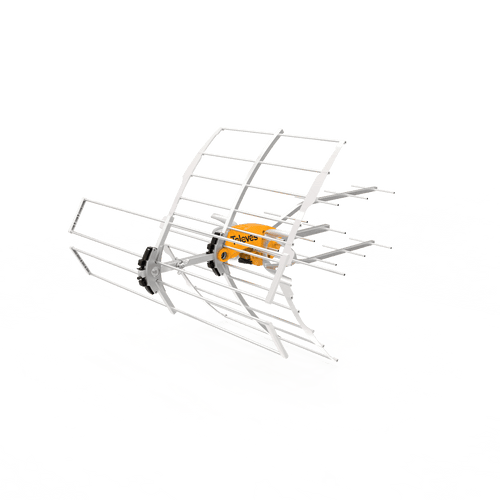

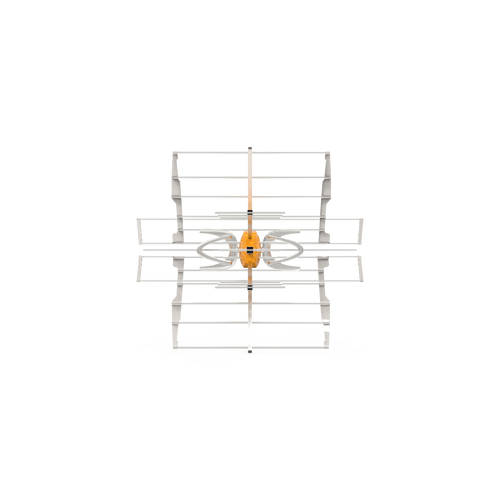

Televes 148883: Advanced High-VHF/UHF Antenna with TForce Technology

The Televes 148883 Ellipse Mix antenna is a top-tier solution for over-the-air High-VHF and UHF TV reception. Designed for the post-5G frequency spectrum, it features a built-in low-noise TForce amplifier with dynamic gain adjustment to optimize signal reception. This compact, eco-friendly design is ideal for outdoor and attic installations, delivering superior performance even in challenging conditions. Enhanced materials and triple boom technology ensure long-lasting and stable signal reception.

Top Features

Optimized for RF Channels 7–36: Receives High-VHF (174–216 MHz) and UHF (470–608 MHz) bands.
Built-in TForce Amplifier: Intelligent gain adjustment ensures stable and interference-free signal reception.
Directional Reception: Ideal for urban and rural settings with a range of up to 75 miles.
Durable and Weatherproof Design: Aluminum, stainless steel, and ABS plastic construction for long-term performance.
Plug-and-Play Installation: Includes UL-listed power supply and assembles in less than 60 seconds.

Category	Details
Product Name	Televes 148883
Location	Outdoor, Attic
Connector Type	F-Connector
Range	Up to 75 miles
Reception Pattern	Directional
Typical Reception Area	Urban Metro, Metro Suburban, Towns Rural
Automatic Gain Adjustment	Yes
Frequency Bands	High VHF (174–216 MHz), UHF (470–608 MHz)
Antenna Gain	High VHF: 36.5 dBi UHF: 40 dBi
Front-to-Back Ratio	High VHF: 12 dB UHF: 20 dB
Powering Options	Over coaxial cable (power supply included)
Power Requirements	12V DC
Compatible Mast Diameter	0.78" to 2" (with the included clamp)

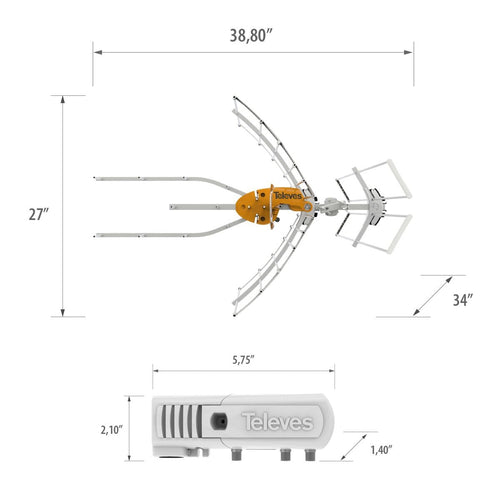

Product Dimensions	38.81" (W) x 27.00" (H) x 34.02" (D)
Product Weight	4.63 lbs

The Televes 148883 Ellipse Mix antenna combines cutting-edge technology, durable design, and smart amplification to provide crystal-clear TV signal reception. Its minimal assembly and high performance make it suitable for diverse installation scenarios.

===

In The Box

Ellipse Mix Antenna

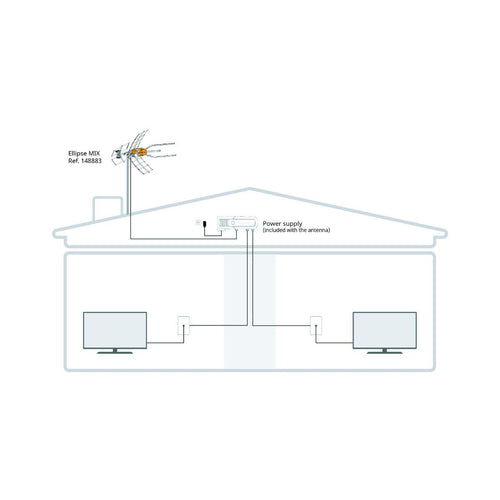

Power supply unit (2 outputs, F connectors. Indoor installation)
Mast clamp (mast not included)
Screw on F connector and weather boot cover
F connectors H-11 wrench
Mount data sheet

Info & Guides

User Manual	Download
Data Sheet	Download
Specification Sheet	Download

Help Videos

Unboxing, Assembly and Installation

Mounting the aerial will take you less than 60 seconds

Televes 148883 Ellipse Mix Amplified HDTV Antenna
