RAB Lighting - VX100DG Vaporproof VX 4" Ceiling Box Mount with Glass Globe and Cast Guard - 1/2" Hub

$ 33.99
Availability: Out Of Stock

Watt 150W
Light Source Incandescent
Lamp Type A19

SKU: VX100DG
Vaporproof
RAB
 Lighting,Outdoor Lighting,RAB Outdoor Lighting
Description

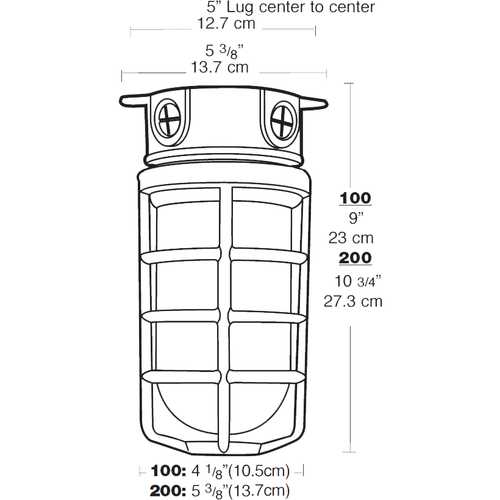

This RAB Lighting VX100DG Vaporproof ceiling box mount with glass globe and guard consists of a die cast aluminum junction box and guard and a heat-resistant glass globe. It measures 9 x 4-1/8 x 5 inches/23 x 10.5 x 12.7 cm (H x W x D), and is suitable for use with incandescent light bulbs up to 150W (not included).

This light fixture comes with all stainless steel hardware for resistance to corrosion, and its high-temperature silicone gaskets provide protection from weather. It is Underwriters Laboratories (UL) listed as suitable for use in wet locations and in dwellings, and it meets UL standard 1598 for non-hazardous locations where the lamp, socket, and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, and non-explosive vapors and gases. This ceiling box mount with glass globe and guard is suitable for a wide range of indoor or outdoor lighting applications.

Features:

  • All stainless steel hardware
  • Close-up plugs allow Phillips or slotted screwdrivers for easy installation
  • Junction box with sturdy mounting lugs
  • UL Listed for use with 90°C supply wiring OK for use in dwellings and wet locations
  • High temperature silicone internal gaskets
  • Premium porcelain socket with 150C 8" long leads



Technical Specifications

Listings

  • UL Listing:
    Suitable for wet locations. Suitable for use in dwellings. Suitable for use with 90°C supply wiring. Complies with UL Standard 1598. For non-hazardous locations where the lamp, socket and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors and gases.

Electrical

  • Wattage: 150 watts
  • Colored Globe Maximum Watts: 100 Watts
  • Input Voltage: 120V

Construction

  • Globes: Supplied with clear thermal shock resistant soda-lime glass unless otherwise stated. Colored and white glass globes available. Unbreakable Permaglobes available in clear and in color.
  • Die-Cast Guard: Supplied with one-piece die-cast guard with set screw.

Other

  • Country of Origin: Designed by RAB in New Jersey and assembled in Taiwan.
