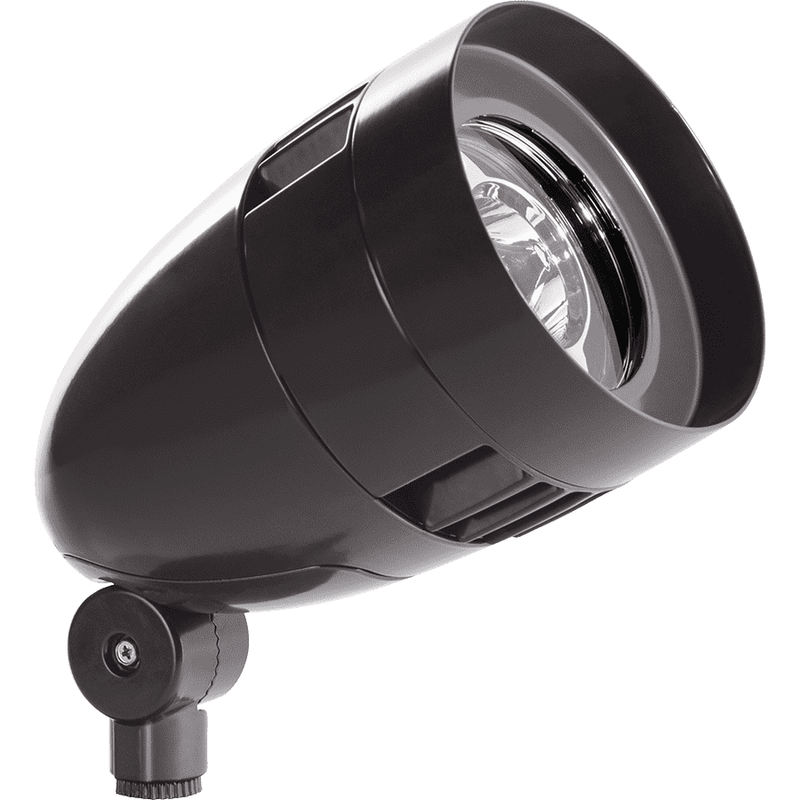

RAB Lighting HBLED26A Bullet Shape Cool LED Floodlight with Hood and Lens

$ 246.99
Availability: Out Of Stock

SKU: HBLED26A
Lighting
RAB
 Boost All,Lighting,Outdoor Lighting,RAB Outdoor Lighting
Description

This RAB Lighting HBLED26A bullet-style floodlight has a 26W LED lamp that produces 3367 lumens, accepts 120 / 208 / 240 / 277-volt input power, and auto-senses the voltage. The lamp has an adjustable vertical pivot and mounts to the electrical conduit with a 1/2" male threaded end at the base of the housing. The bronze color cast aluminum housing is lightweight and corrosion-resistant and has a hood to reduce glare. This LED floodlight is Underwriters Laboratories (UL) Listed for quality assurance and is suitable for use in outdoor or indoor worksite lighting, such as in construction.

Features:

  • 80% energy savings vs. PAR floods
  • Mount on a junction box or on RAB Mighty Post
  • Patent-pending "Air-Flow" technology
  • 5-Year, No-Compromise Warranty
Performance:
Watts 26W
Color Temp 5000K (Cool)
Lumens 3367
Efficacy 119.6 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 hours
Type Constant Current
120V 0.24A
208V 0.15A
240V 0.13A
277V 0.11A
Input Watts 28.16W

Listings:

UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & IESNA LM-80 Testing
 RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: P5EDHP8RB

LED Characteristics:

Lifespan
100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid-State Lighting (SSL) Products, ANSI C78.377-2017.

Construction:

Mounting
Heavy-duty mounting arm with "O" ring seal & stainless steel screws
Housing Precision die-cast aluminum housing
Gaskets
High-temperature Silicone
Finish Formulated for high durability and long-lasting color
Green Technology
 Mercury and UV free. RoHS-compliant components.
Cold Weather Starting
Minimum starting temperature is -40°C (-40°F)
Thermal Management
Superior heat sinking with external Air-Flow fins

Optical:

Reflectors
Semi-specular, vacuum-metalized polycarbonate

Electrical:

Driver
Constant Current, 700mA, 120-277V with 4kV surge protection, 120V: 0.24A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A, 50/60Hz, THD < 20%, Power Factor: 99%
THD 5.6% at 120V, 8.94% at 277V
