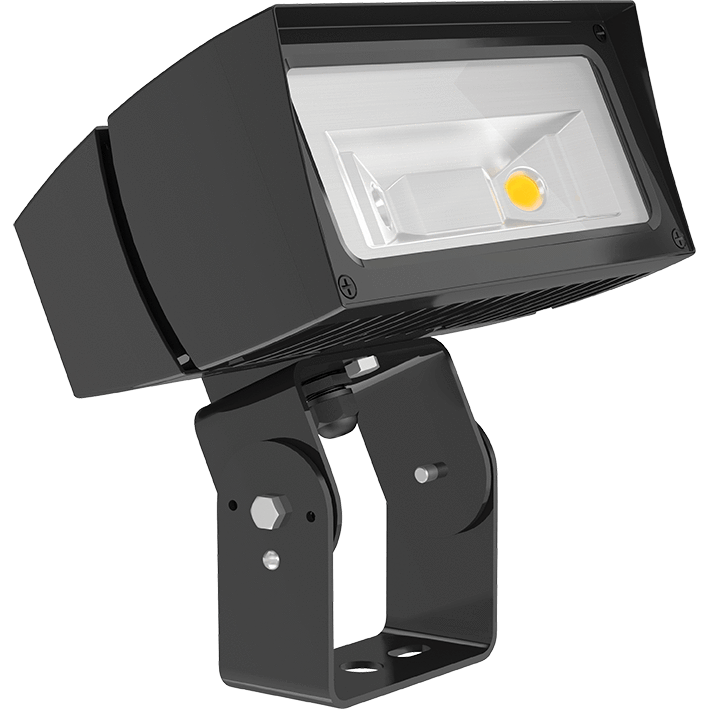

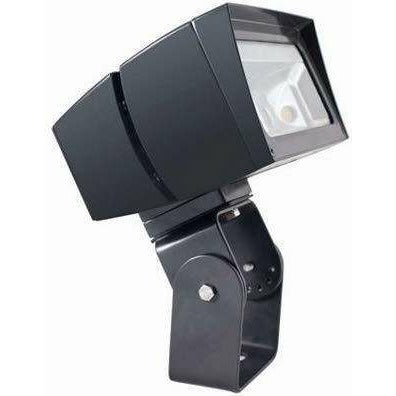

RAB Lighting FFLED39T Future Flood 39W Cool LED Trunnion, Bronze

$ 248.78
Availability: Out Of Stock

Add to wishlist
Add to compare
SKU: FFLED39T-v1
Floodlight
RAB
 Floodlights,Outdoor Lighting,RAB Outdoor Lighting
Description

The RAB Lighting FFLED39T LED flood light provides great lighting to any surface. This LED floodlight offers 5666 lumens at a 5000K color temperature while using a low wattage of 39 Watts. FFLED39T floodlight has an IP rating of IP66 making it ideal to mount near wet and damp locations. This floodlight offers a long low maintenance life of 100,000 hours.

Features:

  • Ultra-efficient LED and optical design
  • Replaces 150W MH floodlights
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • "Air-Flow" technology heatsink
  • 5-Year, No-Compromise Warranty
  • Efficacy rating 136 LM/W
  • Ingress protection IP66
  • Trunnion mounting



Technical Specifications:

Performance:

Watts

39W

Color Temp

5000K (Cool)

Lumens

5,753

Efficacy

141.7 lm/W

Color Accuracy

75 CRI

L70 Lifespan

100,000 hours

Type

Constant Current

120V

0.35A

208V

0.23A

240V

0.20A

277V

0.16A

Input Watts

40.60W

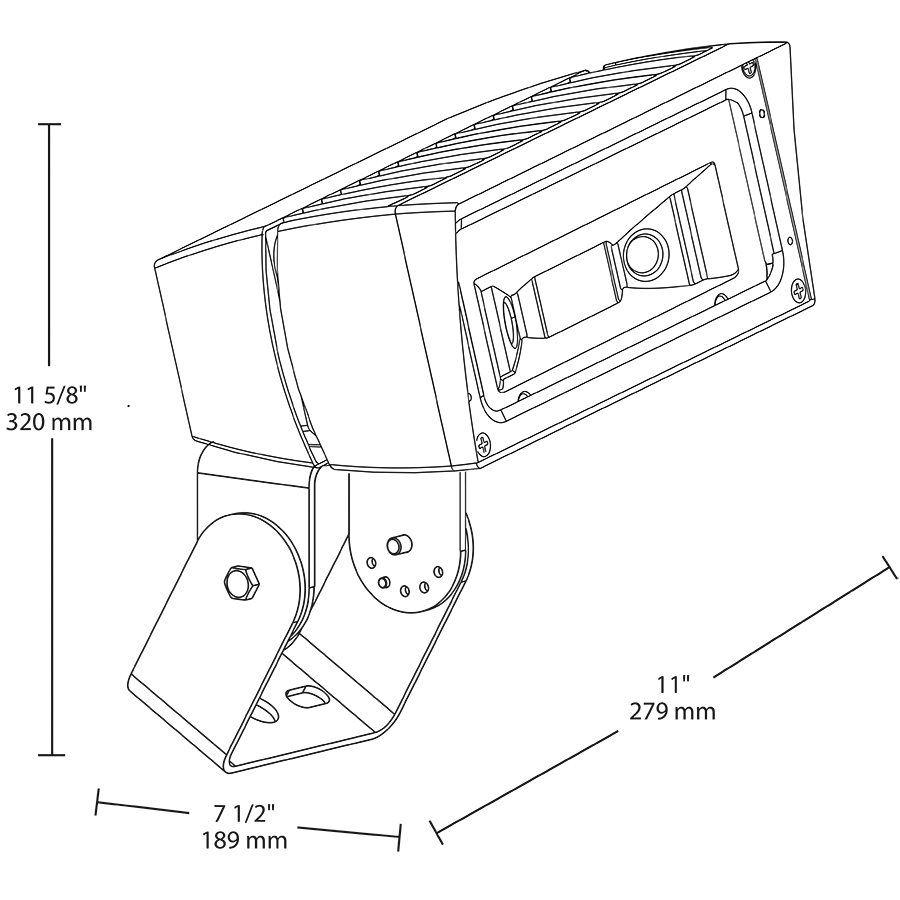

Dimensions & Measurements

  • Product Length (in.) 7.5
  • Product Width (in.) 11
  • Product Height (in.) 11.5
  • Overall Weight (lbs.) 14.2

 Listings:

 UL Listed

Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.

Electrical:

Driver

Constant Current, Class 2, 120-277V, 50-60Hz, 120V: 0.35A, 208V: 0.23A, 240V: 0.13A, 277V: 0.11A

THD

 10.18% at 120V, 18.18% at 277V

Power Factor

99% at 120V, 91.4% at 277V

Note

All values are typical (tolerance +/- 10%)

LED Characteristics:

Lifespan

100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations

LEDs

Long-life, high-efficacy surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period

Color Uniformity

RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Construction:

Lens

Soda-lime silica clear glass

Housing

Die-cast aluminum housing, lens frame and mounting arm

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

IP Rating

Ingress Protection rating of IP66 for dust and water

Maximum Ambient Temperature

Suitable for use in 40°C (104°F)

Cold Weather Starting

Minimum starting temperature is -40°C (-40°F)

Effective Projected Area

EPA = 0.65

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color
