Always looking for the remote controller to open the gate? Or do you often wonder if you closed the garage doors, after leaving home? With Qubino Flush 1D Relay you can wirelessly control your garage door, gate, or entrance door of different power supply (110-240 VAC or 24 VDC). Use it to manage your gas water heater or as an intermediary that sends a PV signal to your heat pump, so it starts using photovoltaics energy and heating water to a higher temperature.

WHAT DOES IT DO? Install it behind your push-button garage opener switch, or at the low-voltage installation for your fireplace, or any dry contact circuit to get on/off Z-Wave control and status updates to your smart home hub.
WHAT ELSE DO I NEED? Check for NEUTRAL wire in the switch box (VERY IMPORTANT) if the connection to 120VAC. If powering the relay by 24 VDC, you'll need a separate power supply. You'll need a compatible Z-Wave hub to use this device (scroll down for details), like SmartThings, Vera, or Home Center Lite. Does NOT work with Wink or alarm panels. Alexa is NOT a Z-Wave hub.
DIVERSE INSTALLATION: It's so small, it will easily fit in any location and can be paired with a momentary or on/off wall switch for convenient local control. The relay adds to your system through auto-inclusion making the set-up quick and easy!
EXTRA FEATURES: Advanced configuration is available for expert users with open Z-Wave systems (parameter setting input required). THIS RELAY IS NOT SUPPORTED BY WINK, PIPER, OR ALARM PANELS (ADT Pulse, Vivint, Honeywell, Simon XT, and others).

SPECIFICATIONS:

Model Number: ZMNHND3
Z-Wave Signal Frequency: 908.42 MHz
Power: 120 VAC / 24 VDC
Maximum Load for 110VAC: 2300 W / 10A
Maximum Load for 24VDC: 240 W / 10A
Power Consumption: 0.4 W
Z-Wave Range: Up to 130 feet line of sight
Operating Temperature: 14-104° F
Installation and Use: Indoor only
Dimensions: 1.6" x 1.4" x 0.6"
Weight: 1 oz

COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below. Contact Seller first.

Domoticz
Fibaro Home Center Lite
Home Assistant
HomeSeer
Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
VeraEdge
VeraPlus
VeraSec

Technical specifications

Power supply	110 - 240 VAC ±10% 50/60Hz, (24-30 VDC)
Rated load current of AC output (resistive load)*	1 X 10A / 240 VAC
Rated load current of DC output (resistive load)	1 X 10A / 30 VDC
Output circuit power of AC output (resistive load)	2300 W (230 VAC)
Output circuit power of DC output (resistive load)	240 W (24 VDC)
Digital temperature sensor range (sensor must be ordered separately)	-25°C~+80°C (-13~ 176°F), resolution 0.1°C
Operation temperature	-10° ~ +40°C (14 ~ 104°F)
Distance	up to 30 m indoors (98 ft) (depending on building materials)
Dimensions (WxHxD)	41.8 x 36.8 x 15.4 mm / 1,65x1,45x0,66 in
(packaging)	74 x 43 x 86 mm / 2,91x1,69x3,39 in
Weight (including packaging)	28 g (54 g) / 0.99oz (1.90oz)
Electricity consumption	0.4 W
For installation in boxes	Ø ≥ 60 mm (2,36 in) or 2M, depth≥ 60 mm (2,36 in)
Switching	Relay

* In the case of loads other than resistive, pay attention to the value of cosφ and if necessary use a load lower than the rated load. Max current for cosφ = 0.4 is 3 A at 250 VAC, 3 A at 24 VDC L/R = 7 ms.

Supported Z-Wave Frequencies

ORDERING CODE (MODEL NUMBER)	Z-WAVE FREQUENCY
ZMNHND1	868.4 MHz
ZMNHND2	921.4 MHz
ZMNHND3	908.4 MHz
ZMNHND4	869,0 MHz
ZMNHND5	916,0 MHz
ZMNHND6	868,4 MHz
ZMNHND7	919,8 MHz
ZMNHND8	865,2 MHz
ZMNHND9	922,5 MHz
ZMNHNDA	919,7 – 921,7 – 923,7 MHz
ZMNHNDB	868,1 MHz
ZMNHNDC	868,1 MHz
ZMNHNDD	919,8 MHz
ZMNHNDE	920,9 MHz

===

In The Box:

1 x Universal 1D Flush
1 User Manual

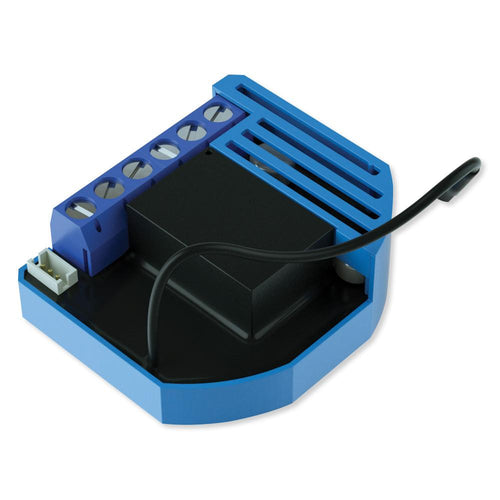

Qubino Z-Wave Plus Flush 1D Relay with Dry Contact Switch ZMNHND3
