Fancy having the sunlight gently shine on you to start the day? Ever dreamed about controlling your shades without having to get up to adjust the blinds? With the Quibino shutter motor controller, you can set the timer so your blinds roll up exactly when you want.

WHAT DOES IT DO? Install it behind your momentary (push-button) wall switch for Z-Wave wireless control of motorized shades, blinds, shutters, or sunscreens. Use it behind a simple on/off switch for basic open/close control and adjust positioning from your smart home app. It calibrates automatically!
WHAT ELSE DO I NEED? A 12-24 VDC powered motor to open and close the blinds (for 120 VAC motors go to model ZMNHCD3 - not sure what you have? We are here to help). Make sure your wall switch is NOT a dimmer. You'll need a compatible Z-Wave hub to use this device (scroll down for details), like SmartThings, Vera, or Home Center Lite. Does NOT work with Wink or alarm panels. Alexa is NOT a Z-Wave hub.
WHY AUTOMATE BLINDS? To keep the sun out when it's too hot and bring it in when most needed, depending on temperature, time of day, and your personal routine. Save on electrical bills and always wake up to the perfect light, without even thinking about it.
HOW IS IT BETTER? It's made in Italy from high-quality components for extra durability. It's equipped with a Z-Wave Plus range extender and built-in energy monitor. You can also get temperature reports from the location of the controller if you add the Qubino temperature sensor (sold separately, look for ZMNHEA1).

SPECIFICATIONS:

Model Number: ZMNHOD3
Z-Wave Signal Frequency: 908.42 MHz
Power: 120 VAC
Maximum Load: 2A
Power Consumption: 0.3 W
Z-Wave Range: Up to 130 feet line of sight
Operating Temperature: 14-104° F
Installation and Use: Indoor only
Dimensions: 1.6" x 1.4" x 0.6"
Weight: 1 oz

COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below. Contact Seller first.

Domoticz
Fibaro Home Center Lite
Home Assistant
HomeSeer
Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
VeraEdge
VeraPlus
VeraSec

Technical specifications

Power supply	12 - 24 VDC ±10%
Rated load current	2 A
Overcorrect protection	5 A
Output circuit power of DC output (resistive load)	48 W (24 VDC)
Power measurement accuracy	+/- 5%
Digital temperature sensor range (sensor must be ordered separately)	-25°C~+80°C (-13~ 176°F), resolution 0.1°C
Operation temperature	-10° ~ +40°C (14 ~ 104°F)
Distance	up to 30 m indoors (98 ft) (depending on building materials)
Dimensions (WxHxD)	41.8 x 36.8 x 15.4 mm / 1,65x1,45x0,66 in
(packaging)	74 x 43 x 86 mm / 2,91x1,69x3,39 in
Weight (including packaging)	21 g (47 g) / 0.74oz (1.66oz)
Electricity consumption	0,4W
For installation in boxes	Ø ≥ 60 mm (2,36 in) or 2M, depth≥ 60 mm (2,36 in)
Switching	H bridge
Z-Wave Repeater	Yes

Supported Z-Wave Frequencies

ORDERING CODE (MODELING NUMBER)	Z-WAVE FREQUENCY
ZMNHOD1	868.4 MHz
ZMNHOD2	921.4 MHz
ZMNHOD3	908.4 MHz
ZMNHOD4	869,0 MHz
ZMNHOD5	916,0 MHz
ZMNHOD6	868,4 MHz
ZMNHOD7	919,8 MHz
ZMNHOD8	865,2 MHz
ZMNHOD9	922,5 MHz
ZMNHODA	919,7 – 921,7 – 923,7 MHz
ZMNHODB	868,1 MHz
ZMNHODC	868,1 MHz
ZMNHODD	919,8 MHz
ZMNHODE	920,9 MHz

===

In The Box:

1 x Shutter DC Motor Controller
1 User Manual

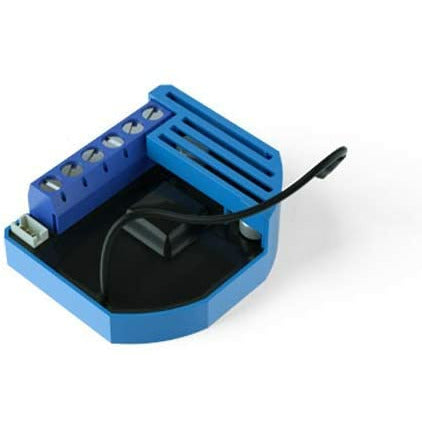

Qubino Z-Wave Plus Shutter Motor Controller ZMNHOD3 for Motorized Blinds and Shades, 12-24 VDC Motors Only
