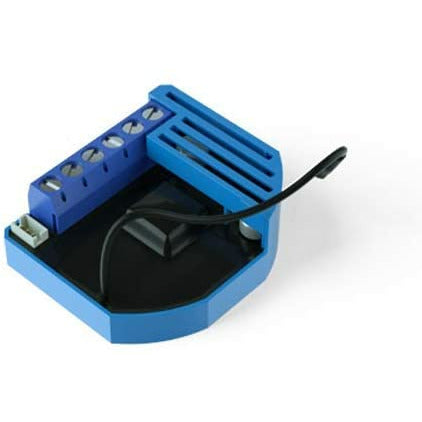

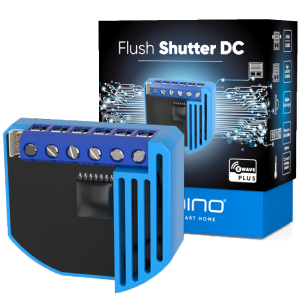

Qubino Z-Wave Plus Shutter Motor Controller ZMNHOD3 for Motorized Blinds and Shades, 12-24 VDC Motors Only

$ 54.95
Availability: Out Of Stock

SKU: ZMNHOD3
Smart Home Automation
Qubino
 Boost All,Qubino,Smart Home
Description

Fancy having the sunlight gently shine on you to start the day? Ever dreamed about controlling your shades without having to get up to adjust the blinds? With the Quibino shutter motor controller, you can set the timer so your blinds roll up exactly when you want.

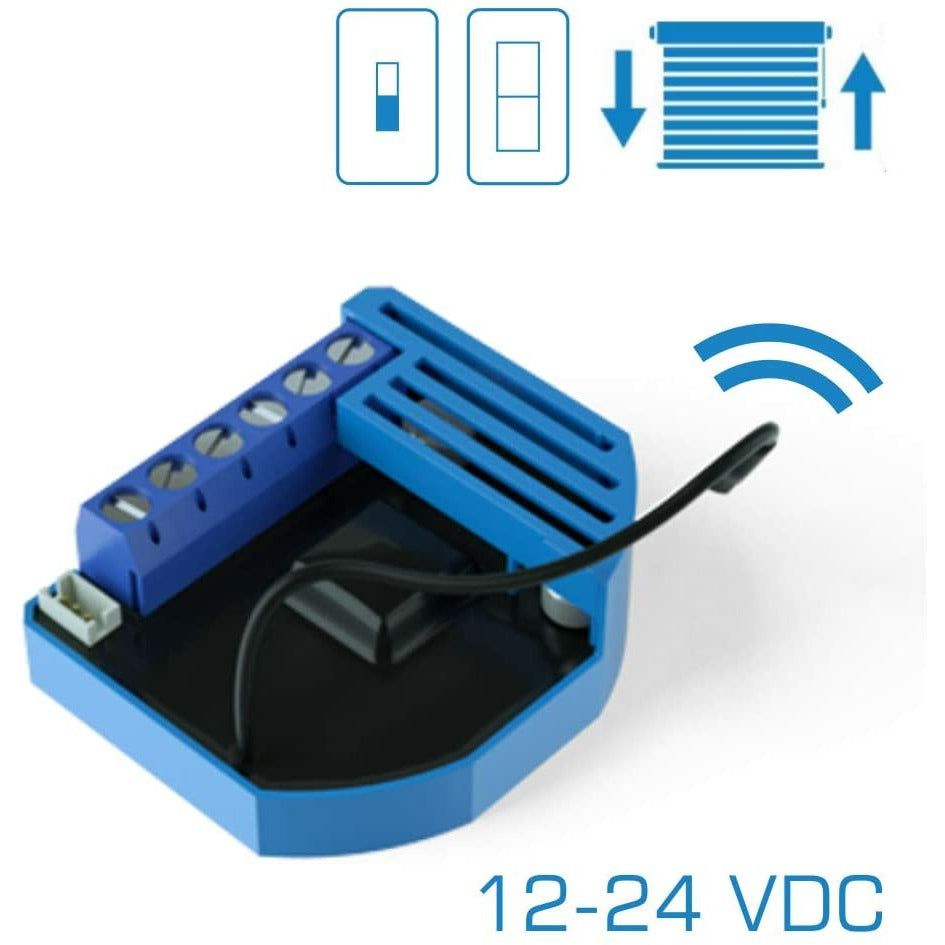

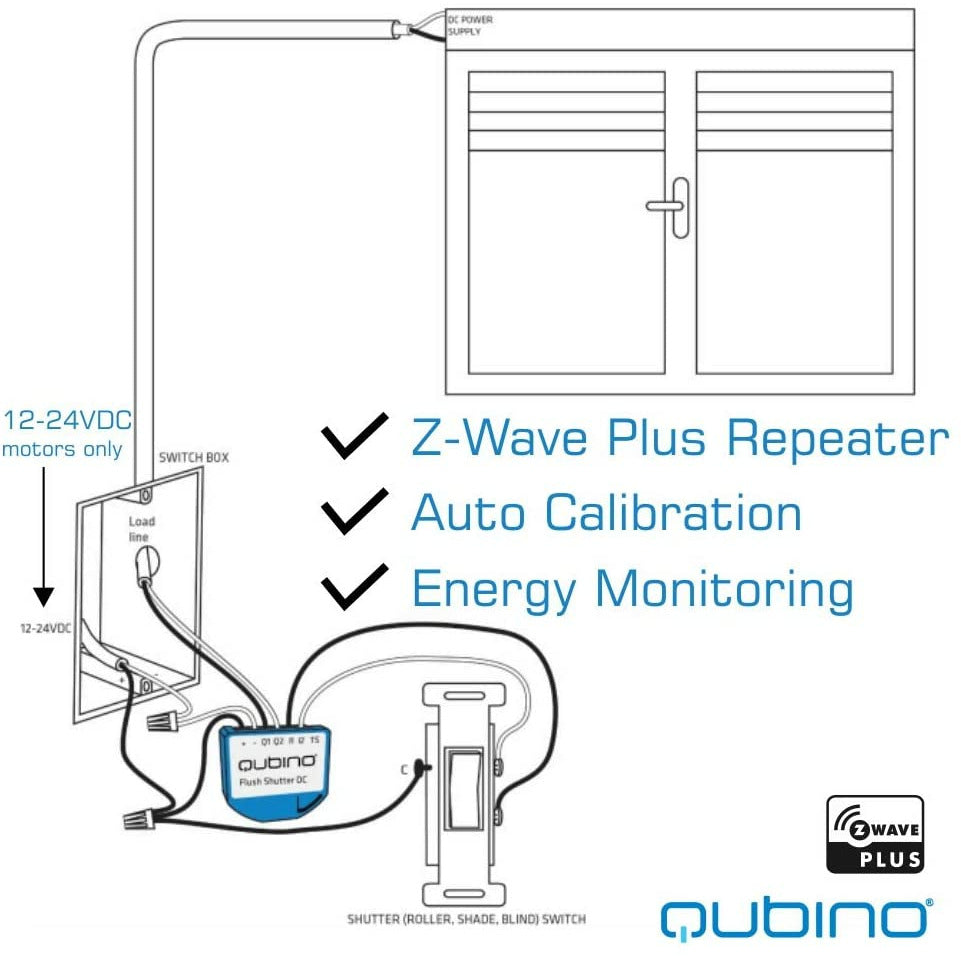

  • WHAT DOES IT DO? Install it behind your momentary (push-button) wall switch for Z-Wave wireless control of motorized shades, blinds, shutters, or sunscreens. Use it behind a simple on/off switch for basic open/close control and adjust positioning from your smart home app. It calibrates automatically!
  • WHAT ELSE DO I NEED? A 12-24 VDC powered motor to open and close the blinds (for 120 VAC motors go to model ZMNHCD3 - not sure what you have? We are here to help). Make sure your wall switch is NOT a dimmer. You'll need a compatible Z-Wave hub to use this device (scroll down for details), like SmartThings, Vera, or Home Center Lite. Does NOT work with Wink or alarm panels. Alexa is NOT a Z-Wave hub.
  • WHY AUTOMATE BLINDS? To keep the sun out when it's too hot and bring it in when most needed, depending on temperature, time of day, and your personal routine. Save on electrical bills and always wake up to the perfect light, without even thinking about it.
  • HOW IS IT BETTER? It's made in Italy from high-quality components for extra durability. It's equipped with a Z-Wave Plus range extender and built-in energy monitor. You can also get temperature reports from the location of the controller if you add the Qubino temperature sensor (sold separately, look for ZMNHEA1).



SPECIFICATIONS:
      • Model Number: ZMNHOD3
      • Z-Wave Signal Frequency: 908.42 MHz
      • Power: 120 VAC
      • Maximum Load: 2A
      • Power Consumption: 0.3 W
      • Z-Wave Range: Up to 130 feet line of sight
      • Operating Temperature: 14-104° F
      • Installation and Use: Indoor only

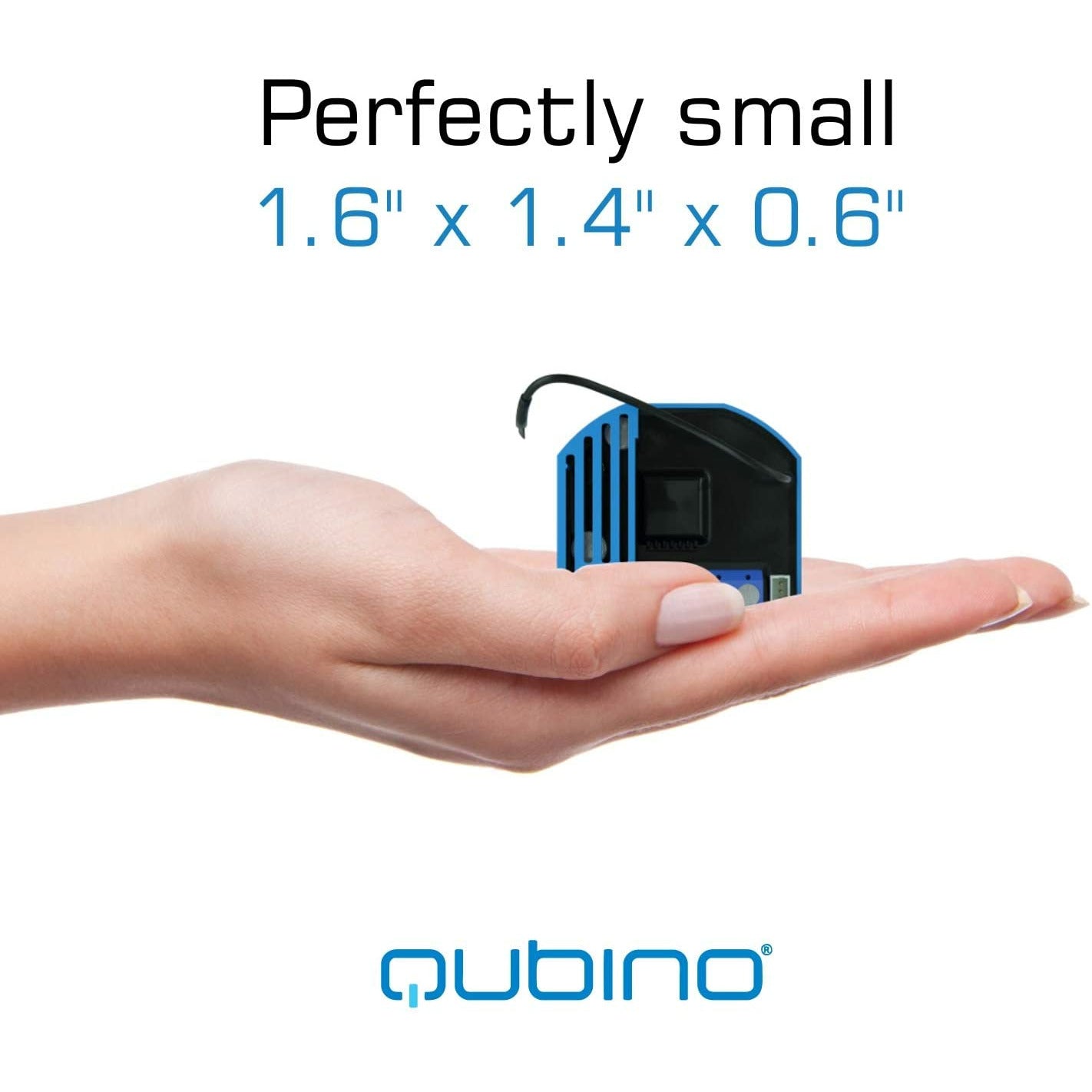

      • Dimensions: 1.6" x 1.4" x 0.6"
      • Weight: 1 oz


COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below. Contact Seller first.

    • Domoticz
    • Fibaro Home Center Lite
    • Home Assistant
    • HomeSeer
    • Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
    • VeraEdge
    • VeraPlus
    • VeraSec



    Technical specifications

    Power supply 12 - 24 VDC ±10%
    Rated load current 2 A
    Overcorrect protection 5 A
    Output circuit power of DC output (resistive load) 48 W (24 VDC)
    Power measurement accuracy +/- 5%
    Digital temperature sensor range
    (sensor must be ordered separately)
    -25°C~+80°C (-13~ 176°F), resolution 0.1°C
    Operation temperature -10° ~ +40°C (14 ~ 104°F)
    Distance up to 30 m indoors (98 ft)
    (depending on building materials)
    Dimensions (WxHxD) 41.8 x 36.8 x 15.4 mm / 1,65x1,45x0,66 in
    (packaging) 74 x 43 x 86 mm / 2,91x1,69x3,39 in
    Weight (including packaging) 21 g (47 g) / 0.74oz (1.66oz)
    Electricity consumption 0,4W
    For installation in boxes Ø ≥ 60 mm (2,36 in) or 2M,
    depth≥ 60 mm (2,36 in)
    Switching H bridge
    Z-Wave Repeater Yes

    Supported Z-Wave Frequencies

    ORDERING CODE (MODELING NUMBER) Z-WAVE FREQUENCY
    ZMNHOD1 868.4 MHz
    ZMNHOD2 921.4 MHz
    ZMNHOD3 908.4 MHz
    ZMNHOD4 869,0 MHz
    ZMNHOD5 916,0 MHz
    ZMNHOD6 868,4 MHz
    ZMNHOD7 919,8 MHz
    ZMNHOD8 865,2 MHz
    ZMNHOD9 922,5 MHz
    ZMNHODA 919,7 – 921,7 – 923,7 MHz
    ZMNHODB 868,1 MHz
    ZMNHODC 868,1 MHz
    ZMNHODD 919,8 MHz
    ZMNHODE 920,9 MHz
