Is the scorching summer sun heating up your home making it unbearable? Would you rather let the sun do most of the work during the cold winter season? With Qubino Flush Shutter close your shades when it gets too hot during the day. In winter, make sure they are open, so your home naturally gets warmer. Check and control your shades with a tap on your smartphone.

WHAT DOES IT DO? Install it behind your momentary (push-button) wall switch for Z-Wave wireless control of motorized shades, blinds, shutters, or sunscreens. Use it behind a simple on/off switch for basic open/close control and adjust positioning from your smart home app. It calibrates automatically!
WHAT ELSE DO I NEED? A 120 VAC powered motor (for 12-24 VDC motors go to model ZMNHOD3) to open and close the blinds. Check for NEUTRAL wire in the switch box (VERY IMPORTANT). Make sure your wall switch is NOT a dimmer. You'll need a compatible Z-Wave hub to use this device (scroll down for details), like SmartThings, Vera, or Home Center Lite. Does NOT work with Wink or alarm panels. Alexa is NOT a Z-Wave hub.
WHY AUTOMATE BLINDS? To keep the sun out when it's too hot and bring it in when it's needed, depending on temperature, time of day, and your personal routine. Save on your electrical bill and always wake up to the perfect light, without thinking about it.
HOW IS IT BETTER? It's made in Italy from high-quality components for extra durability. It's equipped with a Z-Wave Plus range extender and built-in energy monitor. You can also get temperature reports from the location of the controller if you add the Qubino temperature sensor (sold separately, look for ZMNHEA1).

SPECIFICATIONS:

Model Number: ZMNHCD3
Z-Wave Signal Frequency: 908.42 MHz
Power: 120 VAC
Maximum Load: 2 x 4A
Power Consumption: 0.4 W
Z-Wave Range: Up to 130 feet line of sight
Operating Temperature: 14-104° F
Installation and Use: Indoor only
Dimensions: 1.6" x 1.4" x 0.6"
Weight: 1 oz

COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below.

Domoticz
Fibaro Home Center Lite
Home Assistant
HomeSeer
Samsung SmartThings Hub with custom device handler - Contact Seller for Instructions
VeraEdge
VeraPlus
VeraSecure

Technical specifications

Power supply	110 - 240 VAC ±10% 50 / 60 Hz, (24–30 VDC)
Rated load current of AC output (resistive load)*	2 X 4 A / 240 VAC
Output circuit power of AC output (resistive load)	2 X 920 W (240 VAC)
Power measurement accuracy	P = 0-200 W, +/- 2 W P > 200 W, +/-3%
Digital temperature sensor range (sensor must be ordered separately)	-25°C~+80°C (-13~ 176°F), resolution 0.1°C
Operation temperature	-10° ~ +40°C (14 ~ 104°F)
Distance	up to 30 m indoors (98 ft) (depending on building materials)
Dimensions (WxHxD)	41.8 x 36.8 x 16.9 mm / 1,65x1,45x0,66 in
(packaging)	74 x 43 x 86 mm / 2,91x1,69x3,39 in
Weight (including packaging)	28 g (54 g) / 0.98oz (1.90oz)
Electricity consumption	0.4 W
For installation in boxes	Ø ≥ 60 mm (2,36 in) or 2M depth≥ 60 mm (2,36 in)
Switching	Relay (2x)

* In case of loads other than resistive loads, please pay attention to the value of cos φ. If necessary, connect loads less powerful than what they’re rated for – this applies to all motor loads. Max current for cos φ=0,4 is 2A at 250VAC, 3A at 24VDC.

Supported Z-Wave Frequencies

ORDERING CODE (MODEL NUMBER)	Z-WAVE FREQUENCY
ZMNHCD1	868.4 MHz
ZMNHCD2	921.4 MHz
ZMNHCD3	908.4 MHz
ZMNHCD4	869,0 MHz
ZMNHCD5	916,0 MHz
ZMNHCD6	868,4 MHz
ZMNHCD7	919,8 MHz
ZMNHCD8	865,2 MHz
ZMNHCD9	922,5 MHz
ZMNHCDA	919,7 – 921,7 – 923,7 MHz
ZMNHCDB	868,1 MHz
ZMNHCDC	868,1 MHz
ZMNHCDD	919,8 MHz
ZMNHCDE	920,9 MHz

===

In The Box:

1 x Flush Shutter
1 x Instruction Manual

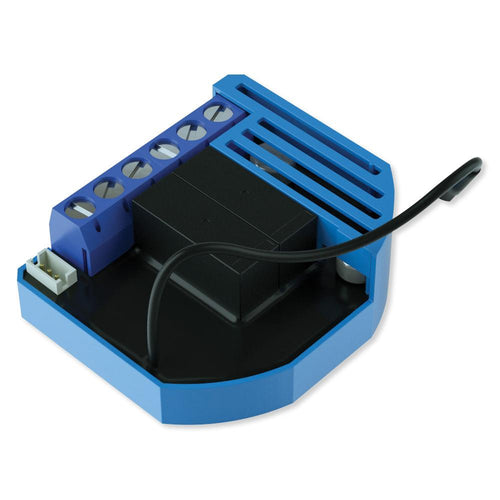

Qubino Z-Wave Plus Flush Shutter Motor Controller for Motorized Blinds and Shades ZMNHCD3
