Want to control two lights at the same time? Do you have more than one light in one room? With Qubino smart home solutions you can check if your lights are on or off and control them using your smartphone.

2-IN-1: Control 2 different loads (set of lights) individually via Z-Wave (compatible controller required, sold separately).
SAVE SPACE: This module will fit in the most crowded switch box. It's the best choice for double and triple gang boxes.
SAVE MONEY: Use just one Qubino module to automate 2 different light switches. It installs behind your existing wall switches so you can keep your favorite style and spend less on equipment. Works great with LED's!
BONUS FEATURES: Reports status instantly and monitors energy use for each load. Features a built-in timer so you can set your lights and devices to turns off automatically even if your Internet is down.
MAKES THINGS EASIER: Auto-inclusion for quick and convenient installation. Restores on/off status after power failure. Works well with any type of mechanical wall switch (toggle and decora style, will NOT work with dimmers and electronic switches). NEUTRAL WIRE REQUIRED.

SPECIFICATIONS:

Model Number: ZMNHBD3
Z-Wave Signal Frequency: 908.42 MHz
Power: 110-240V / 12-24 VDC
Maximum (Resistive) Load for 110VAC: 2 x 920W / 4A
Maximum (Resistive) Load for 24VDC: 2 x 96W / 4A
Power Consumption: 0.4 W
Z-Wave Range: Up to 130 feet line of sight
Operating Temperature: 14-104° F (0-40° C)
Installation and Use: Indoor only
Dimensions: 1.6" x 1.4" x 0.6"
Weight: 1 oz

COMPATIBLE HUBS:

Do NOT buy if your controller is not listed below.

Fibaro Home Center Lite
HomeSeer
Samsung SmartThings Hub with custom device handler - Contact Qubino for Instructions
VeraEdge
VeraPlus
Z-Wave Me
Zipato ZipaTile

Technical specifications

Power supply	110 - 240 VAC ±10% 50 / 60 Hz, (24–30 VDC)
Rated load current of AC output (resistive load)*	2 X 4 A / 240 VAC
Rated load current of DC output (resistive load)	2 X 4 A / 30 VDC
Output circuit power of AC output (resistive load)	2 X 920 W (240 VAC)
Output circuit power of DC output (resistive load)	2 X 96 W (24 VDC)
Power measurement accuracy	P = 0-200 W, +/- 2 W P > 200 W, +/-3%
Digital temperature sensor range (sensor must be ordered separately)	-25°C~+80°C (-13~ 176°F), resolution 0.1°C
Operation temperature	-10° ~ +40°C (14 ~ 104°F)
Distance	up to 30 m indoors (98 ft) (depending on building materials)
Dimensions (WxHxD)	41.8 x 36.8 x 16.9 mm / 1,65x1,45x0,66 in
(packaging)	74 x 43 x 86 mm / 2,91x1,69x3,39 in
Weight (including packaging)	28 g (54 g) / 0.99oz (1.90oz)
Electricity consumption	0.4 W
For installation in boxes	Ø ≥ 60 mm (2,36 in) or 2 M, depth ≥ 60 mm (2,36 in)
Switching	Relay (2x)

* In case of loads other than resistive loads, please pay attention to the value of cos φ. If necessary, connect loads less powerful than what they’re rated for – this applies to all motor loads. Max current for cos φ=0,4 is 2A at 250VAC, 3A at 24VDC.

Supported Z-Wave Frequencies

ORDERING CODE (MODELING NUMBER)	Z-WAVE FREQUENCY
ZMNHBD1	868.4 MHz
ZMNHBD2	921.4 MHz
ZMNHBD3	908.4 MHz
ZMNHBD4	869,0 MHz
ZMNHBD5	916,0 MHz
ZMNHBD6	868,4 MHz
ZMNHBD7	919,8 MHz
ZMNHBD8	865,2 MHz
ZMNHBD9	922,5 MHz
ZMNHBDA	919,7 – 921,7 – 923,7 MHz
ZMNHBDB	868,1 MHz
ZMNHBDC	868,1 MHz
ZMNHBDD	919,8 MHz
ZMNHBDE	920,9 MHz

===

In The Box:

1 x Flush 2 Relay
1 User Manual

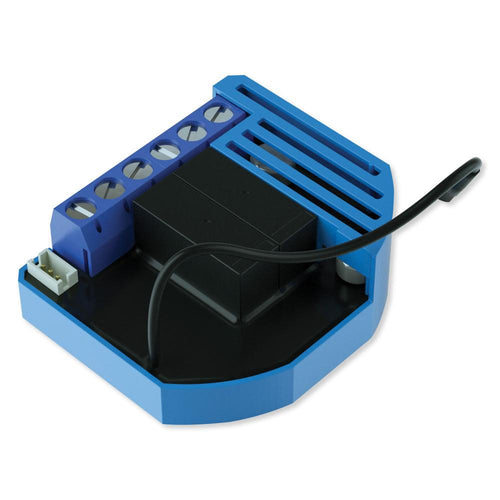

Qubino Z-Wave Flush 2 Relays - ZMNHBD3
