Product Description

WhisperValue DC Bathroom Fan with Customizable Ventilation

The Panasonic FV-0510VS1 is part of the WhisperValue DC series, designed for efficient, quiet, and flexible ventilation in both residential and light commercial settings. It features customizable airflow performance (50, 80, or 100 CFM) to suit various room sizes and uses. With a powerful yet energy-efficient DC motor, ENERGY STAR® certification, and ultra-quiet operation as low as <0.3 sones, this fan ensures optimal performance and comfort. Its sleek grille and versatile ceiling, wall, or tub/shower mounting options make it an excellent choice for any space.

Top Features

Customizable Airflow: WhisperValue DC technology offers three CFM options: 50, 80, and 100.
Quiet Operation: Operates as quietly as <0.3 sones at 50 CFM, ensuring a peaceful environment.
Energy Efficiency: ENERGY STAR® certified with impressive CFM/Watt ratings for energy savings.
Versatile Installation: Can be ceiling-mounted, wall-mounted, or installed in wet areas with GFCI.
Reliable Build: DC motor technology ensures long-lasting performance with minimal energy use.

Category	Specification
Performance and Features
Fan Type	Bathroom Exhaust Fan
Air Volume Exhaust (CFM)	50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
Noise (Sones)	50 CFM = <0.3 \| 80 CFM = <0.4 \| 100 CFM = 0.9
Power Consumption (Watts)	50 CFM = 4.4W \| 80 CFM = 7.2W \| 100 CFM = 11.1W
Energy Efficiency (CFM/Watt)	50 CFM = 12.8 \| 80 CFM = 11.4 \| 100 CFM = 9.2
Motor Type	DC Motor
Power Rating	120V, 60Hz
Current (Amps)	50 CFM = 0.09A \| 80 CFM = 0.13A \| 100 CFM = 0.20A
Certifications and Standards
ENERGY STAR® Certified	Yes
Compliant Codes and Standards	ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
UL Listed (when GFCI protected)	Yes (for tub/shower enclosure)
Mounting and Installation
Installation Options	Ceiling Mount, Wall Mount, Tub/Shower Mount (UL listed)
Mounting Opening (in sq.)	10.5 inches
Grille Size (in sq.)	13 inches
Duct Diameter	4” Oval
Radiation Damper Available	Yes
Applications and Industry
Construction Type	Single Family/Manufactured Housing, Multi-Family, Hospitality, Assisted Living, Student Housing, Remodeling
Industry	Residential, Light Commercial
Dimensions and Weight
Master Carton Dimensions (HxWxD)	6.89 x 14.25 x 16.73 inches
Master Carton Gross Weight	8.82 lbs
Warranty
Motor Warranty	6 years (DC motor)
Parts Warranty	3 years

===

Instalation instructions	Download
Service Manual	Download

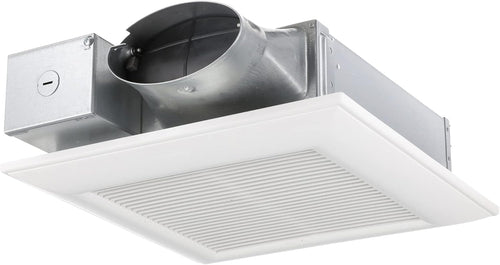

Panasonic WhisperValue DC Bathroom Fan – 50-100 CFM, Pick-A-Flow Technology (FV-0510VS1)
