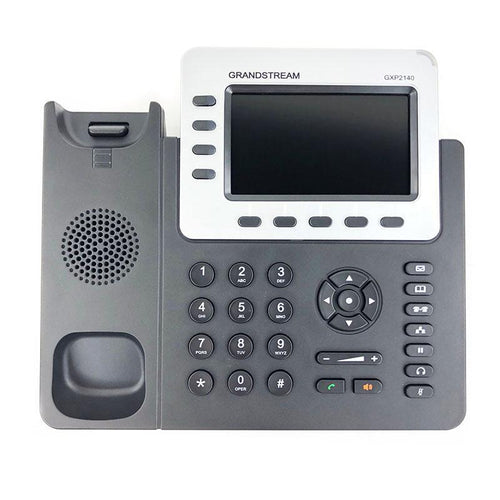

Grandstream Enterprise IP Phone GXP2140

$ 82.99
Availability: In Stock
The GXP2140 is a Linux-based device with 4 lines, Gigabit ports to guarantee the fastest possible connection speeds, 5 XML programmable soft keys for customization and 5-way voice conferencing to...
Description

The GXP2140 is a Linux-based device with 4 lines, Gigabit ports to guarantee the fastest possible connection speeds, 5 XML programmable soft keys for customization and 5-way voice conferencing to keep business users in-touch. By being compatible with Grandstream’s GXP2200EXT extension module, the GXP2140 can offer users up to 160 speed-dial/BLF keys by combining up to 4 GXP2200EXTs to easily monitor presence and status of other extensions and transfer calls. HD audio and a 4.3" color LCD screen create high-quality calls and built-in Bluetooth support allows for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices. This Enterprise IP phone also features Electronic Hook Switch support for Plantronics headsets and a built-in USB port. The GXP2140 is perfect for Enterprise & SMB customers with the need for quality and versatility in their desktop communications.(Power Supply Not included)

  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys
  • 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL
  • RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
  • Support for G.729A/B, G.711/a-law, G.726, G.722 (wide-band), and iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

 Specs:


Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,
802.1x, TLS, SRTP, IPv6
Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphics Display 4.3 inch (480x272) TFT color LCD
Bluetooth  Yes, Bluetooth V2.1
Feature Keys 4 line keys with up to 4 SIP accounts, 5 programmable context-sensitive soft keys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codecs Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC
Auxiliary Ports  RJ9 headset jack (allowing EHS with Plantronics headsets), USB, the extension module port
Telephony Features Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications  Weather, currency, news, XML
HD Audio  Yes, both on handset and speakerphone
Extension Module Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than
1.2W power consumption per unit.
Base Stand/Wall Mountable Yes, allow 2 angle positions
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning  Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

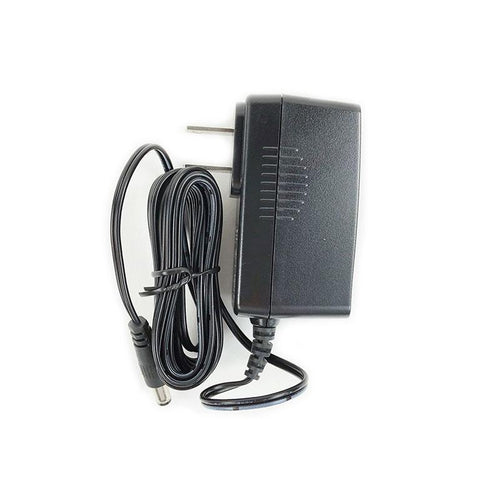

Power & Green Energy Efficiency Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs )
Physical Dimensions: 228mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package weight: 1.55kg
Temperature and Humidity 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
Compliance FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479 AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
