Audio-Technica Consumer Direct Drive Professional DJ Turntable with USB Output Direct AT-LP120BK-USB Black

$ 299.00
Availability: Out Of Stock

Discontinued: Replaced by AT-LP120XUSB-BK

Type Fully automatic
Platter Aluminum diecast
Speeds Supported 33.3rpm, 45rpm, 78 RPM
Power Consumption Operational 11 Watt
Voltage Required AC 120 V (60 Hz)
Connectivity 1 x audio line-out (RCA x 2) - rear
Features Built-in RIAA equalizer

 Audio Headphones & Speakers,Audio Technica,Home Entertainment
Braeburn Digital Thermostat
Programmable wi fi thermostat
Affordable wifi thermostat

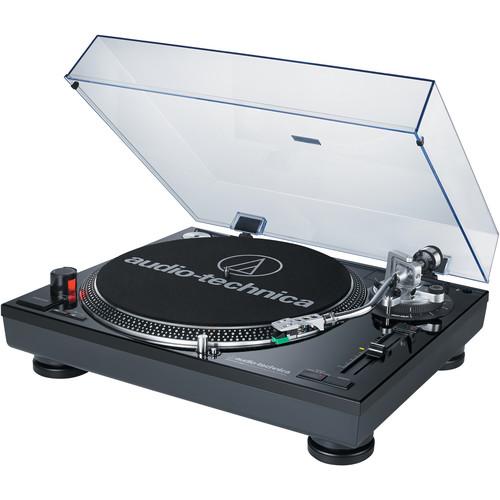

The Audio-Technica AT-LP120-USB Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP120USB features a rugged cast aluminum construction with line and phono audio outputs. A USB output will interface with Mac or Windows computers and give DJs the ability to digitize their vinyl collections. Audacity recording software is also included for Mac and Windows. Additional features include 33 1/3, 45 and 78 rpm speeds, +/- 20% and 10% quartz pitch control, and reverse mode.

  • USB output—connects directly to your computer for plug-&-play use
  • Mac and PC compatible Audacity software digitizes your LPs
  • Direct drive high-torque motor
  • Selectable 33/45/78 rpm speeds
  • Professional cast aluminum platter with slip mat
  • Integral Dual Magnet phono cartridge with replaceable stylus
  • Balanced tone arm with soft damping control
  • Built-in switchable phono pre-amplifier with RCA output cables

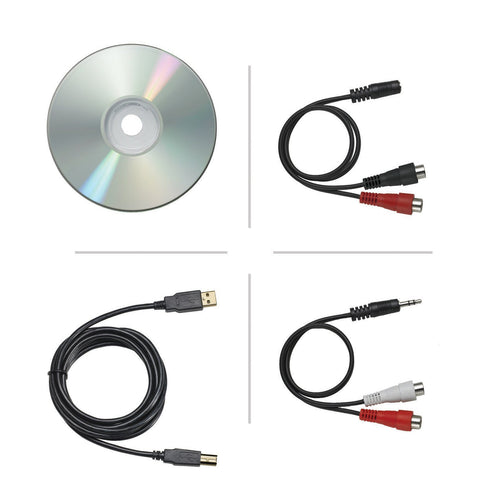

  • Included cables connect to your stereo or powered speakers
  • Stroboscopic platter speed indicator
  • Forward and reverse play
  • Convert your vinyl records to digital audio files
  • Mac- and PC-compatible Audacity software digitizes your records
  • Fully manual operation
  • Professional anti-resonance, die-cast aluminum platter with slip mat
  • ½” mount universal headshell with AT95E Dual Magnet™ phono cartridge and long-life diamond stylus
  • Balanced S-shaped tone arm with hydraulically damped lift control and lockable rest
  • Stroboscopic platter with speed indicator

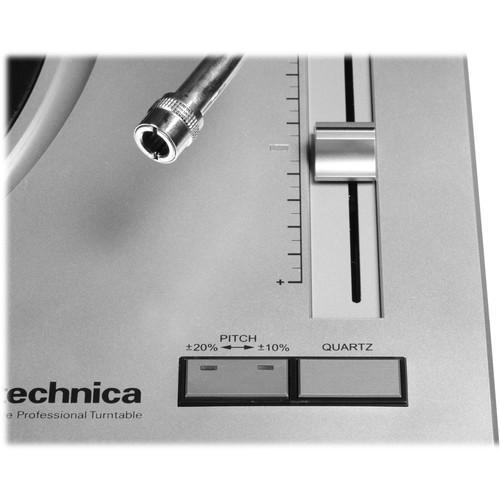

  • Forward/reverse operation and variable pitch control with quartz speed lock
  • Popup stylus target light for easier cueing in low light


Cartridge Specifications
Frequency Response 20 Hz to 20 kHz
Channel Separation > 20 dB at 1 kHz
Tracking Force Vertical Tracking Force: 1.5 to 2.5 g
Stylus Stylus Construction: Bonded round shank
Stylus Shape: 0.02 x 0.03" / 0.40 x 0.70 mm elliptical
Stylus Cantilever: Aluminum
Output 3.5 mV at 1 kHz, 5 cm/sec
Channel Balance 2.0 dB
Mount 0.5" / 12.7 mm
Replacement Stylus ATN95E
Type 3-speed, fully manual

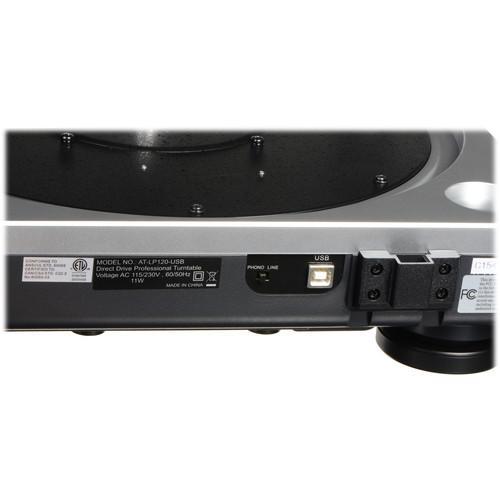

Output Connectors Phono RCA
Line RCA
Motor Direct Drive DC Motor
Speeds 33-1/3, 45, 78 rpm
Brake Electronic Brake
Pitch Control Range +/-10% or +/-20%
Wow and Flutter < 0.2% WRMS (33 rpm)
Signal-to-Noise Ratio > 50 dB
Turntable Platter Die-cast aluminum
Torque Starting Torque: > 1.6
Output Level Phono Pre-Amp: 2.5 mV nominal at 1 kHz, 5 cm/sec
Line Pre-Amp: 150 mV nominal at 1 kHz, 5 cm/sec
Gain Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Functions A/D, D/A: 16-bit, 44.1 kHz or 48 kHz USB selectable
Computer Interface: USB 1.1 Compliant Windows XP, Vista or MAC OSX
Power Power supply Requirements: 115/230 VAC, 60/50 Hz
Power Consumption: 11 W
Dimensions (WxDxH) 17.72 x 13.86 x 6.10" (450 x 352 x 157 mm)
Weight 23.5 lb (10.7 kg)
