[shortdesc]

Programming Temperatures	32 to 140°F
Maximum Fans Controlled	2
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

[/shortdesc]

PRODUCT DESCRIPTION

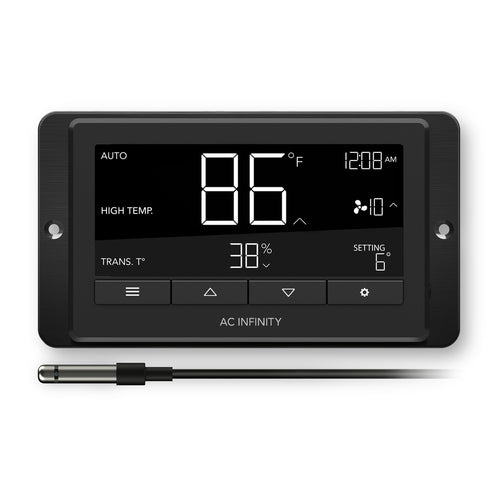

A digital controller designed to enhance your AC Infinity fan with smart controls to maintain a stable climate. This intelligent command unit features a black powder-coated body and a backlit LCD screen that presents a sleek aesthetic. The display has three brightness levels, as well as two auto brightness settings, and reads temperatures in Fahrenheit or Celsius. It includes a 12-foot sensor probe with a waterproof thermalloy head that accurately detects current temperature and humidity conditions. The controller’s 4-pin Molex fan ports can simultaneously power two fans to share the same fan speed and programming. Functions include automated triggers, timers, on/off cycling, and scheduling.

INTELLIGENT PROGRAMMING

The smart auto modes trigger your fan to activate in response to climate changes. Its fan speed can dynamically adjust itself to current temperature or humidity levels, producing optimal amounts of airflow. The fan speed can also operate in an optional minimum setting to maintain cooling and ventilation. Timer, on/off cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity App via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data.

COMPATIBILITY

The built-in Molex ports allow you to pair two fans together to share the same programming and achieve more airflow. This intelligent controller is compatible with the following fans with EC motors:

CLOUDLINE Series of Inline Duct Fans
AIRLIFT Series of Shutter Exhaust Fans
CLOUDRAY Series of Whole House Fans

Features:

A digital controller designed to equip AC Infinity fans with smart controls for HVAC or growing applications.
Dynamically adjusts fan speed based on temperature and humidity conditions to produce optimal airflow.
Programming includes automated triggers, timers, cycles, scheduling, minimum speed, and custom transitions.
Connect with the AC Infinity app via Bluetooth to unlock advanced programs, set notifications, and view climate data.
Features a powder-coated black body with a digital LCD display and a corded thermalloy sensor probe.
Supports up to two CLOUDLINE, AIRLIFT, or CLOUDRAY fans with EC motors to share the same programming.

===

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	CONTROLLER 67
Product Model	CTR67A
UPC Code	819137021426
Product and Mounting Dimensions - Controller
Total Dimensions	5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance	4.71 x 2.64 in. (12.0 x 6.7 cm)
Screw Hole Size	Ø 0.119 in (Ø 0.3 cm)
Display Size	3.5 x 1.4 in. (9 x 3.5 cm)
Sensor Probe Length	144 in. (12 feet)
Product Performance and Technical Specs
Maximum Fans Controlled	2
Max Power Supported	10 W
Programming Temperatures	32 to 140°F
Operating Voltage	9 to 18V
Power	10 W
Current	0.1 A
Wall Adapter Input	100 to 240V AC
Operating Humidity	35 to 85% RH
Product Manual
Product Manual	PDF

AC Infinity - Controller 67, Temperature and Humidity Fan Controller
